Toyota Crown (CHINA)

2009-12 → 2015-01 · chassis GRS20#,UZS200 · catalogue 330220 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

50 part groups · 7 illustrations

Illustrations

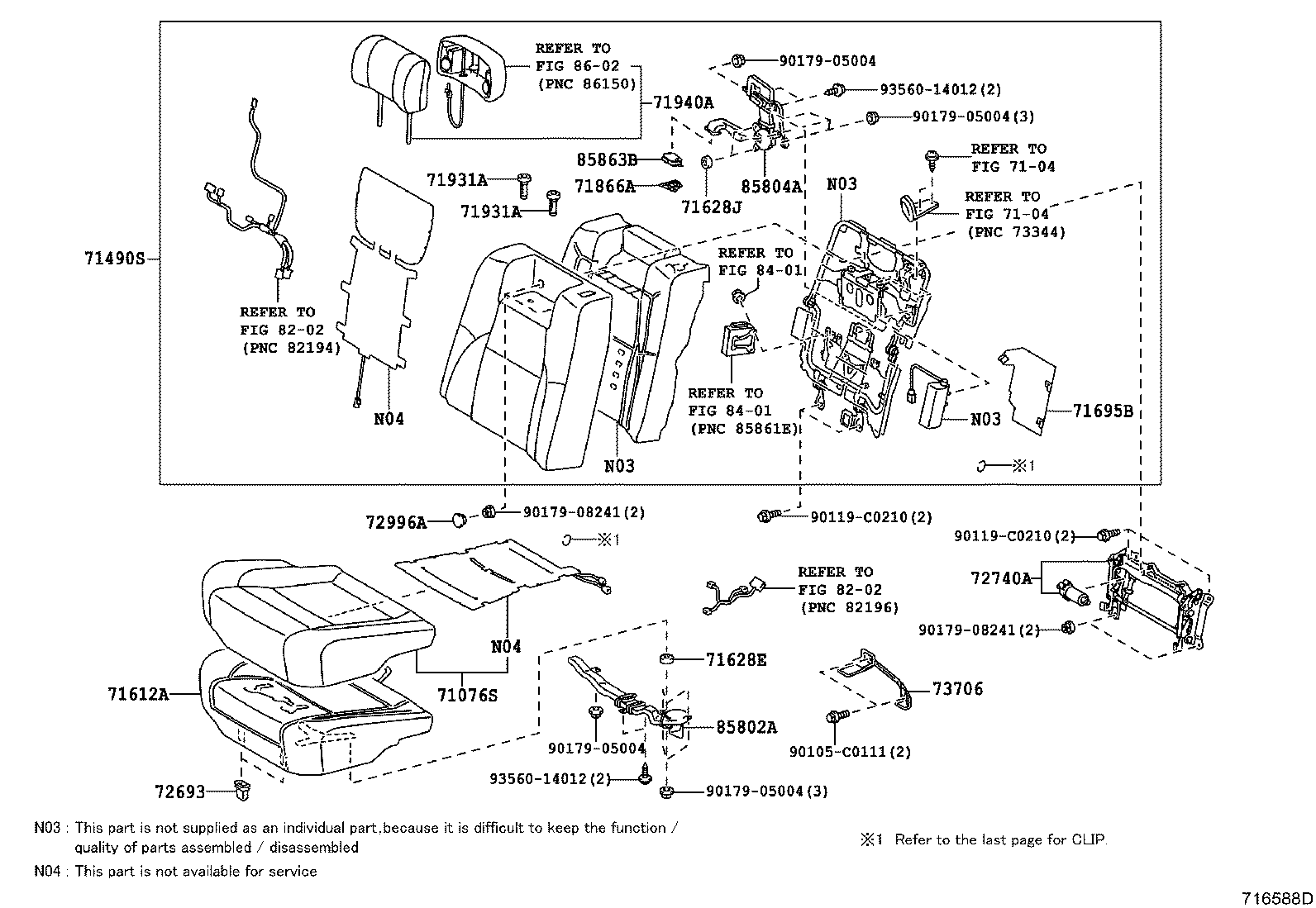

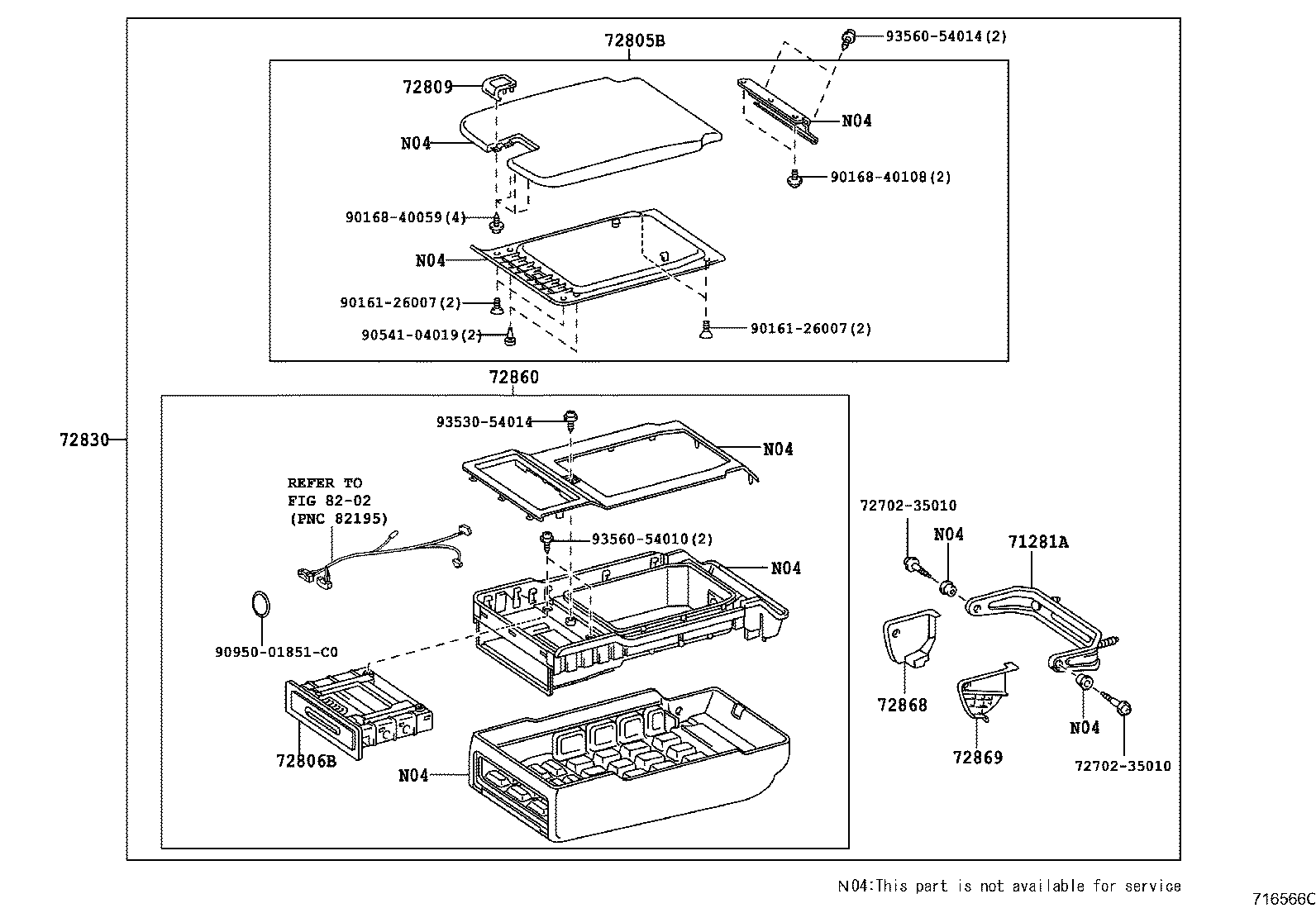

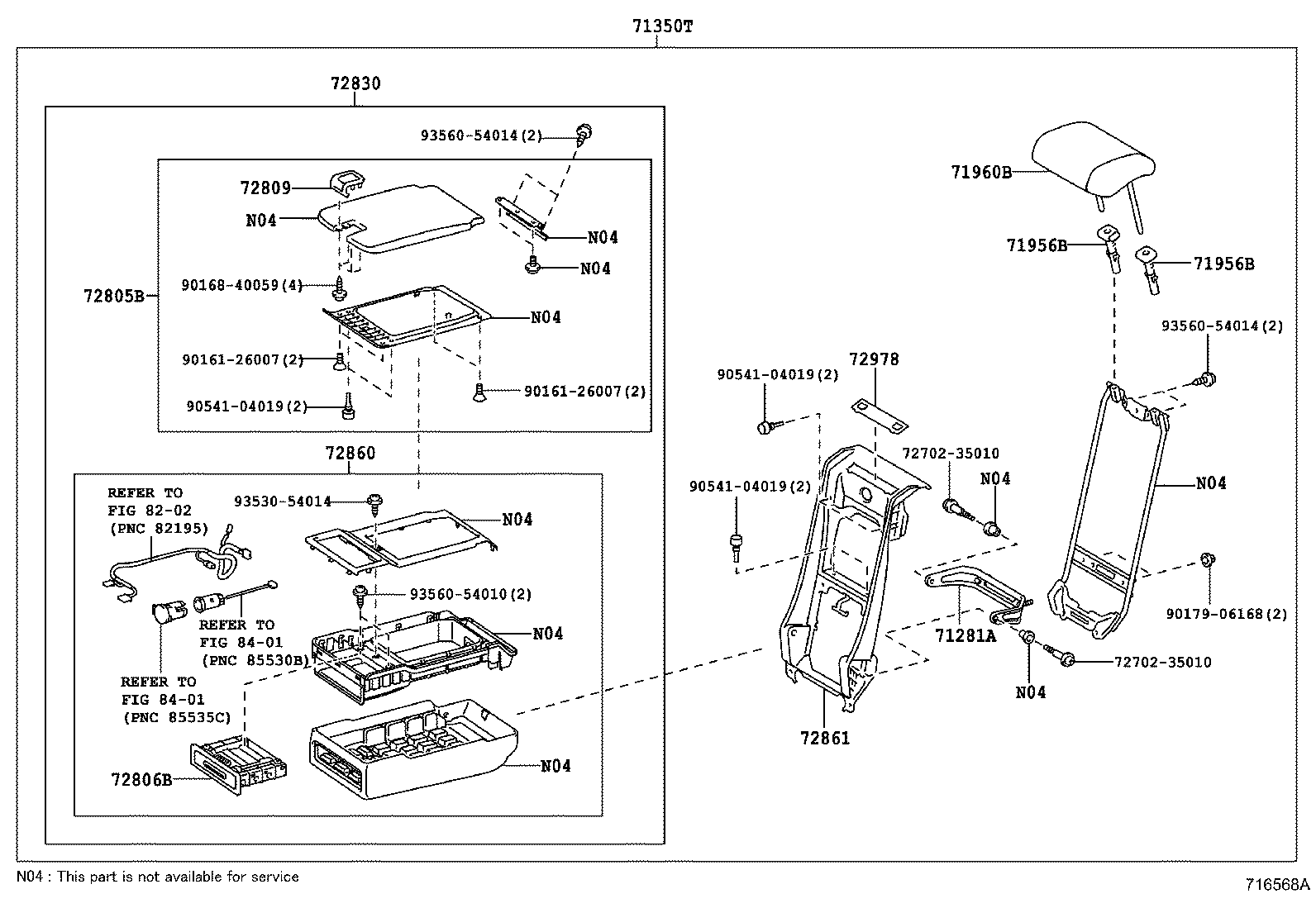

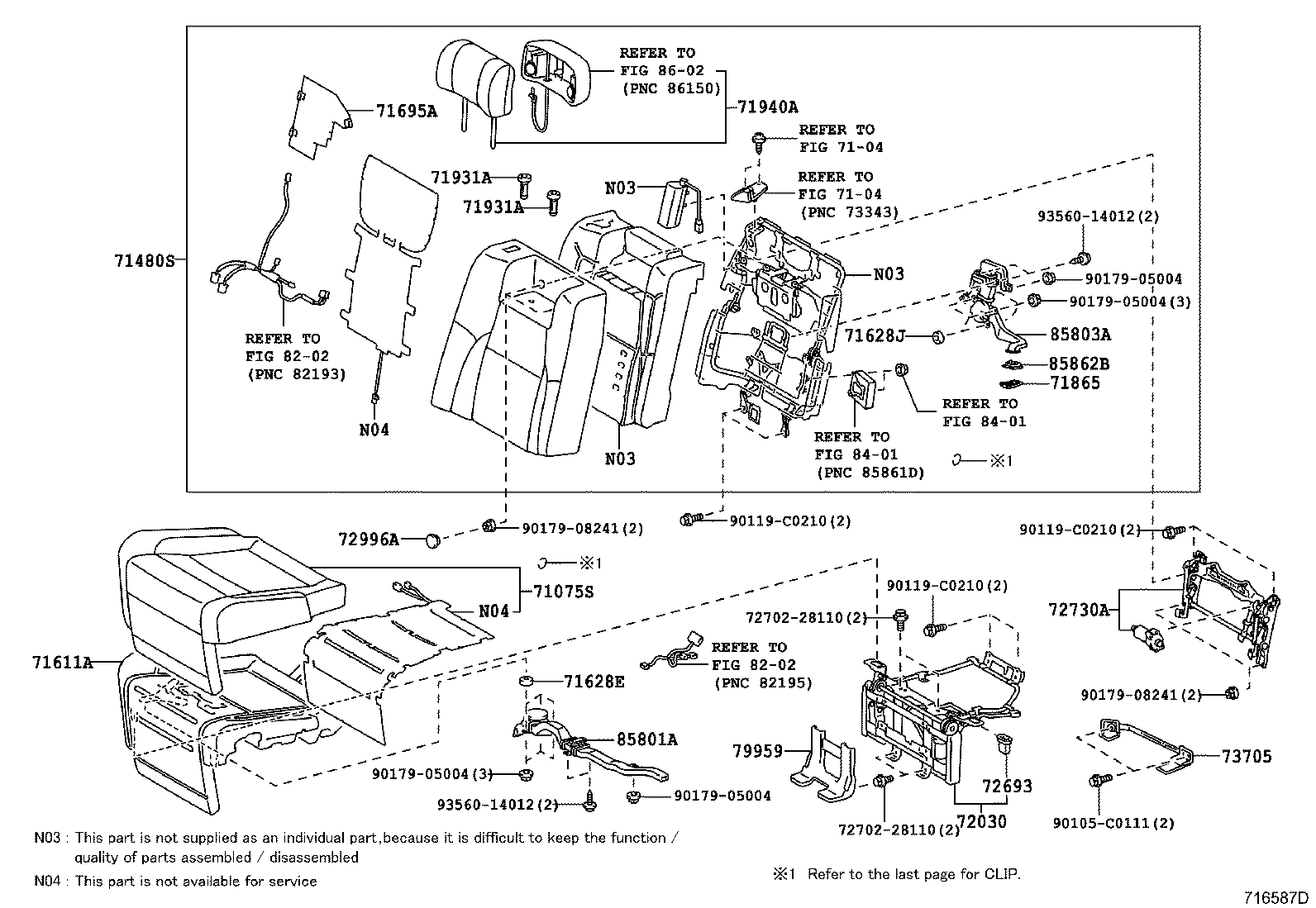

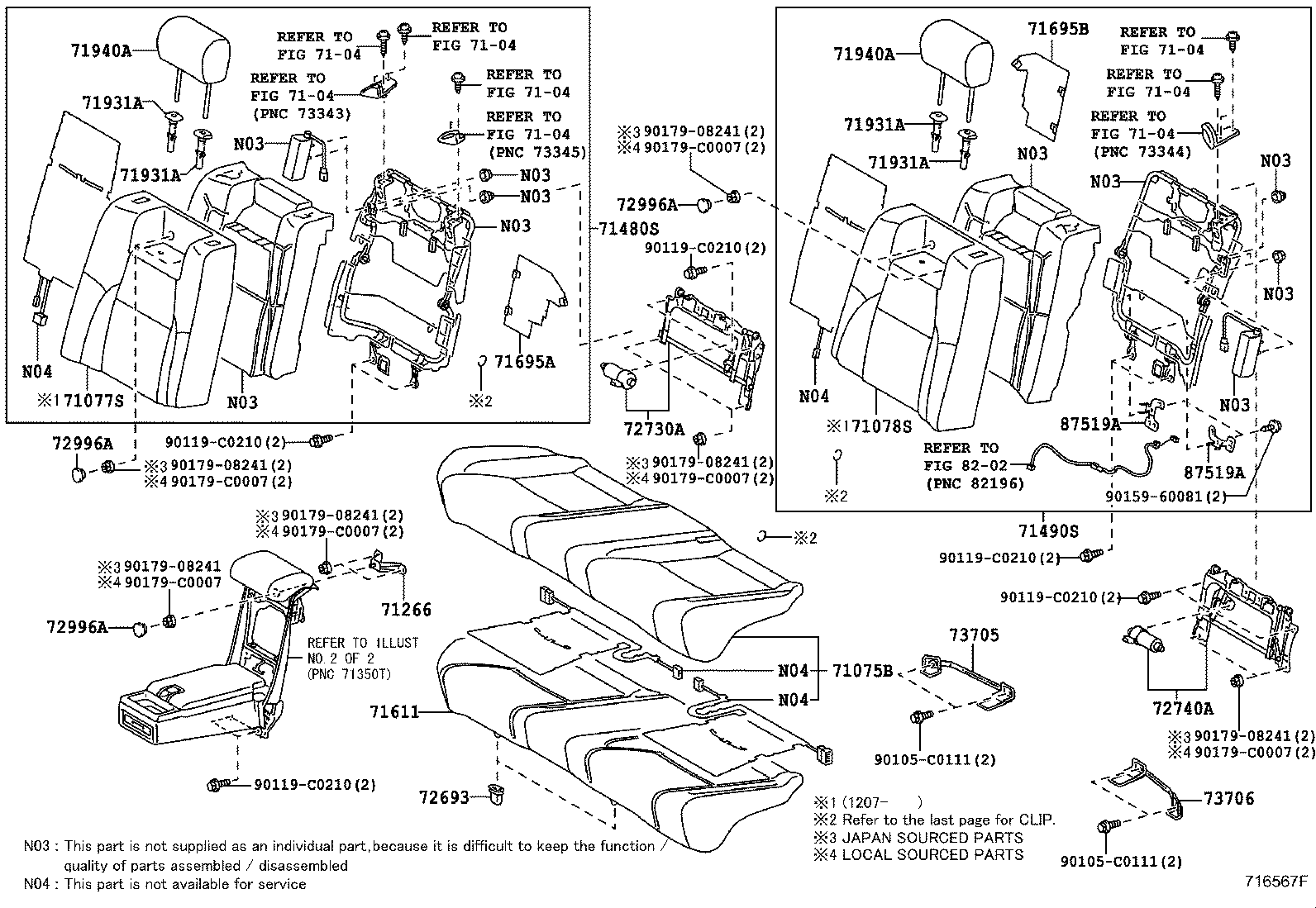

Figure 716565G 716565G 2009-12 → — Figure 716567F 716567F 2009-12 → — Figure 716566C 716566C 2009-12 → — Figure 716568A 716568A 2009-12 → — Figure 716587D 716587D 2009-12 → 2012-07 Figure 716588D 716588D 2009-12 → 2012-07 Figure 718166A 718166A 2009-12 → —

Part groups

PNCDescription
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71266 Gusset, Rear Seatback Frame
71281A Hinge, Rear Seat Center Armrest
71350T Back Assy, Center Seat
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71480S Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71611 Pad, Rear Seat Cushion
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71628E Spacer, Rear Seat Cushion
71628J Spacer, Rear Seatback
71695A Protector, Rear Seat, NO.1 RH
71695B Protector, Rear Seat, NO.1 LH
71865 Bezel, Rear Seat Cover, NO.1
71866A Bezel, Rear Seat Cover, NO.2
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71956B Support, Rear Seat Headrest
71960B Headrest Assy, Rear Seat, Center
72030 Adjuster Assy, Rear NO.1 Seat
72693 Hook, Rear Seat Cushion Lock
72730A Adjuster Assy, Rear Seat Reclining, RH
72740A Adjuster Assy, Rear Seat Reclining, LH
72805B Door Sub-assy, Rear Seat Center Armrest
72806B Holder Sub-assy, Rear Seat Center Armrest Cup
72809 Lock Sub-assy, Center Armrest
72830 Armrest Assy, Rear Seat, Center
72860 Box Assy, Rear Seat Center Armrest
72860A Box Assy, Rear Seat Center Armrest, NO.2
72861 Trim, Center Armrest Corner
72868 Cover, Center Armrest Hinge, RH
72869 Cover, Center Armrest Hinge, LH
72978 Cover, NO.2 Center Seatback
72996A Cover, Rear Seatback
73705 Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706 Bracket Sub-assy, Child Restraint Seat Anchor, LH
79959 Cover, RR Seat Leg
85801A Blower Sub-assy, Seat Cushion Climate, RH
85802A Blower Sub-assy, Seat Cushion Climate, LH
85803A Blower Sub-assy, Seatback Climate, RH
85804A Blower Sub-assy, Seatback Climate, LH
85862B Blower, Seat Climate Control, RH
85863B Blower, Seat Climate Control, LH
87519A Bracket, Seat Heater Connector Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
