Toyota Crown (CHINA)

2009-12 → 2015-01 · chassis GRS20#,UZS200 · catalogue 330220 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

3 part groups · 2 illustrations

Illustrations

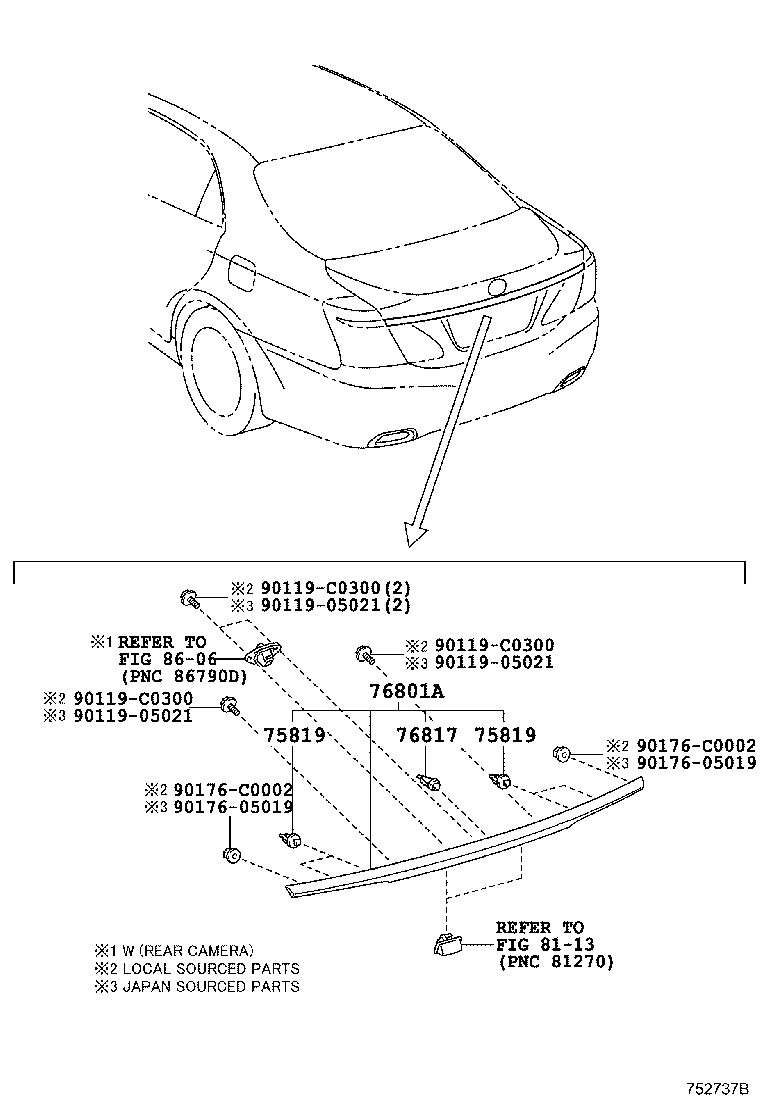

Figure 752284A 752284A 2009-12 → 2012-07 Figure 752737B 752737B 2012-07 → —

Part groups

PNCDescription
75819 Clip, Luggage Compartment Door Moulding
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76817 Clip, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
