Toyota Crown (CHINA)

2009-12 → 2015-01 · chassis GRS20#,UZS200 · catalogue 330220 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

89 part groups · 13 illustrations

Illustrations

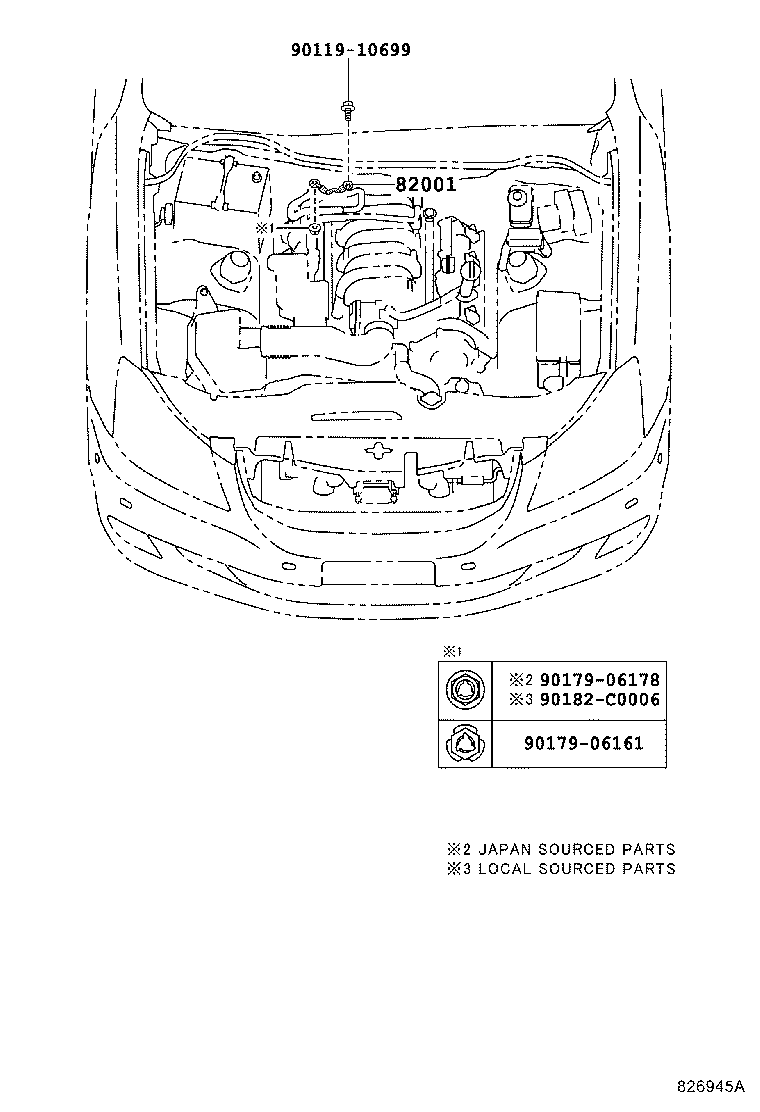

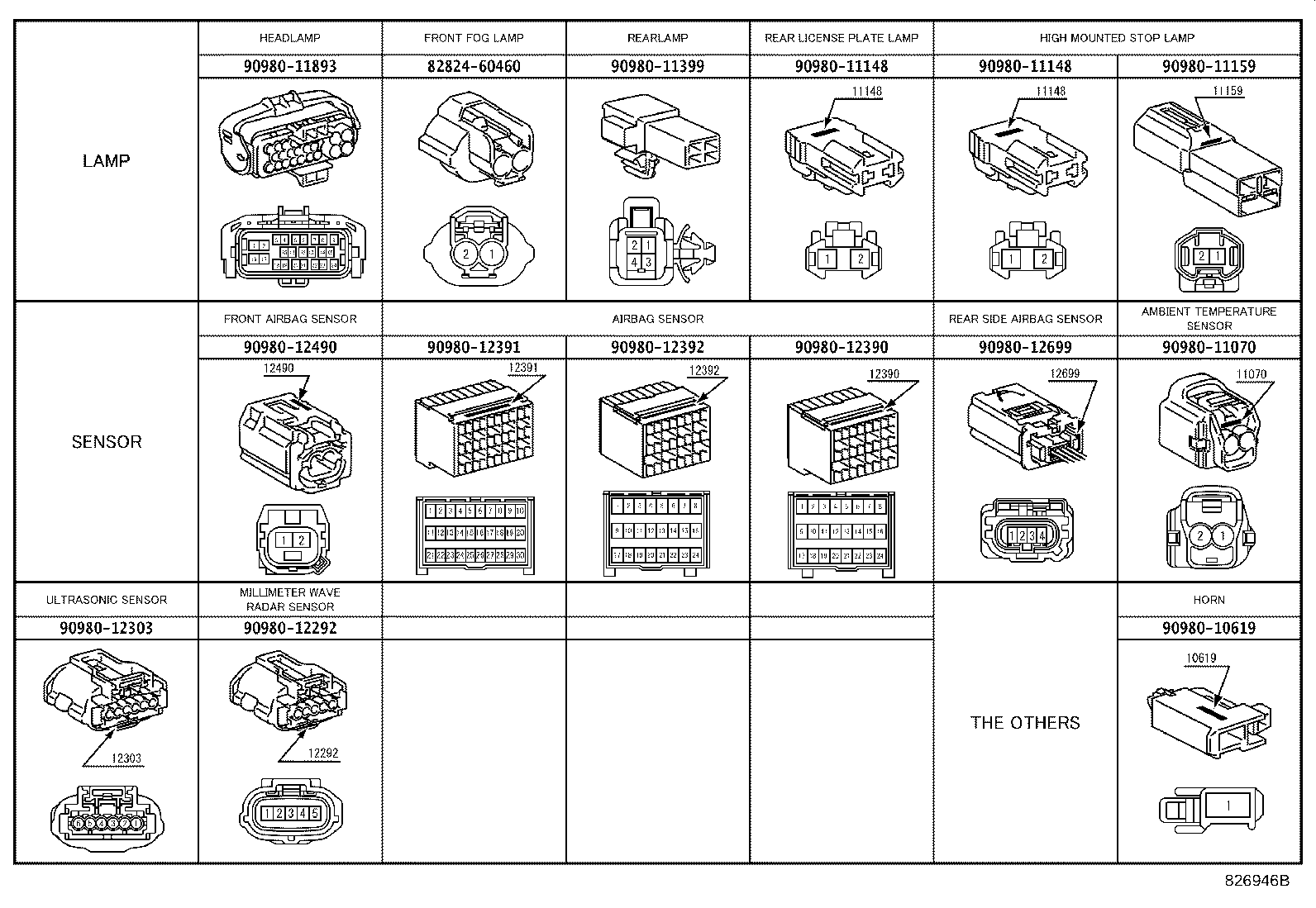

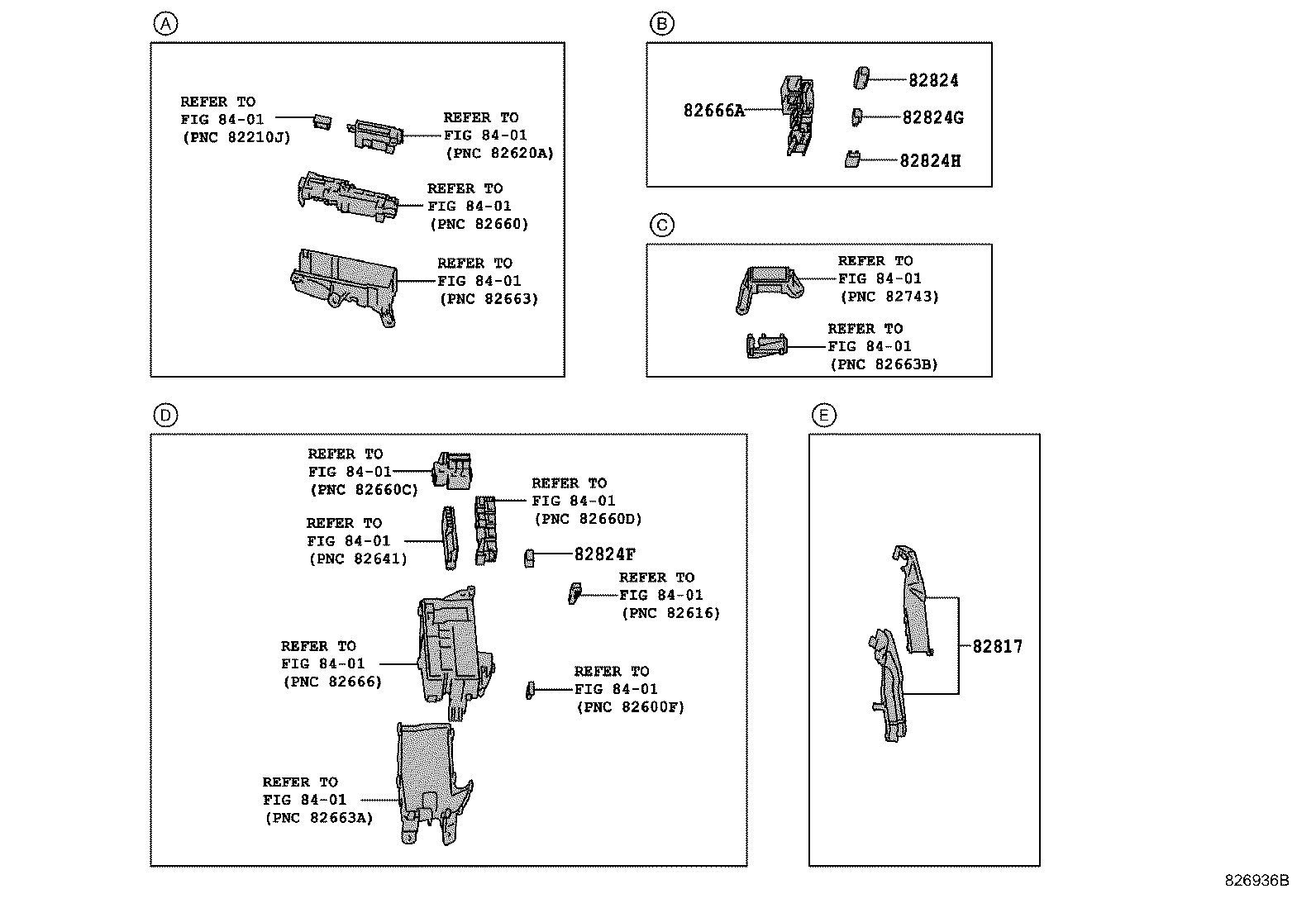

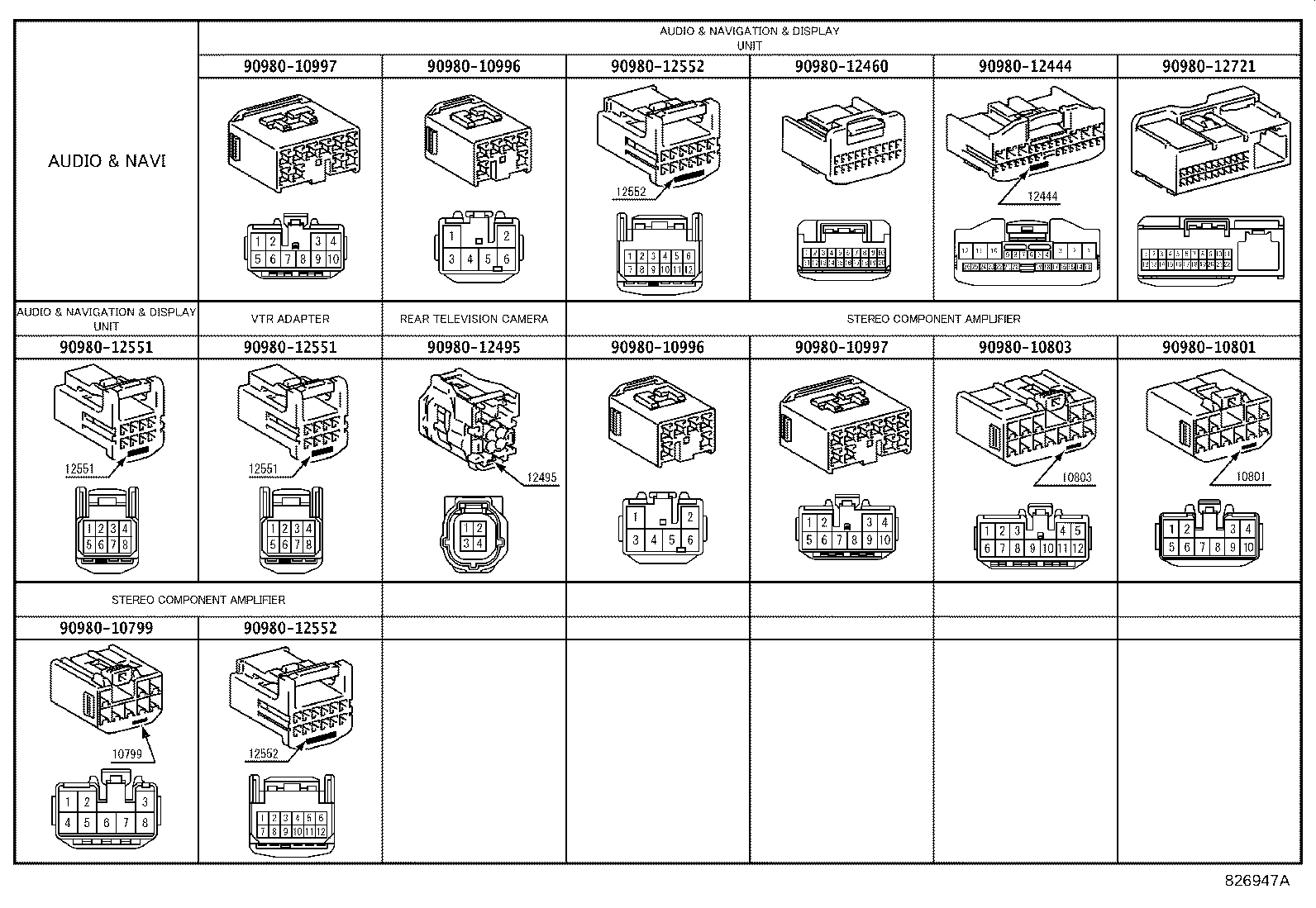

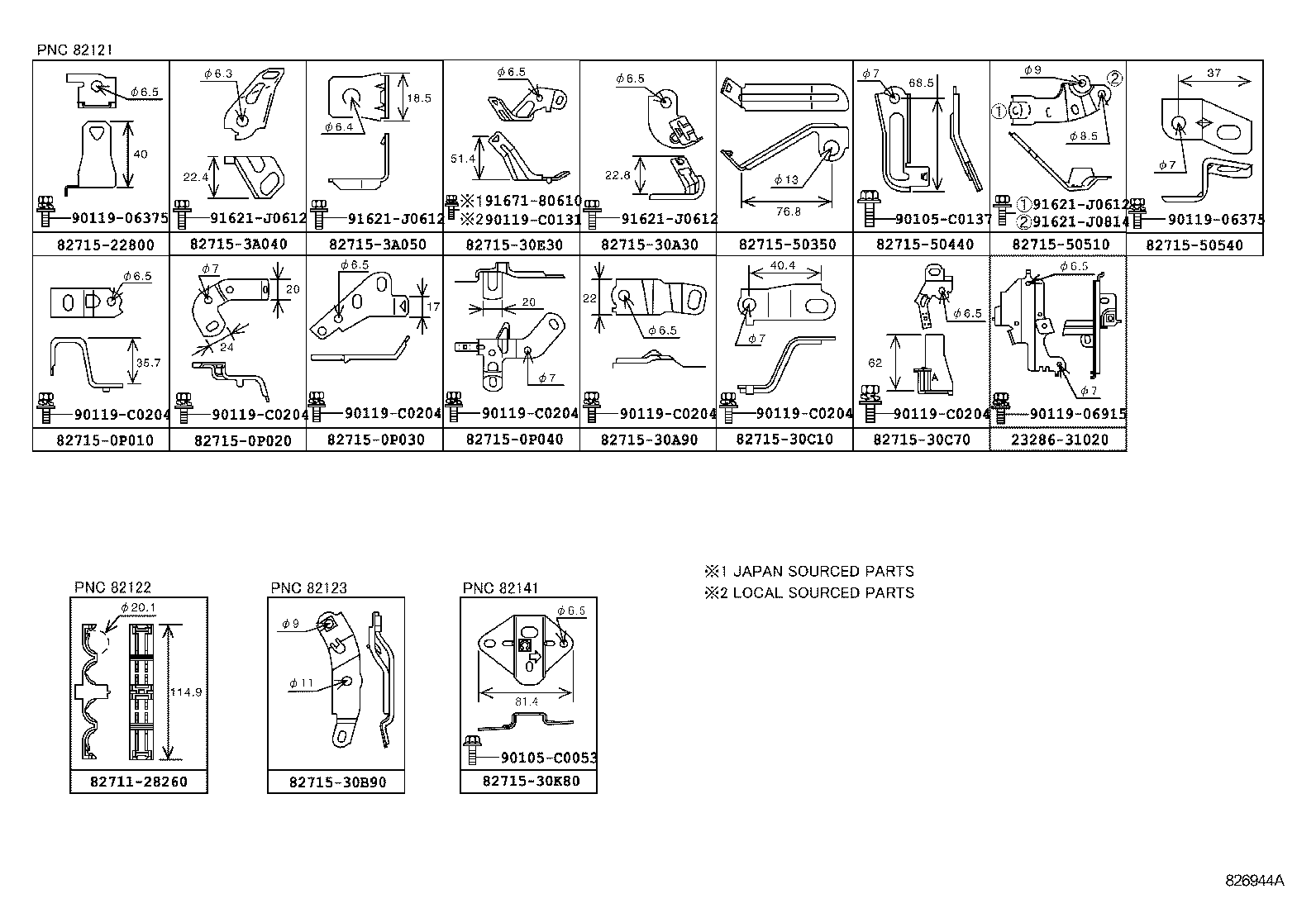

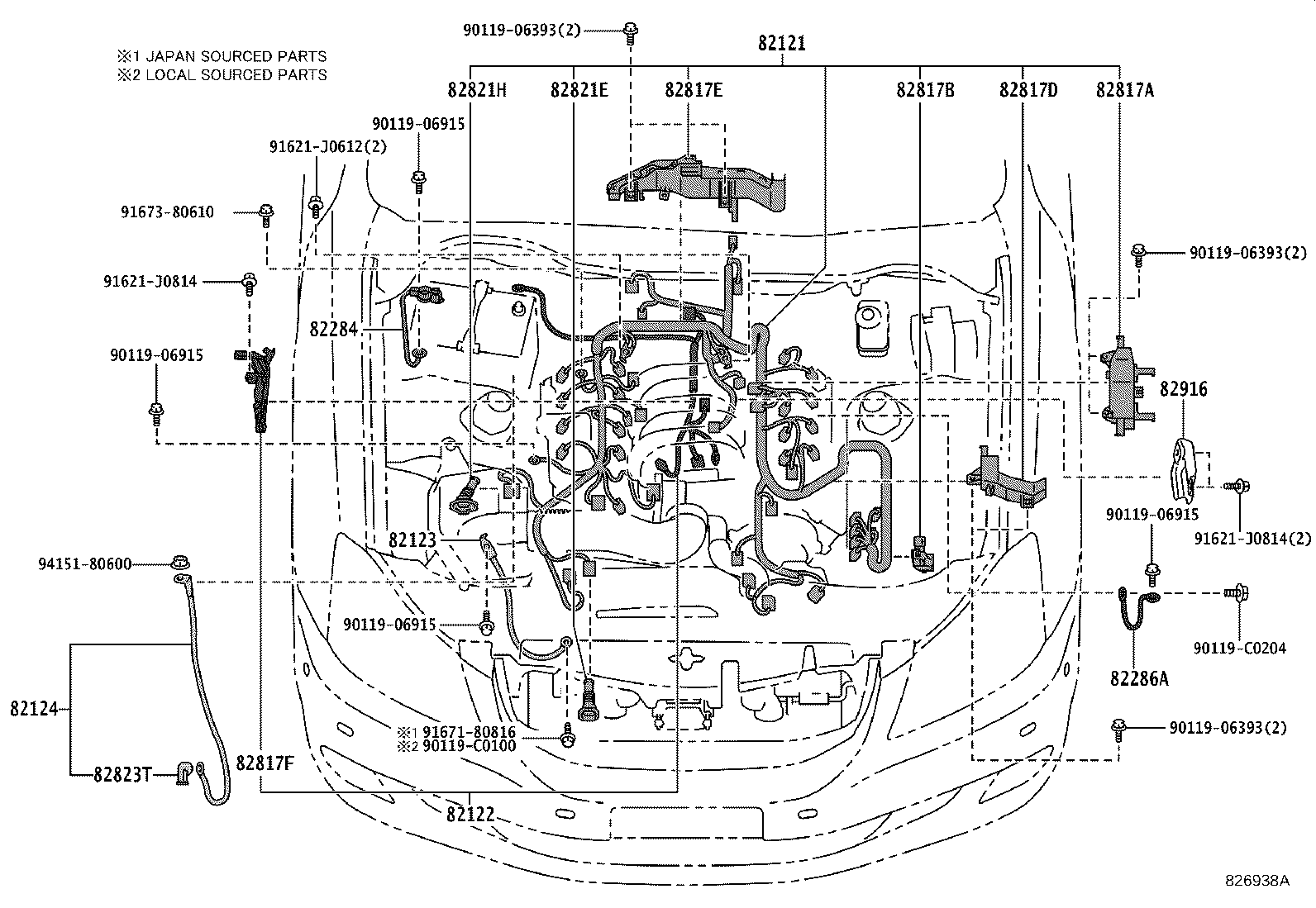

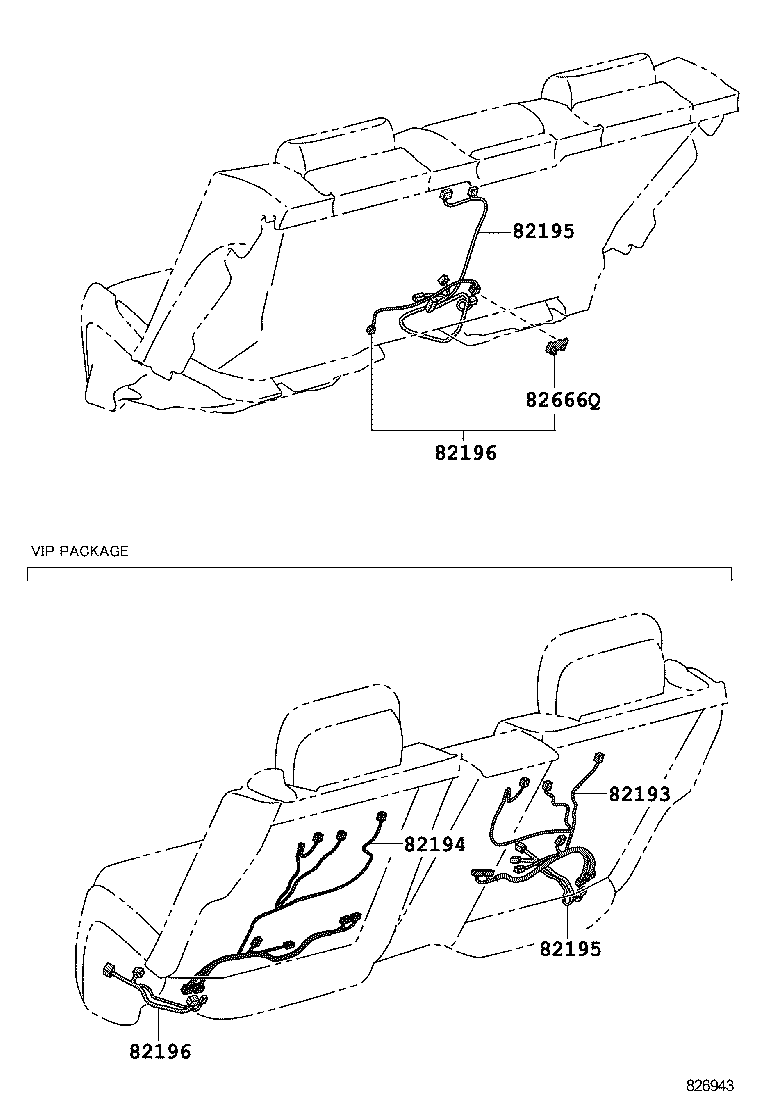

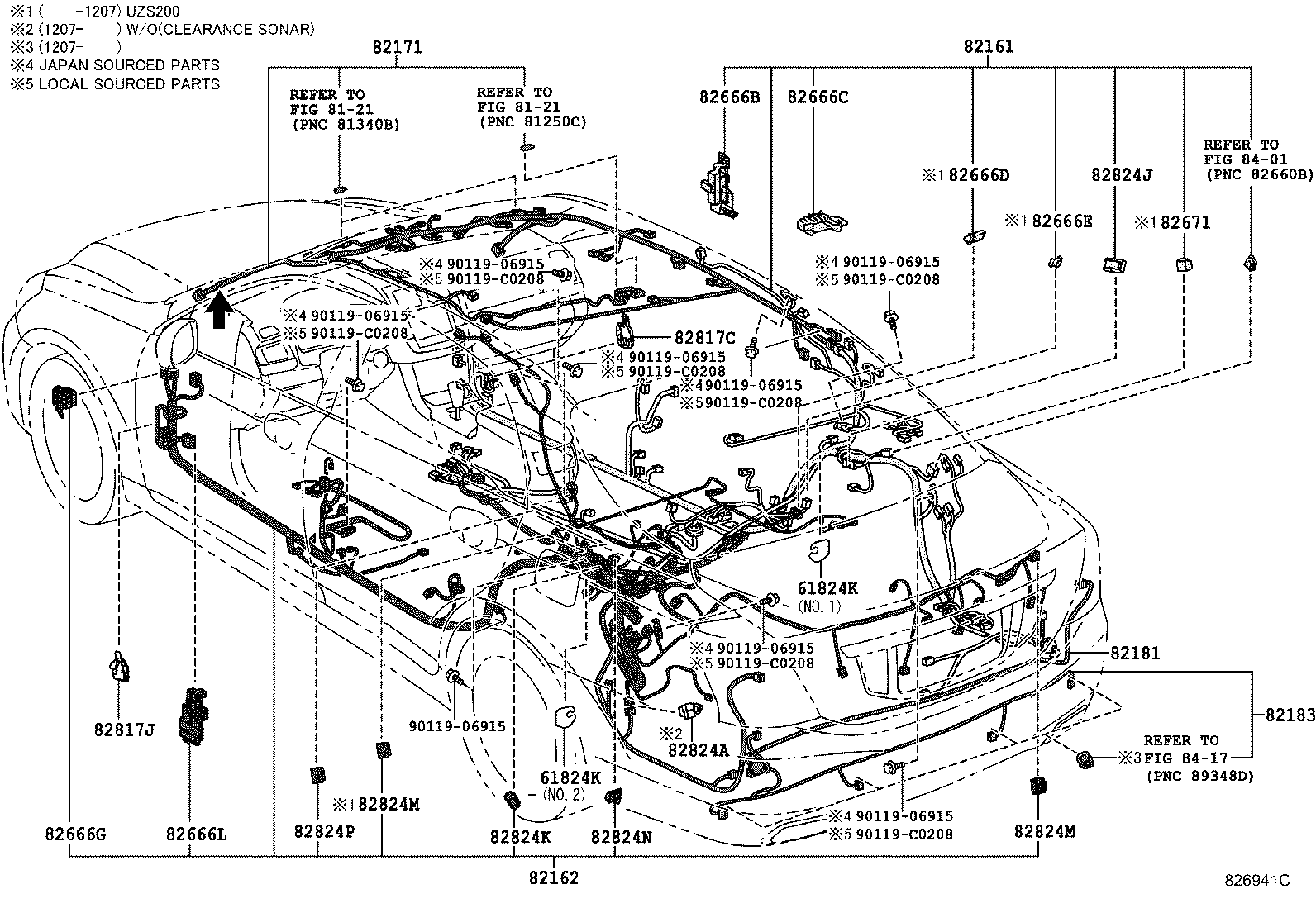

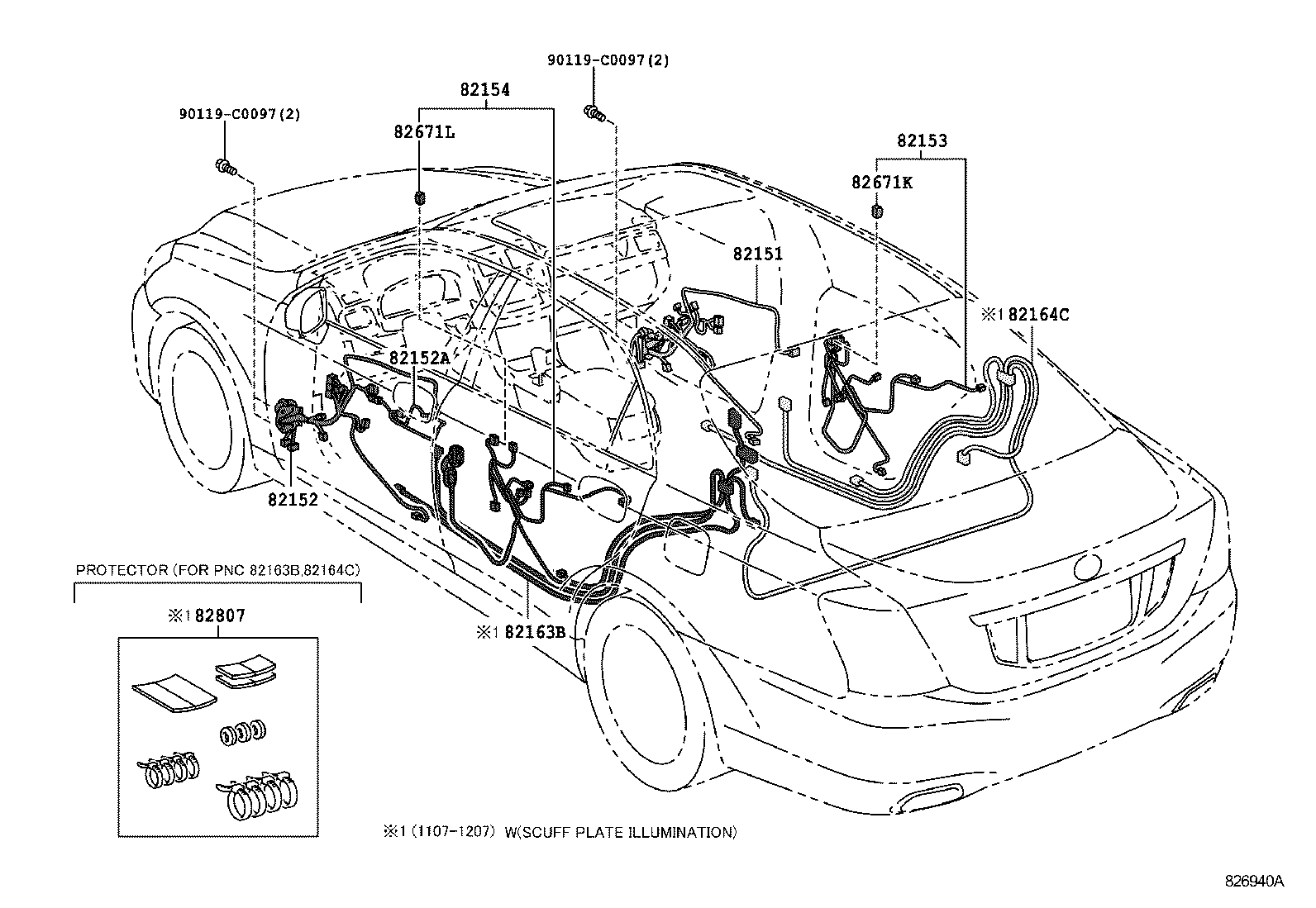

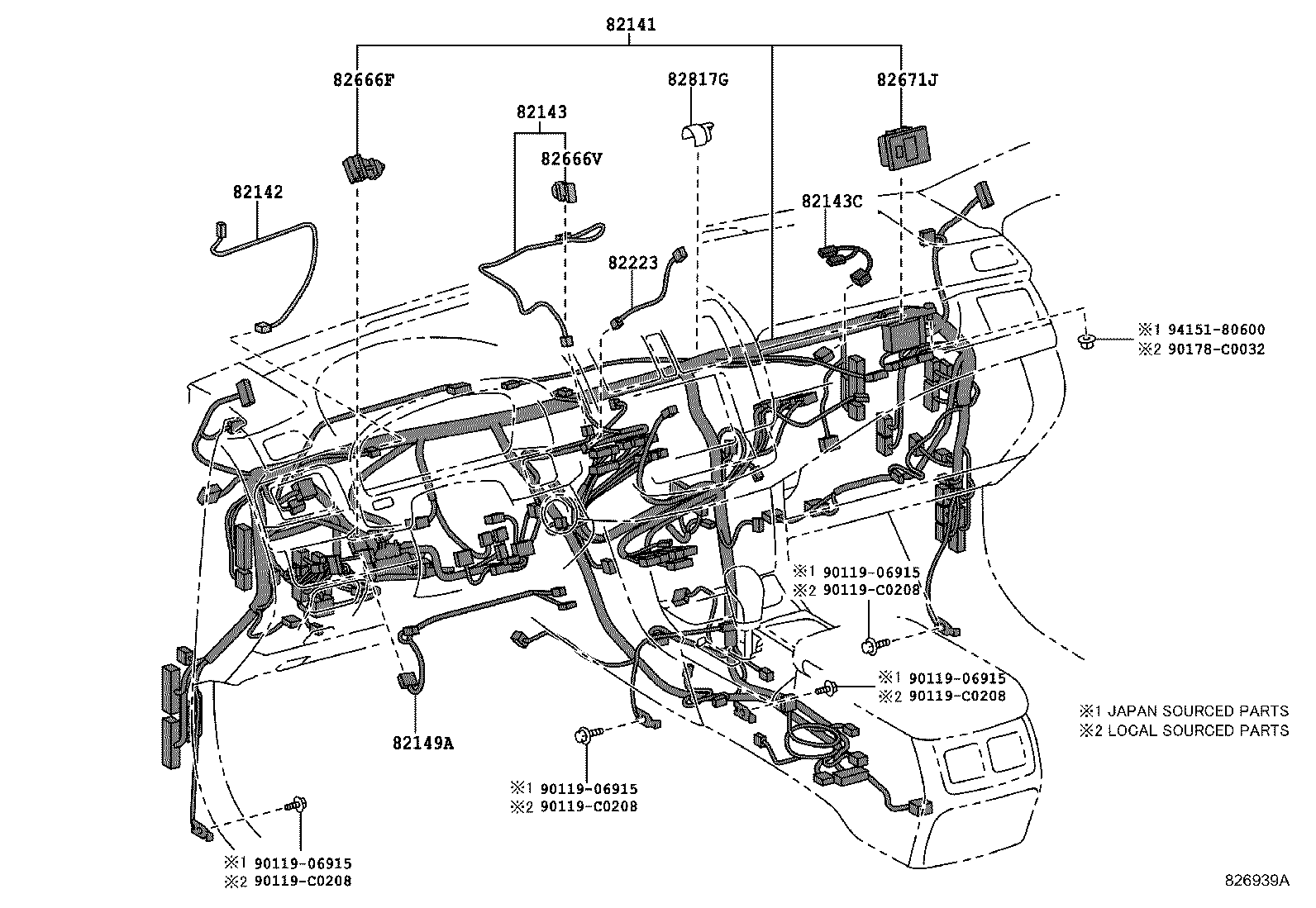

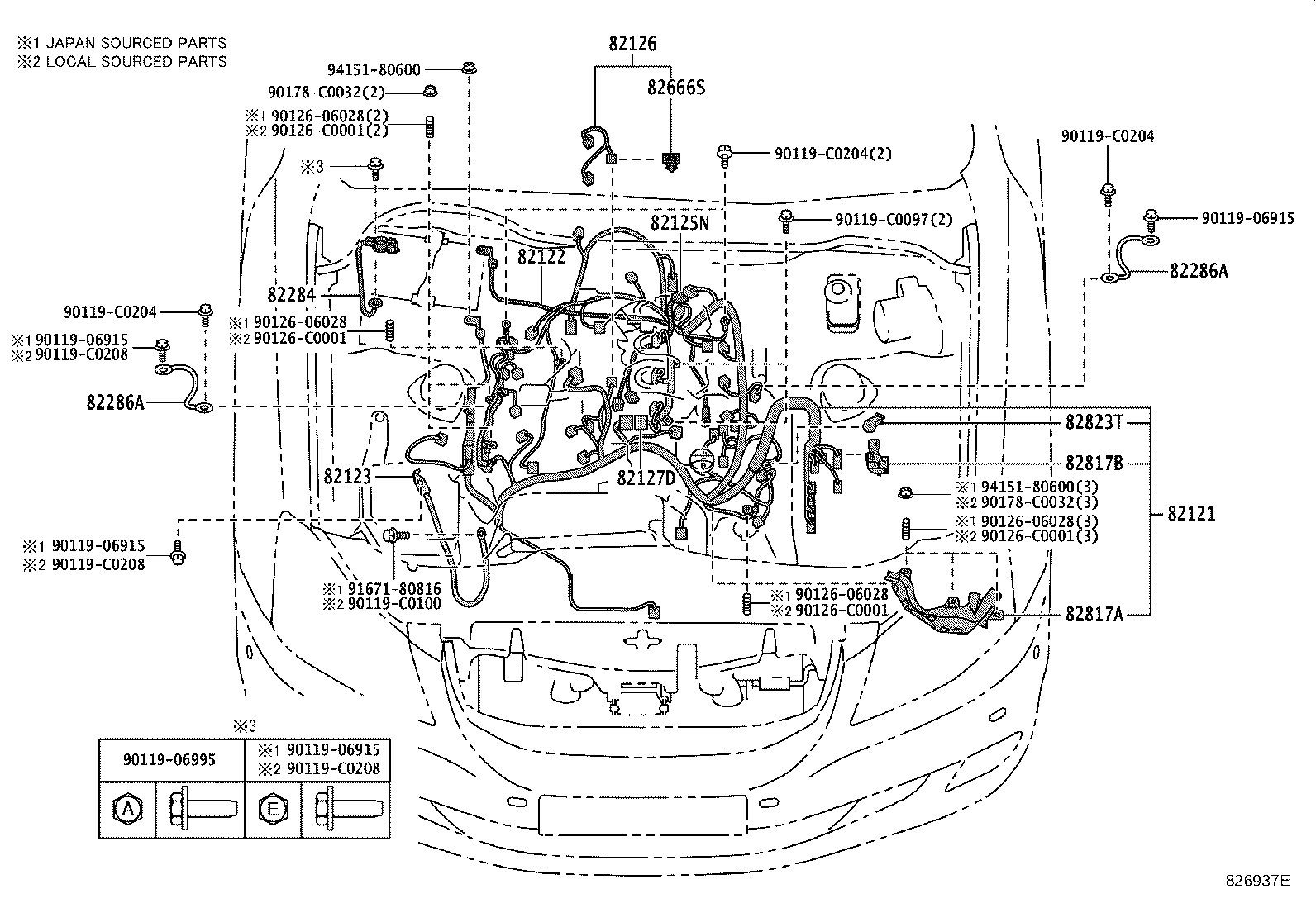

Figure 826935D 826935D 2009-12 → — Figure 826936B 826936B 2009-12 → — Figure 826937E 826937E 2009-12 → — Figure 826938A 826938A 2009-12 → — Figure 826939A 826939A 2009-12 → — Figure 826940A 826940A 2009-12 → — Figure 826941C 826941C 2009-12 → — Figure 826942 826942 2009-12 → — Figure 826943 826943 2009-12 → — Figure 826944A 826944A 2009-12 → — Figure 826945A 826945A 2009-12 → — Figure 826946B 826946B 2009-12 → — Figure 826947A 826947A 2009-12 → —

Part groups

PNCDescription
61824K Plate, Noise Control, NO.1
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125N Wire, Engine, NO.5
82126 Wire, Engine
82127D Wire, Engine, NO.7
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82143C Wire, Instrument Panel, NO.3
82149A Wire, Instrument Panel, NO.5
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163B Wire, Floor NO.5
82164C Wire, Floor, NO.4
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82183 Wire, Luggage Room, NO.3
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
82195 Wire, Rear Seat, RH NO.2
82196 Wire, Rear Seat, LH NO.2
82223 Wire, Switch
82284 Wire, Earth
82286A Wire, Earth, NO.2
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666V Holder, Connector NO.15
82671 Block, Junction
82671J Block, Junction, NO.2
82671K Block, Junction, NO.3
82671L Block, Junction, NO.4
82671M Block, Junction, NO.5
82671N Block, Junction, NO.6
82807 Protector Set, Wiring Harness
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824H Connector, Wiring Harness
82824J Connector, Wiring Harness
82824K Connector, Wiring Harness
82824M Connector, Wiring Harness
82824N Connector, Wiring Harness
82824P Connector, Wiring Harness
82824S Connector, Wiring Harness
82824W Connector, Wiring Harness
82916 Insulator, Wiring Harness Heat, NO.2
86011G Condenser
89656A Wire, Power Steering Earth
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
