Toyota Crown (CHINA)

2009-12 → 2015-01 · chassis GRS20#,UZS200 · catalogue 330220 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

10 part groups · 2 illustrations

Illustrations

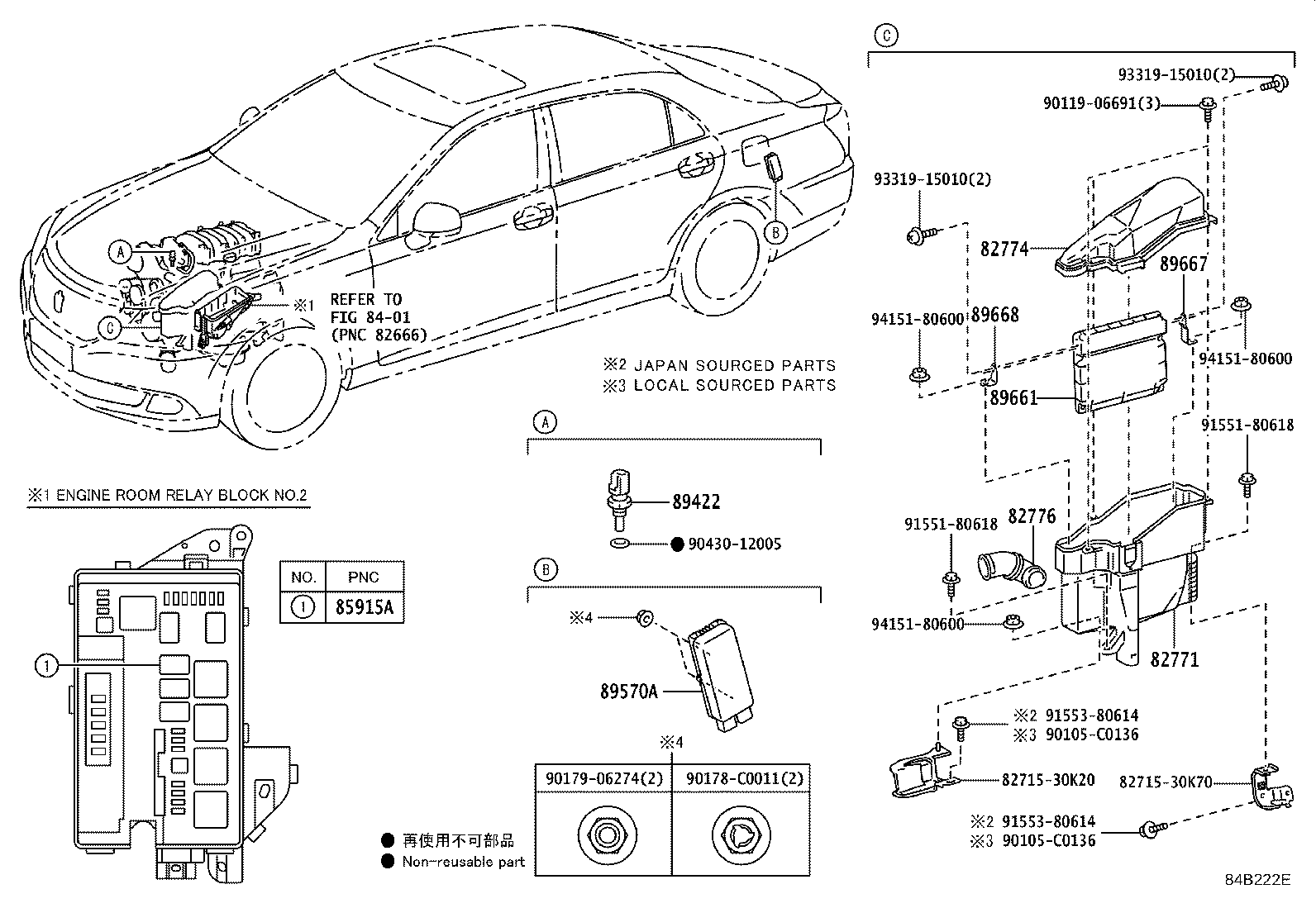

Figure 84B223F 84B223F 2009-12 → — Figure 84B222E 84B222E 2009-12 → 2012-07

Part groups

PNCDescription
28380 Relay Assy, Fuel Pump
82771 Box, Engine Room Ecu
82774 Cover, Engine Room Ecu
82776 Duct, Engine Room Ecu Outlet
85915A Relay, Main
89422 Sensor, Water Temperature (FOR E.F.I.)
89570A Computer Assy, Fuel Pump Control
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
