Toyota Crown (CHINA)

2009-12 → 2015-01 · chassis GRS20#,UZS200 · catalogue 330220 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

6 part groups · 2 illustrations

Illustrations

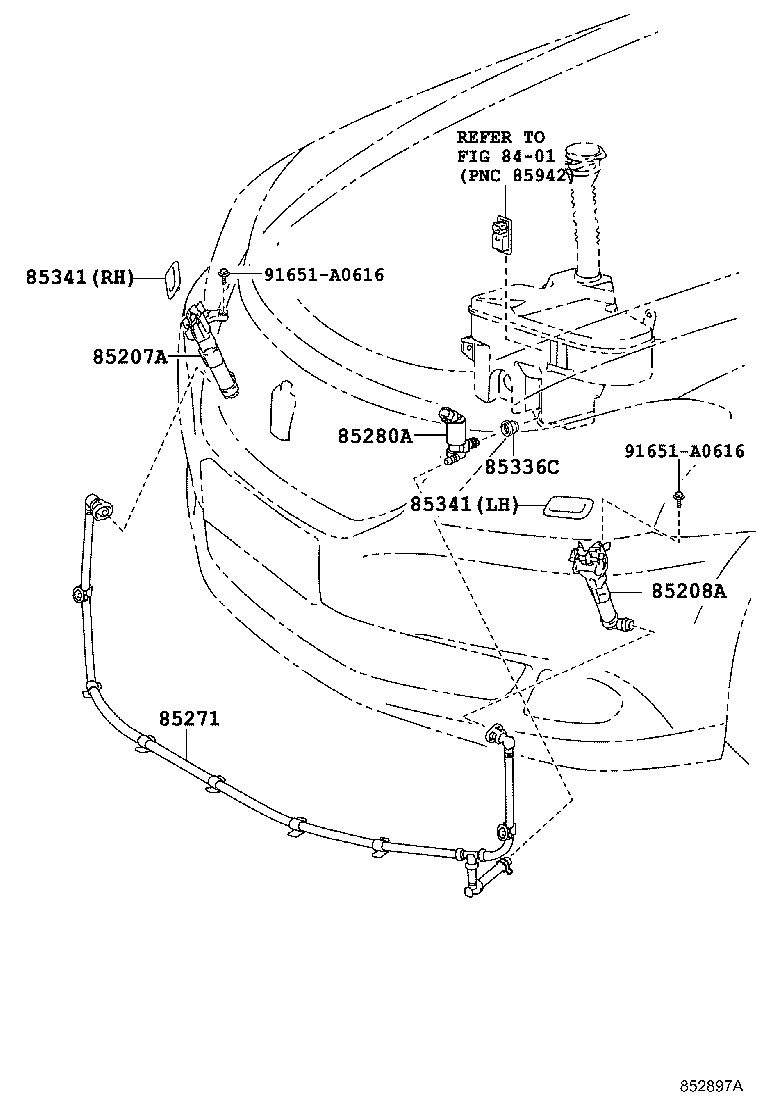

Figure 852432D 852432D 2009-12 → 2012-07 Figure 852897A 852897A 2012-07 → —

Part groups

PNCDescription
85207A Actuator Sub-assy, Headlamp Washer, RH
85208A Actuator Sub-assy, Headlamp Washer, LH
85271 Hose, Headlamp Cleaner, NO.1
85280A Motor And Pump Assy, Headlamp Cleaner
85336C Packing, Headlamp Cleaner Motor
85341 Nozzle, Headlamp Cleaner Washer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
