Toyota Crown (CHINA)

2009-12 → 2015-01 · chassis GRS20#,UZS200 · catalogue 330220 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

11 part groups · 2 illustrations

Illustrations

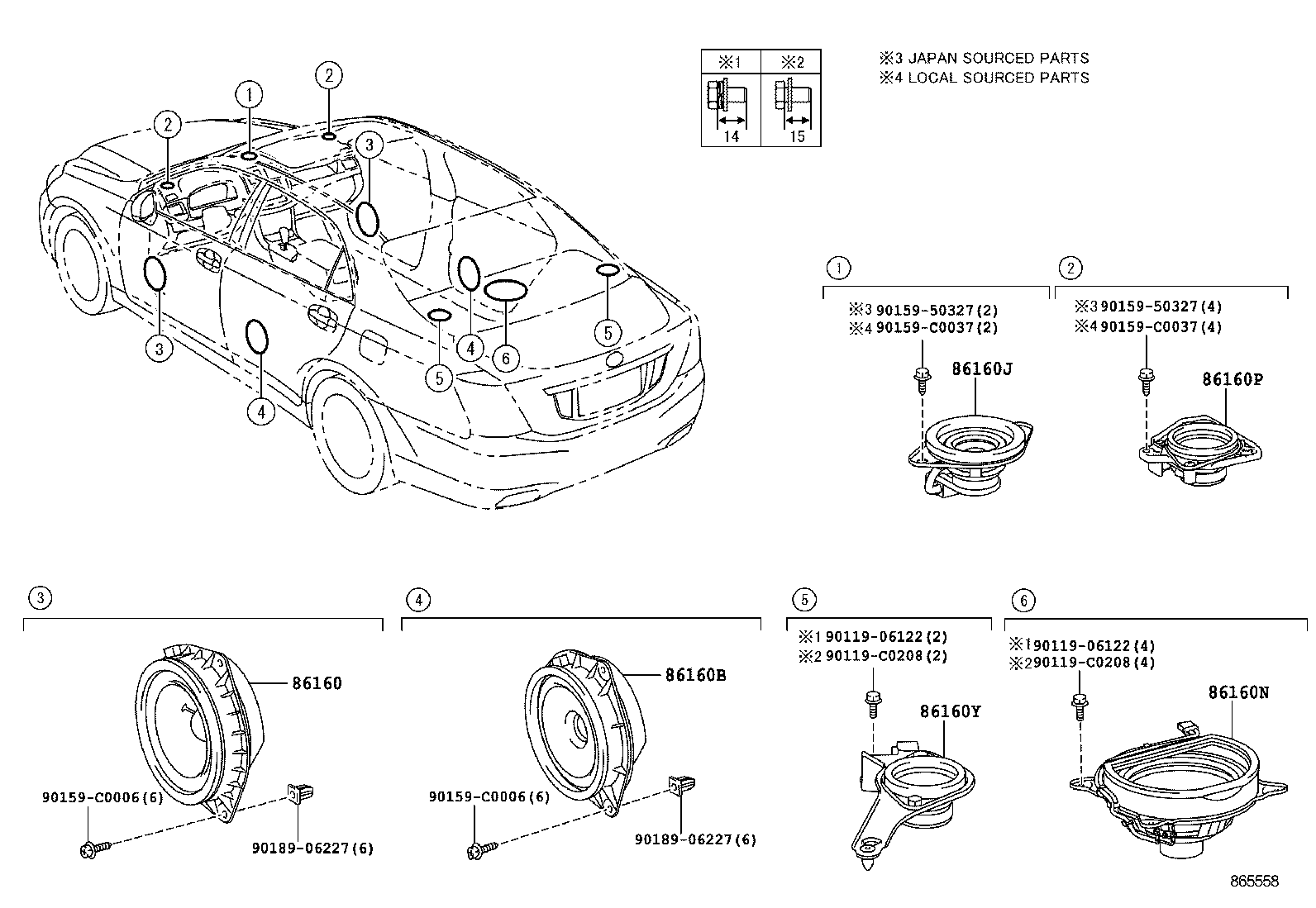

Figure 864129B 864129B 2009-12 → 2012-07 Figure 865558 865558 2012-07 → —

Part groups

PNCDescription
86150 Speaker Assy, W/Box, NO.1
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160J Speaker Assy, Front NO.3
86160L Speaker Assy, Front NO.4
86160N Speaker Assy, Stereo Component, Rear
86160P Speaker Assy, Front NO.2
86160Q Speaker Assy, Roof
86160Y Speaker Assy, Rear NO.2
86160Z Speaker Assy, Rear NO.3
86269A Grille, Speaker
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
