Toyota Crown (CHINA)
2009-12 → 2015-01 · chassis GRS20#,UZS200 · catalogue 330220 · General
Supported model
Data version 2015-01
Heating & Air Conditioning - Control & Air Duct
29 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

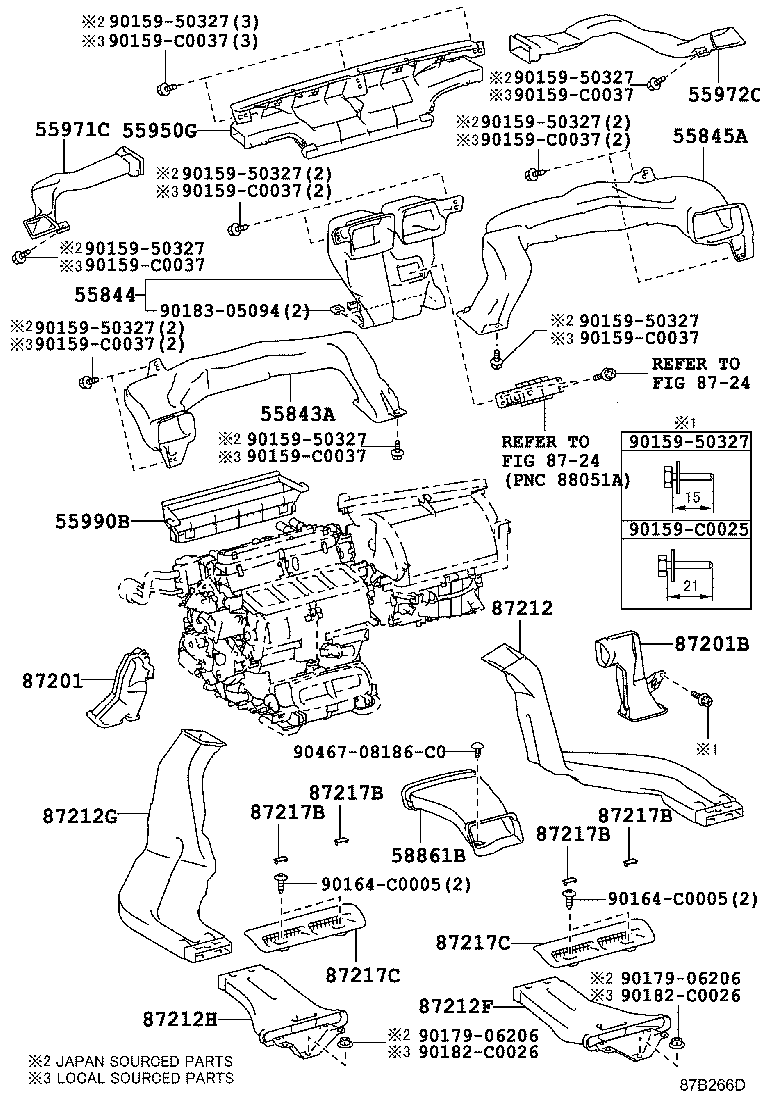

| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55950G | Nozzle Assy, Defroster |
| 55971C | Duct, Side Defroster Nozzle, NO.1 |
| 55972C | Duct, Side Defroster Nozzle, NO.2 |
| 55990B | Nozzle Assy, Defroster, Lower |
| 58861B | Duct, Console Box, NO.1 |

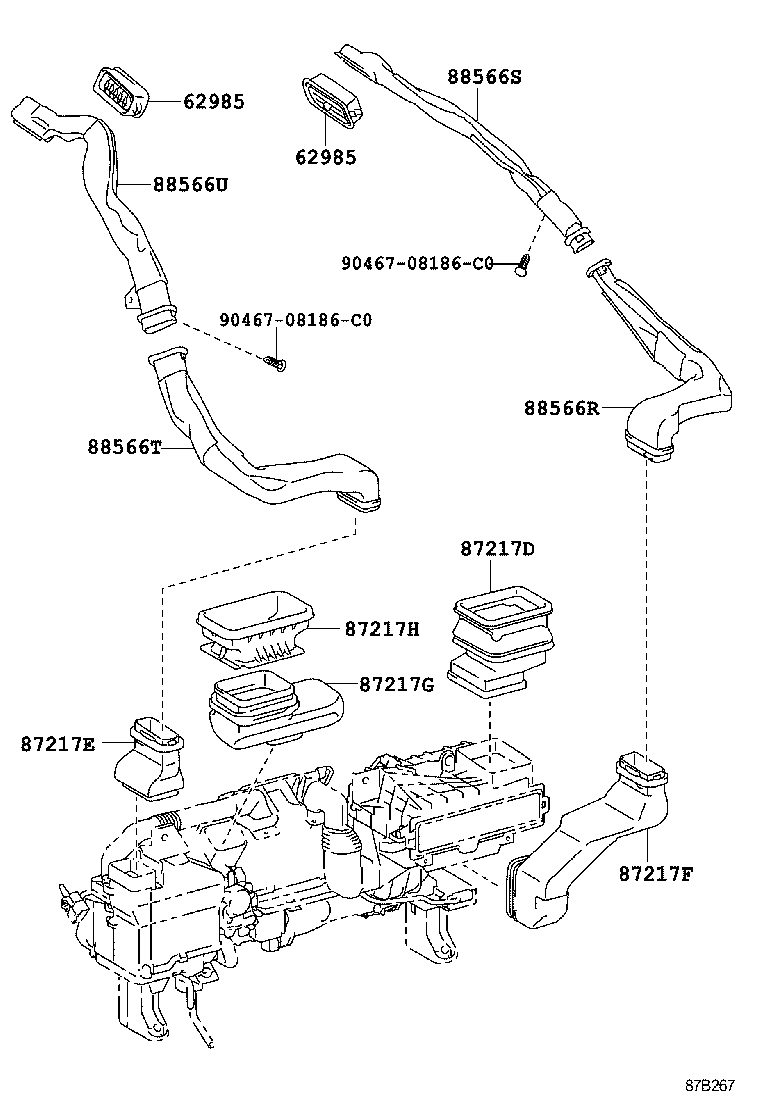

| 62985 | Register, Roof Side Air Outlet |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87201B | Duct Sub-assy, Air, NO.2 |
| 87212 | Duct, Air, Rear NO.1 |
| 87212F | Duct, Air, Rear NO.2 |
| 87212G | Duct, Air, Rear NO.3 |
| 87212H | Duct, Air, Rear NO.4 |
| 87217B | Plug, Air Duct |
| 87217C | Duct, Air, Rear NO.5 |
| 87217D | Duct, Air, Rear Side NO.1 |
| 87217E | Duct, Air, Rear Side NO.2 |
| 87217F | Duct, Air, Rear Side NO.3 |
| 87217G | Duct, Air, Rear Side NO.4 |
| 87217H | Duct, Air, Rear Side NO.5 |
| 88566R | Duct, Air, Rear Roof NO.1 |
| 88566S | Duct, Air, Rear Roof NO.2 |
| 88566T | Duct, Air, Rear Roof NO.3 |
| 88566U | Duct, Air, Rear Roof NO.4 |

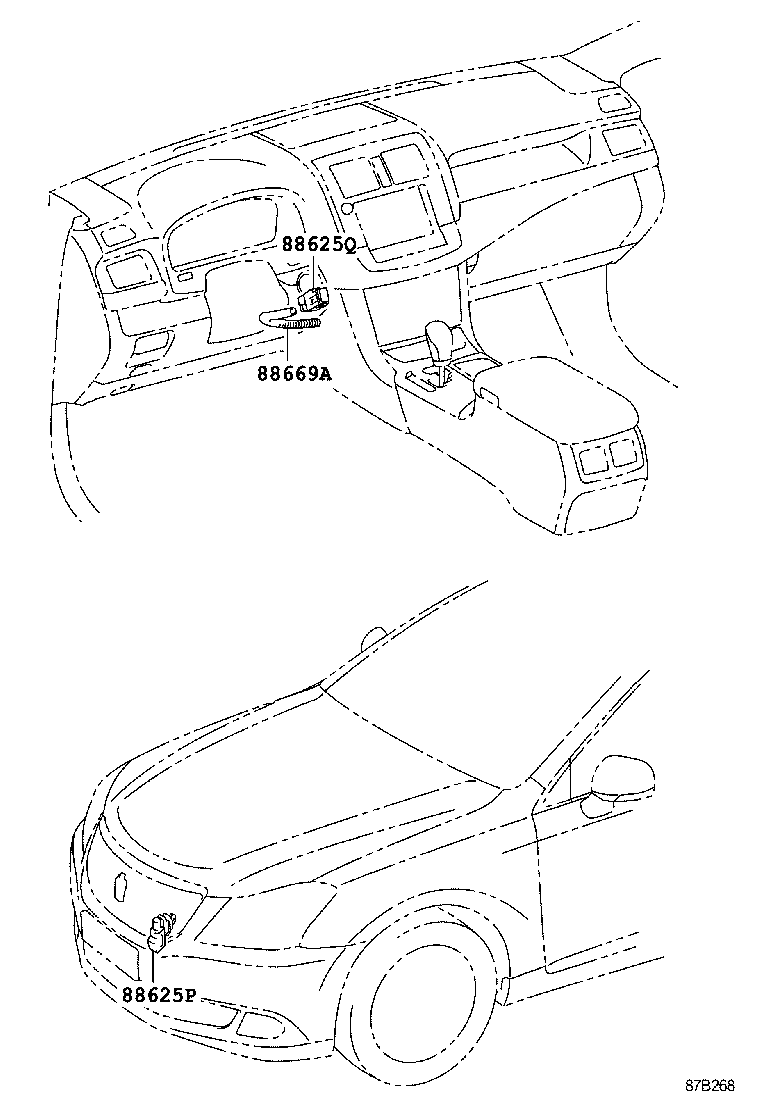

| 88625P | Thermistor, Cooler (AMBIENT TEMP. SENSOR) |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88669A | Hose (FOR COOLER THERMISTOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
