Toyota Crown (CHINA)

2009-12 → 2015-01 · chassis GRS20#,UZS200 · catalogue 330220 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

14 part groups · 6 illustrations

Illustrations

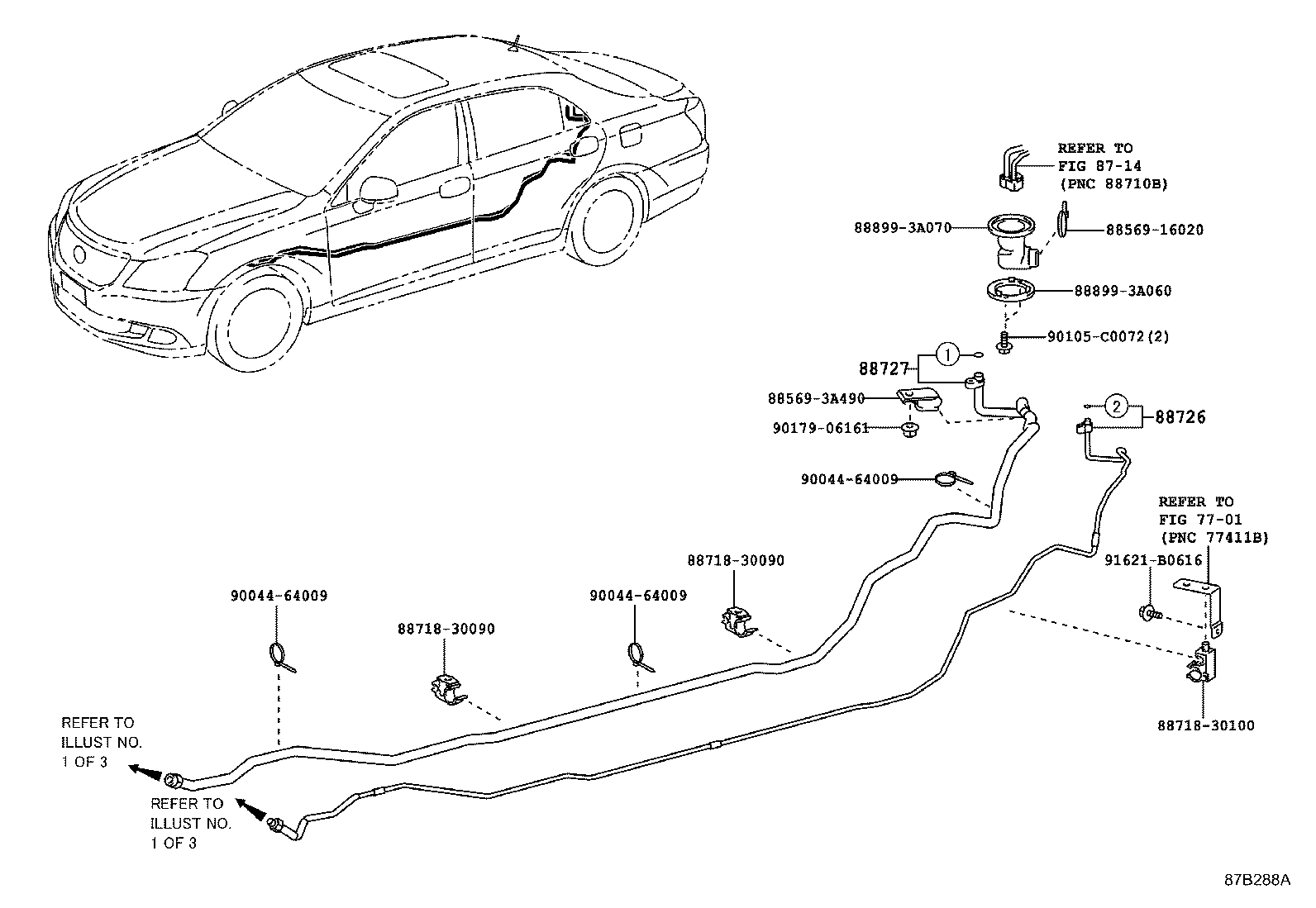

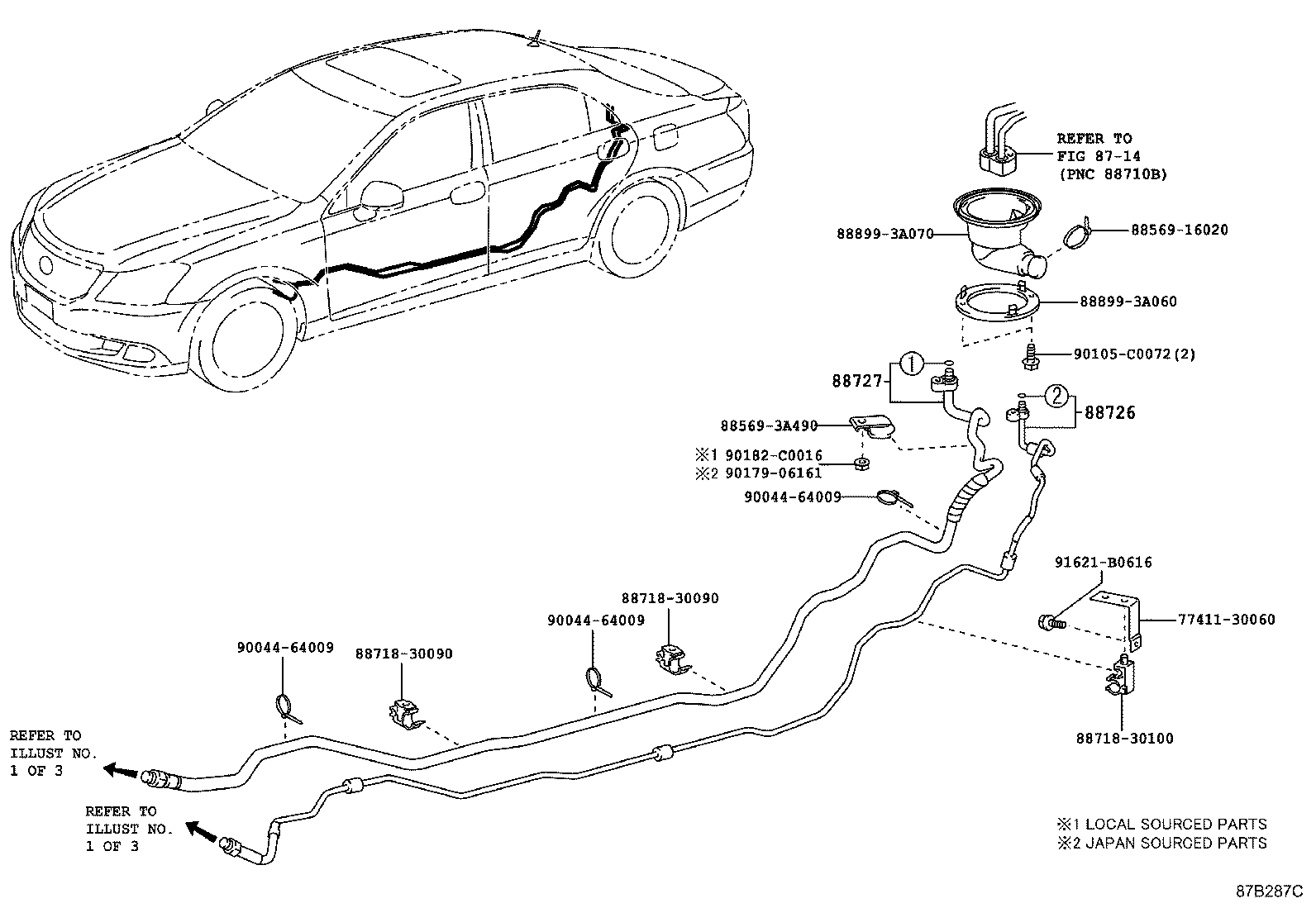

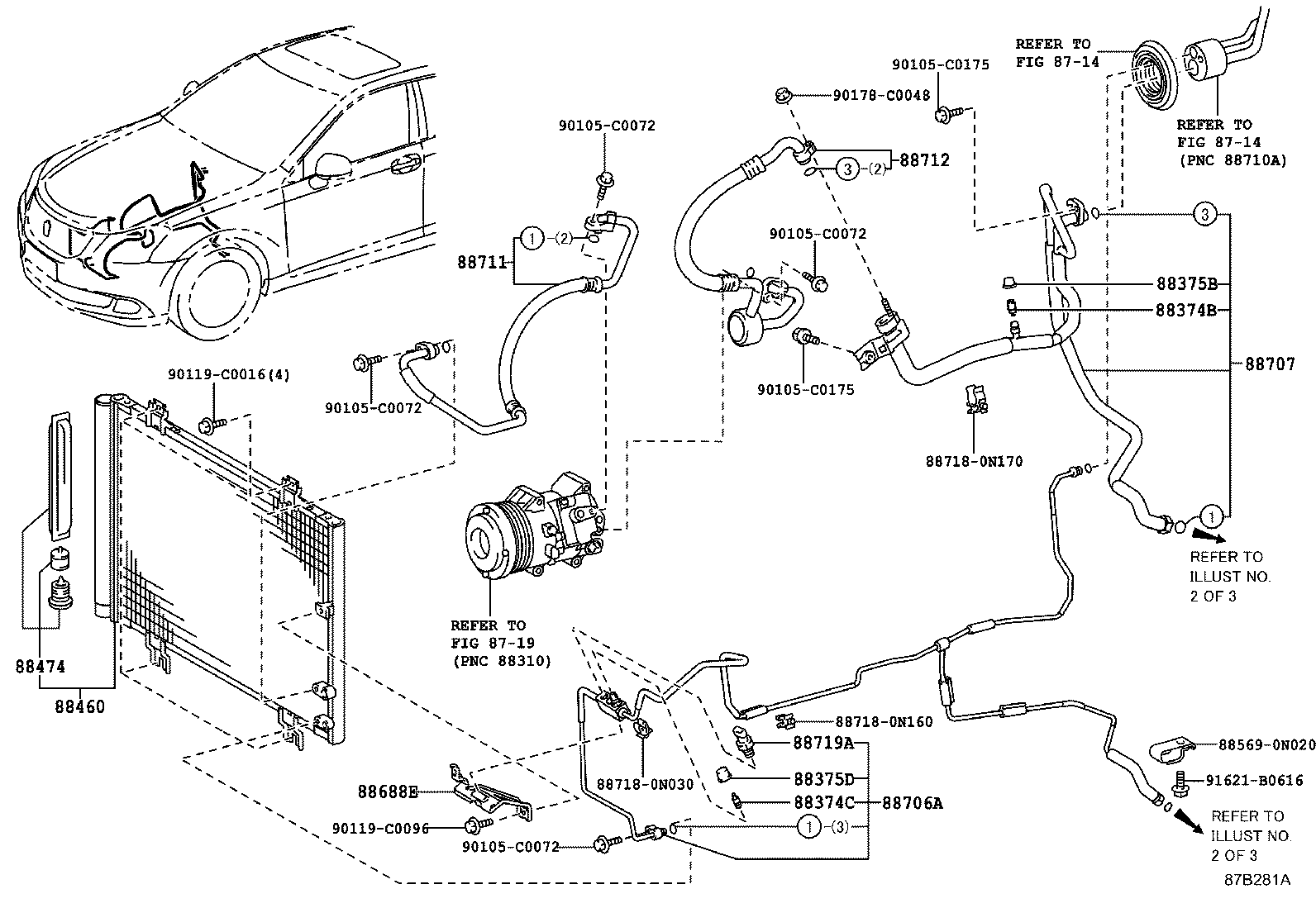

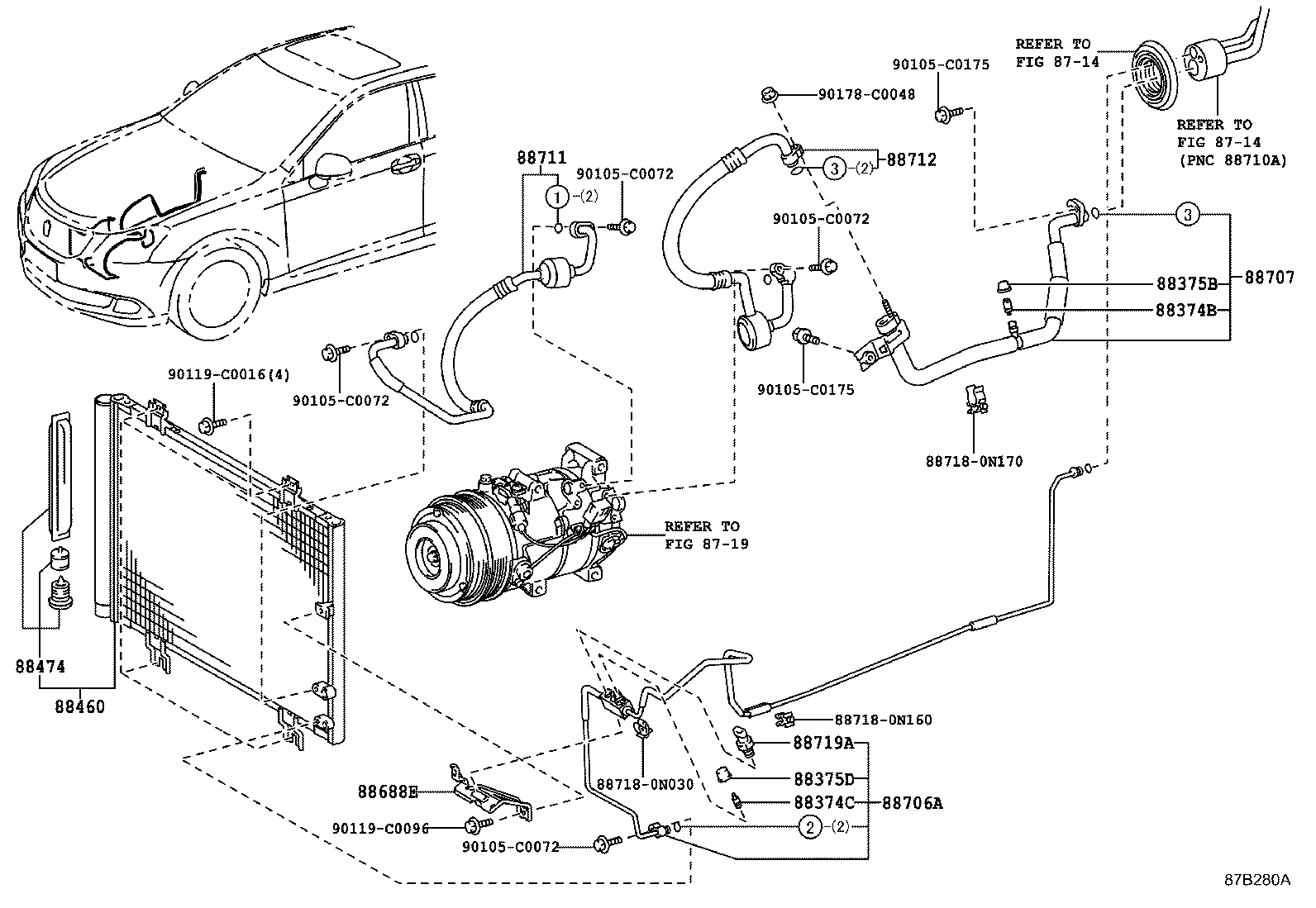

Figure 87B279A 87B279A 2009-12 → — Figure 87B280A 87B280A 2009-12 → — Figure 87B281A 87B281A 2009-12 → 2012-07 Figure 87B287C 87B287C 2009-12 → — Figure 87B288A 87B288A 2009-12 → 2012-07 Figure 874585 874585 2009-12 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88688E Bracket, Cooler Refrigerant Hose, NO.1
88706A Tube Sub-assy, Liquid, A
88707 Pipe Sub-assy, Suction
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88719A Sensor, Air Conditioner Pressure
88726 Tube, Liquid, NO.2
88727 Tube, Suction, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
