Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

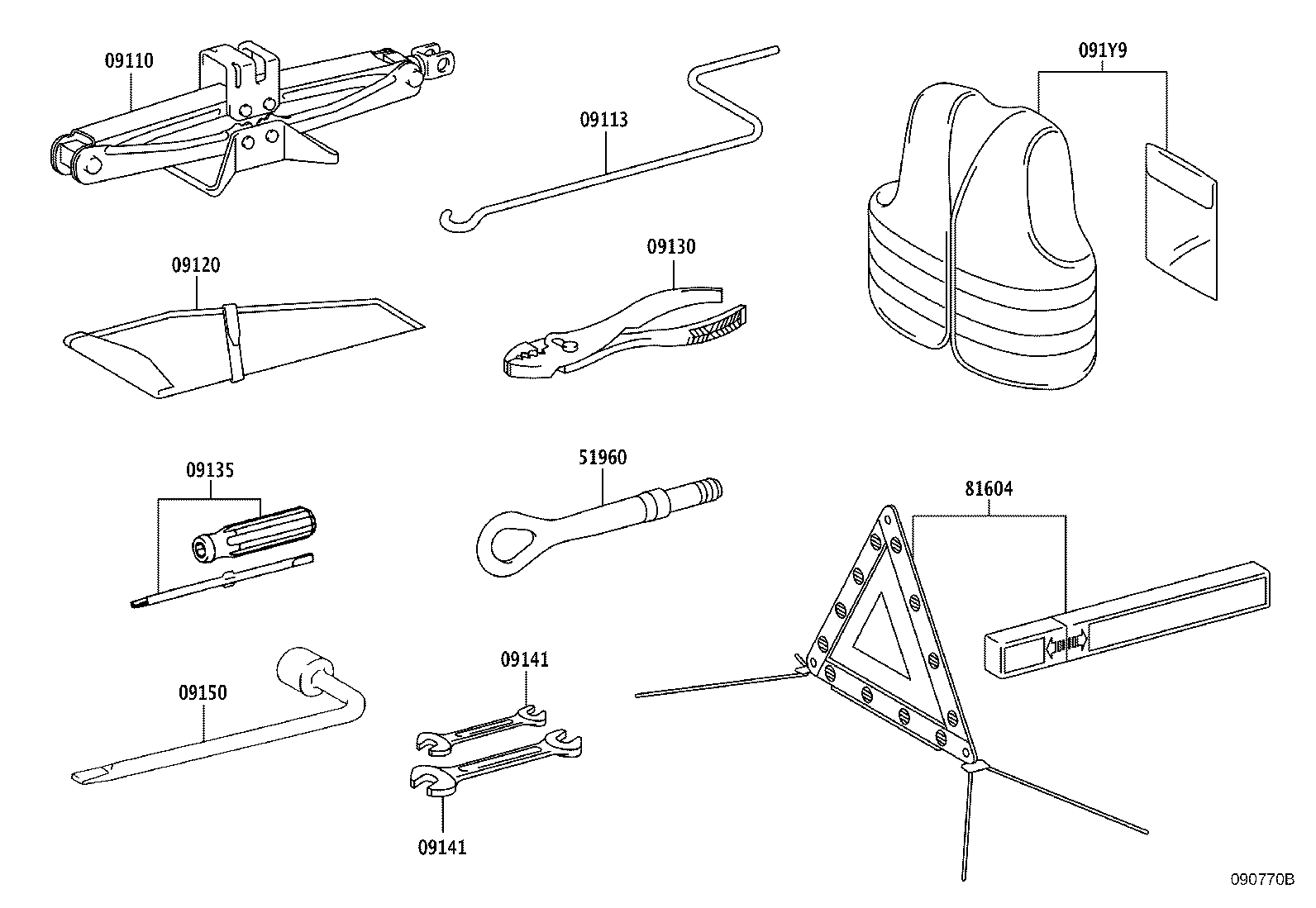

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 09110 — Jack Assy | ||||
| 09111-0N011 |
Jack Assy
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 09111-0N011 |
Jack Assy
2017-12 → —
|
ARS212 | — | |
| 09113 — Handle, Jack | ||||
| 09113-06120 |
Handle, Jack
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 09113-06120 |
Handle, Jack
2017-12 → —
|
ARS212 | — | |
| 09120 — Bag, Tool | ||||
| 09120-0N020 |
Bag, Tool
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 09120-0N020 |
Bag, Tool
2017-12 → —
|
ARS212 | — | |
| 09130 — Pliers | ||||
| 09130-0N010 |
Pliers
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 09130-0N010 |
Pliers
2017-12 → —
|
ARS212 | — | |
| 09135 — Driver, Screw | ||||
| 09135-0N010 |
Driver, Screw
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 09135-0N010 |
Driver, Screw
2017-12 → —
|
ARS212 | — | |
| 09141 — Spanner | ||||
| 09141-0N010 note |
Spanner
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 09141-0N020 note |
Spanner
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 09141-0N010 note |
Spanner
2017-12 → —
|
ARS212 | — | |
| 09141-0N020 note |
Spanner
2017-12 → —
|
ARS212 | — | |
| 09150 — Wrench, Hub Nut Box | ||||
| 09150-0D020 |
Wrench, Hub Nut Box
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 09150-0D020 |
Wrench, Hub Nut Box
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 09150-0D020 |
Wrench, Hub Nut Box
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 091Y9 — Jacket, W/Reflector | ||||
| 091Y9-02020 |
Jacket, W/Reflector
2017-12 → —
|
ARS212 | — | |
| 51960 — Hook Assy, Front | ||||
| 51961-0N030 |
Hook Assy, Front
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 51961-0N030 |
Hook Assy, Front
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 51961-0N030 |
Hook Assy, Front
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 81604 — Reflector Set, Triangle | ||||
| 81604-02030 |
Reflector Set, Triangle
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 81604-02030 |
Reflector Set, Triangle
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 81604-02030 |
Reflector Set, Triangle
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
