Toyota Crown (CHINA)

2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

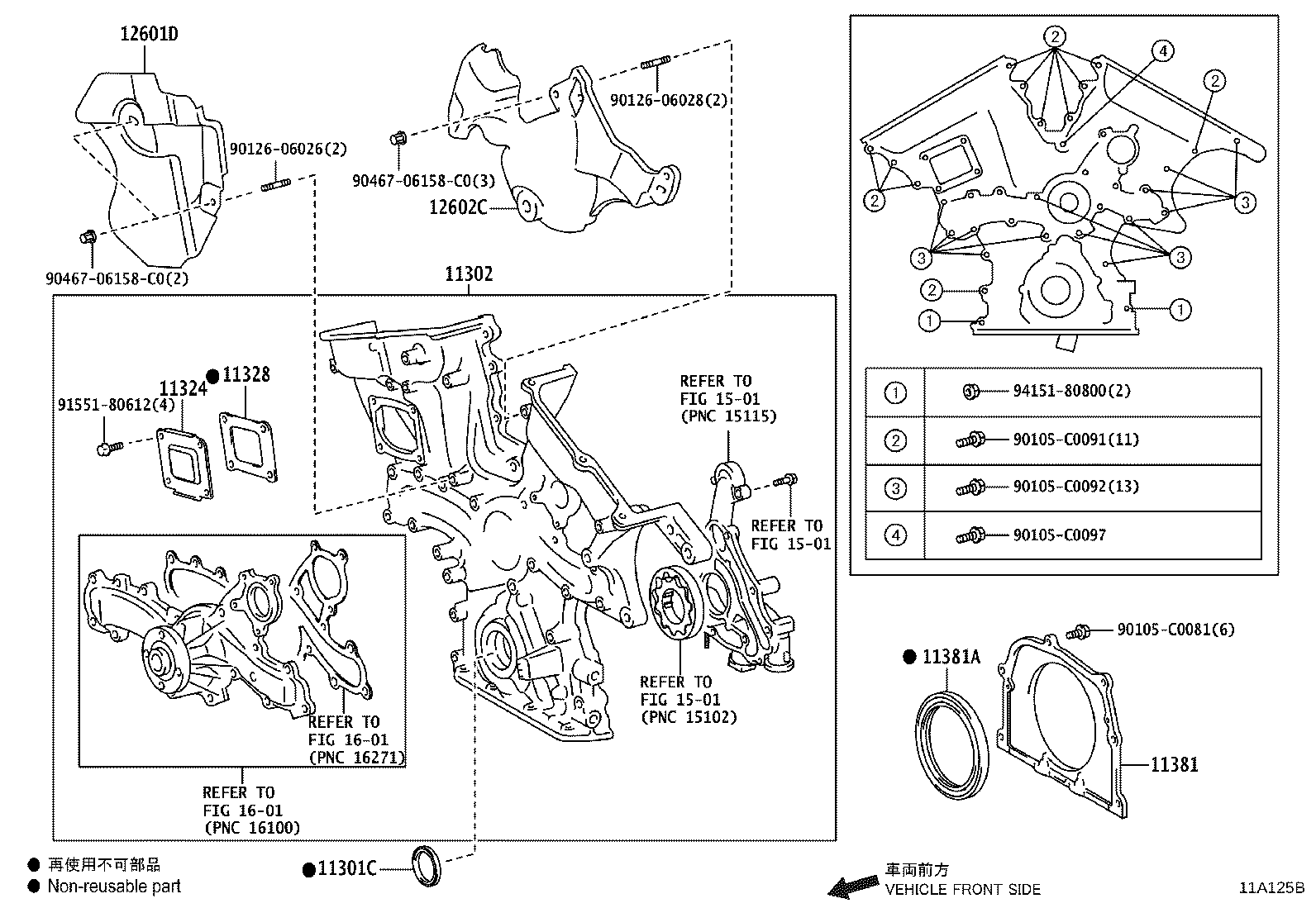

Exploded illustration 11A125B 9046706158C0 — not listed in this catalogue 90105C0081 — not listed in this catalogue 90105C0091 — not listed in this catalogue 90105C0092 — not listed in this catalogue 90105C0097 — not listed in this catalogue 12602C — COVER, ENGINE, NO.2 (1 parts) 9012606028 — not listed in this catalogue 11381 — RETAINER, ENGINE REAR OIL SEAL (1 parts) 11381A — SEAL, ENGINE REAR OIL (1 parts) 11324 — PLATE, TIMING CHAIN COVER (4 parts) 11328 — GASKET, TIMING GEAR OR CHAIN COVER (4 parts) 11302 — COVER SUB-ASSY, TIMING CHAIN OR BELT (1 parts) 11301C — SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) (4 parts) 9012606026 — not listed in this catalogue 9155180612 — not listed in this catalogue 12601D — COVER, ENGINE, NO.1 (1 parts) 9046706158C0 — not listed in this catalogue 1501 — not listed in this catalogue 1501 — not listed in this catalogue 1501 — not listed in this catalogue 1601 — not listed in this catalogue 1601 — not listed in this catalogue 9415180800 — not listed in this catalogue
11A125B · 8 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
11301C — Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-42051 Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2015-08 → 2017-12 ended
8ARFTS ARS212 —
90311-C0034 Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2015-01 → —
5GRFE GRS218 —
90311-42051 Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2017-12 → 2019-10 ended
8ARFTS ARS212 B —
90311-42051 Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2017-12 → —
8ARFTS ARS212 P,Q,S,U —
11302 — Cover Sub-assy, Timing Chain OR Belt
11310-0P021 Cover Sub-assy, Timing Chain OR Belt
2015-01 → —
5GRFE GRS218 —
11324 — Plate, Timing Chain Cover
11324-31020 Plate, Timing Chain Cover
2015-01 → —
5GRFE GRS218 —
11324-36020 Plate, Timing Chain Cover
2015-08 → 2017-12 ended
8ARFTS ARS212 —
11324-36020 Plate, Timing Chain Cover
2017-12 → —
8ARFTS ARS212 P,Q,S,U —
11324-36020 Plate, Timing Chain Cover
2017-12 → 2019-10 ended
8ARFTS ARS212 B —
11328 — Gasket, Timing Gear OR Chain Cover
11328-0P030 Gasket, Timing Gear OR Chain Cover
2015-01 → —
5GRFE GRS218 —
11328-36030 Gasket, Timing Gear OR Chain Cover
2015-08 → 2017-12 ended
8ARFTS ARS212 —
11328-36030 Gasket, Timing Gear OR Chain Cover
2017-12 → 2019-10 ended
8ARFTS ARS212 B —
11328-36030 Gasket, Timing Gear OR Chain Cover
2017-12 → —
8ARFTS ARS212 P,Q,S,U —
11381 — Retainer, Engine Rear Oil Seal
11381-0P011 Retainer, Engine Rear Oil Seal
2015-01 → —
5GRFE GRS218 —
11381A — Seal, Engine Rear Oil
90311-C0004 Seal, Engine Rear Oil
2015-01 → —
5GRFE GRS218 —
12601D — Cover, Engine, NO.1
12601-31020 Cover, Engine, NO.1
2015-01 → —
5GRFE GRS218 —
12602C — Cover, Engine, NO.2
12602-0P011 Cover, Engine, NO.2
2015-01 → —
5GRFE GRS218 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
