Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

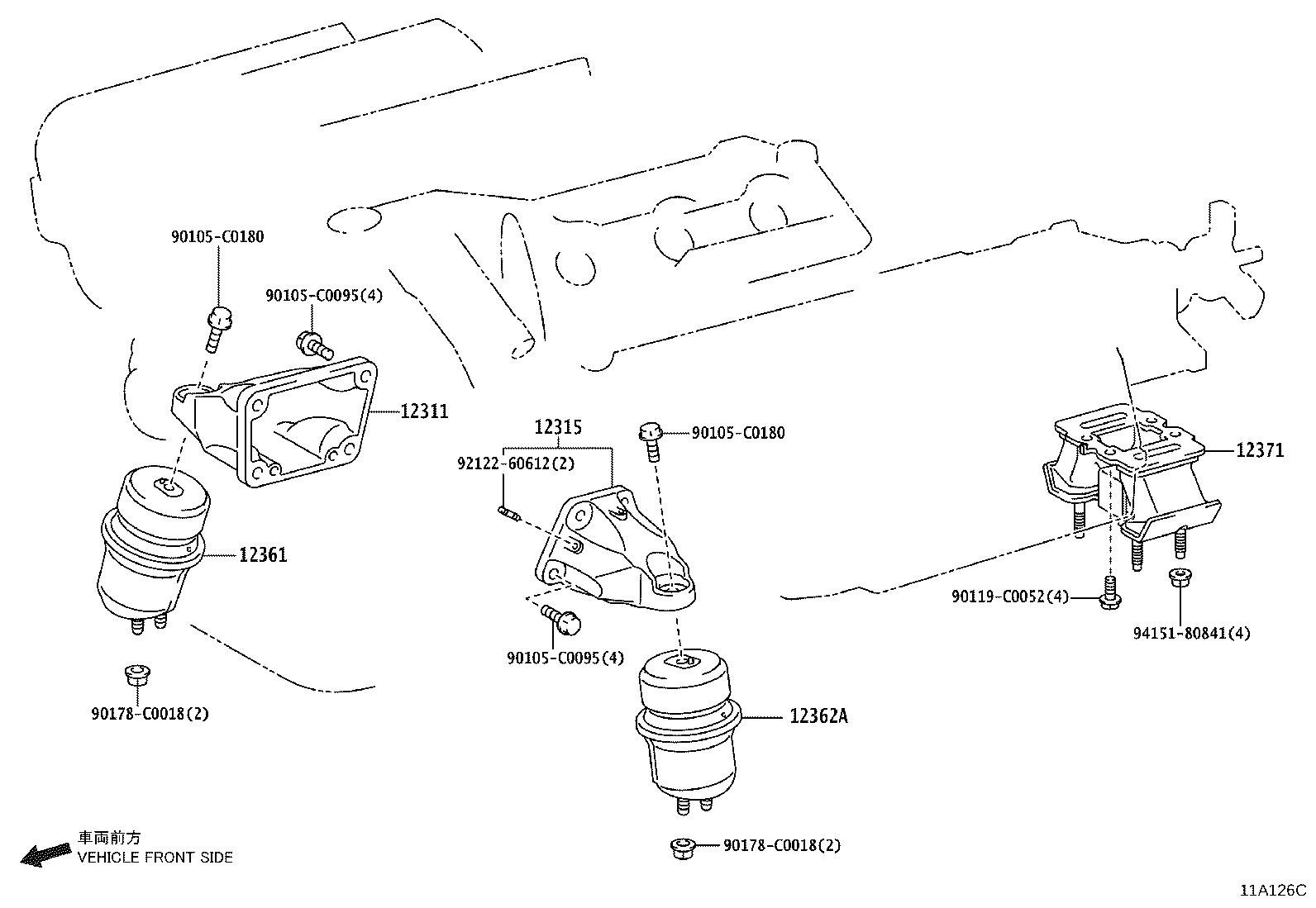

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12311 — Bracket, Engine Mounting, Front NO.1 RH | ||||
| 12311-0P040 |
Bracket, Engine Mounting, Front NO.1 RH
2015-01 → —
|
5GRFE GRS218 | — | |
| 12311-36130 |
Bracket, Engine Mounting, Front NO.1 RH
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 12311-36130 |
Bracket, Engine Mounting, Front NO.1 RH
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 12311-36130 |
Bracket, Engine Mounting, Front NO.1 RH
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 12315 — Bracket, Engine Mounting, Front NO.1 LH | ||||
| 12302-0P010 |
Bracket, Engine Mounting, Front NO.1 LH
2015-01 → —
|
5GRFE GRS218 | — | |
| 12315-36040 |
Bracket, Engine Mounting, Front NO.1 LH
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 12315-36040 |
Bracket, Engine Mounting, Front NO.1 LH
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 12315-36040 |
Bracket, Engine Mounting, Front NO.1 LH
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 12361 — Insulator, Engine Mounting, Front | ||||
| 12361-0P120 |
Insulator, Engine Mounting, Front
2015-01 → —
|
5GRFE GRS218 | — | |
| 12361-0V041 |
Insulator, Engine Mounting, Front
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 12361-0V041 |
Insulator, Engine Mounting, Front
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 12361-0V041 |
Insulator, Engine Mounting, Front
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 12362A — Insulator, Engine Mounting, Front LH | ||||
| 12362-0P070 |
Insulator, Engine Mounting, Front LH
2015-01 → —
|
5GRFE GRS218 | — | |
| 12362-0V051 |
Insulator, Engine Mounting, Front LH
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 12362-0V051 |
Insulator, Engine Mounting, Front LH
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 12362-0V051 |
Insulator, Engine Mounting, Front LH
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 12371 — Insulator, Engine Mounting, Rear NO.1 | ||||
| 12371-0P090 |
Insulator, Engine Mounting, Rear NO.1
2015-01 → —
|
5GRFE GRS218 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
