Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

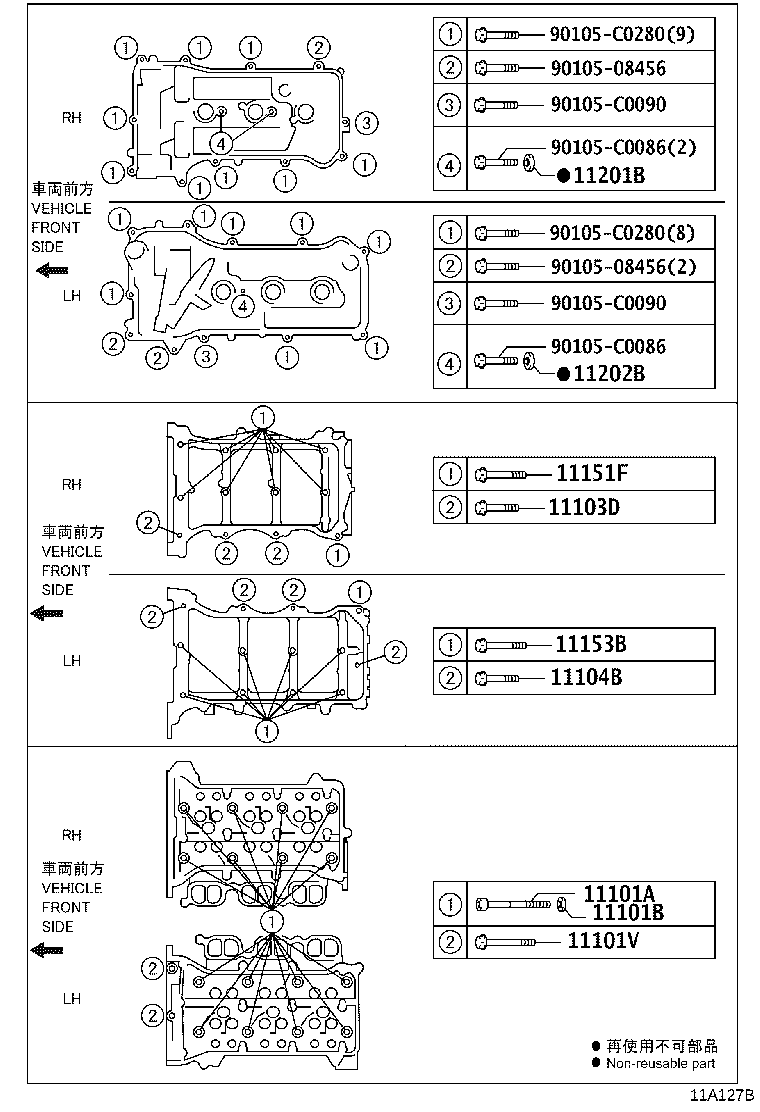

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11101A — Bolt(FOR CYLINDER HEAD SET) | ||||
| 90910-02162 |
Bolt(FOR CYLINDER HEAD SET)
2015-01 → —
|
5GRFE GRS218 | — | |
| 90910-02189 |
Bolt(FOR CYLINDER HEAD SET)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90910-02204 |
Bolt(FOR CYLINDER HEAD SET)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90910-02204 |
Bolt(FOR CYLINDER HEAD SET)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 11101B — Washer, Plate(FOR CYLINDER HEAD SET) | ||||
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2015-01 → —
|
5GRFE GRS218 | — | |
| 90201-13042 |
Washer, Plate(FOR CYLINDER HEAD SET)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 11101V — Bolt(FOR CYLINDER HEAD SET SUB) | ||||
| 90105-10521 |
Bolt(FOR CYLINDER HEAD SET SUB)
2015-01 → —
|
5GRFE GRS218 | — | |
| 11103D — Bolt(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, RH) | ||||
| 90105-C0282 |
Bolt(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, RH)
2015-01 → —
|
5GRFE GRS218 | — | |
| 11104B — Bolt(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, LH) | ||||
| 90105-C0282 |
Bolt(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, LH)
2015-01 → —
|
5GRFE GRS218 | — | |
| 11151F — Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2) | ||||
| 90105-C0281 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2)
2015-01 → —
|
5GRFE GRS218 | — | |
| 11153B — Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2) | ||||
| 90105-C0281 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2)
2015-01 → —
|
5GRFE GRS218 | — | |
| 11201B — Washer, Seal(FOR CYLINDER HEAD COVER) | ||||
| 90210-C0002 |
Washer, Seal(FOR CYLINDER HEAD COVER)
2015-01 → —
|
5GRFE GRS218 | — | |
| 11202B — Washer, Seal(FOR CYLINDER HEAD COVER, LH) | ||||
| 90210-C0002 |
Washer, Seal(FOR CYLINDER HEAD COVER, LH)
2015-01 → —
|
5GRFE GRS218 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
