Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

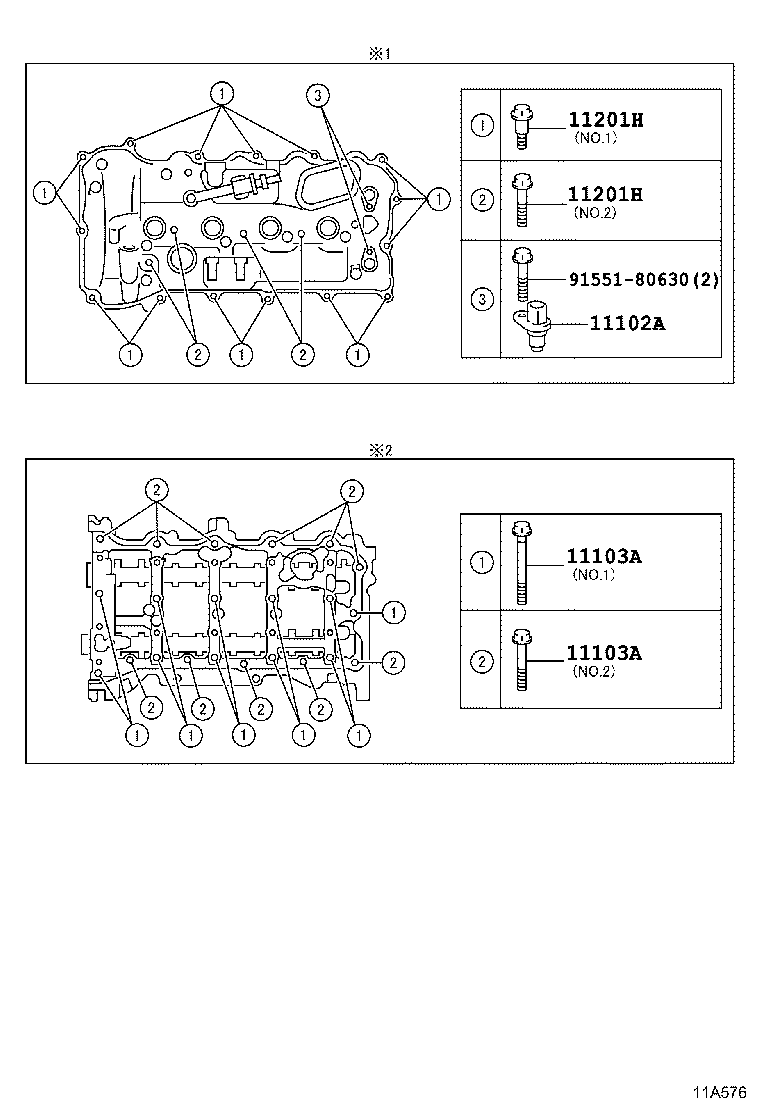

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11102A — Sensor, Camshaft Position | ||||
| 90919-05073 |
Sensor, Camshaft Position
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90919-05073 |
Sensor, Camshaft Position
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90919-05073 |
Sensor, Camshaft Position
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 11103A — Bolt(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-08455 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 91551-G0845 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90105-08455 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90105-08455 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 91551-G0845 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 91551-G0845 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 11201H — Bolt(FOR CYLINDER HEAD COVER) | ||||
| 90109-06384 note |
Bolt(FOR CYLINDER HEAD COVER)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 91551-80630 note |
Bolt(FOR CYLINDER HEAD COVER)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90109-06384 note |
Bolt(FOR CYLINDER HEAD COVER)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90109-06384 note |
Bolt(FOR CYLINDER HEAD COVER)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 91551-80630 note |
Bolt(FOR CYLINDER HEAD COVER)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 91551-80630 note |
Bolt(FOR CYLINDER HEAD COVER)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
