Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

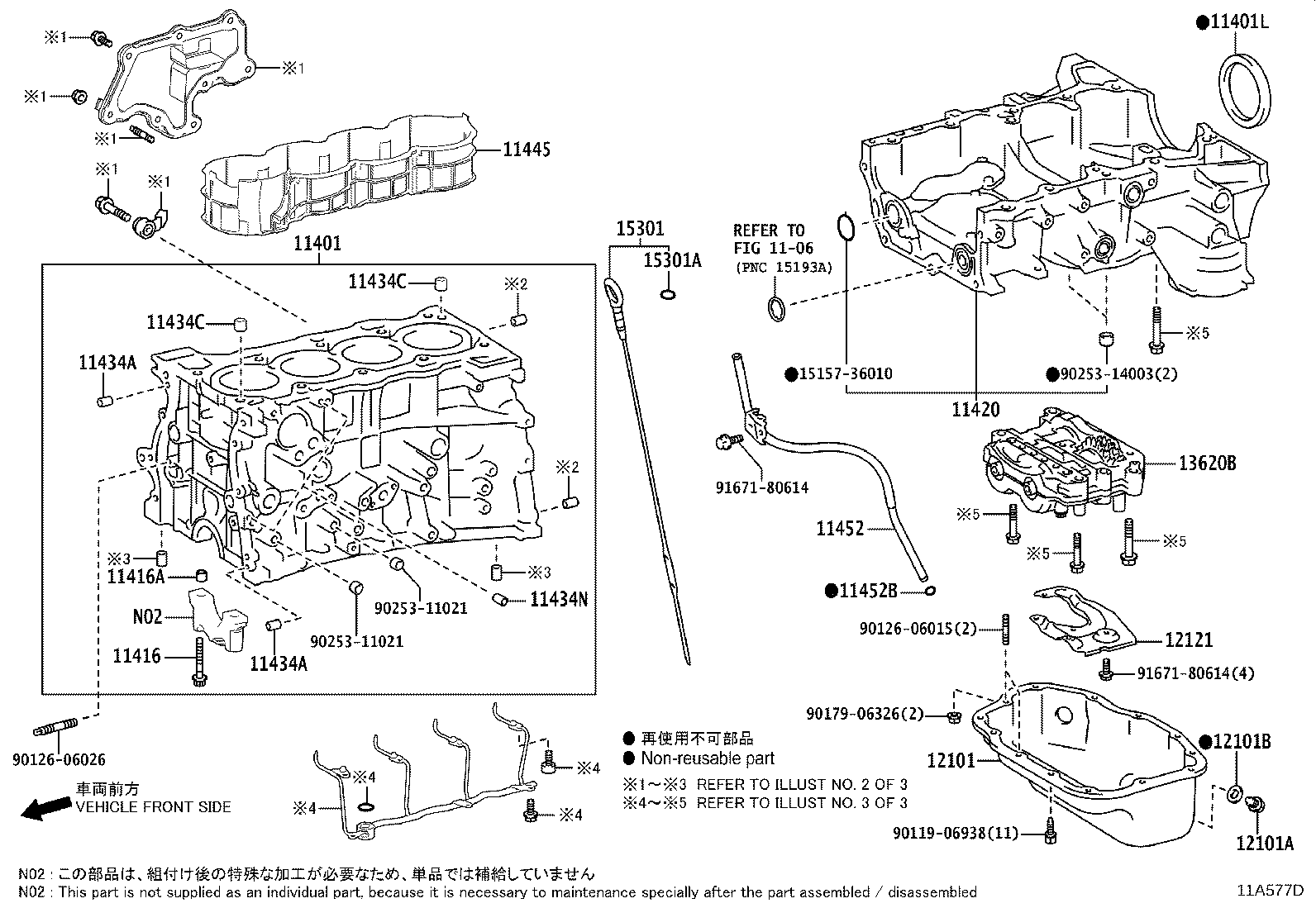

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11401 — Block Sub-assy, Cylinder | ||||
| 11401-09570 |
Block Sub-assy, Cylinder
2015-01 → —
|
5GRFE GRS218 | — | |
| 11410-39205 |
Block Sub-assy, Cylinder
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 11410-39205 |
Block Sub-assy, Cylinder
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 11410-39205 |
Block Sub-assy, Cylinder
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 11401L — Seal, Engine Rear Oil | ||||
| 90311-89014 |
Seal, Engine Rear Oil
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90311-89014 |
Seal, Engine Rear Oil
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90311-89014 |
Seal, Engine Rear Oil
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 11416 — Bolt(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02154 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2015-08 → 2017-08
ended
|
8ARFTS ARS212 | — | |
| 90910-02154 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2015-01 → 2017-12
ended
|
5GRFE GRS218 | — | |
| 90910-02197 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2017-09 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90910-02197 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90910-02197 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 11416A — Pin, Ring(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90253-14003 |
Pin, Ring(FOR CRANKSHAFT BEARING CAP SET)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90253-14003 |
Pin, Ring(FOR CRANKSHAFT BEARING CAP SET)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90253-14003 |
Pin, Ring(FOR CRANKSHAFT BEARING CAP SET)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 11420 — Crankcase Assy, Stiffening | ||||
| 11420-36070 |
Crankcase Assy, Stiffening
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 11420-36070 |
Crankcase Assy, Stiffening
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 11420-36070 |
Crankcase Assy, Stiffening
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 11434A — Pin, Straight(FOR TIMING GEAR COVER SET) | ||||
| 90250-06003 note |
Pin, Straight(FOR TIMING GEAR COVER SET)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90250-C0009 note |
Pin, Straight(FOR TIMING GEAR COVER SET)
2015-01 → —
|
5GRFE GRS218 | — | |
| 90250-06003 note |
Pin, Straight(FOR TIMING GEAR COVER SET)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90250-06003 note |
Pin, Straight(FOR TIMING GEAR COVER SET)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 11434C — Pin, Straight (FOR CYLINDER HEAD SET) | ||||
| 90250-08120 note |
Pin, Straight (FOR CYLINDER HEAD SET)
2015-01 → —
|
5GRFE GRS218 | — | |
| 90253-15001 note |
Pin, Straight (FOR CYLINDER HEAD SET)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90253-15001 note |
Pin, Straight (FOR CYLINDER HEAD SET)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90253-15001 note |
Pin, Straight (FOR CYLINDER HEAD SET)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 11434N — Pin, Straight(FOR WATER INLET HOUSING) | ||||
| 90250-06003 |
Pin, Straight(FOR WATER INLET HOUSING)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90250-06003 |
Pin, Straight(FOR WATER INLET HOUSING)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90250-06003 |
Pin, Straight(FOR WATER INLET HOUSING)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 11445 — Spacer, Cylinder Block Water Jacket | ||||
| 11445-36040 |
Spacer, Cylinder Block Water Jacket
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 11445-36040 |
Spacer, Cylinder Block Water Jacket
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 11445-36040 |
Spacer, Cylinder Block Water Jacket
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 11452 — Guide, Oil Level Gage | ||||
| 11452-0P020 |
Guide, Oil Level Gage
2015-01 → —
|
5GRFE GRS218 | — | |
| 11452-36070 |
Guide, Oil Level Gage
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 11452-36070 |
Guide, Oil Level Gage
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 11452-36070 |
Guide, Oil Level Gage
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 11452B — Ring, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 90301-12018 |
Ring, O(FOR OIL LEVEL GAGE GUIDE)
2015-01 → —
|
5GRFE GRS218 | — | |
| 96723-19010 |
Ring, O(FOR OIL LEVEL GAGE GUIDE)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96723-19010 |
Ring, O(FOR OIL LEVEL GAGE GUIDE)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96723-19010 |
Ring, O(FOR OIL LEVEL GAGE GUIDE)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 12101 — Pan Sub-assy, Oil | ||||
| 12101-0P010 |
Pan Sub-assy, Oil
2015-01 → —
|
5GRFE GRS218 | — | |
| 12101-36100 |
Pan Sub-assy, Oil
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 12101-36100 |
Pan Sub-assy, Oil
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 12101-36100 |
Pan Sub-assy, Oil
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 12101A — Plug(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
Plug(FOR OIL PAN DRAIN)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90341-12012 |
Plug(FOR OIL PAN DRAIN)
2015-01 → —
|
5GRFE GRS218 | — | |
| 90341-12012 |
Plug(FOR OIL PAN DRAIN)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90341-12012 |
Plug(FOR OIL PAN DRAIN)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 12101B — Gasket(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90430-C0005 |
Gasket(FOR OIL PAN DRAIN PLUG)
2015-01 → —
|
5GRFE GRS218 | — | |
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 12121 — Plate, Oil Pan Baffle, NO.1 | ||||
| 12121-0P020 |
Plate, Oil Pan Baffle, NO.1
2015-01 → —
|
5GRFE GRS218 | — | |
| 12121-36040 |
Plate, Oil Pan Baffle, NO.1
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 12121-36040 |
Plate, Oil Pan Baffle, NO.1
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 12121-36040 |
Plate, Oil Pan Baffle, NO.1
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 13620B — Balancer Assy, Engine | ||||
| 13620-36030 |
Balancer Assy, Engine
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 13620-36030 |
Balancer Assy, Engine
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 13620-36030 |
Balancer Assy, Engine
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 15301 — Gage Sub-assy, Oil Level | ||||
| 15301-31080 |
Gage Sub-assy, Oil Level
2015-01 → —
|
5GRFE GRS218 | — | |
| 15301-36041 |
Gage Sub-assy, Oil Level
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 15301-36041 |
Gage Sub-assy, Oil Level
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 15301-36041 |
Gage Sub-assy, Oil Level
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 15301A — Ring, O(FOR OIL LEVEL GAGE) | ||||
| 96741-19005 |
Ring, O(FOR OIL LEVEL GAGE)
2015-08 → 2017-11
ended
|
8ARFTS ARS212 | — | |
| 96741-19005 |
Ring, O(FOR OIL LEVEL GAGE)
2015-01 → —
|
5GRFE GRS218 | — | |
| 96741-19005 |
Ring, O(FOR OIL LEVEL GAGE)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96741-19005 |
Ring, O(FOR OIL LEVEL GAGE)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
