Toyota Crown (CHINA)

2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 11A580A 9155180616 — not listed in this catalogue 9167180820 — not listed in this catalogue 9155281040 — not listed in this catalogue 91551G0865 — not listed in this catalogue 9155180825 — not listed in this catalogue 11301K — SENSOR, CRANK POSITION (3 parts) 11324 — PLATE, TIMING CHAIN COVER (4 parts) 11328 — GASKET, TIMING GEAR OR CHAIN COVER (4 parts) 11301C — SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) (4 parts) 16603B — PULLEY SUB-ASSY, IDLER (3 parts) 16620D — TENSIONER ASSY, V-RIBBED BELT (3 parts) 9155180616 — not listed in this catalogue 11310 — COVER ASSY, TIMING CHAIN (3 parts) 11355 — PLATE, REAR END (3 parts) 11363 — COVER, FLYWHEEL SIDE (3 parts) 15370A — RING, O(FOR CAM TIMING OIL CONTROL SOLENOID) (3 parts) 15370 — SOLENOID ASSY, CAM TIMING OIL CONTROL (3 parts) 9155180612 — not listed in this catalogue 91551L0830 — not listed in this catalogue 91552F1035 — not listed in this catalogue 9415180800 — not listed in this catalogue 1603 — not listed in this catalogue 1104 — not listed in this catalogue 16341C — GASKET, WATER OUTLET (3 parts) 1105 — not listed in this catalogue 15193A — GASKET, OIL PUMP (3 parts)

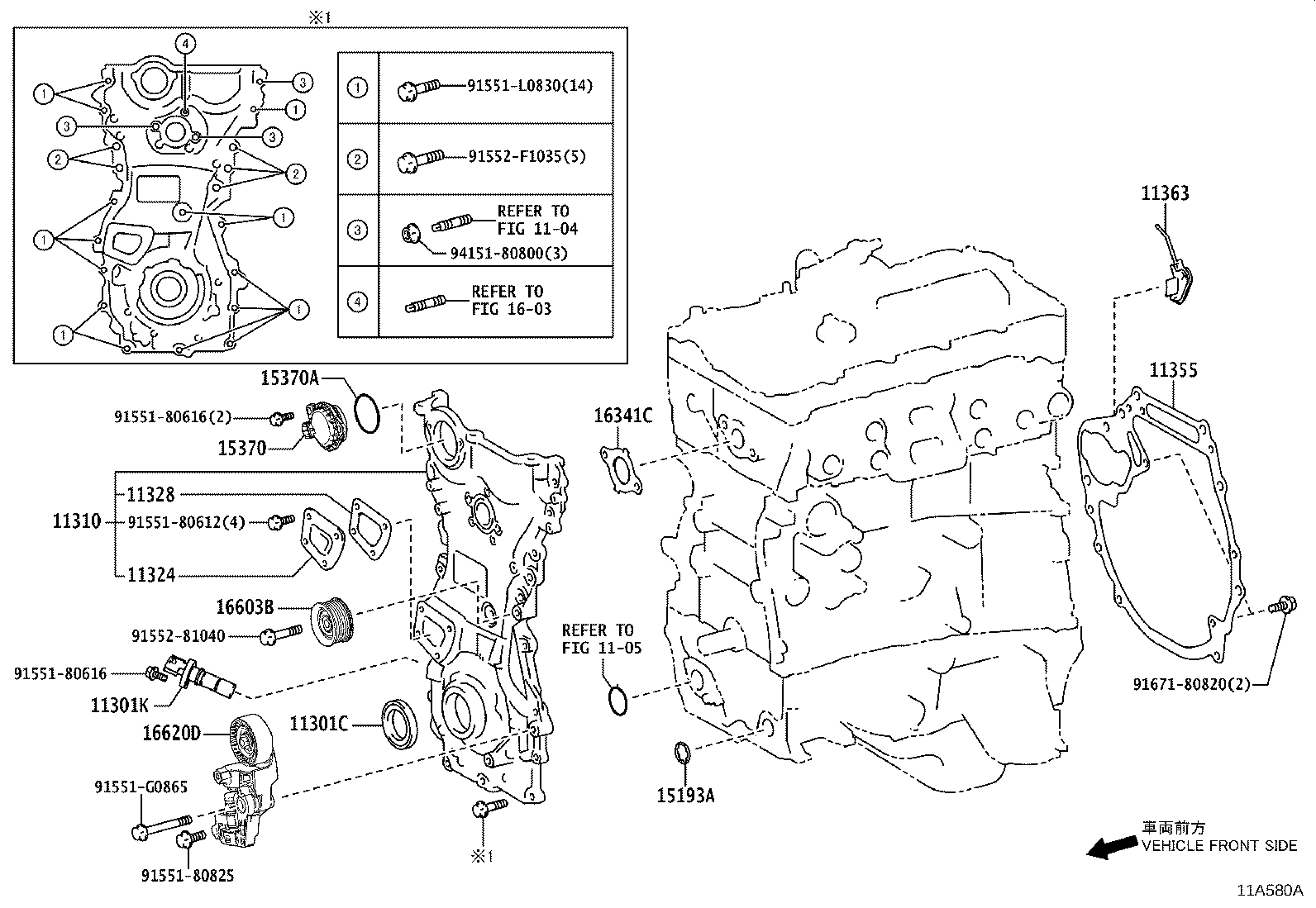

11A580A · 13 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
42 parts on this figure
Part number Description Fitment Price
11301C — Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-42051 Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2015-08 → 2017-12 ended
8ARFTS ARS212 —
90311-C0034 Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2015-01 → —
5GRFE GRS218 —
90311-42051 Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2017-12 → —
8ARFTS ARS212 P,Q,S,U —
90311-42051 Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2017-12 → 2019-10 ended
8ARFTS ARS212 B —
11301K — Sensor, Crank Position
90919-05088 Sensor, Crank Position
2015-08 → 2017-12 ended
8ARFTS ARS212 —
90919-05088 Sensor, Crank Position
2017-12 → 2019-10 ended
8ARFTS ARS212 B —
90919-05088 Sensor, Crank Position
2017-12 → —
8ARFTS ARS212 P,Q,S,U —
11310 — Cover Assy, Timing Chain
11310-36080 Cover Assy, Timing Chain
2015-08 → 2017-12 ended
8ARFTS ARS212 —
11310-36080 Cover Assy, Timing Chain
2017-12 → 2019-10 ended
8ARFTS ARS212 B —
11310-36080 Cover Assy, Timing Chain
2017-12 → —
8ARFTS ARS212 P,Q,S,U —
11324 — Plate, Timing Chain Cover
11324-31020 Plate, Timing Chain Cover
2015-01 → —
5GRFE GRS218 —
11324-36020 Plate, Timing Chain Cover
2015-08 → 2017-12 ended
8ARFTS ARS212 —
11324-36020 Plate, Timing Chain Cover
2017-12 → 2019-10 ended
8ARFTS ARS212 B —
11324-36020 Plate, Timing Chain Cover
2017-12 → —
8ARFTS ARS212 P,Q,S,U —
11328 — Gasket, Timing Gear OR Chain Cover
11328-0P030 Gasket, Timing Gear OR Chain Cover
2015-01 → —
5GRFE GRS218 —
11328-36030 Gasket, Timing Gear OR Chain Cover
2015-08 → 2017-12 ended
8ARFTS ARS212 —
11328-36030 Gasket, Timing Gear OR Chain Cover
2017-12 → 2019-10 ended
8ARFTS ARS212 B —
11328-36030 Gasket, Timing Gear OR Chain Cover
2017-12 → —
8ARFTS ARS212 P,Q,S,U —
11355 — Plate, Rear End
11355-36020 Plate, Rear End
2015-08 → 2017-12 ended
8ARFTS ARS212 —
11355-36020 Plate, Rear End
2017-12 → 2019-10 ended
8ARFTS ARS212 B —
11355-36020 Plate, Rear End
2017-12 → —
8ARFTS ARS212 P,Q,S,U —
11363 — Cover, Flywheel Side
11363-36010 Cover, Flywheel Side
2015-08 → 2017-12 ended
8ARFTS ARS212 —
11363-36010 Cover, Flywheel Side
2017-12 → —
8ARFTS ARS212 P,Q,S,U —
11363-36010 Cover, Flywheel Side
2017-12 → 2019-10 ended
8ARFTS ARS212 B —
15193A — Gasket, Oil Pump
15197-36010 Gasket, Oil Pump
2015-08 → 2017-12 ended
8ARFTS ARS212 —
15197-36010 Gasket, Oil Pump
2017-12 → 2019-10 ended
8ARFTS ARS212 B —
15197-36010 Gasket, Oil Pump
2017-12 → —
8ARFTS ARS212 P,Q,S,U —
15370 — Solenoid Assy, Cam Timing Oil Control
15370-36010 Solenoid Assy, Cam Timing Oil Control
2015-08 → 2017-12 ended
8ARFTS ARS212 —
15370-36010 Solenoid Assy, Cam Timing Oil Control
2017-12 → 2019-10 ended
8ARFTS ARS212 B —
15370-36010 Solenoid Assy, Cam Timing Oil Control
2017-12 → —
8ARFTS ARS212 P,Q,S,U —
15370A — Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID)
90301-50003 Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID)
2015-08 → 2017-12 ended
8ARFTS ARS212 —
90301-50003 Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID)
2017-12 → —
8ARFTS ARS212 P,Q,S,U —
90301-50003 Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID)
2017-12 → 2019-10 ended
8ARFTS ARS212 B —
16341C — Gasket, Water Outlet
16341-36010 Gasket, Water Outlet
2015-08 → 2017-12 ended
8ARFTS ARS212 —
16341-36010 Gasket, Water Outlet
2017-12 → 2019-10 ended
8ARFTS ARS212 B —
16341-36010 Gasket, Water Outlet
2017-12 → —
8ARFTS ARS212 P,Q,S,U —
16603B — Pulley Sub-assy, Idler
16603-36010 Pulley Sub-assy, Idler
2015-08 → 2017-12 ended
8ARFTS ARS212 —
16603-36010 Pulley Sub-assy, Idler
2017-12 → 2019-10 ended
8ARFTS ARS212 B —
16603-36010 Pulley Sub-assy, Idler
2017-12 → —
8ARFTS ARS212 P,Q,S,U —
16620D — Tensioner Assy, V-ribbed Belt
16620-36061 Tensioner Assy, V-ribbed Belt
2015-08 → 2017-12 ended
8ARFTS ARS212 —
16620-36061 Tensioner Assy, V-ribbed Belt
2017-12 → 2019-10 ended
8ARFTS ARS212 B —
16620-36061 Tensioner Assy, V-ribbed Belt
2017-12 → —
8ARFTS ARS212 P,Q,S,U —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
