Toyota Crown (CHINA)

2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

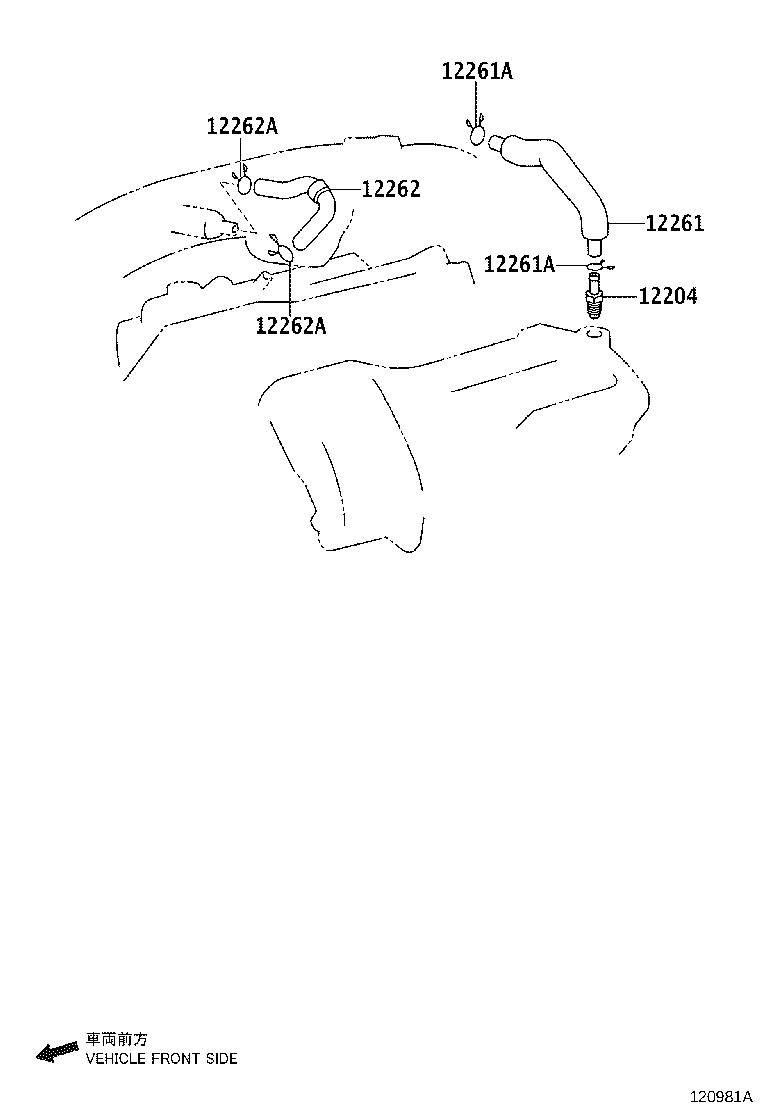

Exploded illustration 120981A 12261A — CLIP OR CLAMP(FOR VENTILATION HOSE) (4 parts) 12261A — CLIP OR CLAMP(FOR VENTILATION HOSE) (4 parts) 12262A — CLIP(FOR VENTILATION HOSE NO.2) (4 parts) 12262A — CLIP(FOR VENTILATION HOSE NO.2) (4 parts) 12262 — HOSE, VENTILATION, NO.2 (4 parts) 12261 — HOSE, VENTILATION (4 parts) 12204 — VALVE SUB-ASSY, VENTILATION (4 parts)
120981A · 7 callouts Full size ↗
20 parts on this figure
Part number Description Fitment Price
12204 — Valve Sub-assy, Ventilation
12204-0P010 Valve Sub-assy, Ventilation
2015-01 → —
5GRFE GRS218 —
12204-36050 Valve Sub-assy, Ventilation
2015-08 → 2017-12 ended
8ARFTS ARS212 —
12204-36050 Valve Sub-assy, Ventilation
2017-12 → 2019-10 ended
8ARFTS ARS212 B —
12204-36050 Valve Sub-assy, Ventilation
2017-12 → —
8ARFTS ARS212 P,Q,S,U —
12261 — Hose, Ventilation
12261-0P050 Hose, Ventilation
2015-01 → —
5GRFE GRS218 —
12261-36080 Hose, Ventilation
2015-08 → 2017-12 ended
8ARFTS ARS212 —
12261-36080 Hose, Ventilation
2017-12 → 2019-10 ended
8ARFTS ARS212 B —
12261-36080 Hose, Ventilation
2017-12 → —
8ARFTS ARS212 P,Q,S,U —
12261A — Clip OR Clamp(FOR VENTILATION HOSE)
90467-14017 Clip OR Clamp(FOR VENTILATION HOSE)
2015-01 → —
5GRFE GRS218 —
96137-52501 Clip OR Clamp(FOR VENTILATION HOSE)
2015-08 → 2017-12 ended
8ARFTS ARS212 —
96137-52501 Clip OR Clamp(FOR VENTILATION HOSE)
2017-12 → 2019-10 ended
8ARFTS ARS212 B —
96137-52501 Clip OR Clamp(FOR VENTILATION HOSE)
2017-12 → —
8ARFTS ARS212 P,Q,S,U —
12262 — Hose, Ventilation, NO.2
12262-0P030 Hose, Ventilation, NO.2
2015-01 → —
5GRFE GRS218 —
12262-36090 Hose, Ventilation, NO.2
2015-08 → 2017-12 ended
8ARFTS ARS212 —
12262-36090 Hose, Ventilation, NO.2
2017-12 → 2019-10 ended
8ARFTS ARS212 B —
12262-36090 Hose, Ventilation, NO.2
2017-12 → —
8ARFTS ARS212 P,Q,S,U —
12262A — Clip(FOR VENTILATION HOSE NO.2)
90466-16004 Clip(FOR VENTILATION HOSE NO.2)
2015-08 → 2017-12 ended
8ARFTS ARS212 —
90467-21004 Clip(FOR VENTILATION HOSE NO.2)
2015-01 → —
5GRFE GRS218 —
90466-16004 Clip(FOR VENTILATION HOSE NO.2)
2017-12 → 2019-10 ended
8ARFTS ARS212 B —
90466-16004 Clip(FOR VENTILATION HOSE NO.2)
2017-12 → —
8ARFTS ARS212 P,Q,S,U —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
