Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

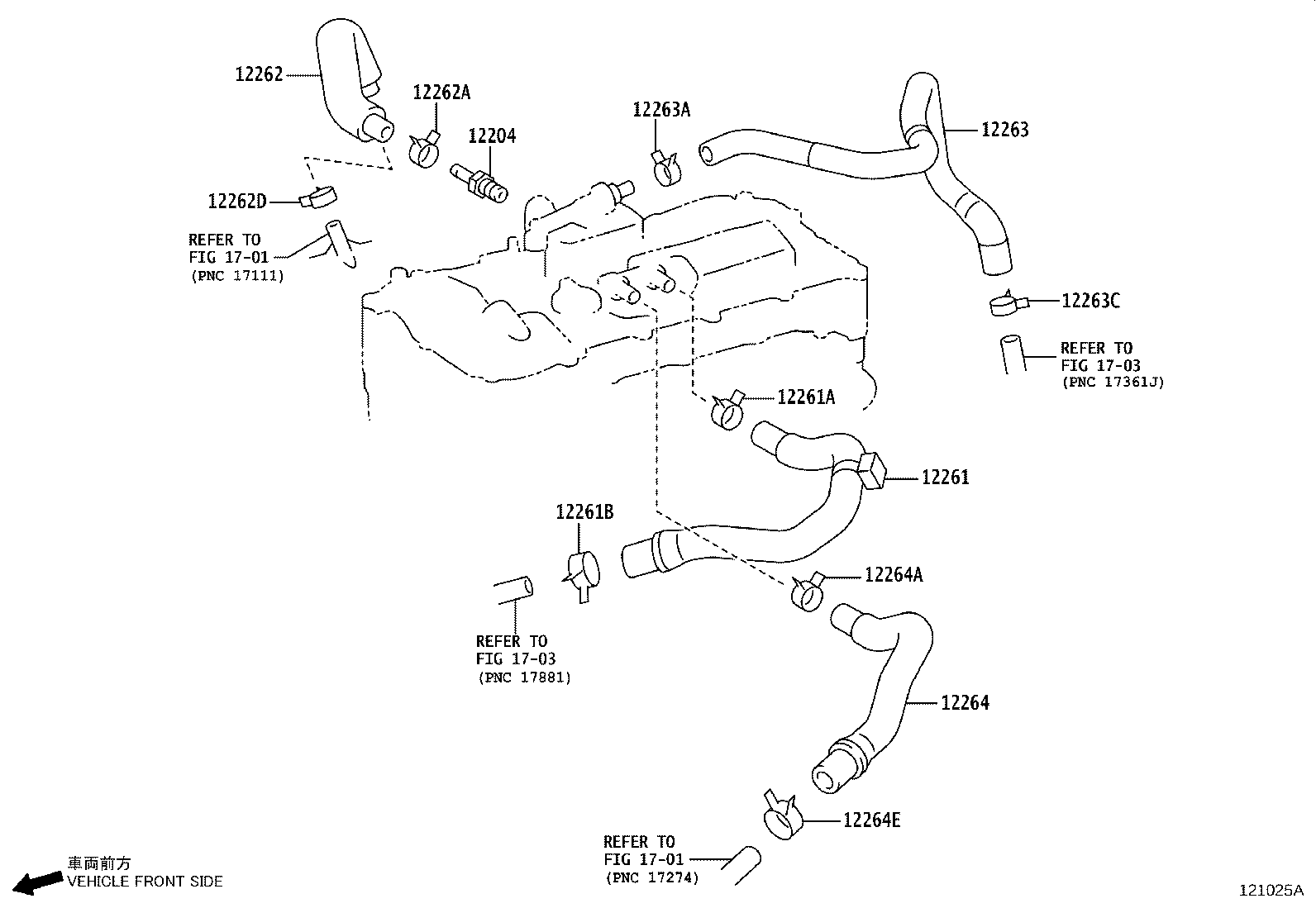

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12204 — Valve Sub-assy, Ventilation | ||||
| 12204-0P010 |
Valve Sub-assy, Ventilation
2015-01 → —
|
5GRFE GRS218 | — | |
| 12204-36050 |
Valve Sub-assy, Ventilation
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 12204-36050 |
Valve Sub-assy, Ventilation
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 12204-36050 |
Valve Sub-assy, Ventilation
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 12261 — Hose, Ventilation | ||||
| 12261-0P050 |
Hose, Ventilation
2015-01 → —
|
5GRFE GRS218 | — | |
| 12261-36080 |
Hose, Ventilation
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 12261-36080 |
Hose, Ventilation
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 12261-36080 |
Hose, Ventilation
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 12261A — Clip OR Clamp(FOR VENTILATION HOSE) | ||||
| 90467-14017 |
Clip OR Clamp(FOR VENTILATION HOSE)
2015-01 → —
|
5GRFE GRS218 | — | |
| 96137-52501 |
Clip OR Clamp(FOR VENTILATION HOSE)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96137-52501 |
Clip OR Clamp(FOR VENTILATION HOSE)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96137-52501 |
Clip OR Clamp(FOR VENTILATION HOSE)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 12261B — Clip OR Clamp(FOR VENTILATION HOSE) | ||||
| 90466-C0046 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2017-01 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96136-43601 |
Clip OR Clamp(FOR VENTILATION HOSE)
2015-08 → 2017-01
ended
|
8ARFTS ARS212 | — | |
| 96136-43601 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2017-01 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90466-C0046 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90466-C0046 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 96136-43601 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96136-43601 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 12262 — Hose, Ventilation, NO.2 | ||||
| 12262-0P030 |
Hose, Ventilation, NO.2
2015-01 → —
|
5GRFE GRS218 | — | |
| 12262-36090 |
Hose, Ventilation, NO.2
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 12262-36090 |
Hose, Ventilation, NO.2
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 12262-36090 |
Hose, Ventilation, NO.2
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 12262A — Clip(FOR VENTILATION HOSE NO.2) | ||||
| 90466-16004 |
Clip(FOR VENTILATION HOSE NO.2)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90467-21004 |
Clip(FOR VENTILATION HOSE NO.2)
2015-01 → —
|
5GRFE GRS218 | — | |
| 90466-16004 |
Clip(FOR VENTILATION HOSE NO.2)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90466-16004 |
Clip(FOR VENTILATION HOSE NO.2)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 12262D — Clip(FOR VENTILATION HOSE NO.2) | ||||
| 96137-41901 |
Clip(FOR VENTILATION HOSE NO.2)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96137-41901 |
Clip(FOR VENTILATION HOSE NO.2)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 96137-41901 |
Clip(FOR VENTILATION HOSE NO.2)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 12263 — Hose, Ventilation, NO.3 | ||||
| 12263-36020 |
Hose, Ventilation, NO.3
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 12263-36020 |
Hose, Ventilation, NO.3
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 12263-36020 |
Hose, Ventilation, NO.3
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 12263A — Clip(FOR VENTILATION HOSE) | ||||
| 96136-52101 |
Clip(FOR VENTILATION HOSE)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96136-52101 |
Clip(FOR VENTILATION HOSE)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96136-52101 |
Clip(FOR VENTILATION HOSE)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 12263C — Clip(FOR VENTILATION HOSE) | ||||
| 90466-C0014 note |
Clip(FOR VENTILATION HOSE)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96136-42501 note |
Clip(FOR VENTILATION HOSE)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90466-C0014 note |
Clip(FOR VENTILATION HOSE)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90466-C0014 note |
Clip(FOR VENTILATION HOSE)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 96136-42501 note |
Clip(FOR VENTILATION HOSE)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 96136-42501 note |
Clip(FOR VENTILATION HOSE)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 12264 — Hose, Ventilation, NO.4 | ||||
| 12264-36010 |
Hose, Ventilation, NO.4
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 12264-36010 |
Hose, Ventilation, NO.4
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 12264-36010 |
Hose, Ventilation, NO.4
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 12264A — Clip(FOR VENTILATION HOSE) | ||||
| 96137-52501 |
Clip(FOR VENTILATION HOSE)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96137-52501 |
Clip(FOR VENTILATION HOSE)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96137-52501 |
Clip(FOR VENTILATION HOSE)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 12264E — Clip(FOR VENTILATION HOSE) | ||||
| 90466-C0046 note |
Clip(FOR VENTILATION HOSE)
2017-01 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96136-43601 |
Clip(FOR VENTILATION HOSE)
2015-08 → 2017-01
ended
|
8ARFTS ARS212 | — | |
| 96136-43601 note |
Clip(FOR VENTILATION HOSE)
2017-01 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90466-C0046 note |
Clip(FOR VENTILATION HOSE)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90466-C0046 note |
Clip(FOR VENTILATION HOSE)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 96136-43601 note |
Clip(FOR VENTILATION HOSE)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96136-43601 note |
Clip(FOR VENTILATION HOSE)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
