Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

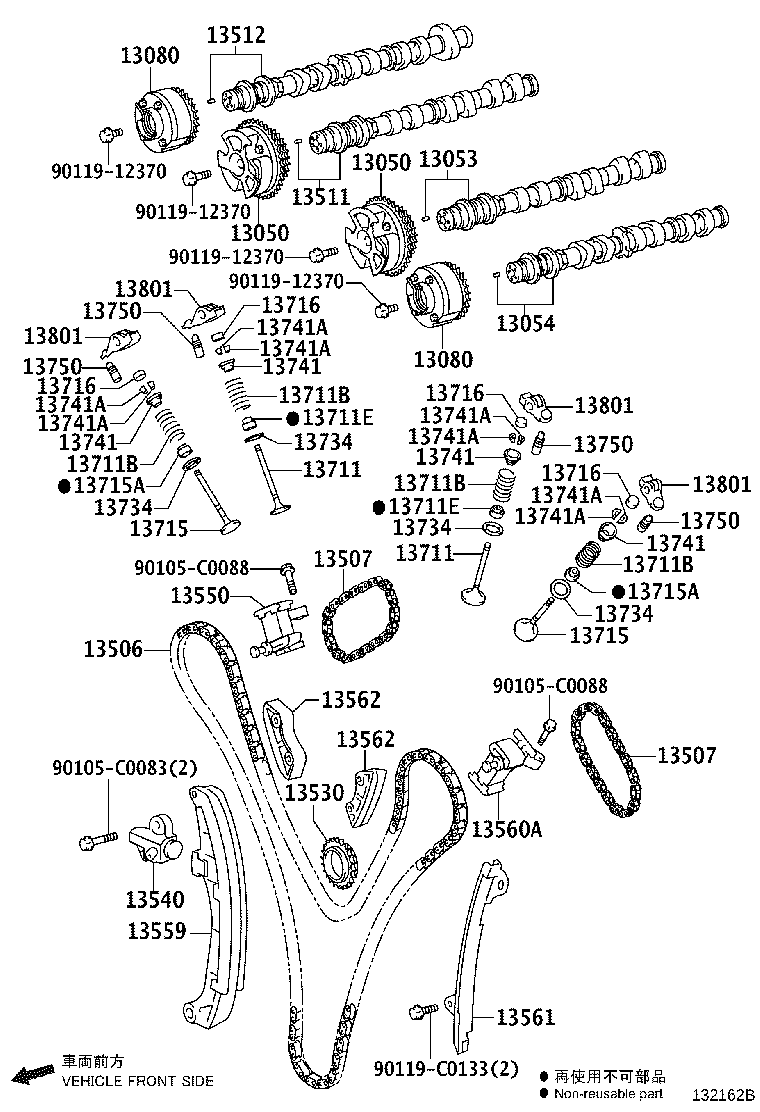

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 13050 — Gear Assy, Camshaft Timing | ||||
| 13050-0P052 |
Gear Assy, Camshaft Timing
2015-01 → —
|
5GRFE GRS218 | — | |
| 13050-36040 |
Gear Assy, Camshaft Timing
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 13050-36040 |
Gear Assy, Camshaft Timing
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 13050-36040 |
Gear Assy, Camshaft Timing
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 13053 — Camshaft Sub-assy, NO.3 | ||||
| 13053-0P010 note |
Camshaft Sub-assy, NO.3
2015-01 → —
|
5GRFE GRS218 | — | |
| 13053-31041 note |
Camshaft Sub-assy, NO.3
2015-01 → —
|
5GRFE GRS218 | — | |
| 13054 — Camshaft Sub-assy, NO.4 | ||||
| 13054-0P010 note |
Camshaft Sub-assy, NO.4
2015-01 → —
|
5GRFE GRS218 | — | |
| 13054-31040 note |
Camshaft Sub-assy, NO.4
2015-01 → —
|
5GRFE GRS218 | — | |
| 13080 — Gear Assy, Camshaft Timing Exhaust, LH | ||||
| 13080-0P030 |
Gear Assy, Camshaft Timing Exhaust, LH
2015-01 → —
|
5GRFE GRS218 | — | |
| 13506 — Chain Sub-assy | ||||
| 13506-0P021 |
Chain Sub-assy
2015-01 → —
|
5GRFE GRS218 | — | |
| 13506-36030 |
Chain Sub-assy
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 13506-36030 |
Chain Sub-assy
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 13506-36030 |
Chain Sub-assy
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 13507 — Chain Sub-assy, NO.2 | ||||
| 13507-0P020 |
Chain Sub-assy, NO.2
2015-01 → —
|
5GRFE GRS218 | — | |
| 13511 — Camshaft | ||||
| 13501-0P010 |
Camshaft
2015-01 → —
|
5GRFE GRS218 | — | |
| 13501-36060 |
Camshaft
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 13501-36060 |
Camshaft
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 13501-36060 |
Camshaft
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 13512 — Camshaft, NO.2 | ||||
| 13502-0P010 |
Camshaft, NO.2
2015-01 → —
|
5GRFE GRS218 | — | |
| 13502-36050 |
Camshaft, NO.2
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 13502-36050 |
Camshaft, NO.2
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 13502-36050 |
Camshaft, NO.2
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 13530 — Sprocket Assy, Idle | ||||
| 13530-31021 |
Sprocket Assy, Idle
2015-01 → —
|
5GRFE GRS218 | — | |
| 13540 — Tensioner Assy, Chain, NO.1 | ||||
| 13540-0P020 |
Tensioner Assy, Chain, NO.1
2015-01 → —
|
5GRFE GRS218 | — | |
| 13540-36031 |
Tensioner Assy, Chain, NO.1
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 13540-36031 |
Tensioner Assy, Chain, NO.1
2017-12 → 2018-12
ended
|
8ARFTS ARS212 | — | |
| 13540-36032 |
Tensioner Assy, Chain, NO.1
2019-01 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 13540-36032 |
Tensioner Assy, Chain, NO.1
2019-01 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 13550 — Tensioner Assy, Chain, NO.2 | ||||
| 13550-0P020 |
Tensioner Assy, Chain, NO.2
2015-01 → —
|
5GRFE GRS218 | — | |
| 13559 — Slipper, Chain Tensioner | ||||
| 13559-0P020 |
Slipper, Chain Tensioner
2015-01 → —
|
5GRFE GRS218 | — | |
| 13559-36030 |
Slipper, Chain Tensioner
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 13559-36030 |
Slipper, Chain Tensioner
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 13559-36030 |
Slipper, Chain Tensioner
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 13560A — Tensioner Assy, Chain, NO.3 | ||||
| 13560-0P020 |
Tensioner Assy, Chain, NO.3
2015-01 → —
|
5GRFE GRS218 | — | |
| 13561 — Damper, Chain Vibration, NO.1 | ||||
| 13561-0P020 |
Damper, Chain Vibration, NO.1
2015-01 → —
|
5GRFE GRS218 | — | |
| 13561-36021 |
Damper, Chain Vibration, NO.1
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 13561-36021 |
Damper, Chain Vibration, NO.1
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 13561-36021 |
Damper, Chain Vibration, NO.1
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 13562 — Damper, Chain Vibration, NO.2 | ||||
| 13562-0P020 |
Damper, Chain Vibration, NO.2
2015-01 → —
|
5GRFE GRS218 | — | |
| 13711 — Valve, Intake | ||||
| 13711-0P020 |
Valve, Intake
2015-01 → —
|
5GRFE GRS218 | — | |
| 13711-36080 |
Valve, Intake
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 13711-36080 |
Valve, Intake
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 13711-36080 |
Valve, Intake
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 13711B — Spring, Compression(FOR INNER) | ||||
| 90501-C0018 |
Spring, Compression(FOR INNER)
2015-01 → —
|
5GRFE GRS218 | — | |
| 13711E — Seal, Intake Valve Stem Oil | ||||
| 90913-02126 |
Seal, Intake Valve Stem Oil
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90913-T2001 |
Seal, Intake Valve Stem Oil
2015-01 → —
|
5GRFE GRS218 | — | |
| 90913-02126 |
Seal, Intake Valve Stem Oil
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90913-02126 |
Seal, Intake Valve Stem Oil
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 13715 — Valve, Exhaust | ||||
| 13715-0P020 |
Valve, Exhaust
2015-01 → —
|
5GRFE GRS218 | — | |
| 13715-36040 |
Valve, Exhaust
2015-08 → 2017-08
ended
|
8ARFTS ARS212 | — | |
| 13715-36041 |
Valve, Exhaust
2017-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 13715-36041 |
Valve, Exhaust
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 13715-36041 |
Valve, Exhaust
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 13715A — Seal, Exhaust Valve Stem Oil | ||||
| 90913-02127 |
Seal, Exhaust Valve Stem Oil
2015-08 → 2017-09
ended
|
8ARFTS ARS212 | — | |
| 90913-02131 |
Seal, Exhaust Valve Stem Oil
2017-10 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90913-T2003 |
Seal, Exhaust Valve Stem Oil
2015-01 → —
|
5GRFE GRS218 | — | |
| 90913-02131 |
Seal, Exhaust Valve Stem Oil
2017-12 → 2020-04
ended
|
8ARFTS ARS212 | — | |
| 13716 — Cap, Valve Stem | ||||
| 13716-0T040 |
Cap, Valve Stem
2015-03 → —
|
5GRFE GRS218 | — | |
| 13716-75020 |
Cap, Valve Stem
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 13716-75020 |
Cap, Valve Stem
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 13716-75020 |
Cap, Valve Stem
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 13734 — Seat, Valve Spring | ||||
| 13734-0P020 |
Seat, Valve Spring
2015-01 → —
|
5GRFE GRS218 | — | |
| 13734-62020 |
Seat, Valve Spring
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 13734-62020 |
Seat, Valve Spring
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 13734-62020 |
Seat, Valve Spring
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 13741 — Retainer, Valve Spring | ||||
| 13741-0P030 |
Retainer, Valve Spring
2015-01 → —
|
5GRFE GRS218 | — | |
| 13741-36010 |
Retainer, Valve Spring
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 13741-36010 |
Retainer, Valve Spring
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 13741-36010 |
Retainer, Valve Spring
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 13741A — Lock, Valve Spring Retainer | ||||
| 90913-03028 |
Lock, Valve Spring Retainer
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90913-C3001 |
Lock, Valve Spring Retainer
2015-01 → —
|
5GRFE GRS218 | — | |
| 90913-03028 |
Lock, Valve Spring Retainer
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90913-03028 |
Lock, Valve Spring Retainer
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 13750 — Adjuster Assy, Valve Lash | ||||
| 13750-0P030 |
Adjuster Assy, Valve Lash
2015-01 → —
|
5GRFE GRS218 | — | |
| 13750-36030 |
Adjuster Assy, Valve Lash
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 13750-36030 |
Adjuster Assy, Valve Lash
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 13750-36030 |
Adjuster Assy, Valve Lash
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 13801 — Arm Sub-assy, Valve Rocker, NO.1 | ||||
| 13801-0P020 |
Arm Sub-assy, Valve Rocker, NO.1
2015-01 → —
|
5GRFE GRS218 | — | |
| 13801-36020 |
Arm Sub-assy, Valve Rocker, NO.1
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 13801-36020 |
Arm Sub-assy, Valve Rocker, NO.1
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 13801-36020 |
Arm Sub-assy, Valve Rocker, NO.1
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
