Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

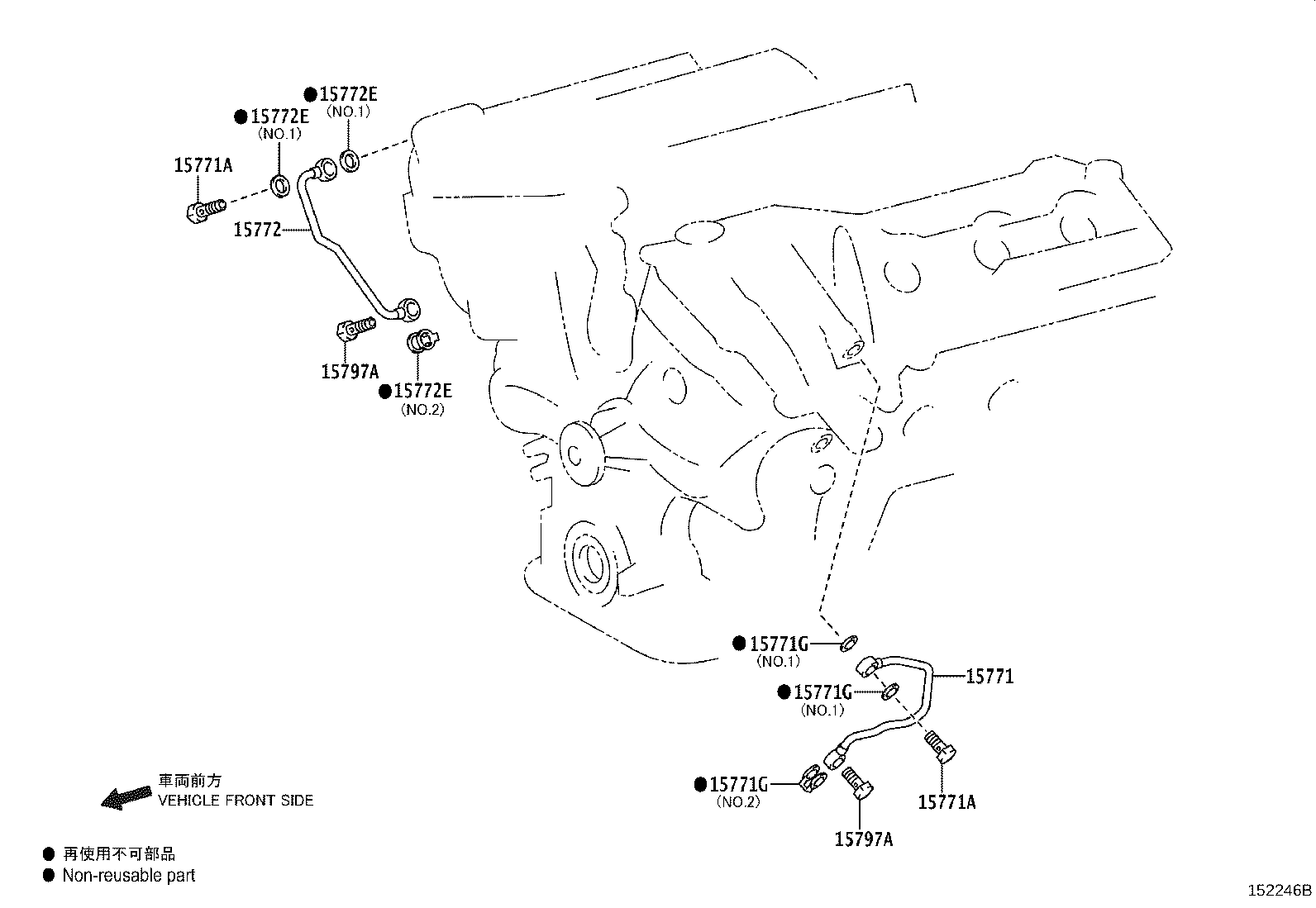

| 15771 — Pipe, Oil, NO.1 | ||||
| 15771-0P010 |
Pipe, Oil, NO.1
2015-01 → —
|
5GRFE GRS218 | — | |
| 15771A — Union(FOR OIL PIPE) | ||||
| 90401-16043 |
Union(FOR OIL PIPE)
2015-01 → —
|
5GRFE GRS218 | — | |
| 15771G — Gasket | ||||
| 90430-16012 note |
Gasket
2015-01 → —
|
5GRFE GRS218 | — | |
| 90430-16016 note |
Gasket
2015-01 → —
|
5GRFE GRS218 | — | |
| 15772 — Pipe, Oil, NO.2 | ||||
| 15772-0P010 |
Pipe, Oil, NO.2
2015-01 → —
|
5GRFE GRS218 | — | |
| 15772E — Gasket(FOR OIL PIPE) | ||||
| 90430-16012 note |
Gasket(FOR OIL PIPE)
2015-01 → —
|
5GRFE GRS218 | — | |
| 90430-16016 note |
Gasket(FOR OIL PIPE)
2015-01 → —
|
5GRFE GRS218 | — | |
| 15797A — Bolt, Oil Check Valve | ||||
| 15797-31010 |
Bolt, Oil Check Valve
2015-01 → —
|
5GRFE GRS218 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
