Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

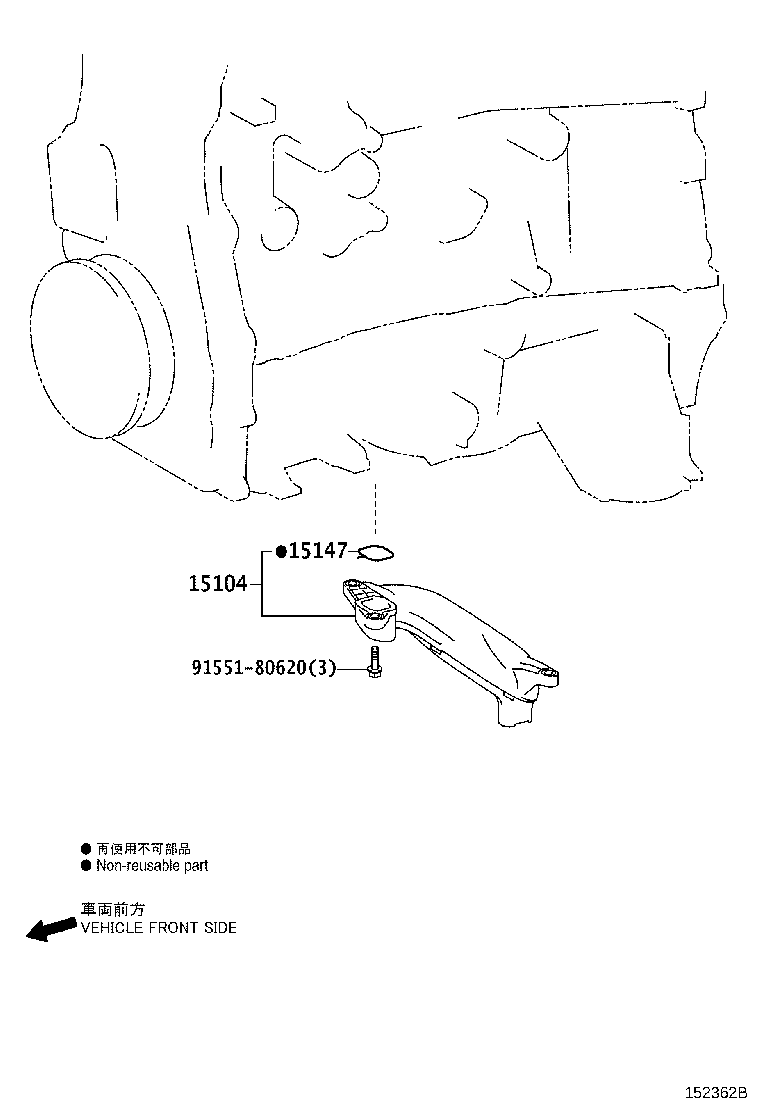

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15104 — Strainer Sub-assy, Oil | ||||
| 15104-31080 |
Strainer Sub-assy, Oil
2015-01 → —
|
5GRFE GRS218 | — | |
| 15104-36040 |
Strainer Sub-assy, Oil
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 15104-36040 |
Strainer Sub-assy, Oil
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 15104-36040 |
Strainer Sub-assy, Oil
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 15147 — Gasket, Oil Strainer | ||||
| 15147-0P010 |
Gasket, Oil Strainer
2015-01 → —
|
5GRFE GRS218 | — | |
| 15147-36020 |
Gasket, Oil Strainer
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 15147-36020 |
Gasket, Oil Strainer
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 15147-36020 |
Gasket, Oil Strainer
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
