Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

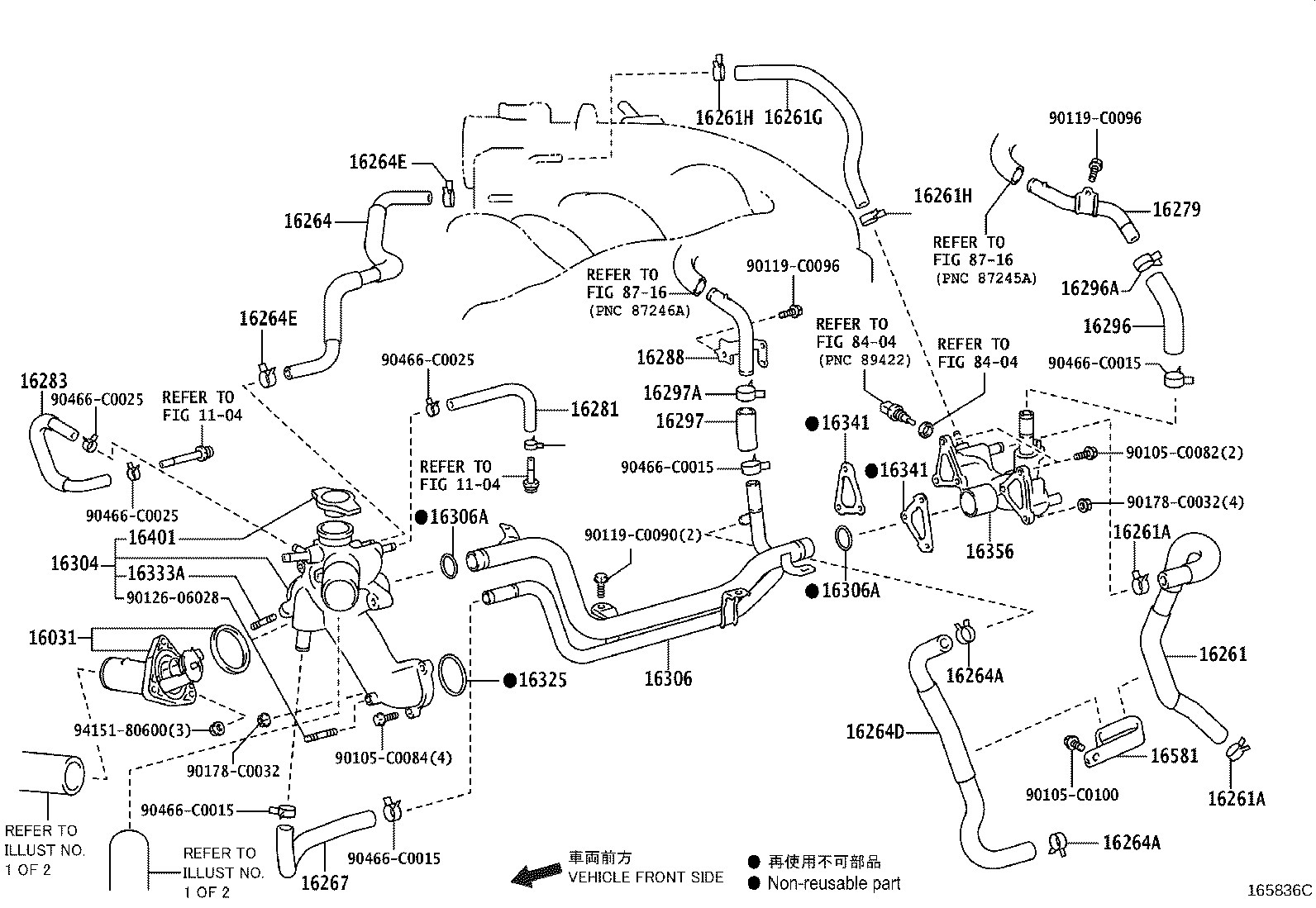

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16031 — Water Inlet Sub-assy, W/Thermostat | ||||
| 16031-31020 |
Water Inlet Sub-assy, W/Thermostat
2015-01 → —
|
5GRFE GRS218 | — | |
| 16261 — Hose, Water By-pass | ||||
| 16261-0P010 |
Hose, Water By-pass
2015-01 → —
|
5GRFE GRS218 | — | |
| 16261-0V080 |
Hose, Water By-pass
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16261-0V080 |
Hose, Water By-pass
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16261-0V080 |
Hose, Water By-pass
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) | ||||
| 90466-C0013 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90466-C0013 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-01 → —
|
5GRFE GRS218 | — | |
| 90466-C0014 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96136-42101 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96136-42501 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90466-C0013 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90466-C0013 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 90466-C0014 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 90466-C0014 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96136-42101 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96136-42101 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16261G — Hose, Water By-pass, NO.1 | ||||
| 16261-0P060 |
Hose, Water By-pass, NO.1
2015-01 → —
|
5GRFE GRS218 | — | |
| 16261-36170 |
Hose, Water By-pass, NO.1
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16261-36170 |
Hose, Water By-pass, NO.1
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16261-36170 |
Hose, Water By-pass, NO.1
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16261H — Clip(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-C0023 |
Clip(FOR WATER BY-PASS HOSE NO.1)
2015-01 → —
|
5GRFE GRS218 | — | |
| 96136-41501 |
Clip(FOR WATER BY-PASS HOSE NO.1)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96136-41501 |
Clip(FOR WATER BY-PASS HOSE NO.1)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96136-41501 |
Clip(FOR WATER BY-PASS HOSE NO.1)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16264 — Hose, Water By-pass, NO.2 | ||||
| 16264-0P060 |
Hose, Water By-pass, NO.2
2015-01 → —
|
5GRFE GRS218 | — | |
| 16264-36140 |
Hose, Water By-pass, NO.2
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16264-36140 |
Hose, Water By-pass, NO.2
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16264-36140 |
Hose, Water By-pass, NO.2
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16264A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-C0013 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2015-01 → —
|
5GRFE GRS218 | — | |
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16264D — Hose, Water By-pass, NO.2 | ||||
| 16264-0P010 |
Hose, Water By-pass, NO.2
2015-01 → —
|
5GRFE GRS218 | — | |
| 16264E — Clip(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-C0023 |
Clip(FOR WATER BY-PASS HOSE NO.2)
2015-01 → —
|
5GRFE GRS218 | — | |
| 16267 — Hose, Water By-pass, NO.3 | ||||
| 16267-0P060 |
Hose, Water By-pass, NO.3
2015-01 → —
|
5GRFE GRS218 | — | |
| 16267-36120 |
Hose, Water By-pass, NO.3
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16267-36120 |
Hose, Water By-pass, NO.3
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16267-36120 |
Hose, Water By-pass, NO.3
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16279 — Pipe, Water By-pass, NO.3 | ||||
| 16279-31040 |
Pipe, Water By-pass, NO.3
2015-01 → —
|
5GRFE GRS218 | — | |
| 16279-36010 |
Pipe, Water By-pass, NO.3
2015-08 → 2017-11
ended
|
8ARFTS ARS212 | — | |
| 16279-36010 |
Pipe, Water By-pass, NO.3
2017-12 → 2018-05
ended
|
8ARFTS ARS212 | — | |
| 16279-36011 |
Pipe, Water By-pass, NO.3
2018-06 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16279-36011 |
Pipe, Water By-pass, NO.3
2018-06 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16281 — Hose, Water By-pass, NO.4 | ||||
| 16281-0P030 |
Hose, Water By-pass, NO.4
2015-01 → —
|
5GRFE GRS218 | — | |
| 16281-36120 |
Hose, Water By-pass, NO.4
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16281-36120 |
Hose, Water By-pass, NO.4
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16281-36120 |
Hose, Water By-pass, NO.4
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16283 — Hose, Water By-pass, NO.6 | ||||
| 16283-0P010 |
Hose, Water By-pass, NO.6
2015-01 → —
|
5GRFE GRS218 | — | |
| 16283-36090 |
Hose, Water By-pass, NO.6
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16283-36090 |
Hose, Water By-pass, NO.6
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16283-36090 |
Hose, Water By-pass, NO.6
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16288 — Pipe, Water By-pass, NO.4 | ||||
| 16288-31031 |
Pipe, Water By-pass, NO.4
2015-01 → —
|
5GRFE GRS218 | — | |
| 16288-36050 |
Pipe, Water By-pass, NO.4
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16288-36050 |
Pipe, Water By-pass, NO.4
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16288-36050 |
Pipe, Water By-pass, NO.4
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16296 — Hose, Water By-pass, NO.8 | ||||
| 16296-31010 |
Hose, Water By-pass, NO.8
2015-01 → —
|
5GRFE GRS218 | — | |
| 16296-36060 |
Hose, Water By-pass, NO.8
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16296-36060 |
Hose, Water By-pass, NO.8
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16296-36060 |
Hose, Water By-pass, NO.8
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16296A — Clip(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-42501 |
Clip(FOR WATER BY-PASS HOSE NO.8)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96136-42701 |
Clip(FOR WATER BY-PASS HOSE NO.8)
2015-01 → —
|
5GRFE GRS218 | — | |
| 96136-42501 |
Clip(FOR WATER BY-PASS HOSE NO.8)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96136-42501 |
Clip(FOR WATER BY-PASS HOSE NO.8)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16297 — Hose, Water By-pass, NO.9 | ||||
| 16297-31010 |
Hose, Water By-pass, NO.9
2015-01 → —
|
5GRFE GRS218 | — | |
| 16297-36050 |
Hose, Water By-pass, NO.9
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16297-36050 |
Hose, Water By-pass, NO.9
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16297-36050 |
Hose, Water By-pass, NO.9
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16297A — Clip(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96136-42501 |
Clip(FOR WATER BY-PASS HOSE NO.9)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96136-42701 |
Clip(FOR WATER BY-PASS HOSE NO.9)
2015-01 → —
|
5GRFE GRS218 | — | |
| 96136-42501 |
Clip(FOR WATER BY-PASS HOSE NO.9)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96136-42501 |
Clip(FOR WATER BY-PASS HOSE NO.9)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16304 — Outlet Sub-assy, Water | ||||
| 16304-0P010 |
Outlet Sub-assy, Water
2015-01 → —
|
5GRFE GRS218 | — | |
| 16304-36020 |
Outlet Sub-assy, Water
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16304-36020 |
Outlet Sub-assy, Water
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16304-36020 |
Outlet Sub-assy, Water
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16306 — Pipe Sub-assy, Water Outlet | ||||
| 16306-0P010 |
Pipe Sub-assy, Water Outlet
2015-01 → —
|
5GRFE GRS218 | — | |
| 16306A — Ring, O(FOR WATER OUTLET PIPE) | ||||
| 90301-T0031 |
Ring, O(FOR WATER OUTLET PIPE)
2015-01 → —
|
5GRFE GRS218 | — | |
| 16325 — Gasket, Water Inlet Housing, NO.1 | ||||
| 16325-0P030 |
Gasket, Water Inlet Housing, NO.1
2015-01 → —
|
5GRFE GRS218 | — | |
| 16325-36051 |
Gasket, Water Inlet Housing, NO.1
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16325-36051 |
Gasket, Water Inlet Housing, NO.1
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16325-36051 |
Gasket, Water Inlet Housing, NO.1
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16333A — Bolt, Stud(FOR WATER OUTLET HOUSING) | ||||
| 92122-80618 |
Bolt, Stud(FOR WATER OUTLET HOUSING)
2015-01 → —
|
5GRFE GRS218 | — | |
| 16341 — Gasket, Water Outlet | ||||
| 16341-0P010 |
Gasket, Water Outlet
2015-01 → —
|
5GRFE GRS218 | — | |
| 16341-36020 |
Gasket, Water Outlet
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16341-36020 |
Gasket, Water Outlet
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16341-36020 |
Gasket, Water Outlet
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16356 — Joint, Water By-pass, Rear | ||||
| 16356-0P010 |
Joint, Water By-pass, Rear
2015-01 → —
|
5GRFE GRS218 | — | |
| 16401 — Cap Sub-assy, Radiator | ||||
| 16401-31680 |
Cap Sub-assy, Radiator
2015-01 → —
|
5GRFE GRS218 | — | |
| 16581 — Clamp, Hose(FOR WATER HOSE) | ||||
| 16581-31010 |
Clamp, Hose(FOR WATER HOSE)
2015-01 → —
|
5GRFE GRS218 | — | |
| 16581-33080 |
Clamp, Hose(FOR WATER HOSE)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16581-33080 |
Clamp, Hose(FOR WATER HOSE)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16581-33080 |
Clamp, Hose(FOR WATER HOSE)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
