Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

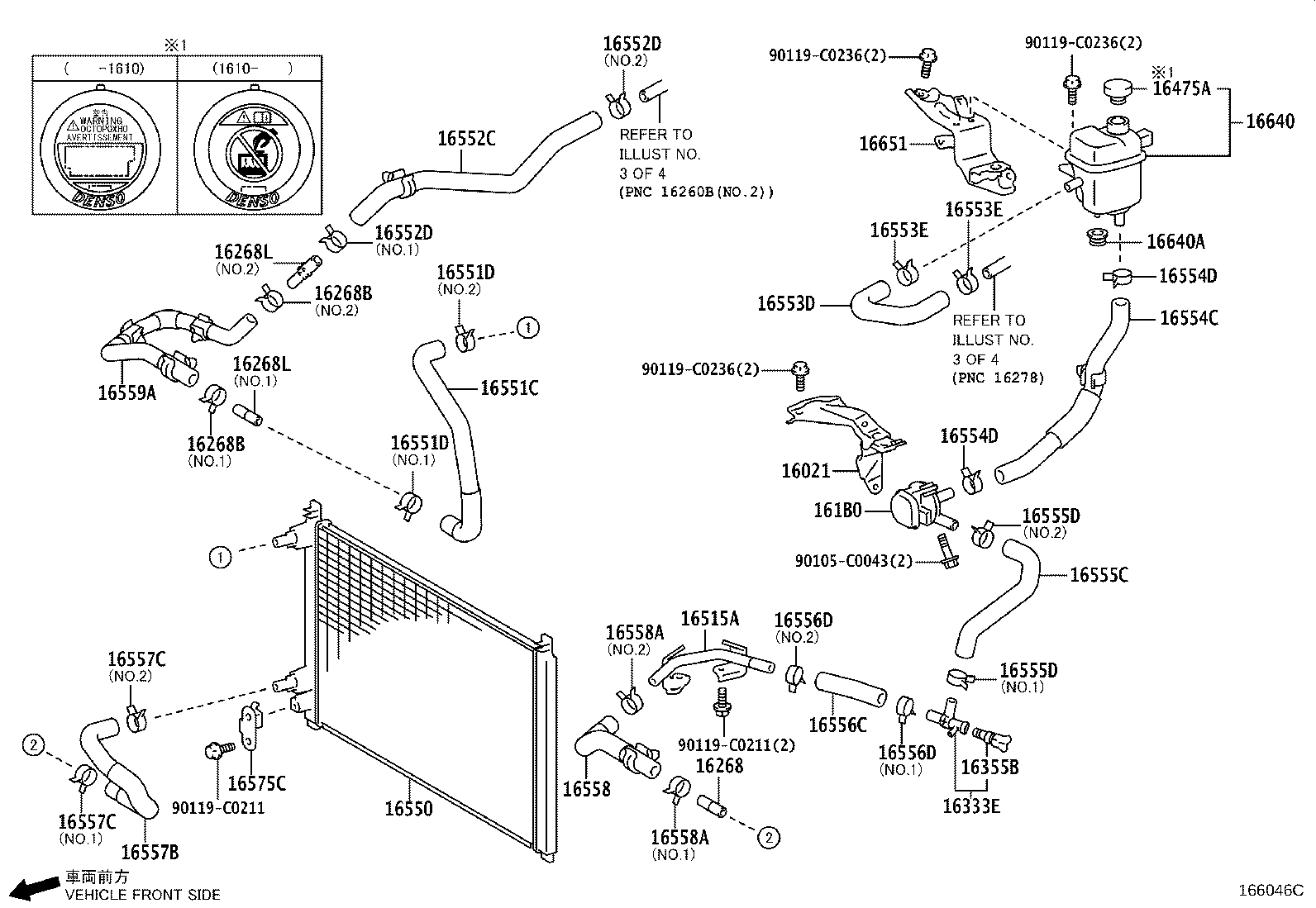

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16021 — Bracket Sub-assy, Water Pump | ||||
| 16021-0V020 |
Bracket Sub-assy, Water Pump
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16021-0V020 |
Bracket Sub-assy, Water Pump
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16021-0V020 |
Bracket Sub-assy, Water Pump
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 161B0 — Pump Assy, Electric Water | ||||
| 161B0-0V010 note |
Pump Assy, Electric Water
2017-01 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 161B0-36010 |
Pump Assy, Electric Water
2015-08 → 2017-01
ended
|
8ARFTS ARS212 | — | |
| 161B0-36010 note |
Pump Assy, Electric Water
2017-01 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 161B0-0V010 note |
Pump Assy, Electric Water
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 161B0-0V010 note |
Pump Assy, Electric Water
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 161B0-36010 note |
Pump Assy, Electric Water
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 161B0-36010 note |
Pump Assy, Electric Water
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16268 — Pipe, Water By-pass, NO.1 | ||||
| 16268-0V020 |
Pipe, Water By-pass, NO.1
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16268-0V020 |
Pipe, Water By-pass, NO.1
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16268-0V020 |
Pipe, Water By-pass, NO.1
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16268B — Clamp OR Clip, Hose(FOR WATER BY-PASS PIPE) | ||||
| 90466-C0007 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS PIPE)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90466-C0013 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS PIPE)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90466-C0007 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS PIPE)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90466-C0007 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS PIPE)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 90466-C0013 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS PIPE)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 90466-C0013 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS PIPE)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16268L — Pipe, Water By-pass | ||||
| 16268-0V020 note |
Pipe, Water By-pass
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16268-0V110 note |
Pipe, Water By-pass
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16268-0V020 note |
Pipe, Water By-pass
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16268-0V020 note |
Pipe, Water By-pass
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16268-0V110 note |
Pipe, Water By-pass
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16268-0V110 note |
Pipe, Water By-pass
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16333E — Plug, Drain Cock | ||||
| 90910-09134 |
Plug, Drain Cock
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90910-09134 |
Plug, Drain Cock
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90910-09134 |
Plug, Drain Cock
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16355B — Cock Sub-assy, Water Drain(FOR WATER BY-PASS JOINT) | ||||
| 16407-64010 |
Cock Sub-assy, Water Drain(FOR WATER BY-PASS JOINT)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16407-64010 |
Cock Sub-assy, Water Drain(FOR WATER BY-PASS JOINT)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16407-64010 |
Cock Sub-assy, Water Drain(FOR WATER BY-PASS JOINT)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16475A — Cap, Reserve Tank | ||||
| 16475-28140 |
Cap, Reserve Tank
2016-10 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16475-37011 |
Cap, Reserve Tank
2015-08 → 2016-10
ended
|
8ARFTS ARS212 | — | |
| 16475-28140 |
Cap, Reserve Tank
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16475-28140 |
Cap, Reserve Tank
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16515A — Pipe, Intercooler Cooling Water, NO.1 | ||||
| 16515-0V020 |
Pipe, Intercooler Cooling Water, NO.1
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16515-0V020 |
Pipe, Intercooler Cooling Water, NO.1
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16515-0V020 |
Pipe, Intercooler Cooling Water, NO.1
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16550 — Radiator Assy, Intercooler Cooling | ||||
| 16550-0V020 |
Radiator Assy, Intercooler Cooling
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16550-0V020 |
Radiator Assy, Intercooler Cooling
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16550-0V020 |
Radiator Assy, Intercooler Cooling
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16551C — Hose, Intercooler Cooling Water, NO.1 | ||||
| 16551-0V020 |
Hose, Intercooler Cooling Water, NO.1
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16551-0V020 |
Hose, Intercooler Cooling Water, NO.1
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16551-0V020 |
Hose, Intercooler Cooling Water, NO.1
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16551D — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1) | ||||
| 90466-C0007 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90466-C0015 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90466-C0007 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90466-C0007 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 90466-C0015 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90466-C0015 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16552C — Hose, Intercooler Cooling Water, NO.2 | ||||
| 16552-0V020 |
Hose, Intercooler Cooling Water, NO.2
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16552-0V020 |
Hose, Intercooler Cooling Water, NO.2
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16552-0V020 |
Hose, Intercooler Cooling Water, NO.2
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16552D — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2) | ||||
| 90466-C0007 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90466-C0038 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90466-C0007 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90466-C0007 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 90466-C0038 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90466-C0038 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16553D — Hose, Intercooler Cooling Water, NO.3 | ||||
| 16553-0V020 |
Hose, Intercooler Cooling Water, NO.3
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16553-0V020 |
Hose, Intercooler Cooling Water, NO.3
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16553-0V020 |
Hose, Intercooler Cooling Water, NO.3
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16553E — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3) | ||||
| 90466-C0007 |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90466-C0007 |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 90466-C0007 |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16554C — Hose, Intercooler Cooling Water, NO.4 | ||||
| 16554-0V020 |
Hose, Intercooler Cooling Water, NO.4
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16554-0V020 |
Hose, Intercooler Cooling Water, NO.4
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16554-0V020 |
Hose, Intercooler Cooling Water, NO.4
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16554D — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4) | ||||
| 90466-C0007 |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90466-C0007 |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90466-C0007 |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16555C — Hose, Intercooler Cooling Water, NO.5 | ||||
| 16555-0V020 |
Hose, Intercooler Cooling Water, NO.5
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16555-0V020 |
Hose, Intercooler Cooling Water, NO.5
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16555-0V020 |
Hose, Intercooler Cooling Water, NO.5
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16555D — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5) | ||||
| 90466-C0007 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90466-C0038 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90466-C0007 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90466-C0007 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 90466-C0038 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 90466-C0038 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16556C — Hose, Intercooler Cooling Water, NO.6 | ||||
| 16556-0V020 |
Hose, Intercooler Cooling Water, NO.6
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16556-0V020 |
Hose, Intercooler Cooling Water, NO.6
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16556-0V020 |
Hose, Intercooler Cooling Water, NO.6
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16556D — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6) | ||||
| 90466-C0007 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90466-C0038 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90466-C0007 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90466-C0007 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 90466-C0038 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90466-C0038 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16557B — Hose, Intercooler Cooling Water, NO.7 | ||||
| 16557-0V010 |
Hose, Intercooler Cooling Water, NO.7
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16557-0V010 |
Hose, Intercooler Cooling Water, NO.7
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16557-0V010 |
Hose, Intercooler Cooling Water, NO.7
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16557C — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7) | ||||
| 90466-C0007 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90466-C0015 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90466-C0007 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 90466-C0007 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90466-C0015 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90466-C0015 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16558 — Hose, Intercooler Cooling Water, NO.8 | ||||
| 16558-0V020 |
Hose, Intercooler Cooling Water, NO.8
2015-08 → 2015-12
ended
|
8ARFTS ARS212 | — | |
| 16558-0V021 |
Hose, Intercooler Cooling Water, NO.8
2016-01 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16558-0V021 |
Hose, Intercooler Cooling Water, NO.8
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16558-0V021 |
Hose, Intercooler Cooling Water, NO.8
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16558A — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.8) | ||||
| 90466-C0007 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.8)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90466-C0038 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.8)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90466-C0007 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.8)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90466-C0007 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.8)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 90466-C0038 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.8)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90466-C0038 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.8)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16559A — Hose, Intercooler Cooling Water, NO.9 | ||||
| 16559-0V010 |
Hose, Intercooler Cooling Water, NO.9
2015-08 → 2015-12
ended
|
8ARFTS ARS212 | — | |
| 16559-0V011 |
Hose, Intercooler Cooling Water, NO.9
2016-01 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16559-0V011 |
Hose, Intercooler Cooling Water, NO.9
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16559-0V011 |
Hose, Intercooler Cooling Water, NO.9
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16575C — Bracket, Water Hose Clamp, NO.1 | ||||
| 16575-0V020 |
Bracket, Water Hose Clamp, NO.1
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16575-0V020 |
Bracket, Water Hose Clamp, NO.1
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16575-0V020 |
Bracket, Water Hose Clamp, NO.1
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16640 — Tank Assy, Intercooler Reserve | ||||
| 16640-0V020 |
Tank Assy, Intercooler Reserve
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16640-0V020 |
Tank Assy, Intercooler Reserve
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16640-0V020 |
Tank Assy, Intercooler Reserve
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16640A — Grommet(FOR INTERCOOLER RESERVE TANK) | ||||
| 90480-C0008 |
Grommet(FOR INTERCOOLER RESERVE TANK)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90480-C0008 |
Grommet(FOR INTERCOOLER RESERVE TANK)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90480-C0008 |
Grommet(FOR INTERCOOLER RESERVE TANK)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16651 — Bracket, Intercooler Reserve Tank | ||||
| 16651-0V020 |
Bracket, Intercooler Reserve Tank
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16651-0V020 |
Bracket, Intercooler Reserve Tank
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16651-0V020 |
Bracket, Intercooler Reserve Tank
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
