Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

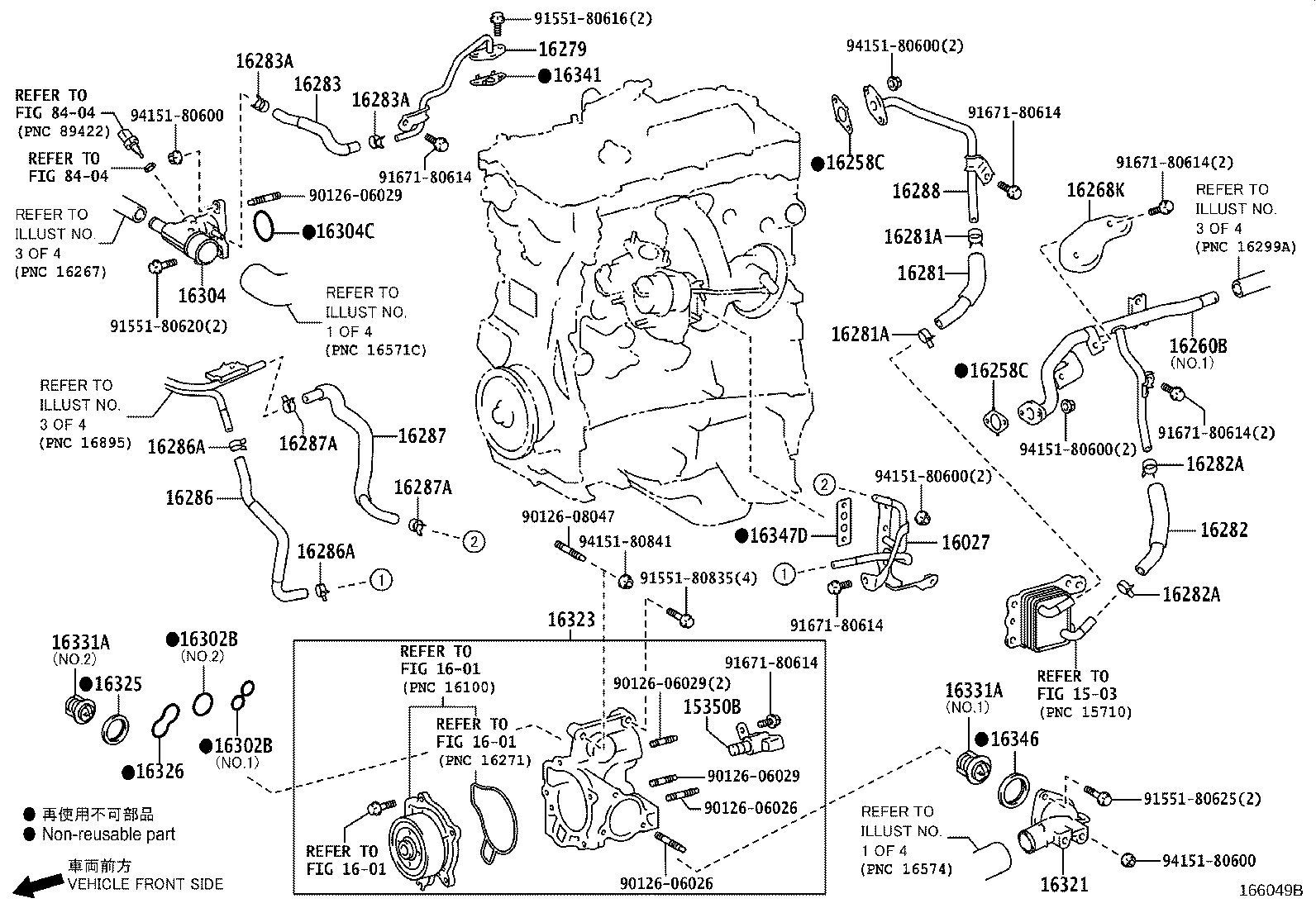

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15350B — Valve Assy, Oil Pressure Switching | ||||
| 15350-33012 |
Valve Assy, Oil Pressure Switching
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 15350-33012 |
Valve Assy, Oil Pressure Switching
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 15350-33012 |
Valve Assy, Oil Pressure Switching
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16027 — Pipe Sub-assy, Turbo Water, NO.1 | ||||
| 16027-36030 |
Pipe Sub-assy, Turbo Water, NO.1
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16027-36030 |
Pipe Sub-assy, Turbo Water, NO.1
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16027-36030 |
Pipe Sub-assy, Turbo Water, NO.1
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16258C — Gasket(FOR WATER BY-PASS PIPE) | ||||
| 16258-36040 |
Gasket(FOR WATER BY-PASS PIPE)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16258-36040 |
Gasket(FOR WATER BY-PASS PIPE)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16258-36040 |
Gasket(FOR WATER BY-PASS PIPE)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16260B — Pipe Assy, Water By-pass | ||||
| 16268-36250 note |
Pipe Assy, Water By-pass
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 1628A-36020 note |
Pipe Assy, Water By-pass
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16268-36250 note |
Pipe Assy, Water By-pass
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16268-36250 note |
Pipe Assy, Water By-pass
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 1628A-36020 note |
Pipe Assy, Water By-pass
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 1628A-36020 note |
Pipe Assy, Water By-pass
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16268K — Insulator, Exhaust Manifold Heat, NO.3 | ||||
| 17169-36030 |
Insulator, Exhaust Manifold Heat, NO.3
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 17169-36030 |
Insulator, Exhaust Manifold Heat, NO.3
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 17169-36030 |
Insulator, Exhaust Manifold Heat, NO.3
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16279 — Pipe, Water By-pass, NO.3 | ||||
| 16279-31040 |
Pipe, Water By-pass, NO.3
2015-01 → —
|
5GRFE GRS218 | — | |
| 16279-36010 |
Pipe, Water By-pass, NO.3
2015-08 → 2017-11
ended
|
8ARFTS ARS212 | — | |
| 16279-36010 |
Pipe, Water By-pass, NO.3
2017-12 → 2018-05
ended
|
8ARFTS ARS212 | — | |
| 16279-36011 |
Pipe, Water By-pass, NO.3
2018-06 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16279-36011 |
Pipe, Water By-pass, NO.3
2018-06 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16281 — Hose, Water By-pass, NO.4 | ||||
| 16281-0P030 |
Hose, Water By-pass, NO.4
2015-01 → —
|
5GRFE GRS218 | — | |
| 16281-36120 |
Hose, Water By-pass, NO.4
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16281-36120 |
Hose, Water By-pass, NO.4
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16281-36120 |
Hose, Water By-pass, NO.4
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16281A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42101 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96136-42101 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96136-42101 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16282 — Hose, Water By-pass, NO.5 | ||||
| 16282-36140 |
Hose, Water By-pass, NO.5
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16282-36140 |
Hose, Water By-pass, NO.5
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16282-36140 |
Hose, Water By-pass, NO.5
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16282A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42101 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96136-42101 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96136-42101 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16283 — Hose, Water By-pass, NO.6 | ||||
| 16283-0P010 |
Hose, Water By-pass, NO.6
2015-01 → —
|
5GRFE GRS218 | — | |
| 16283-36090 |
Hose, Water By-pass, NO.6
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16283-36090 |
Hose, Water By-pass, NO.6
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16283-36090 |
Hose, Water By-pass, NO.6
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16283A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16286 — Hose, Turbo Water, NO.3 | ||||
| 16286-36010 |
Hose, Turbo Water, NO.3
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16286-36010 |
Hose, Turbo Water, NO.3
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16286-36010 |
Hose, Turbo Water, NO.3
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16286A — Clip(FOR TURBO WATER HOSE NO.3) | ||||
| 96137-41701 |
Clip(FOR TURBO WATER HOSE NO.3)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96137-41701 |
Clip(FOR TURBO WATER HOSE NO.3)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96137-41701 |
Clip(FOR TURBO WATER HOSE NO.3)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16287 — Hose, Turbo Water, NO.4 | ||||
| 16287-36010 |
Hose, Turbo Water, NO.4
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16287-36010 |
Hose, Turbo Water, NO.4
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16287-36010 |
Hose, Turbo Water, NO.4
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16287A — Clip(FOR TURBO WATER HOSE NO.4) | ||||
| 96137-41701 |
Clip(FOR TURBO WATER HOSE NO.4)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96137-41701 |
Clip(FOR TURBO WATER HOSE NO.4)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 96137-41701 |
Clip(FOR TURBO WATER HOSE NO.4)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16288 — Pipe, Water By-pass, NO.4 | ||||
| 16288-31031 |
Pipe, Water By-pass, NO.4
2015-01 → —
|
5GRFE GRS218 | — | |
| 16288-36050 |
Pipe, Water By-pass, NO.4
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16288-36050 |
Pipe, Water By-pass, NO.4
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16288-36050 |
Pipe, Water By-pass, NO.4
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16302B — Gasket(FOR WATER INLET HOUSING) | ||||
| 16258-36050 note |
Gasket(FOR WATER INLET HOUSING)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16258-36060 note |
Gasket(FOR WATER INLET HOUSING)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16258-36050 note |
Gasket(FOR WATER INLET HOUSING)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16258-36050 note |
Gasket(FOR WATER INLET HOUSING)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16258-36060 note |
Gasket(FOR WATER INLET HOUSING)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16258-36060 note |
Gasket(FOR WATER INLET HOUSING)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16304 — Outlet Sub-assy, Water | ||||
| 16304-0P010 |
Outlet Sub-assy, Water
2015-01 → —
|
5GRFE GRS218 | — | |
| 16304-36020 |
Outlet Sub-assy, Water
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16304-36020 |
Outlet Sub-assy, Water
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16304-36020 |
Outlet Sub-assy, Water
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16304C — Ring, O(FOR WATER OUTLET) | ||||
| 96762-35040 |
Ring, O(FOR WATER OUTLET)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96762-35040 |
Ring, O(FOR WATER OUTLET)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96762-35040 |
Ring, O(FOR WATER OUTLET)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16321 — Inlet, Water | ||||
| 16321-36030 |
Inlet, Water
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16321-36030 |
Inlet, Water
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16321-36030 |
Inlet, Water
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16323 — Housing, Water Inlet | ||||
| 16032-36060 |
Housing, Water Inlet
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16032-36060 |
Housing, Water Inlet
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16032-36060 |
Housing, Water Inlet
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16325 — Gasket, Water Inlet Housing, NO.1 | ||||
| 16325-0P030 |
Gasket, Water Inlet Housing, NO.1
2015-01 → —
|
5GRFE GRS218 | — | |
| 16325-36051 |
Gasket, Water Inlet Housing, NO.1
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16325-36051 |
Gasket, Water Inlet Housing, NO.1
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16325-36051 |
Gasket, Water Inlet Housing, NO.1
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16326 — Gasket, Water Inlet Housing, NO.2 | ||||
| 16326-36030 |
Gasket, Water Inlet Housing, NO.2
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16326-36030 |
Gasket, Water Inlet Housing, NO.2
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16326-36030 |
Gasket, Water Inlet Housing, NO.2
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16331A — Thermostat | ||||
| 90916-03154 note |
Thermostat
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90916-03156 note |
Thermostat
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90916-03154 note |
Thermostat
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 90916-03154 note |
Thermostat
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90916-03156 note |
Thermostat
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90916-03156 note |
Thermostat
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16341 — Gasket, Water Outlet | ||||
| 16341-0P010 |
Gasket, Water Outlet
2015-01 → —
|
5GRFE GRS218 | — | |
| 16341-36020 |
Gasket, Water Outlet
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16341-36020 |
Gasket, Water Outlet
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16341-36020 |
Gasket, Water Outlet
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16346 — Gasket, Thermostat | ||||
| 16346-36011 |
Gasket, Thermostat
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16346-36011 |
Gasket, Thermostat
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16346-36011 |
Gasket, Thermostat
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16347D — Gasket, Water By-pass | ||||
| 16347-36020 |
Gasket, Water By-pass
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16347-36020 |
Gasket, Water By-pass
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16347-36020 |
Gasket, Water By-pass
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
