Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

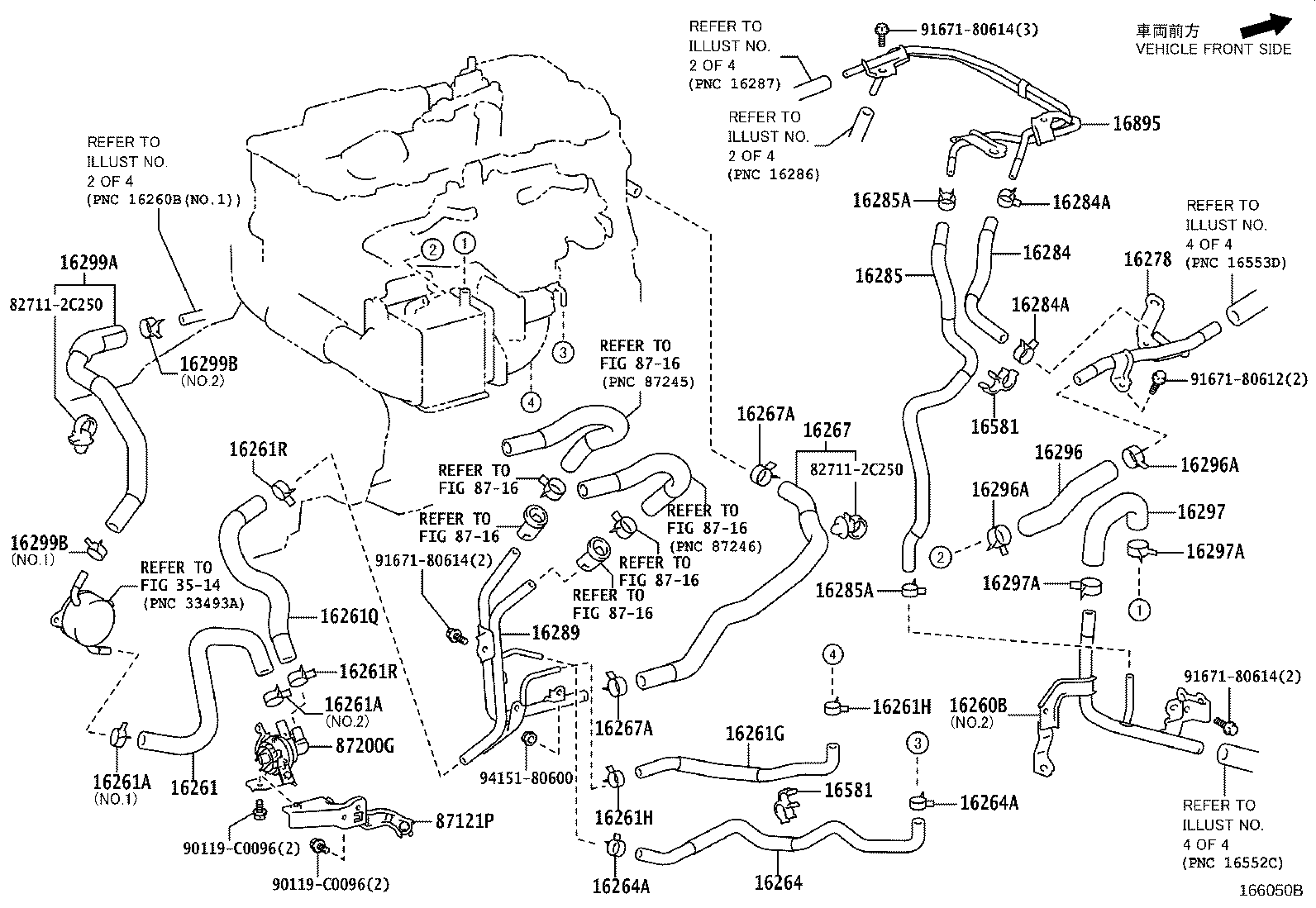

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16260B — Pipe Assy, Water By-pass | ||||
| 16268-36250 note |
Pipe Assy, Water By-pass
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 1628A-36020 note |
Pipe Assy, Water By-pass
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16268-36250 note |
Pipe Assy, Water By-pass
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16268-36250 note |
Pipe Assy, Water By-pass
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 1628A-36020 note |
Pipe Assy, Water By-pass
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 1628A-36020 note |
Pipe Assy, Water By-pass
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16261 — Hose, Water By-pass | ||||
| 16261-0P010 |
Hose, Water By-pass
2015-01 → —
|
5GRFE GRS218 | — | |
| 16261-0V080 |
Hose, Water By-pass
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16261-0V080 |
Hose, Water By-pass
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16261-0V080 |
Hose, Water By-pass
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) | ||||
| 90466-C0013 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90466-C0013 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-01 → —
|
5GRFE GRS218 | — | |
| 90466-C0014 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96136-42101 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96136-42501 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90466-C0013 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90466-C0013 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 90466-C0014 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90466-C0014 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 96136-42101 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96136-42101 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16261G — Hose, Water By-pass, NO.1 | ||||
| 16261-0P060 |
Hose, Water By-pass, NO.1
2015-01 → —
|
5GRFE GRS218 | — | |
| 16261-36170 |
Hose, Water By-pass, NO.1
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16261-36170 |
Hose, Water By-pass, NO.1
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16261-36170 |
Hose, Water By-pass, NO.1
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16261H — Clip(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-C0023 |
Clip(FOR WATER BY-PASS HOSE NO.1)
2015-01 → —
|
5GRFE GRS218 | — | |
| 96136-41501 |
Clip(FOR WATER BY-PASS HOSE NO.1)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96136-41501 |
Clip(FOR WATER BY-PASS HOSE NO.1)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96136-41501 |
Clip(FOR WATER BY-PASS HOSE NO.1)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16261Q — Hose, Water By-pass | ||||
| 87245-0N070 |
Hose, Water By-pass
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 87245-0N070 |
Hose, Water By-pass
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 87245-0N070 |
Hose, Water By-pass
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16261R — Clamp OR Clip(FOR WATER BY-PASS HOSE) | ||||
| 96137-52501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96137-52501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96137-52501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16264 — Hose, Water By-pass, NO.2 | ||||
| 16264-0P060 |
Hose, Water By-pass, NO.2
2015-01 → —
|
5GRFE GRS218 | — | |
| 16264-36140 |
Hose, Water By-pass, NO.2
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16264-36140 |
Hose, Water By-pass, NO.2
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16264-36140 |
Hose, Water By-pass, NO.2
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16264A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-C0013 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2015-01 → —
|
5GRFE GRS218 | — | |
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16267 — Hose, Water By-pass, NO.3 | ||||
| 16267-0P060 |
Hose, Water By-pass, NO.3
2015-01 → —
|
5GRFE GRS218 | — | |
| 16267-36120 |
Hose, Water By-pass, NO.3
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16267-36120 |
Hose, Water By-pass, NO.3
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16267-36120 |
Hose, Water By-pass, NO.3
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16267A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96136-42501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96136-42501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16278 — Pipe, Water By-pass, NO.2 | ||||
| 16278-36040 |
Pipe, Water By-pass, NO.2
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16278-36040 |
Pipe, Water By-pass, NO.2
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16278-36040 |
Pipe, Water By-pass, NO.2
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16284 — Hose, Turbo Water, NO.1 | ||||
| 16284-36030 |
Hose, Turbo Water, NO.1
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16284-36030 |
Hose, Turbo Water, NO.1
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16284-36030 |
Hose, Turbo Water, NO.1
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16284A — Clip(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41701 |
Clip(FOR TURBO WATER HOSE NO.1)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96137-41701 |
Clip(FOR TURBO WATER HOSE NO.1)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 96137-41701 |
Clip(FOR TURBO WATER HOSE NO.1)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16285 — Hose, Turbo Water, NO.2 | ||||
| 16285-36030 |
Hose, Turbo Water, NO.2
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16285-36030 |
Hose, Turbo Water, NO.2
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16285-36030 |
Hose, Turbo Water, NO.2
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16285A — Clip(FOR TURBO WATER HOSE NO.2) | ||||
| 96137-41701 |
Clip(FOR TURBO WATER HOSE NO.2)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96137-41701 |
Clip(FOR TURBO WATER HOSE NO.2)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96137-41701 |
Clip(FOR TURBO WATER HOSE NO.2)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16289 — Pipe, Water By-pass, NO.5 | ||||
| 16289-36020 |
Pipe, Water By-pass, NO.5
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16289-36020 |
Pipe, Water By-pass, NO.5
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16289-36020 |
Pipe, Water By-pass, NO.5
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16296 — Hose, Water By-pass, NO.8 | ||||
| 16296-31010 |
Hose, Water By-pass, NO.8
2015-01 → —
|
5GRFE GRS218 | — | |
| 16296-36060 |
Hose, Water By-pass, NO.8
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16296-36060 |
Hose, Water By-pass, NO.8
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16296-36060 |
Hose, Water By-pass, NO.8
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16296A — Clip(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-42501 |
Clip(FOR WATER BY-PASS HOSE NO.8)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96136-42701 |
Clip(FOR WATER BY-PASS HOSE NO.8)
2015-01 → —
|
5GRFE GRS218 | — | |
| 96136-42501 |
Clip(FOR WATER BY-PASS HOSE NO.8)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96136-42501 |
Clip(FOR WATER BY-PASS HOSE NO.8)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16297 — Hose, Water By-pass, NO.9 | ||||
| 16297-31010 |
Hose, Water By-pass, NO.9
2015-01 → —
|
5GRFE GRS218 | — | |
| 16297-36050 |
Hose, Water By-pass, NO.9
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16297-36050 |
Hose, Water By-pass, NO.9
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16297-36050 |
Hose, Water By-pass, NO.9
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16297A — Clip(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96136-42501 |
Clip(FOR WATER BY-PASS HOSE NO.9)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96136-42701 |
Clip(FOR WATER BY-PASS HOSE NO.9)
2015-01 → —
|
5GRFE GRS218 | — | |
| 96136-42501 |
Clip(FOR WATER BY-PASS HOSE NO.9)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96136-42501 |
Clip(FOR WATER BY-PASS HOSE NO.9)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16299A — Hose, Water By-pass, NO.13 | ||||
| 16299-36020 |
Hose, Water By-pass, NO.13
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16299-36020 |
Hose, Water By-pass, NO.13
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16299-36020 |
Hose, Water By-pass, NO.13
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16299B — Clip(FOR WATER BY-PASS HOSE NO.13) | ||||
| 90466-C0013 note |
Clip(FOR WATER BY-PASS HOSE NO.13)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90466-C0014 note |
Clip(FOR WATER BY-PASS HOSE NO.13)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96136-42101 note |
Clip(FOR WATER BY-PASS HOSE NO.13)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96136-42501 note |
Clip(FOR WATER BY-PASS HOSE NO.13)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90466-C0013 note |
Clip(FOR WATER BY-PASS HOSE NO.13)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90466-C0013 note |
Clip(FOR WATER BY-PASS HOSE NO.13)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 90466-C0014 note |
Clip(FOR WATER BY-PASS HOSE NO.13)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90466-C0014 note |
Clip(FOR WATER BY-PASS HOSE NO.13)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 96136-42101 note |
Clip(FOR WATER BY-PASS HOSE NO.13)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96136-42101 note |
Clip(FOR WATER BY-PASS HOSE NO.13)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 96136-42501 note |
Clip(FOR WATER BY-PASS HOSE NO.13)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 96136-42501 note |
Clip(FOR WATER BY-PASS HOSE NO.13)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16581 — Clamp, Hose(FOR WATER HOSE) | ||||
| 16581-31010 |
Clamp, Hose(FOR WATER HOSE)
2015-01 → —
|
5GRFE GRS218 | — | |
| 16581-33080 |
Clamp, Hose(FOR WATER HOSE)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16581-33080 |
Clamp, Hose(FOR WATER HOSE)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16581-33080 |
Clamp, Hose(FOR WATER HOSE)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 16895 — Pipe, Turbo Water, NO.1 | ||||
| 16895-36010 |
Pipe, Turbo Water, NO.1
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 16895-36010 |
Pipe, Turbo Water, NO.1
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 16895-36010 |
Pipe, Turbo Water, NO.1
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 87121P — Bracket, Water Pump | ||||
| 87121-0N020 |
Bracket, Water Pump
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 87121-0N020 |
Bracket, Water Pump
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 87121-0N020 |
Bracket, Water Pump
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 87200G — Pump Assy, Electric Water, NO.2 | ||||
| 87200-30270 |
Pump Assy, Electric Water, NO.2
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 87200-30270 |
Pump Assy, Electric Water, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 87200-30270 |
Pump Assy, Electric Water, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
