Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

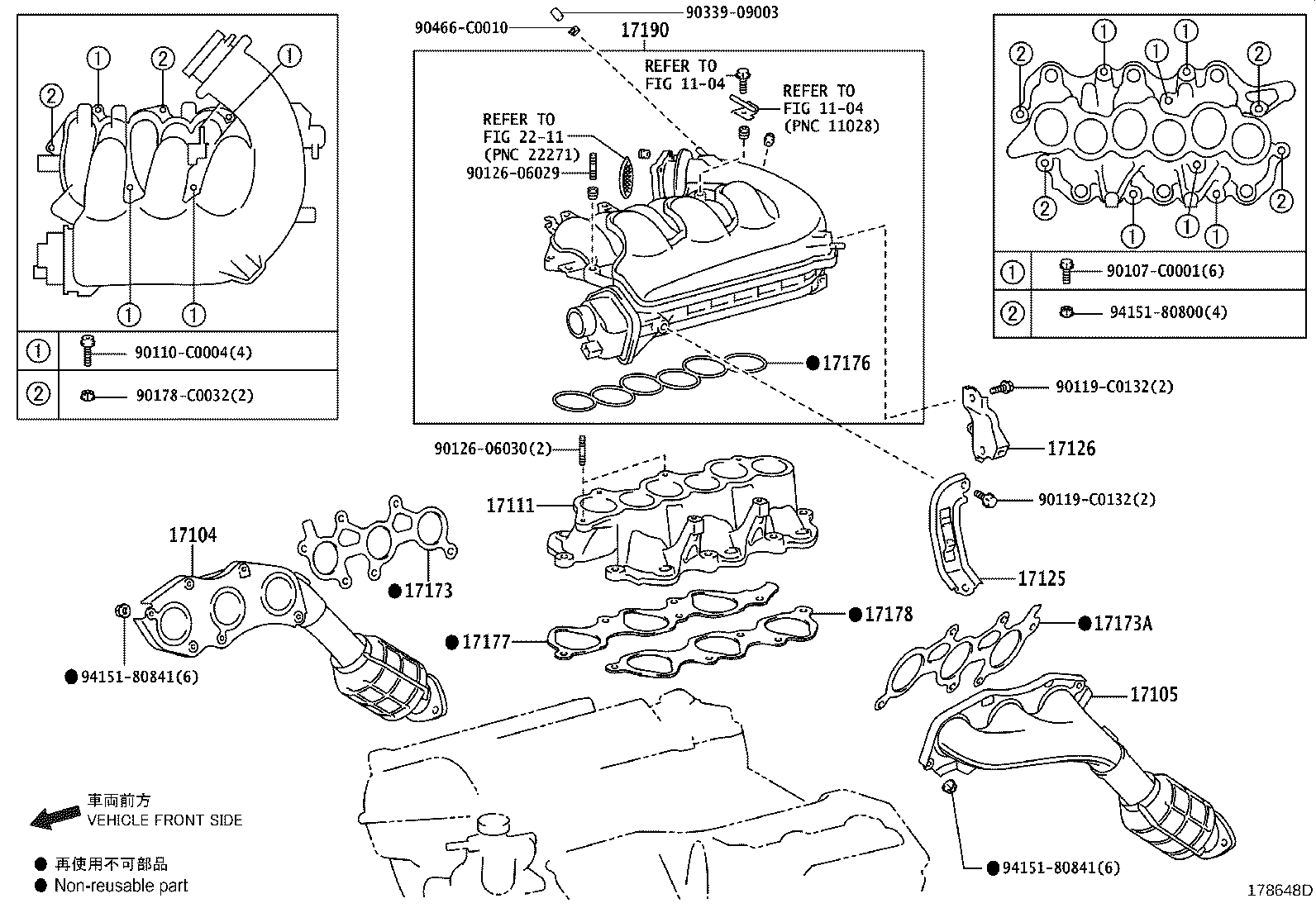

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17104 — Manifold Sub-assy, Exhaust, RH | ||||
| 17140-0P290 |
Manifold Sub-assy, Exhaust, RH
2015-01 → —
|
5GRFE GRS218 | — | |
| 17105 — Manifold Sub-assy, Exhaust, LH | ||||
| 17150-0P290 |
Manifold Sub-assy, Exhaust, LH
2015-01 → —
|
5GRFE GRS218 | — | |
| 17111 — Manifold, Intake | ||||
| 17101-36082 |
Manifold, Intake
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 17111-0P010 |
Manifold, Intake
2015-01 → —
|
5GRFE GRS218 | — | |
| 17101-36082 |
Manifold, Intake
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 17101-36082 |
Manifold, Intake
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 17125 — Stay, Surge Tank, NO.1 | ||||
| 17125-0P030 |
Stay, Surge Tank, NO.1
2015-01 → —
|
5GRFE GRS218 | — | |
| 17126 — Stay, Surge Tank, NO.2 | ||||
| 17126-0P020 |
Stay, Surge Tank, NO.2
2015-01 → —
|
5GRFE GRS218 | — | |
| 17173 — Gasket, Exhaust Manifold TO Head | ||||
| 17173-0P030 |
Gasket, Exhaust Manifold TO Head
2015-01 → —
|
5GRFE GRS218 | — | |
| 17173-36040 |
Gasket, Exhaust Manifold TO Head
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 17173-36040 |
Gasket, Exhaust Manifold TO Head
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 17173-36040 |
Gasket, Exhaust Manifold TO Head
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 17173A — Gasket, Exhaust Manifold TO Head, LH | ||||
| 17173-0P030 note |
Gasket, Exhaust Manifold TO Head, LH
2015-01 → —
|
5GRFE GRS218 | — | |
| 17176 — Gasket, Air Surge Tank TO Intake Manifold | ||||
| 17176-31030 |
Gasket, Air Surge Tank TO Intake Manifold
2015-01 → —
|
5GRFE GRS218 | — | |
| 17177 — Gasket, Intake Manifold TO Head, NO.1 | ||||
| 17171-36040 |
Gasket, Intake Manifold TO Head, NO.1
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 17177-0P010 |
Gasket, Intake Manifold TO Head, NO.1
2015-01 → —
|
5GRFE GRS218 | — | |
| 17171-36040 |
Gasket, Intake Manifold TO Head, NO.1
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 17171-36040 |
Gasket, Intake Manifold TO Head, NO.1
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 17178 — Gasket, Intake Manifold TO Head, NO.2 | ||||
| 17178-0P010 |
Gasket, Intake Manifold TO Head, NO.2
2015-01 → —
|
5GRFE GRS218 | — | |
| 17190 — Tank Assy, Intake Air Surge | ||||
| 17190-0P020 |
Tank Assy, Intake Air Surge
2015-01 → —
|
5GRFE GRS218 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
