Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

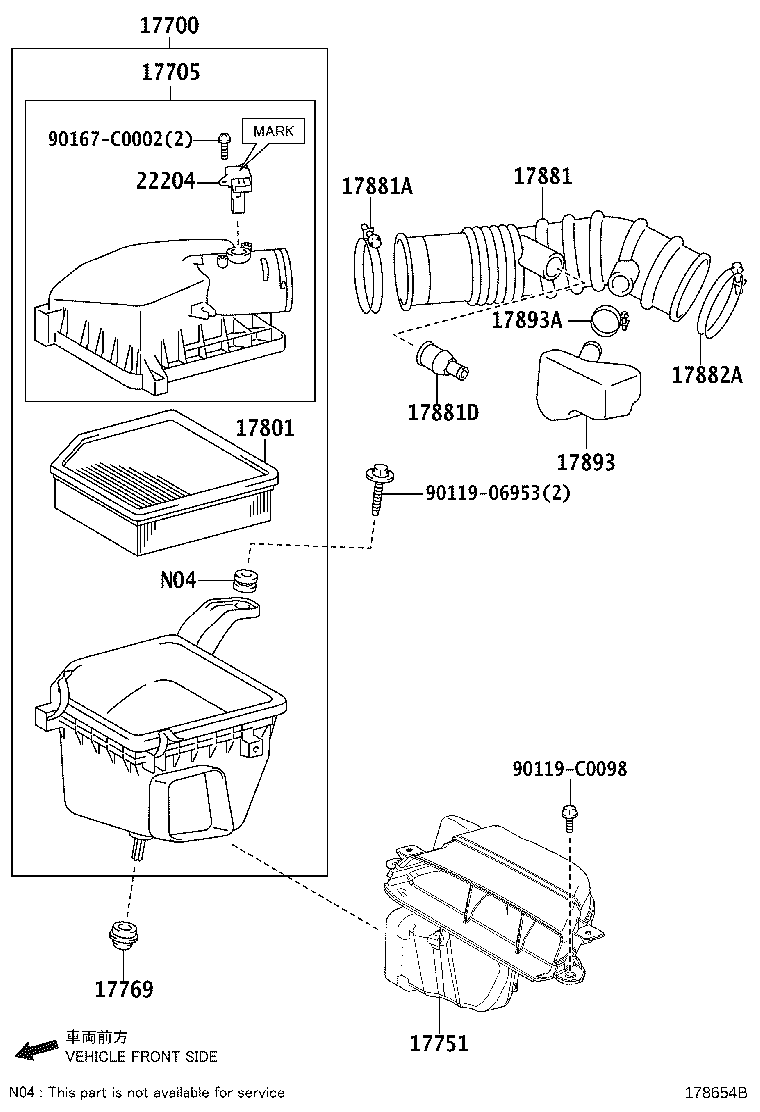

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17700 — Cleaner Assy, Air | ||||
| 17700-0P060 |
Cleaner Assy, Air
2015-01 → —
|
5GRFE GRS218 | — | |
| 17700-0V120 |
Cleaner Assy, Air
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 17700-0V120 |
Cleaner Assy, Air
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 17700-0V120 |
Cleaner Assy, Air
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-0P110 |
Cap Sub-assy, Air Cleaner
2015-01 → —
|
5GRFE GRS218 | — | |
| 17705-0V160 |
Cap Sub-assy, Air Cleaner
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 17705-0V160 |
Cap Sub-assy, Air Cleaner
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 17705-0V160 |
Cap Sub-assy, Air Cleaner
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 17751 — Inlet, Air Cleaner, NO.1 | ||||
| 17751-0P200 |
Inlet, Air Cleaner, NO.1
2015-01 → —
|
5GRFE GRS218 | — | |
| 17751-0V060 |
Inlet, Air Cleaner, NO.1
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 17751-0V060 |
Inlet, Air Cleaner, NO.1
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 17751-0V060 |
Inlet, Air Cleaner, NO.1
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 17769 — Support, Air Cleaner | ||||
| 17769-0P020 note |
Support, Air Cleaner
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 17769-0P020 note |
Support, Air Cleaner
2015-01 → —
|
5GRFE GRS218 | — | |
| 17769-31030 note |
Support, Air Cleaner
2015-01 → —
|
5GRFE GRS218 | — | |
| 17769-31030 note |
Support, Air Cleaner
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 17769-0P020 note |
Support, Air Cleaner
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 17769-0P020 note |
Support, Air Cleaner
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 17769-31030 note |
Support, Air Cleaner
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 17769-31030 note |
Support, Air Cleaner
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-0V050 |
Element Sub-assy, Air Cleaner Filter
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 17801-0V050 |
Element Sub-assy, Air Cleaner Filter
2015-01 → —
|
5GRFE GRS218 | — | |
| 17801-0V050 |
Element Sub-assy, Air Cleaner Filter
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 17801-0V050 |
Element Sub-assy, Air Cleaner Filter
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 17881 — Hose, Air Cleaner, NO.1 | ||||
| 17880-0V220 |
Hose, Air Cleaner, NO.1
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 17881-0P020 |
Hose, Air Cleaner, NO.1
2015-01 → 2015-06
ended
|
5GRFE GRS218 | — | |
| 17881-0P021 |
Hose, Air Cleaner, NO.1
2015-07 → —
|
5GRFE GRS218 | — | |
| 17880-0V220 |
Hose, Air Cleaner, NO.1
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 17880-0V220 |
Hose, Air Cleaner, NO.1
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 17881A — Clamp(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10850 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2015-01 → 2015-02
ended
|
5GRFE GRS218 | — | |
| 96111-10850 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2015-07 → —
|
5GRFE GRS218 | — | |
| 96111-10850 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2015-02 → 2015-07
ended
|
5GRFE GRS218 | — | |
| 96111-10850 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96111-10850 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96111-10850 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 17881D — Tube, Union(FOG AIR CLEANER HOSE) | ||||
| 17878-0V030 |
Tube, Union(FOG AIR CLEANER HOSE)
2015-01 → —
|
5GRFE GRS218 | — | |
| 17882A — Clamp(FOR AIR CLEANER HOSE, NO.2) | ||||
| 17891-31010 |
Clamp(FOR AIR CLEANER HOSE, NO.2)
2015-02 → 2015-07
ended
|
5GRFE GRS218 | — | |
| 96111-10670 |
Clamp(FOR AIR CLEANER HOSE, NO.2)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 96111-10670 |
Clamp(FOR AIR CLEANER HOSE, NO.2)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 96111-10670 |
Clamp(FOR AIR CLEANER HOSE, NO.2)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 17893 — Resonator, Intake Air | ||||
| 17893-0P020 |
Resonator, Intake Air
2015-01 → —
|
5GRFE GRS218 | — | |
| 17893-36120 |
Resonator, Intake Air
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 17893-36120 |
Resonator, Intake Air
2017-12 → 2018-06
ended
|
8ARFTS ARS212 | — | |
| 17893-36210 |
Resonator, Intake Air
2018-06 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 17893-36210 |
Resonator, Intake Air
2018-06 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 17893A — Clamp, Hose | ||||
| 96111-10330 |
Clamp, Hose
2015-01 → —
|
5GRFE GRS218 | — | |
| 22204 — Meter Sub-assy, Intake Air Flow | ||||
| 22204-0T040 note |
Meter Sub-assy, Intake Air Flow
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 22204-0T040 note |
Meter Sub-assy, Intake Air Flow
2015-01 → —
|
5GRFE GRS218 | — | |
| 22204-0V020 note |
Meter Sub-assy, Intake Air Flow
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 22204-0V020 note |
Meter Sub-assy, Intake Air Flow
2015-01 → —
|
5GRFE GRS218 | — | |
| 22204-28010 note |
Meter Sub-assy, Intake Air Flow
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 22204-28010 note |
Meter Sub-assy, Intake Air Flow
2015-01 → —
|
5GRFE GRS218 | — | |
| 22204-0T040 note |
Meter Sub-assy, Intake Air Flow
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 22204-0T040 note |
Meter Sub-assy, Intake Air Flow
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 22204-0V020 note |
Meter Sub-assy, Intake Air Flow
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 22204-0V020 note |
Meter Sub-assy, Intake Air Flow
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 22204-28010 note |
Meter Sub-assy, Intake Air Flow
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 22204-28010 note |
Meter Sub-assy, Intake Air Flow
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
