Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

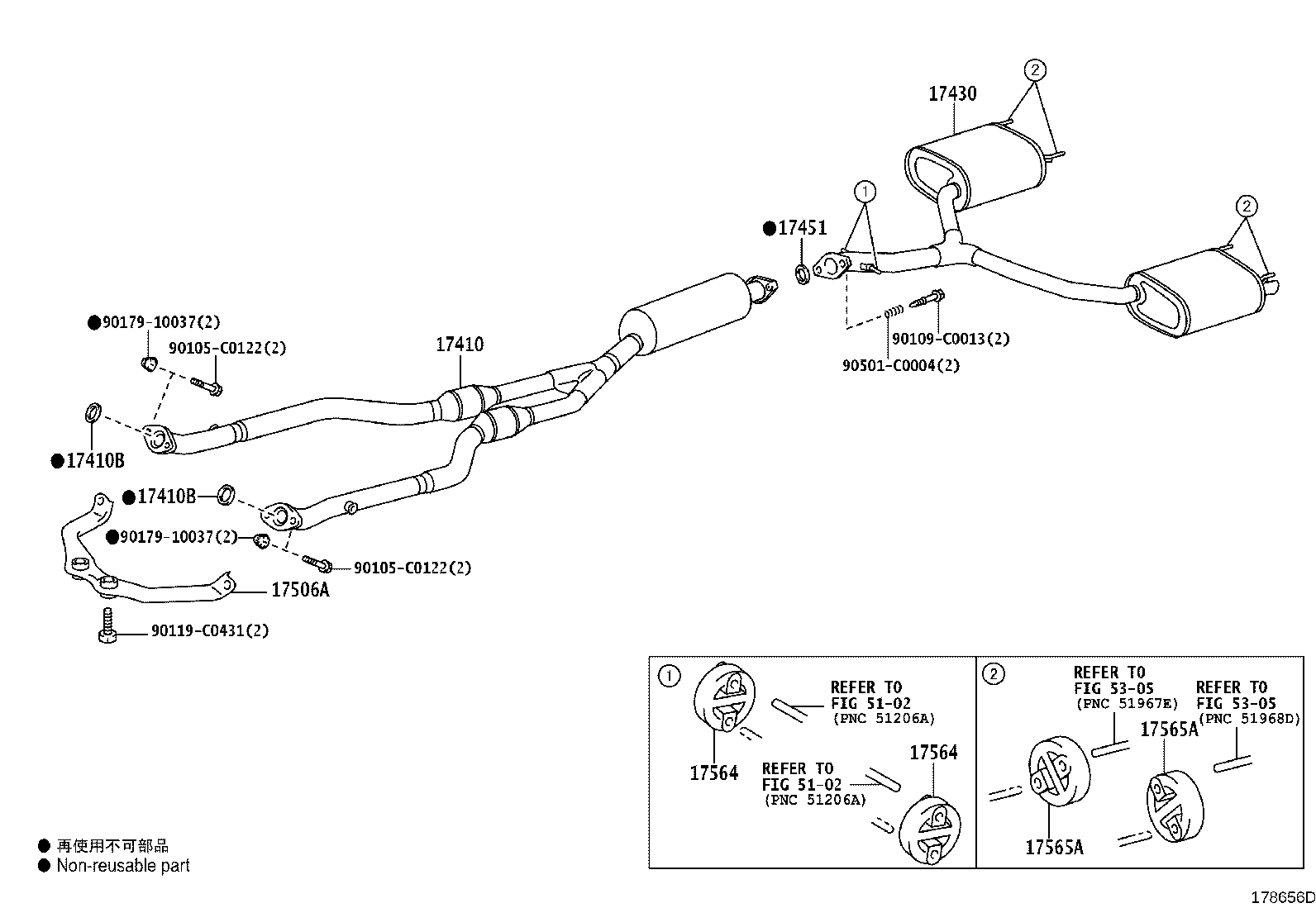

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17410 — Pipe Assy, Exhaust, Front | ||||
| 17410-0P490 |
Pipe Assy, Exhaust, Front
2015-01 → 2017-12
ended
|
5GRFE GRS218 | — | |
| 17410-0V370 |
Pipe Assy, Exhaust, Front
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 17410-0V370 |
Pipe Assy, Exhaust, Front
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 17410-0V370 |
Pipe Assy, Exhaust, Front
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 17410B — Gasket, Exhaust Pipe | ||||
| 90917-06090 |
Gasket, Exhaust Pipe
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90917-C6001 |
Gasket, Exhaust Pipe
2015-01 → 2017-12
ended
|
5GRFE GRS218 | — | |
| 90917-06090 |
Gasket, Exhaust Pipe
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90917-06090 |
Gasket, Exhaust Pipe
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 17430 — Pipe Assy, Exhaust, Tail | ||||
| 17430-0P410 |
Pipe Assy, Exhaust, Tail
2015-01 → 2017-12
ended
|
5GRFE GRS218 | — | |
| 17430-0V330 |
Pipe Assy, Exhaust, Tail
2015-08 → 2017-03
ended
|
8ARFTS ARS212 | — | |
| 17430-0V331 |
Pipe Assy, Exhaust, Tail
2017-04 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 17430-0V480 |
Pipe Assy, Exhaust, Tail
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 17430-0V480 |
Pipe Assy, Exhaust, Tail
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 17451 — Gasket, Exhaust Pipe | ||||
| 17451-0P012 |
Gasket, Exhaust Pipe
2015-01 → 2017-12
ended
|
8ARFTS,5GRFE ARS212,GRS218 | — | |
| 17451-0P012 |
Gasket, Exhaust Pipe
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 17451-0P012 |
Gasket, Exhaust Pipe
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 17506A — Bracket Sub-assy, Exhaust Pipe NO.1 Support | ||||
| 17506-31030 |
Bracket Sub-assy, Exhaust Pipe NO.1 Support
2015-01 → 2017-12
ended
|
5GRFE GRS218 | — | |
| 17564 — Support,Exhaust Pipe, NO.4 | ||||
| 17565-0T010 |
Support,Exhaust Pipe, NO.4
2015-01 → 2017-08
ended
|
8ARFTS,5GRFE ARS212,GRS218 | — | |
| 17565-0T011 |
Support,Exhaust Pipe, NO.4
2017-09 → 2017-12
ended
|
8ARFTS,5GRFE ARS212,GRS218 | — | |
| 17565-0T011 |
Support,Exhaust Pipe, NO.4
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 17565-0T011 |
Support,Exhaust Pipe, NO.4
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 17565A — Support, Exhaust Pipe, NO.4 | ||||
| 17565-0D070 |
Support, Exhaust Pipe, NO.4
2015-01 → 2017-12
ended
|
8ARFTS,5GRFE ARS212,GRS218 | — | |
| 17565-0D070 |
Support, Exhaust Pipe, NO.4
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 17565-0D070 |
Support, Exhaust Pipe, NO.4
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
