Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

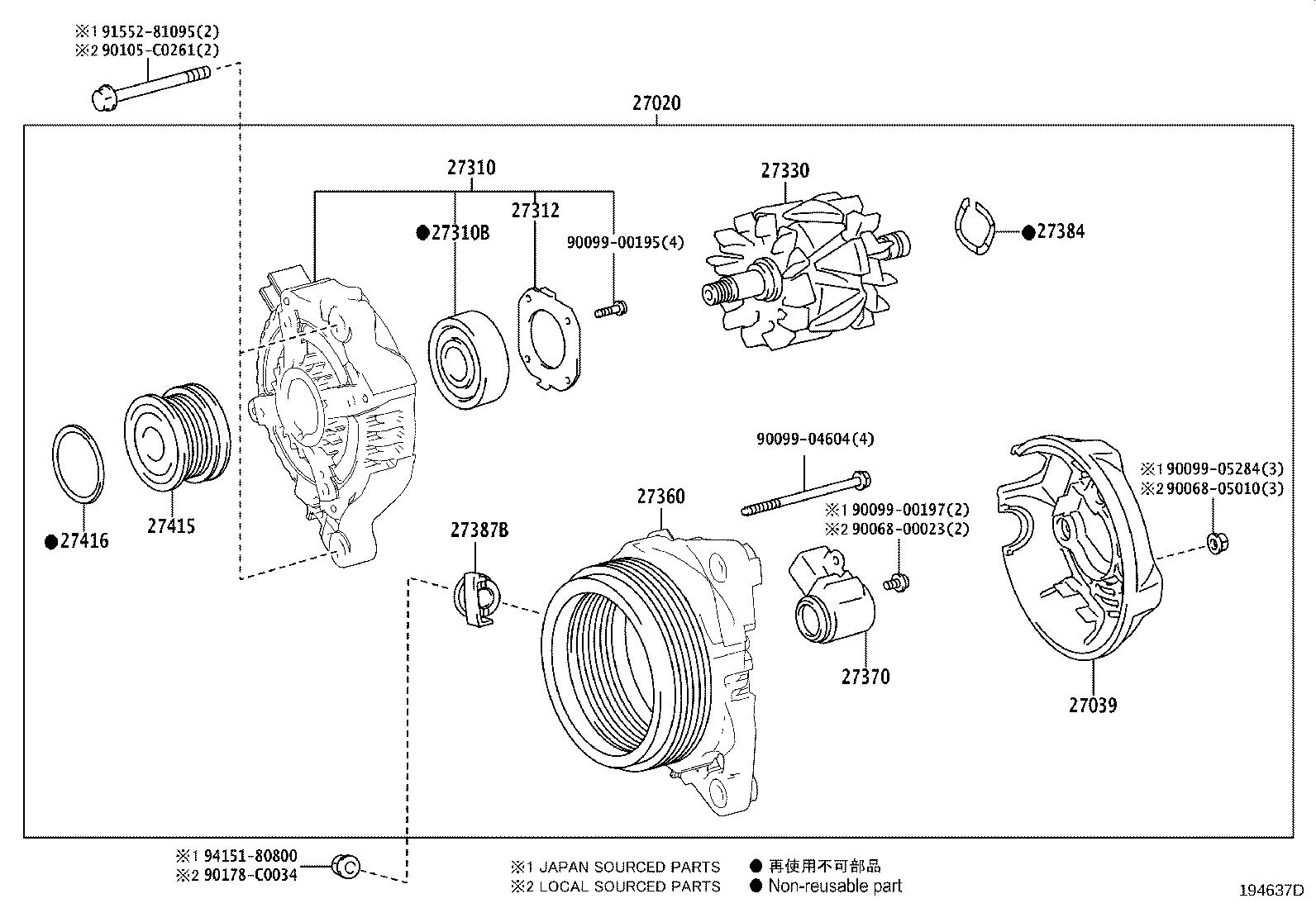

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 27020 — Alternator Assy | ||||
| 27060-0P183 note |
Alternator Assy
2015-01 → 2017-12
ended
|
5GRFE GRS218 | — | |
| 27060-0V180 note |
Alternator Assy
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 27060-0V180 note |
Alternator Assy
2017-12 → 2019-12
ended
|
8ARFTS ARS212 | — | |
| 27060-0V181 note |
Alternator Assy
2020-01 → —
|
8ARFTS ARS212 | — | |
| 27039 — Cover, Alternator Rear End | ||||
| 27039-0P070 |
Cover, Alternator Rear End
2015-01 → 2017-12
ended
|
5GRFE GRS218 | — | |
| 27039-0V170 |
Cover, Alternator Rear End
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 27039-0V170 |
Cover, Alternator Rear End
2017-12 → —
|
8ARFTS ARS212 | — | |
| 27310 — Frame Assy, Drive End, Alternator | ||||
| 27310-0P180 |
Frame Assy, Drive End, Alternator
2015-01 → 2017-12
ended
|
5GRFE GRS218 | — | |
| 27310-0V170 |
Frame Assy, Drive End, Alternator
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 27310-0V170 |
Frame Assy, Drive End, Alternator
2017-12 → —
|
8ARFTS ARS212 | — | |
| 27310B — Bearing(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10015 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90068-10042 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2015-01 → 2017-12
ended
|
5GRFE GRS218 | — | |
| 90068-10015 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2017-12 → —
|
8ARFTS ARS212 | — | |
| 27312 — Plate, Retainer | ||||
| 27312-0M070 |
Plate, Retainer
2015-01 → 2017-12
ended
|
5GRFE GRS218 | — | |
| 27312-42010 |
Plate, Retainer
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 27312-42010 |
Plate, Retainer
2017-12 → —
|
8ARFTS ARS212 | — | |
| 27330 — Rotor Assy, Alternator | ||||
| 27330-0P180 |
Rotor Assy, Alternator
2015-01 → 2017-12
ended
|
5GRFE GRS218 | — | |
| 27330-0V170 |
Rotor Assy, Alternator
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 27330-0V170 |
Rotor Assy, Alternator
2017-12 → —
|
8ARFTS ARS212 | — | |
| 27360 — Coil Assy, Alternator | ||||
| 27360-0P180 |
Coil Assy, Alternator
2015-01 → 2017-12
ended
|
5GRFE GRS218 | — | |
| 27360-0V170 |
Coil Assy, Alternator
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 27360-0V170 |
Coil Assy, Alternator
2017-12 → —
|
8ARFTS ARS212 | — | |
| 27370 — Holder Assy, Alternator Brush | ||||
| 27370-0T030 |
Holder Assy, Alternator Brush
2015-01 → 2017-12
ended
|
5GRFE GRS218 | — | |
| 27370-0V170 |
Holder Assy, Alternator Brush
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 27370-0V170 |
Holder Assy, Alternator Brush
2017-12 → —
|
8ARFTS ARS212 | — | |
| 27384 — Washer | ||||
| 27384-38130 |
Washer
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 27384-50030 |
Washer
2015-01 → 2017-12
ended
|
5GRFE GRS218 | — | |
| 27384-0V170 |
Washer
2020-01 → —
|
8ARFTS ARS212 | — | |
| 27384-38130 |
Washer
2017-12 → 2020-01
ended
|
8ARFTS ARS212 | — | |
| 27387B — Insulator, Alternator Terminal | ||||
| 27387-0H110 |
Insulator, Alternator Terminal
2015-01 → 2017-12
ended
|
5GRFE GRS218 | — | |
| 27387-38130 |
Insulator, Alternator Terminal
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 27387-38130 |
Insulator, Alternator Terminal
2017-12 → —
|
8ARFTS ARS212 | — | |
| 27415 — Pulley, Alternator W/Clutch | ||||
| 27415-0W131 |
Pulley, Alternator W/Clutch
2015-01 → 2017-12
ended
|
5GRFE GRS218 | — | |
| 27415-0W230 |
Pulley, Alternator W/Clutch
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 27415-0W230 |
Pulley, Alternator W/Clutch
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 27415-0W230 |
Pulley, Alternator W/Clutch
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 27416 — Cap, Alternator Pulley | ||||
| 27416-0W050 |
Cap, Alternator Pulley
2015-01 → 2017-12
ended
|
8ARFTS,5GRFE ARS212,GRS218 | — | |
| 27416-0W050 |
Cap, Alternator Pulley
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 27416-0W050 |
Cap, Alternator Pulley
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
