Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

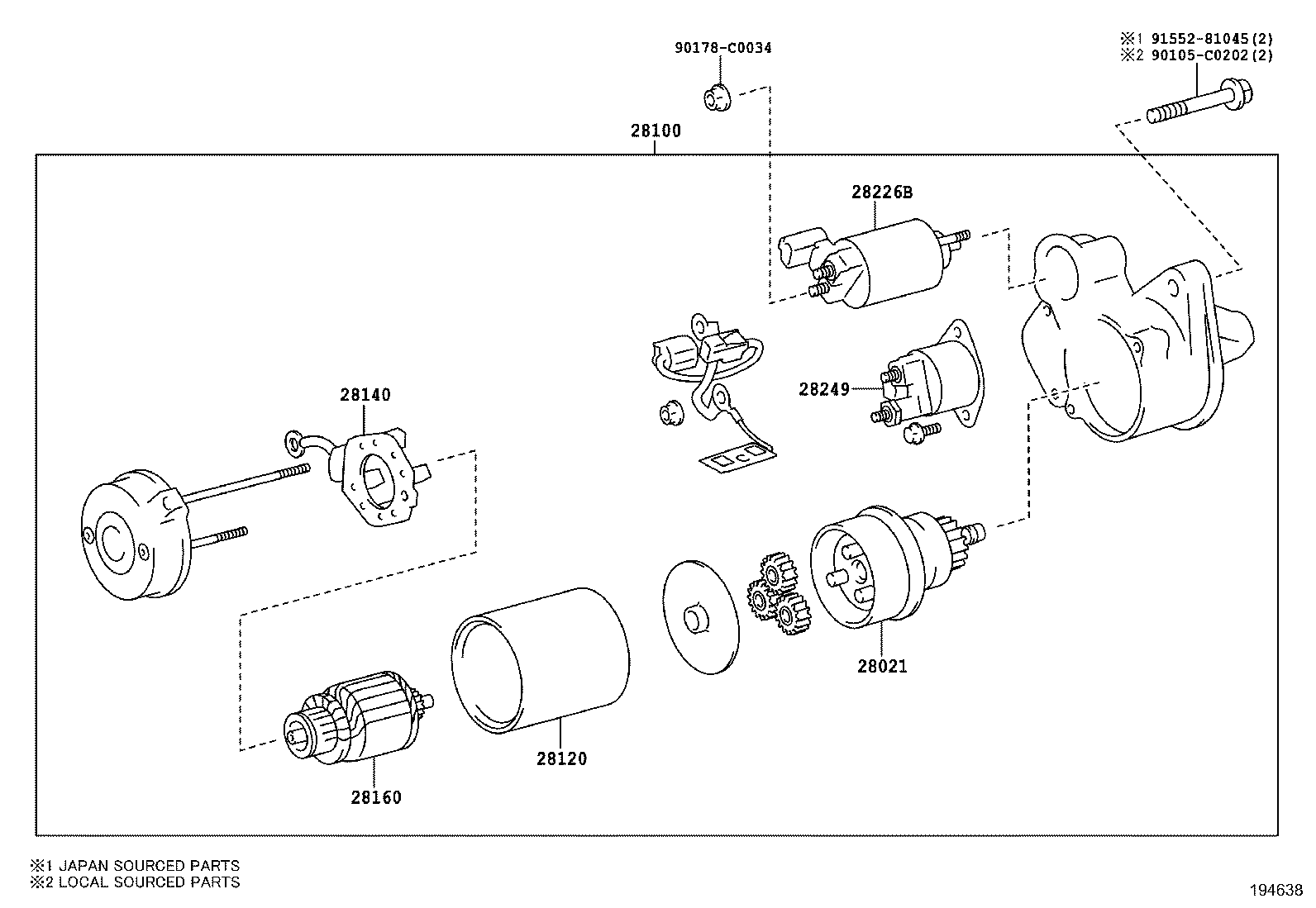

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28021 — Clutch Sub-assy, Starter Center Bearing | ||||
| 28021-0P010 |
Clutch Sub-assy, Starter Center Bearing
2015-01 → 2017-12
ended
|
5GRFE GRS218 | — | |
| 28021-0V040 |
Clutch Sub-assy, Starter Center Bearing
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 28021-0V040 |
Clutch Sub-assy, Starter Center Bearing
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 28021-0V040 |
Clutch Sub-assy, Starter Center Bearing
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 28100 — Starter Assy | ||||
| 28100-0P011 note |
Starter Assy
2015-01 → 2017-12
ended
|
5GRFE GRS218 | — | |
| 28100-0V040 note |
Starter Assy
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 28100-0V040 note |
Starter Assy
2017-12 → 2019-03
ended
|
8ARFTS ARS212 | — | |
| 28100-0V041 note |
Starter Assy
2019-03 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 28100-0V041 note |
Starter Assy
2019-03 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 28120 — Yoke Assy, Starter | ||||
| 28120-0H120 |
Yoke Assy, Starter
2015-01 → 2017-12
ended
|
5GRFE GRS218 | — | |
| 28120-0V040 |
Yoke Assy, Starter
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 28120-0V040 |
Yoke Assy, Starter
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 28120-0V040 |
Yoke Assy, Starter
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 28140 — Holder Assy, Starter Brush | ||||
| 28140-0V040 |
Holder Assy, Starter Brush
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 28140-0V040 |
Holder Assy, Starter Brush
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 28140-0V040 |
Holder Assy, Starter Brush
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 28160 — Armature Assy, Starter | ||||
| 28160-0S050 |
Armature Assy, Starter
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 28160-21060 |
Armature Assy, Starter
2015-01 → 2017-12
ended
|
5GRFE GRS218 | — | |
| 28160-0S050 |
Armature Assy, Starter
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 28160-0S050 |
Armature Assy, Starter
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 28226B — Starter Kit, Repair Service | ||||
| 28226-22061 |
Starter Kit, Repair Service
2015-01 → 2017-12
ended
|
5GRFE GRS218 | — | |
| 28226-37100 |
Starter Kit, Repair Service
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 28226-37100 |
Starter Kit, Repair Service
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 28226-37100 |
Starter Kit, Repair Service
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 28249 — Relay, Starter Inrush Current Reduction | ||||
| 28249-0V040 |
Relay, Starter Inrush Current Reduction
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 28249-0V040 |
Relay, Starter Inrush Current Reduction
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 28249-0V040 |
Relay, Starter Inrush Current Reduction
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
