Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

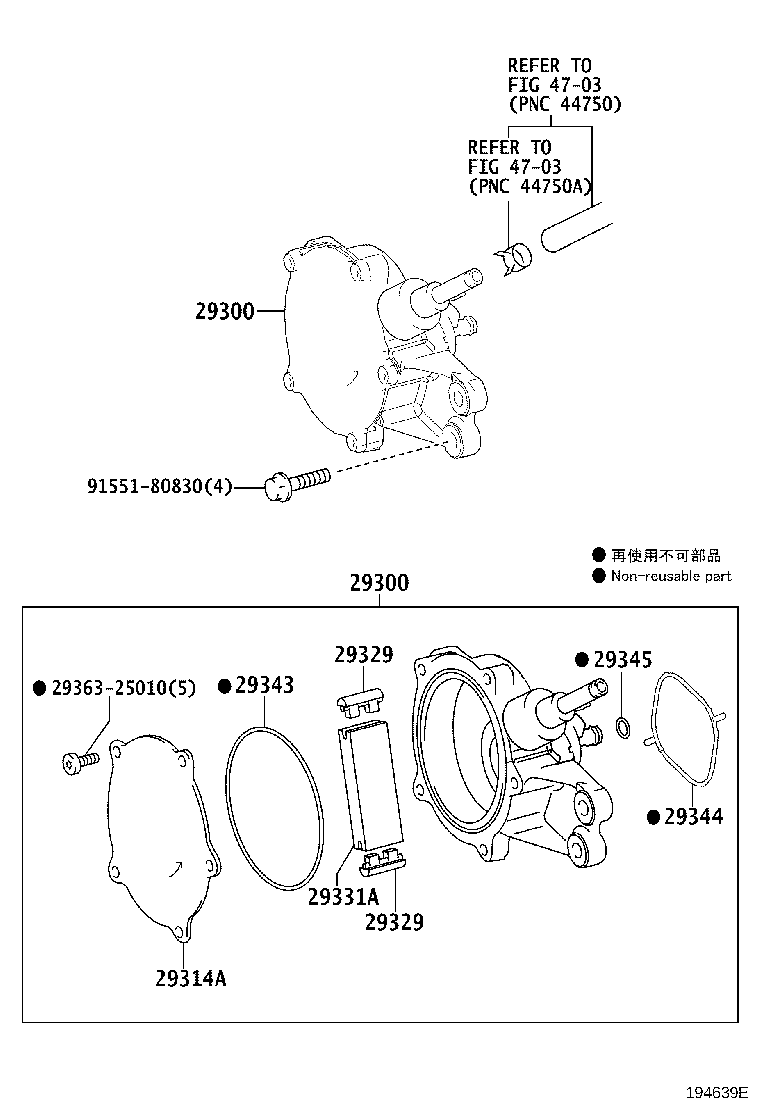

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 29300 — Pump Assy, Vacuum | ||||
| 29300-36020 |
Pump Assy, Vacuum
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 29300-36020 |
Pump Assy, Vacuum
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 29300-36020 |
Pump Assy, Vacuum
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 29314A — Cover, End | ||||
| 29314-36010 |
Cover, End
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 29314-36010 |
Cover, End
2017-12 → —
|
8ARFTS ARS212 | — | |
| 29329 — Cap, Vacuum Pump Vane | ||||
| 29329-37010 |
Cap, Vacuum Pump Vane
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 29329-37010 |
Cap, Vacuum Pump Vane
2017-12 → —
|
8ARFTS ARS212 | — | |
| 29331A — Vane, Vacuum Pump | ||||
| 29331-36010 |
Vane, Vacuum Pump
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 29331-36010 |
Vane, Vacuum Pump
2017-12 → 2019-12
ended
|
8ARFTS ARS212 | — | |
| 29331-36011 |
Vane, Vacuum Pump
2019-12 → —
|
8ARFTS ARS212 | — | |
| 29343 — Ring, O Vacuum Pump, NO.1 | ||||
| 29343-36010 |
Ring, O Vacuum Pump, NO.1
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 29343-36010 |
Ring, O Vacuum Pump, NO.1
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 29343-36010 |
Ring, O Vacuum Pump, NO.1
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 29344 — Ring, O Vacuum Pump, NO.2 | ||||
| 29344-36010 |
Ring, O Vacuum Pump, NO.2
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 29344-36010 |
Ring, O Vacuum Pump, NO.2
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 29344-36010 |
Ring, O Vacuum Pump, NO.2
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 29345 — Ring, O Vacuum Pump, NO.3 | ||||
| 29345-22011 |
Ring, O Vacuum Pump, NO.3
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 29345-22011 |
Ring, O Vacuum Pump, NO.3
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 29345-22011 |
Ring, O Vacuum Pump, NO.3
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
