Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

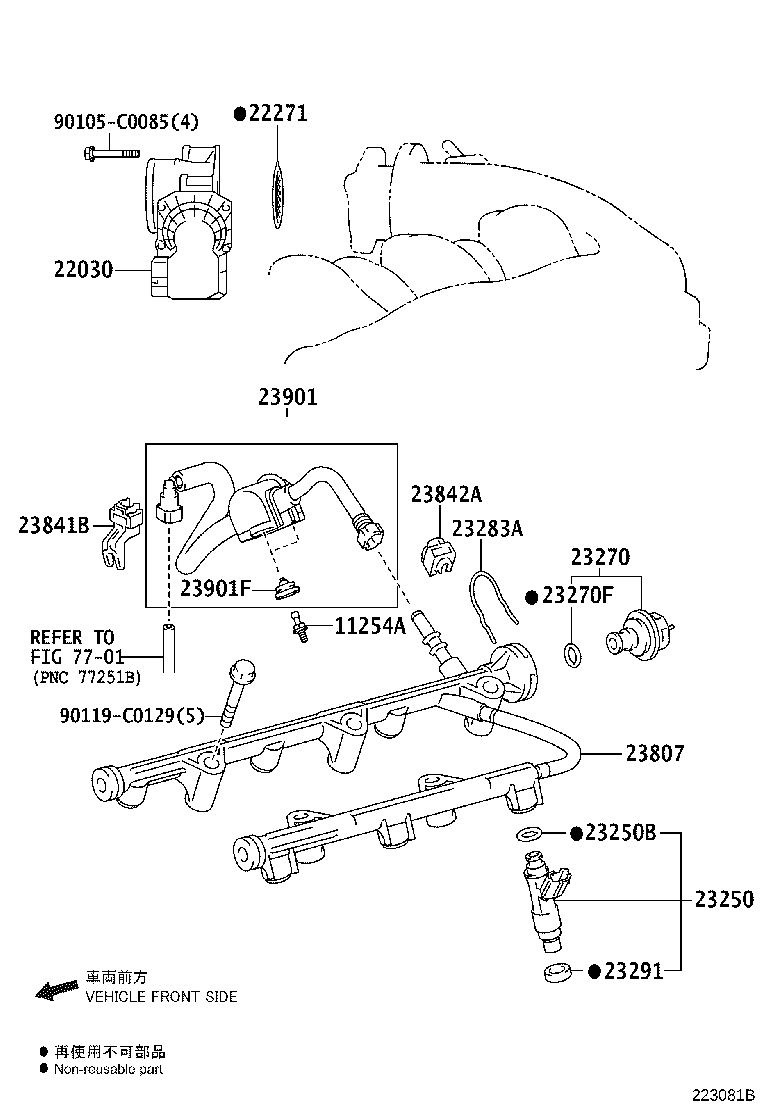

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11254A — Bracket, V-bank Cover | ||||
| 11254-31020 |
Bracket, V-bank Cover
2015-01 → —
|
5GRFE GRS218 | — | |
| 22030 — Body Assy, Throttle W/Throttle Position Sensor | ||||
| 22030-0P040 |
Body Assy, Throttle W/Throttle Position Sensor
2015-01 → —
|
5GRFE GRS218 | — | |
| 22030-36050 |
Body Assy, Throttle W/Throttle Position Sensor
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 22030-36050 |
Body Assy, Throttle W/Throttle Position Sensor
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 22030-36050 |
Body Assy, Throttle W/Throttle Position Sensor
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 22271 — Gasket, Throttle Body | ||||
| 22271-31030 |
Gasket, Throttle Body
2015-01 → —
|
5GRFE GRS218 | — | |
| 22271-36040 |
Gasket, Throttle Body
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 22271-36040 |
Gasket, Throttle Body
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 22271-36040 |
Gasket, Throttle Body
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 23250 — Injector Assy, Fuel | ||||
| 23209-0P060 |
Injector Assy, Fuel
2015-01 → —
|
5GRFE GRS218 | — | |
| 23250B — Ring, O(FOR FUEL INJECTOR) | ||||
| 90301-07033 |
Ring, O(FOR FUEL INJECTOR)
2015-01 → —
|
5GRFE GRS218 | — | |
| 90301-07037 |
Ring, O(FOR FUEL INJECTOR)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 90301-07037 |
Ring, O(FOR FUEL INJECTOR)
2017-12 → 2019-08
ended
|
8ARFTS ARS212 | — | |
| 90301-07037 note |
Ring, O(FOR FUEL INJECTOR)
2019-08 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90301-07037 note |
Ring, O(FOR FUEL INJECTOR)
2019-08 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 90301-C0072 note |
Ring, O(FOR FUEL INJECTOR)
2019-08 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 90301-C0072 note |
Ring, O(FOR FUEL INJECTOR)
2019-08 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 23270 — Damper Assy, Fuel Pressure Pulsation | ||||
| 23270-31140 |
Damper Assy, Fuel Pressure Pulsation
2015-01 → —
|
5GRFE GRS218 | — | |
| 23270F — Ring, O(FOR PULSATION DAMPER) | ||||
| 90301-07033 |
Ring, O(FOR PULSATION DAMPER)
2015-01 → —
|
5GRFE GRS218 | — | |
| 23283A — Holder, Fuel Pressure Regulator | ||||
| 23283-31010 |
Holder, Fuel Pressure Regulator
2015-01 → —
|
5GRFE GRS218 | — | |
| 23291 — Insulator, Injector Vibration | ||||
| 23291-0P020 |
Insulator, Injector Vibration
2015-01 → —
|
5GRFE GRS218 | — | |
| 23291-28020 |
Insulator, Injector Vibration
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 23291-28020 |
Insulator, Injector Vibration
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 23291-28020 |
Insulator, Injector Vibration
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 23807 — Pipe Sub-assy, Fuel Delivery | ||||
| 23800-36050 |
Pipe Sub-assy, Fuel Delivery
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 23807-31030 |
Pipe Sub-assy, Fuel Delivery
2015-01 → —
|
5GRFE GRS218 | — | |
| 23800-36050 |
Pipe Sub-assy, Fuel Delivery
2017-12 → —
|
8ARFTS ARS212 | — | |
| 23841B — Clamp, Fuel Pipe, NO.1(FOR EFI) | ||||
| 23841-0H030 note |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2015-08 → —
|
5GRFE GRS218 | — | |
| 23841-21050 note |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2015-08 → —
|
5GRFE GRS218 | — | |
| 23841-21050 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2015-01 → 2015-08
ended
|
5GRFE GRS218 | — | |
| 23842A — Clamp, Fuel Pipe, NO.2(FOR EFI) | ||||
| 23842-0H030 |
Clamp, Fuel Pipe, NO.2(FOR EFI)
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 23842-31020 |
Clamp, Fuel Pipe, NO.2(FOR EFI)
2015-01 → —
|
5GRFE GRS218 | — | |
| 23842-0H030 |
Clamp, Fuel Pipe, NO.2(FOR EFI)
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 23842-0H030 |
Clamp, Fuel Pipe, NO.2(FOR EFI)
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 23901 — Tube Sub-assy, Fuel | ||||
| 23901-0V170 |
Tube Sub-assy, Fuel
2015-08 → 2017-12
ended
|
8ARFTS ARS212 | — | |
| 23901-31170 |
Tube Sub-assy, Fuel
2015-01 → —
|
5GRFE GRS218 | — | |
| 23901-0V170 |
Tube Sub-assy, Fuel
2017-12 → 2019-10
ended
|
8ARFTS ARS212 B | — | |
| 23901-0V170 |
Tube Sub-assy, Fuel
2017-12 → —
|
8ARFTS ARS212 P,Q,S,U | — | |
| 23901F — Grommet(FOR FUEL TUBE) | ||||
| 90480-22024 |
Grommet(FOR FUEL TUBE)
2015-01 → —
|
5GRFE GRS218 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
