Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

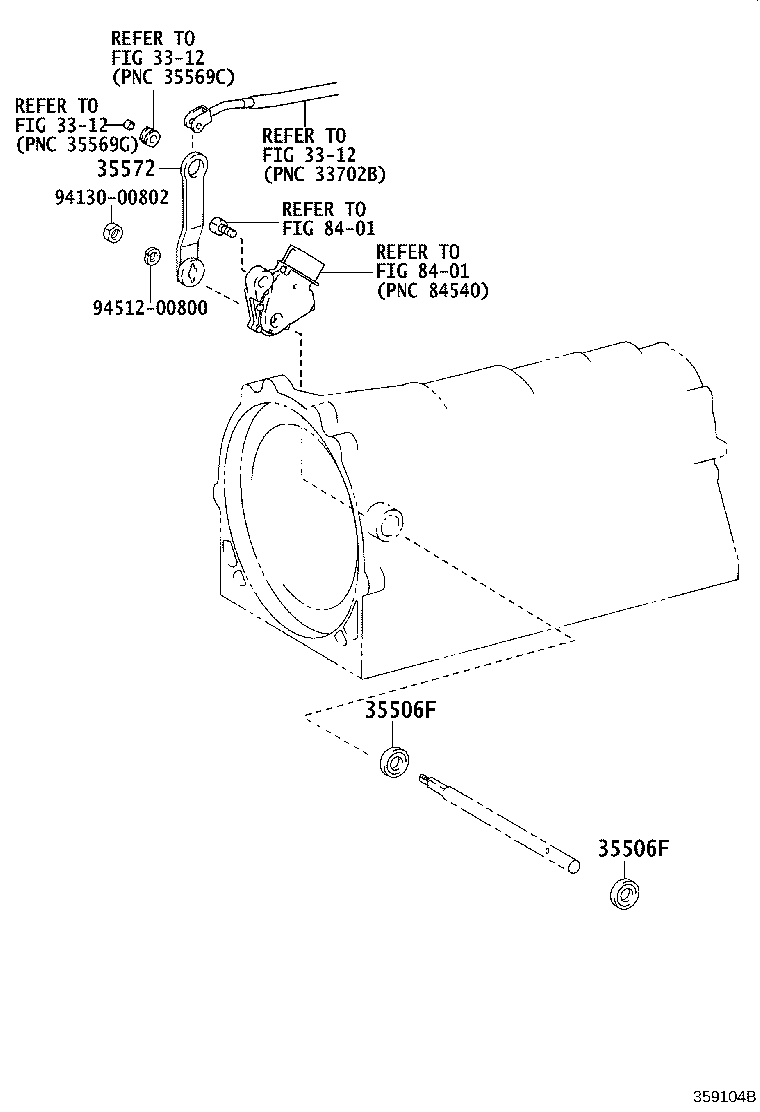

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 35506F — Seal, Oil (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
Seal, Oil (FOR MANUAL VALVE LEVER SHAFT)
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 90311-12002 |
Seal, Oil (FOR MANUAL VALVE LEVER SHAFT)
2016-09 → 2017-12
ended
|
GRS218 | — | |
| 90311-C0008 |
Seal, Oil (FOR MANUAL VALVE LEVER SHAFT)
2015-01 → 2016-09
ended
|
GRS218 | — | |
| 90311-12002 |
Seal, Oil (FOR MANUAL VALVE LEVER SHAFT)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90311-12002 |
Seal, Oil (FOR MANUAL VALVE LEVER SHAFT)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 35572 — Lever, Transmission Control Shaft, RH | ||||
| 35572-0P010 |
Lever, Transmission Control Shaft, RH
2015-01 → 2016-09
ended
|
GRS218 | — | |
| 35572-30070 |
Lever, Transmission Control Shaft, RH
2016-09 → 2017-12
ended
|
GRS218 | — | |
| 35572-30100 |
Lever, Transmission Control Shaft, RH
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 35572-30100 |
Lever, Transmission Control Shaft, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 35572-30100 |
Lever, Transmission Control Shaft, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
