Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

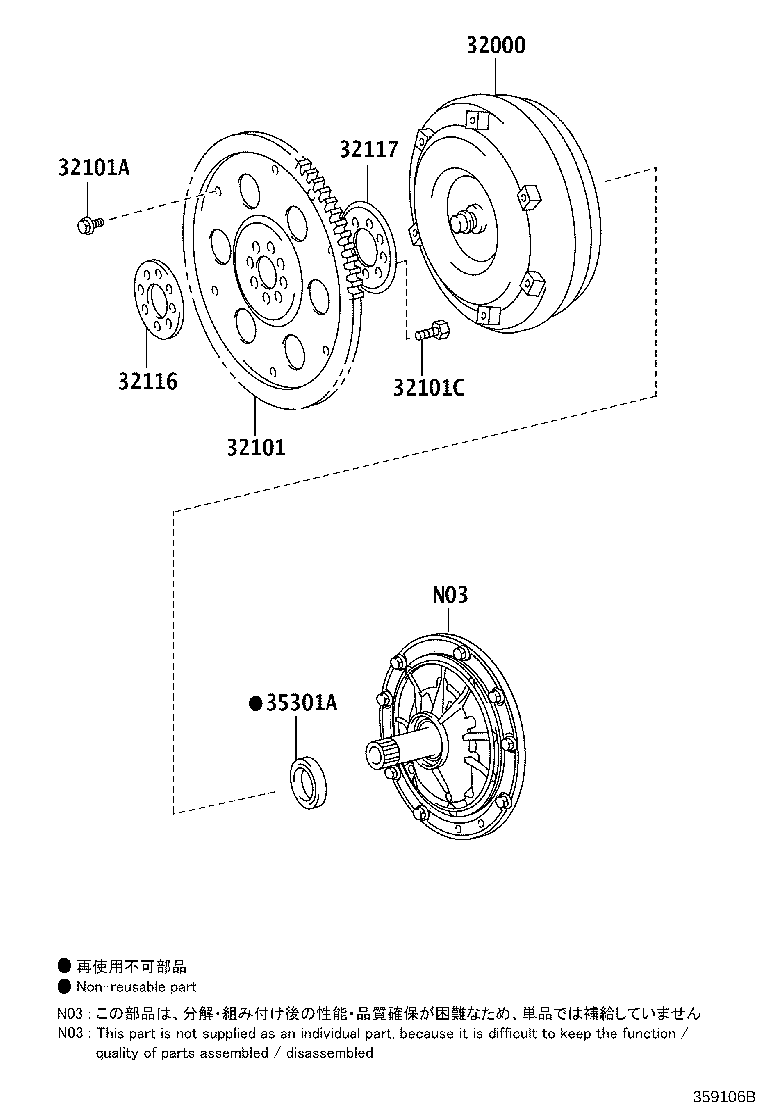

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 32000 — Converter Assy, Torque | ||||
| 32000-0P010 |
Converter Assy, Torque
2015-01 → 2016-09
ended
|
GRS218 | — | |
| 32000-30400 |
Converter Assy, Torque
2016-09 → 2017-12
ended
|
GRS218 | — | |
| 32000-53020 |
Converter Assy, Torque
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 32000-30470 |
Converter Assy, Torque
2018-02 → 2019-10
ended
|
ARS212 B | — | |
| 32000-30470 |
Converter Assy, Torque
2018-02 → —
|
ARS212 P,Q,S,U | — | |
| 32000-53020 |
Converter Assy, Torque
2017-12 → 2018-02
ended
|
ARS212 | — | |
| 32101 — Gear Sub-assy, Drive Plate & Ring | ||||
| 32101-0P010 |
Gear Sub-assy, Drive Plate & Ring
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 32101-30100 |
Gear Sub-assy, Drive Plate & Ring
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 32101-30100 |
Gear Sub-assy, Drive Plate & Ring
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 32101-30100 |
Gear Sub-assy, Drive Plate & Ring
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 32101A — Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90105-09005 note |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90105-09006 note |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90105-09005 note |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90105-09005 note |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 90105-09006 note |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90105-09006 note |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 32101C — Bolt, Hexagon(FOR DRIVE PLATE SETTING) | ||||
| 90105-10048 note |
Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 90105-12384 note |
Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 90105-12384 note |
Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90105-12384 note |
Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 32116 — Spacer, Drive Plate, Front | ||||
| 32116-0P010 |
Spacer, Drive Plate, Front
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 32116-20050 |
Spacer, Drive Plate, Front
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 32116-20050 |
Spacer, Drive Plate, Front
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 32116-20050 |
Spacer, Drive Plate, Front
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 32117 — Spacer, Drive Plate, Rear | ||||
| 32117-0P010 |
Spacer, Drive Plate, Rear
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 32117-20060 |
Spacer, Drive Plate, Rear
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 32117-20060 |
Spacer, Drive Plate, Rear
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 32117-20060 |
Spacer, Drive Plate, Rear
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 35301A — Seal, Oil (FOR FRONT OIL PUMP) | ||||
| 90311-38083 note |
Seal, Oil (FOR FRONT OIL PUMP)
2015-01 → 2016-09
ended
|
GRS218 | — | |
| 90311-38083 |
Seal, Oil (FOR FRONT OIL PUMP)
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 90311-38083 |
Seal, Oil (FOR FRONT OIL PUMP)
2016-09 → 2017-12
ended
|
GRS218 | — | |
| 90311-C0018 note |
Seal, Oil (FOR FRONT OIL PUMP)
2015-01 → 2016-09
ended
|
GRS218 | — | |
| 90311-38083 |
Seal, Oil (FOR FRONT OIL PUMP)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90311-38083 |
Seal, Oil (FOR FRONT OIL PUMP)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
