Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

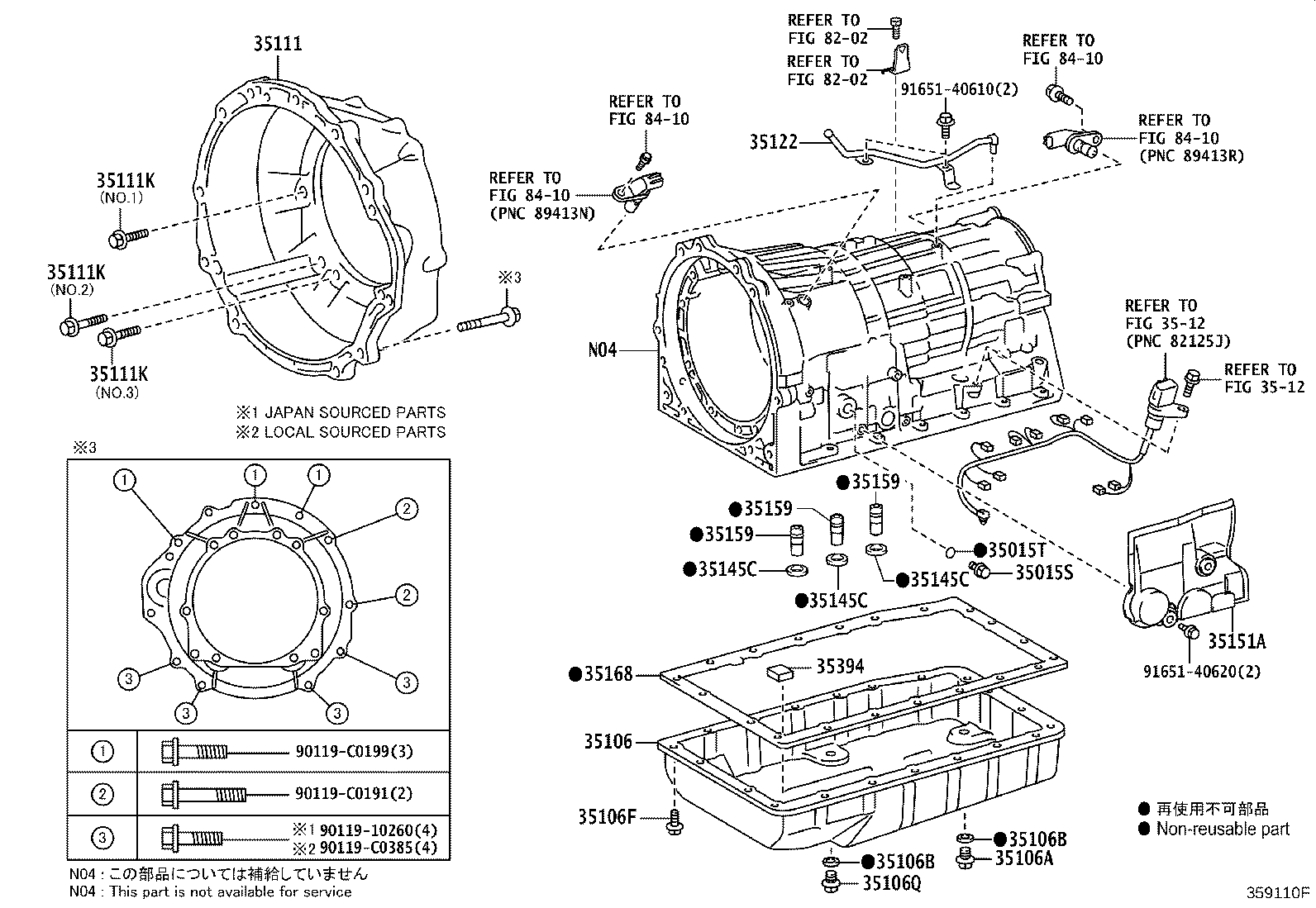

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 35015S — Plug, Straight(FOR TRANSMISSION CASE ADAPTER) | ||||
| 90341-18059 |
Plug, Straight(FOR TRANSMISSION CASE ADAPTER)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90341-18059 |
Plug, Straight(FOR TRANSMISSION CASE ADAPTER)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90341-18059 |
Plug, Straight(FOR TRANSMISSION CASE ADAPTER)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 35015T — Ring, O(FOR TRANSMISSION CASE ADAPTER) | ||||
| 90301-15004 |
Ring, O(FOR TRANSMISSION CASE ADAPTER)
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 90301-15004 |
Ring, O(FOR TRANSMISSION CASE ADAPTER)
2016-09 → 2017-12
ended
|
GRS218 | — | |
| 90301-C0010 |
Ring, O(FOR TRANSMISSION CASE ADAPTER)
2015-01 → 2016-09
ended
|
GRS218 | — | |
| 90301-15004 |
Ring, O(FOR TRANSMISSION CASE ADAPTER)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90301-15004 |
Ring, O(FOR TRANSMISSION CASE ADAPTER)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 35106 — Pan Sub-assy, Automatic Transmission Oil | ||||
| 35106-0P010 |
Pan Sub-assy, Automatic Transmission Oil
2015-01 → 2016-09
ended
|
GRS218 | — | |
| 35106-30270 |
Pan Sub-assy, Automatic Transmission Oil
2016-09 → 2017-12
ended
|
GRS218 | — | |
| 35106-30310 |
Pan Sub-assy, Automatic Transmission Oil
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 35106-30310 |
Pan Sub-assy, Automatic Transmission Oil
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 35106-30310 |
Pan Sub-assy, Automatic Transmission Oil
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 35106A — Plug Sub-assy, Drain (ATM) | ||||
| 90341-10011 |
Plug Sub-assy, Drain (ATM)
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 90341-10011 note |
Plug Sub-assy, Drain (ATM)
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 90341-10021 note |
Plug Sub-assy, Drain (ATM)
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 90341-10011 note |
Plug Sub-assy, Drain (ATM)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90341-10011 note |
Plug Sub-assy, Drain (ATM)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 90341-10021 note |
Plug Sub-assy, Drain (ATM)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90341-10021 note |
Plug Sub-assy, Drain (ATM)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 35106B — Gasket, Drain Plug (ATM) | ||||
| 35178-30010 |
Gasket, Drain Plug (ATM)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 35178-30010 |
Gasket, Drain Plug (ATM)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 35178-30010 |
Gasket, Drain Plug (ATM)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 35106F — Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06173 |
Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 90119-06982 |
Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 90119-06982 |
Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90119-06982 |
Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 35106Q — Plug (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90341-10021 |
Plug (FOR AUTOMATIC TRANSMISSION OIL PAN)
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 35111 — Housing, Automatic Transmission | ||||
| 35111-0P010 |
Housing, Automatic Transmission
2015-01 → 2016-09
ended
|
GRS218 | — | |
| 35111-22110 |
Housing, Automatic Transmission
2016-09 → 2017-12
ended
|
GRS218 | — | |
| 35111K — Bolt (FOR TRANSMISSION HOUSING & CASE SETTING) | ||||
| 90119-10232 note |
Bolt (FOR TRANSMISSION HOUSING & CASE SETTING)
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 90119-10947 note |
Bolt (FOR TRANSMISSION HOUSING & CASE SETTING)
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 90119-12378 note |
Bolt (FOR TRANSMISSION HOUSING & CASE SETTING)
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 35122 — Tube, Breather (FOR AUTOMATIC TRANSAXLE) | ||||
| 90930-03181 |
Tube, Breather (FOR AUTOMATIC TRANSAXLE)
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 35145C — Gasket, Transaxle Case | ||||
| 35145-60020 |
Gasket, Transaxle Case
2015-01 → 2016-09
ended
|
GRS218 | — | |
| 35151A — Cover, Transaxle Case, Upper | ||||
| 35151-22020 |
Cover, Transaxle Case, Upper
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 35159 — Gasket, Brake Drum | ||||
| 35159-60010 |
Gasket, Brake Drum
2015-01 → 2016-09
ended
|
GRS218 | — | |
| 35168 — Gasket, Automatic Transmission Oil Pan | ||||
| 35168-22020 |
Gasket, Automatic Transmission Oil Pan
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 35168-50010 |
Gasket, Automatic Transmission Oil Pan
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 35168-50010 |
Gasket, Automatic Transmission Oil Pan
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 35168-50010 |
Gasket, Automatic Transmission Oil Pan
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 35394 — Magnet, Oil Cleaner (FOR TRANSMISSION) | ||||
| 35394-0P010 |
Magnet, Oil Cleaner (FOR TRANSMISSION)
2015-01 → 2016-09
ended
|
GRS218 | — | |
| 35394-30011 |
Magnet, Oil Cleaner (FOR TRANSMISSION)
2016-09 → 2017-12
ended
|
GRS218 | — | |
| 35394-48010 |
Magnet, Oil Cleaner (FOR TRANSMISSION)
2015-08 → 2015-11
ended
|
ARS212 | — | |
| 35394-48010 |
Magnet, Oil Cleaner (FOR TRANSMISSION)
2015-11 → 2017-12
ended
|
ARS212 | — | |
| 35394-48010 |
Magnet, Oil Cleaner (FOR TRANSMISSION)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 35394-48010 |
Magnet, Oil Cleaner (FOR TRANSMISSION)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
