Toyota Crown (CHINA)

2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

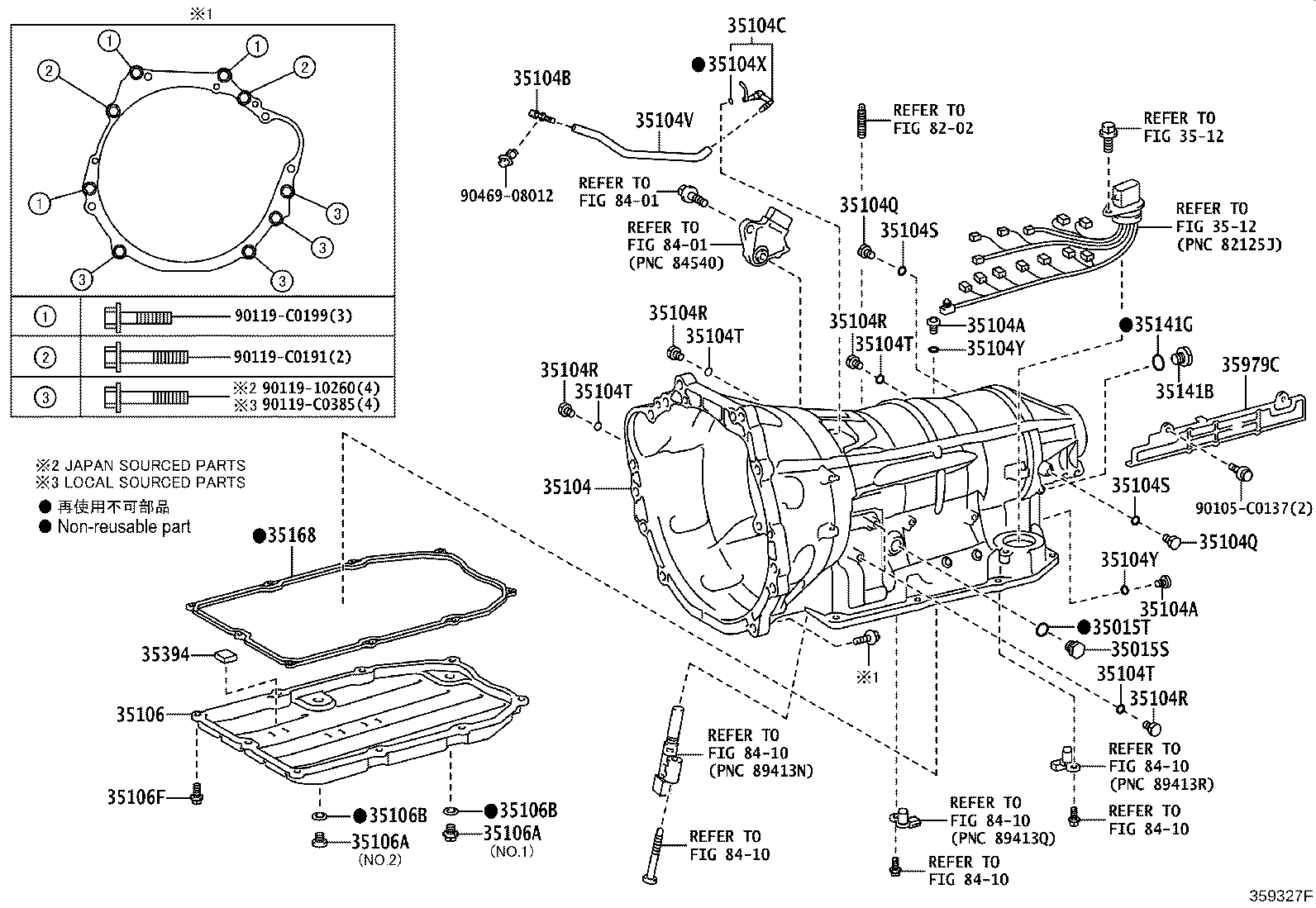

Exploded illustration 359327F 8401 — not listed in this catalogue 8410 — not listed in this catalogue 8410 — not listed in this catalogue 8410 — not listed in this catalogue 8202 — not listed in this catalogue 9046908012 — not listed in this catalogue 35106 — PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL (5 parts) 35168 — GASKET, AUTOMATIC TRANSMISSION OIL PAN (4 parts) 35394 — MAGNET, OIL CLEANER (FOR TRANSMISSION) (6 parts) 35106A — PLUG SUB-ASSY, DRAIN (ATM) (7 parts) 35106A — PLUG SUB-ASSY, DRAIN (ATM) (7 parts) 35106B — GASKET, DRAIN PLUG (ATM) (3 parts) 35106B — GASKET, DRAIN PLUG (ATM) (3 parts) 35104R — PLUG, NO.2 (FOR TRANSAXLE CASE) (3 parts) 35104R — PLUG, NO.2 (FOR TRANSAXLE CASE) (3 parts) 35104T — RING, O (FOR TRANSAXLE CASE PLUG NO.2) (3 parts) 35104T — RING, O (FOR TRANSAXLE CASE PLUG NO.2) (3 parts) 35104R — PLUG, NO.2 (FOR TRANSAXLE CASE) (3 parts) 35104T — RING, O (FOR TRANSAXLE CASE PLUG NO.2) (3 parts) 35104R — PLUG, NO.2 (FOR TRANSAXLE CASE) (3 parts) 35104T — RING, O (FOR TRANSAXLE CASE PLUG NO.2) (3 parts) 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (3 parts) 35104V — HOSE (FOR BREATHER PLUG) (3 parts) 35104X — RING, O (FOR BREATHER PLUG) (3 parts) 35104B — PLUG, BREATHER, NO.1 (ATM) (3 parts) 35104C — PLUG, BREATHER, NO.2 (ATM) (3 parts) 35104S — RING, O (FOR TRANSAXLE CASE PLUG NO.1) (3 parts) 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (3 parts) 35104S — RING, O (FOR TRANSAXLE CASE PLUG NO.1) (3 parts) 35104A — PLUG, AUTOMATIC TRANSMISSION CASE (3 parts) 35104A — PLUG, AUTOMATIC TRANSMISSION CASE (3 parts) 35104Y — RING, O (FOR AUTOMATIC TRANSMISSION CASE) (3 parts) 35104Y — RING, O (FOR AUTOMATIC TRANSMISSION CASE) (3 parts) 35141B — PLUG (FOR AUTOMATIC TRANSMISSION CASE) (3 parts) 35979C — INSULATOR, TRANSMISSION (3 parts) 35141G — RING, O (FOR AUTOMATIC TRANSMISSION CASE) (3 parts) 35104 — CASE SUB-ASSY, AUTOMATIC TRANSMISSION (3 parts) 35106F — BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) (4 parts) 35015S — PLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER) (3 parts) 35015T — RING, O(FOR TRANSMISSION CASE ADAPTER) (5 parts) 8410 — not listed in this catalogue 3512 — not listed in this catalogue 8401 — not listed in this catalogue 90119C0199 — not listed in this catalogue 90119C0191 — not listed in this catalogue 90105C0137 — not listed in this catalogue 9011910260 — not listed in this catalogue 90119C0385 — not listed in this catalogue 3512 — not listed in this catalogue 8410 — not listed in this catalogue 8410 — not listed in this catalogue
359327F · 34 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
79 parts on this figure
Part number Description Fitment Price
35015S — Plug, Straight(FOR TRANSMISSION CASE ADAPTER)
90341-18059 Plug, Straight(FOR TRANSMISSION CASE ADAPTER)
2015-01 → 2017-12 ended
ARS212,GRS218 —
90341-18059 Plug, Straight(FOR TRANSMISSION CASE ADAPTER)
2017-12 → 2019-10 ended
ARS212 B —
90341-18059 Plug, Straight(FOR TRANSMISSION CASE ADAPTER)
2017-12 → —
ARS212 P,Q,S,U —
35015T — Ring, O(FOR TRANSMISSION CASE ADAPTER)
90301-15004 Ring, O(FOR TRANSMISSION CASE ADAPTER)
2015-08 → 2017-12 ended
ARS212 —
90301-15004 Ring, O(FOR TRANSMISSION CASE ADAPTER)
2016-09 → 2017-12 ended
GRS218 —
90301-C0010 Ring, O(FOR TRANSMISSION CASE ADAPTER)
2015-01 → 2016-09 ended
GRS218 —
90301-15004 Ring, O(FOR TRANSMISSION CASE ADAPTER)
2017-12 → 2019-10 ended
ARS212 B —
90301-15004 Ring, O(FOR TRANSMISSION CASE ADAPTER)
2017-12 → —
ARS212 P,Q,S,U —
35104 — Case Sub-assy, Automatic Transmission
35104-53010 Case Sub-assy, Automatic Transmission
2015-08 → 2017-12 ended
ARS212 —
35104-53010 Case Sub-assy, Automatic Transmission
2017-12 → 2019-10 ended
ARS212 B —
35104-53010 Case Sub-assy, Automatic Transmission
2017-12 → —
ARS212 P,Q,S,U —
35104A — Plug, Automatic Transmission Case
90341-14011 Plug, Automatic Transmission Case
2015-08 → 2017-12 ended
ARS212 —
90341-14011 Plug, Automatic Transmission Case
2017-12 → 2019-10 ended
ARS212 B —
90341-14011 Plug, Automatic Transmission Case
2017-12 → —
ARS212 P,Q,S,U —
35104B — Plug, Breather, NO.1 (ATM)
90930-03211 Plug, Breather, NO.1 (ATM)
2015-08 → 2017-12 ended
ARS212 —
90930-03211 Plug, Breather, NO.1 (ATM)
2017-12 → 2019-10 ended
ARS212 B —
90930-03211 Plug, Breather, NO.1 (ATM)
2017-12 → —
ARS212 P,Q,S,U —
35104C — Plug, Breather, NO.2 (ATM)
90930-03197 Plug, Breather, NO.2 (ATM)
2015-08 → 2017-12 ended
ARS212 —
90930-03197 Plug, Breather, NO.2 (ATM)
2017-12 → 2019-10 ended
ARS212 B —
90930-03197 Plug, Breather, NO.2 (ATM)
2017-12 → —
ARS212 P,Q,S,U —
35104Q — Plug, NO.1 (FOR TRANSAXLE CASE)
90341-12036 Plug, NO.1 (FOR TRANSAXLE CASE)
2015-08 → 2017-12 ended
ARS212 —
90341-12036 Plug, NO.1 (FOR TRANSAXLE CASE)
2017-12 → 2019-10 ended
ARS212 B —
90341-12036 Plug, NO.1 (FOR TRANSAXLE CASE)
2017-12 → —
ARS212 P,Q,S,U —
35104R — Plug, NO.2 (FOR TRANSAXLE CASE)
90341-08001 Plug, NO.2 (FOR TRANSAXLE CASE)
2015-08 → 2017-12 ended
ARS212 —
90341-08001 Plug, NO.2 (FOR TRANSAXLE CASE)
2017-12 → 2019-10 ended
ARS212 B —
90341-08001 Plug, NO.2 (FOR TRANSAXLE CASE)
2017-12 → —
ARS212 P,Q,S,U —
35104S — Ring, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-09026 Ring, O (FOR TRANSAXLE CASE PLUG NO.1)
2015-08 → 2017-12 ended
ARS212 —
90301-09026 Ring, O (FOR TRANSAXLE CASE PLUG NO.1)
2017-12 → 2019-10 ended
ARS212 B —
90301-09026 Ring, O (FOR TRANSAXLE CASE PLUG NO.1)
2017-12 → —
ARS212 P,Q,S,U —
35104T — Ring, O (FOR TRANSAXLE CASE PLUG NO.2)
90301-06196 Ring, O (FOR TRANSAXLE CASE PLUG NO.2)
2015-08 → 2017-12 ended
ARS212 —
90301-06196 Ring, O (FOR TRANSAXLE CASE PLUG NO.2)
2017-12 → —
ARS212 P,Q,S,U —
90301-06196 Ring, O (FOR TRANSAXLE CASE PLUG NO.2)
2017-12 → 2019-10 ended
ARS212 B —
35104V — Hose (FOR BREATHER PLUG)
90447-11077 Hose (FOR BREATHER PLUG)
2015-08 → 2017-12 ended
ARS212 —
90447-11077 Hose (FOR BREATHER PLUG)
2017-12 → 2019-10 ended
ARS212 B —
90447-11077 Hose (FOR BREATHER PLUG)
2017-12 → —
ARS212 P,Q,S,U —
35104X — Ring, O (FOR BREATHER PLUG)
90301-04015 Ring, O (FOR BREATHER PLUG)
2015-08 → 2017-12 ended
ARS212 —
90301-04015 Ring, O (FOR BREATHER PLUG)
2017-12 → 2019-10 ended
ARS212 B —
90301-04015 Ring, O (FOR BREATHER PLUG)
2017-12 → —
ARS212 P,Q,S,U —
35104Y — Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-11030 Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
2015-08 → 2017-12 ended
ARS212 —
90301-11030 Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
2017-12 → 2019-10 ended
ARS212 B —
90301-11030 Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
2017-12 → —
ARS212 P,Q,S,U —
35106 — Pan Sub-assy, Automatic Transmission Oil
35106-0P010 Pan Sub-assy, Automatic Transmission Oil
2015-01 → 2016-09 ended
GRS218 —
35106-30270 Pan Sub-assy, Automatic Transmission Oil
2016-09 → 2017-12 ended
GRS218 —
35106-30310 Pan Sub-assy, Automatic Transmission Oil
2015-08 → 2017-12 ended
ARS212 —
35106-30310 Pan Sub-assy, Automatic Transmission Oil
2017-12 → 2019-10 ended
ARS212 B —
35106-30310 Pan Sub-assy, Automatic Transmission Oil
2017-12 → —
ARS212 P,Q,S,U —
35106A — Plug Sub-assy, Drain (ATM)
90341-10011 Plug Sub-assy, Drain (ATM)
2015-01 → 2017-12 ended
GRS218 —
90341-10011 note Plug Sub-assy, Drain (ATM)
2015-08 → 2017-12 ended
ARS212 —
90341-10021 note Plug Sub-assy, Drain (ATM)
2015-08 → 2017-12 ended
ARS212 —
90341-10011 note Plug Sub-assy, Drain (ATM)
2017-12 → 2019-10 ended
ARS212 B —
90341-10011 note Plug Sub-assy, Drain (ATM)
2017-12 → —
ARS212 P,Q,S,U —
90341-10021 note Plug Sub-assy, Drain (ATM)
2017-12 → 2019-10 ended
ARS212 B —
90341-10021 note Plug Sub-assy, Drain (ATM)
2017-12 → —
ARS212 P,Q,S,U —
35106B — Gasket, Drain Plug (ATM)
35178-30010 Gasket, Drain Plug (ATM)
2015-01 → 2017-12 ended
ARS212,GRS218 —
35178-30010 Gasket, Drain Plug (ATM)
2017-12 → 2019-10 ended
ARS212 B —
35178-30010 Gasket, Drain Plug (ATM)
2017-12 → —
ARS212 P,Q,S,U —
35106F — Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
90119-06173 Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
2015-01 → 2017-12 ended
GRS218 —
90119-06982 Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
2015-08 → 2017-12 ended
ARS212 —
90119-06982 Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
2017-12 → —
ARS212 P,Q,S,U —
90119-06982 Bolt (FOR AUTOMATIC TRANSMISSION OIL PAN)
2017-12 → 2019-10 ended
ARS212 B —
35141B — Plug (FOR AUTOMATIC TRANSMISSION CASE)
90341-24017 Plug (FOR AUTOMATIC TRANSMISSION CASE)
2015-08 → 2017-12 ended
ARS212 —
90341-24017 Plug (FOR AUTOMATIC TRANSMISSION CASE)
2017-12 → 2019-10 ended
ARS212 B —
90341-24017 Plug (FOR AUTOMATIC TRANSMISSION CASE)
2017-12 → —
ARS212 P,Q,S,U —
35141G — Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-20013 Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
2015-08 → 2017-12 ended
ARS212 —
90301-20013 Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
2017-12 → 2019-10 ended
ARS212 B —
90301-20013 Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
2017-12 → —
ARS212 P,Q,S,U —
35168 — Gasket, Automatic Transmission Oil Pan
35168-22020 Gasket, Automatic Transmission Oil Pan
2015-01 → 2017-12 ended
GRS218 —
35168-50010 Gasket, Automatic Transmission Oil Pan
2015-08 → 2017-12 ended
ARS212 —
35168-50010 Gasket, Automatic Transmission Oil Pan
2017-12 → —
ARS212 P,Q,S,U —
35168-50010 Gasket, Automatic Transmission Oil Pan
2017-12 → 2019-10 ended
ARS212 B —
35394 — Magnet, Oil Cleaner (FOR TRANSMISSION)
35394-0P010 Magnet, Oil Cleaner (FOR TRANSMISSION)
2015-01 → 2016-09 ended
GRS218 —
35394-30011 Magnet, Oil Cleaner (FOR TRANSMISSION)
2016-09 → 2017-12 ended
GRS218 —
35394-48010 Magnet, Oil Cleaner (FOR TRANSMISSION)
2015-08 → 2015-11 ended
ARS212 —
35394-48010 Magnet, Oil Cleaner (FOR TRANSMISSION)
2015-11 → 2017-12 ended
ARS212 —
35394-48010 Magnet, Oil Cleaner (FOR TRANSMISSION)
2017-12 → 2019-10 ended
ARS212 B —
35394-48010 Magnet, Oil Cleaner (FOR TRANSMISSION)
2017-12 → —
ARS212 P,Q,S,U —
35979C — Insulator, Transmission
35979-0N010 Insulator, Transmission
2015-08 → 2017-12 ended
ARS212 —
35979-0N010 Insulator, Transmission
2017-12 → 2019-10 ended
ARS212 B —
35979-0N010 Insulator, Transmission
2017-12 → —
ARS212 P,Q,S,U —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
