Toyota Crown (CHINA)

2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

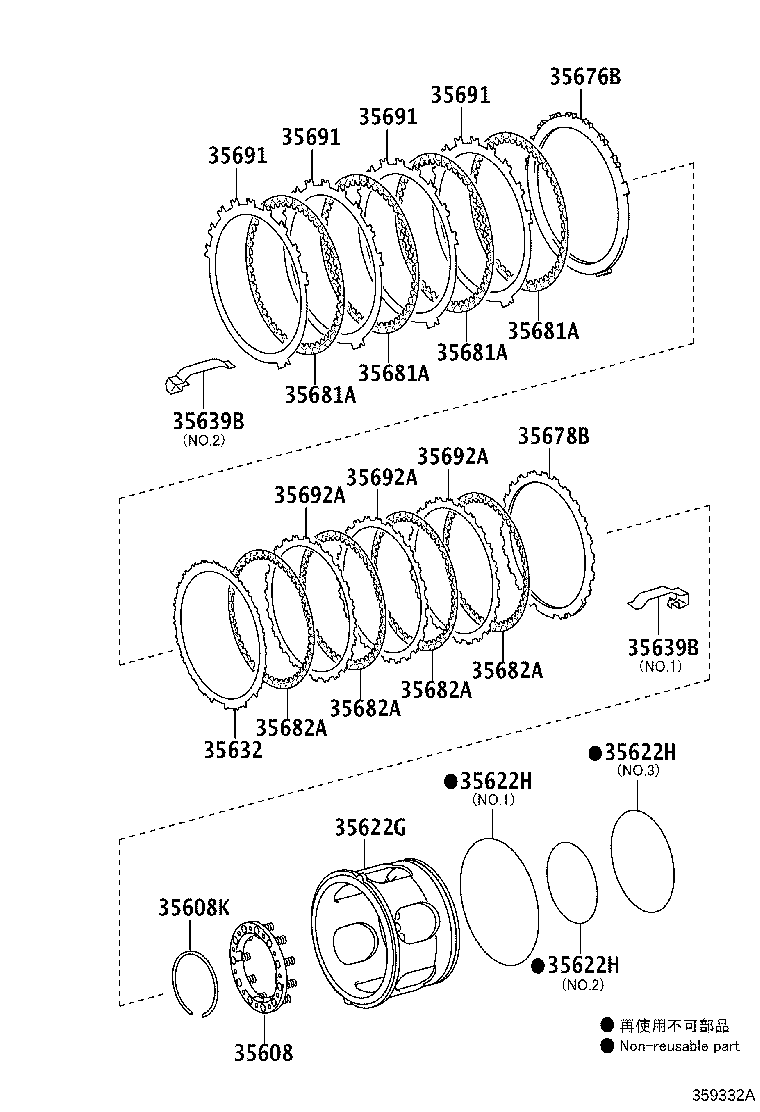

Exploded illustration 359332A 35676B — FLANGE, BRAKE, NO.1 (27 parts) 35691 — PLATE, BRAKE, NO.1 (3 parts) 35691 — PLATE, BRAKE, NO.1 (3 parts) 35691 — PLATE, BRAKE, NO.1 (3 parts) 35691 — PLATE, BRAKE, NO.1 (3 parts) 35639B — SPRING, BRAKE PLATE STOPPER (6 parts) 35681A — DISC, BRAKE, NO.1 (3 parts) 35681A — DISC, BRAKE, NO.1 (3 parts) 35681A — DISC, BRAKE, NO.1 (3 parts) 35681A — DISC, BRAKE, NO.1 (3 parts) 35678B — FLANGE, BRAKE, NO.2 (27 parts) 35682A — DISC, BRAKE, NO.2 (3 parts) 35682A — DISC, BRAKE, NO.2 (3 parts) 35682A — DISC, BRAKE, NO.2 (3 parts) 35682A — DISC, BRAKE, NO.2 (3 parts) 35692A — PLATE, BRAKE, NO.2 (3 parts) 35692A — PLATE, BRAKE, NO.2 (3 parts) 35692A — PLATE, BRAKE, NO.2 (3 parts) 35632 — PLATE, BRAKE (3 parts) 35639B — SPRING, BRAKE PLATE STOPPER (6 parts) 35608K — RING, SNAP (FOR BRAKE PISTON RETURN SPRING) (3 parts) 35608 — SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN (3 parts) 35622G — PISTON, BRAKE, NO.2 (3 parts) 35622H — RING, O (FOR BRAKE PISTON NO.2) (9 parts) 35622H — RING, O (FOR BRAKE PISTON NO.2) (9 parts) 35622H — RING, O (FOR BRAKE PISTON NO.2) (9 parts)
359332A · 26 callouts Full size ↗
93 parts on this figure
Part number Description Fitment Price
35608 — Spring Sub-assy, 2ND Brake Piston Return
35608-53010 Spring Sub-assy, 2ND Brake Piston Return
2015-08 → 2017-12 ended
ARS212 —
35608-53010 Spring Sub-assy, 2ND Brake Piston Return
2017-12 → 2019-10 ended
ARS212 B —
35608-53010 Spring Sub-assy, 2ND Brake Piston Return
2017-12 → —
ARS212 P,Q,S,U —
35608K — Ring, Snap (FOR BRAKE PISTON RETURN SPRING)
90520-74002 Ring, Snap (FOR BRAKE PISTON RETURN SPRING)
2015-08 → 2017-12 ended
ARS212 —
90520-74002 Ring, Snap (FOR BRAKE PISTON RETURN SPRING)
2017-12 → 2019-10 ended
ARS212 B —
90520-74002 Ring, Snap (FOR BRAKE PISTON RETURN SPRING)
2017-12 → —
ARS212 P,Q,S,U —
35622G — Piston, Brake, NO.2
35622-50020 Piston, Brake, NO.2
2015-08 → 2017-12 ended
ARS212 —
35622-50020 Piston, Brake, NO.2
2017-12 → 2019-10 ended
ARS212 B —
35622-50020 Piston, Brake, NO.2
2017-12 → —
ARS212 P,Q,S,U —
35622H — Ring, O (FOR BRAKE PISTON NO.2)
90301-82003 note Ring, O (FOR BRAKE PISTON NO.2)
2015-08 → 2017-12 ended
ARS212 —
90301-99123 note Ring, O (FOR BRAKE PISTON NO.2)
2015-08 → 2017-12 ended
ARS212 —
90301-99167 note Ring, O (FOR BRAKE PISTON NO.2)
2015-08 → 2017-12 ended
ARS212 —
90301-82003 note Ring, O (FOR BRAKE PISTON NO.2)
2017-12 → 2019-10 ended
ARS212 B —
90301-82003 note Ring, O (FOR BRAKE PISTON NO.2)
2017-12 → —
ARS212 P,Q,S,U —
90301-99123 note Ring, O (FOR BRAKE PISTON NO.2)
2017-12 → 2019-10 ended
ARS212 B —
90301-99123 note Ring, O (FOR BRAKE PISTON NO.2)
2017-12 → —
ARS212 P,Q,S,U —
90301-99167 note Ring, O (FOR BRAKE PISTON NO.2)
2017-12 → 2019-10 ended
ARS212 B —
90301-99167 note Ring, O (FOR BRAKE PISTON NO.2)
2017-12 → —
ARS212 P,Q,S,U —
35632 — Plate, Brake
35632-50010 Plate, Brake
2015-08 → 2017-12 ended
ARS212 —
35632-50010 Plate, Brake
2017-12 → 2019-10 ended
ARS212 B —
35632-50010 Plate, Brake
2017-12 → —
ARS212 P,Q,S,U —
35639B — Spring, Brake Plate Stopper
35639-50010 note Spring, Brake Plate Stopper
2015-08 → 2017-12 ended
ARS212 —
35639-50020 note Spring, Brake Plate Stopper
2015-08 → 2017-12 ended
ARS212 —
35639-50010 note Spring, Brake Plate Stopper
2017-12 → 2019-10 ended
ARS212 B —
35639-50010 note Spring, Brake Plate Stopper
2017-12 → —
ARS212 P,Q,S,U —
35639-50020 note Spring, Brake Plate Stopper
2017-12 → 2019-10 ended
ARS212 B —
35639-50020 note Spring, Brake Plate Stopper
2017-12 → —
ARS212 P,Q,S,U —
35676B — Flange, Brake, NO.1
35676-50070 note Flange, Brake, NO.1
2015-08 → 2017-12 ended
ARS212 —
35676-50080 note Flange, Brake, NO.1
2015-08 → 2017-12 ended
ARS212 —
35676-50090 note Flange, Brake, NO.1
2015-08 → 2017-12 ended
ARS212 —
35676-50100 note Flange, Brake, NO.1
2015-08 → 2017-12 ended
ARS212 —
35676-50110 note Flange, Brake, NO.1
2015-08 → 2017-12 ended
ARS212 —
35676-50120 note Flange, Brake, NO.1
2015-08 → 2017-12 ended
ARS212 —
35676-50130 note Flange, Brake, NO.1
2015-08 → 2017-12 ended
ARS212 —
35676-50140 note Flange, Brake, NO.1
2015-08 → 2017-12 ended
ARS212 —
35676-50150 note Flange, Brake, NO.1
2015-08 → 2017-12 ended
ARS212 —
35676-50070 note Flange, Brake, NO.1
2017-12 → 2019-10 ended
ARS212 B —
35676-50070 note Flange, Brake, NO.1
2017-12 → —
ARS212 P,Q,S,U —
35676-50080 note Flange, Brake, NO.1
2017-12 → —
ARS212 P,Q,S,U —
35676-50080 note Flange, Brake, NO.1
2017-12 → 2019-10 ended
ARS212 B —
35676-50090 note Flange, Brake, NO.1
2017-12 → —
ARS212 P,Q,S,U —
35676-50090 note Flange, Brake, NO.1
2017-12 → 2019-10 ended
ARS212 B —
35676-50100 note Flange, Brake, NO.1
2017-12 → 2019-10 ended
ARS212 B —
35676-50100 note Flange, Brake, NO.1
2017-12 → —
ARS212 P,Q,S,U —
35676-50110 note Flange, Brake, NO.1
2017-12 → 2019-10 ended
ARS212 B —
35676-50110 note Flange, Brake, NO.1
2017-12 → —
ARS212 P,Q,S,U —
35676-50120 note Flange, Brake, NO.1
2017-12 → 2019-10 ended
ARS212 B —
35676-50120 note Flange, Brake, NO.1
2017-12 → —
ARS212 P,Q,S,U —
35676-50130 note Flange, Brake, NO.1
2017-12 → 2019-10 ended
ARS212 B —
35676-50130 note Flange, Brake, NO.1
2017-12 → —
ARS212 P,Q,S,U —
35676-50140 note Flange, Brake, NO.1
2017-12 → 2019-10 ended
ARS212 B —
35676-50140 note Flange, Brake, NO.1
2017-12 → —
ARS212 P,Q,S,U —
35676-50150 note Flange, Brake, NO.1
2017-12 → 2019-10 ended
ARS212 B —
35676-50150 note Flange, Brake, NO.1
2017-12 → —
ARS212 P,Q,S,U —
35678B — Flange, Brake, NO.2
35678-50010 note Flange, Brake, NO.2
2015-08 → 2017-12 ended
ARS212 —
35678-50020 note Flange, Brake, NO.2
2015-08 → 2017-12 ended
ARS212 —
35678-50030 note Flange, Brake, NO.2
2015-08 → 2017-12 ended
ARS212 —
35678-50040 note Flange, Brake, NO.2
2015-08 → 2017-12 ended
ARS212 —
35678-50050 note Flange, Brake, NO.2
2015-08 → 2017-12 ended
ARS212 —
35678-50060 note Flange, Brake, NO.2
2015-08 → 2017-12 ended
ARS212 —
35678-50070 note Flange, Brake, NO.2
2015-08 → 2017-12 ended
ARS212 —
35678-50080 note Flange, Brake, NO.2
2015-08 → 2017-12 ended
ARS212 —
35678-50090 note Flange, Brake, NO.2
2015-08 → 2017-12 ended
ARS212 —
35678-50010 note Flange, Brake, NO.2
2017-12 → 2019-10 ended
ARS212 B —
35678-50010 note Flange, Brake, NO.2
2017-12 → —
ARS212 P,Q,S,U —
35678-50020 note Flange, Brake, NO.2
2017-12 → 2019-10 ended
ARS212 B —
35678-50020 note Flange, Brake, NO.2
2017-12 → —
ARS212 P,Q,S,U —
35678-50030 note Flange, Brake, NO.2
2017-12 → 2019-10 ended
ARS212 B —
35678-50030 note Flange, Brake, NO.2
2017-12 → —
ARS212 P,Q,S,U —
35678-50040 note Flange, Brake, NO.2
2017-12 → 2019-10 ended
ARS212 B —
35678-50040 note Flange, Brake, NO.2
2017-12 → —
ARS212 P,Q,S,U —
35678-50050 note Flange, Brake, NO.2
2017-12 → 2019-10 ended
ARS212 B —
35678-50050 note Flange, Brake, NO.2
2017-12 → —
ARS212 P,Q,S,U —
35678-50060 note Flange, Brake, NO.2
2017-12 → 2019-10 ended
ARS212 B —
35678-50060 note Flange, Brake, NO.2
2017-12 → —
ARS212 P,Q,S,U —
35678-50070 note Flange, Brake, NO.2
2017-12 → 2019-10 ended
ARS212 B —
35678-50070 note Flange, Brake, NO.2
2017-12 → —
ARS212 P,Q,S,U —
35678-50080 note Flange, Brake, NO.2
2017-12 → 2019-10 ended
ARS212 B —
35678-50080 note Flange, Brake, NO.2
2017-12 → —
ARS212 P,Q,S,U —
35678-50090 note Flange, Brake, NO.2
2017-12 → —
ARS212 P,Q,S,U —
35678-50090 note Flange, Brake, NO.2
2017-12 → 2019-10 ended
ARS212 B —
35681A — Disc, Brake, NO.1
35681-30040 Disc, Brake, NO.1
2015-08 → 2017-12 ended
ARS212 —
35681-30040 Disc, Brake, NO.1
2017-12 → 2019-10 ended
ARS212 B —
35681-30040 Disc, Brake, NO.1
2017-12 → —
ARS212 P,Q,S,U —
35682A — Disc, Brake, NO.2
35682-30030 Disc, Brake, NO.2
2015-08 → 2017-12 ended
ARS212 —
35682-30030 Disc, Brake, NO.2
2017-12 → 2019-10 ended
ARS212 B —
35682-30030 Disc, Brake, NO.2
2017-12 → —
ARS212 P,Q,S,U —
35691 — Plate, Brake, NO.1
35691-50020 Plate, Brake, NO.1
2015-08 → 2017-12 ended
ARS212 —
35691-50020 Plate, Brake, NO.1
2017-12 → 2019-10 ended
ARS212 B —
35691-50020 Plate, Brake, NO.1
2017-12 → —
ARS212 P,Q,S,U —
35692A — Plate, Brake, NO.2
35692-50020 Plate, Brake, NO.2
2015-08 → 2017-12 ended
ARS212 —
35692-50020 Plate, Brake, NO.2
2017-12 → 2019-10 ended
ARS212 B —
35692-50020 Plate, Brake, NO.2
2017-12 → —
ARS212 P,Q,S,U —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
