Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

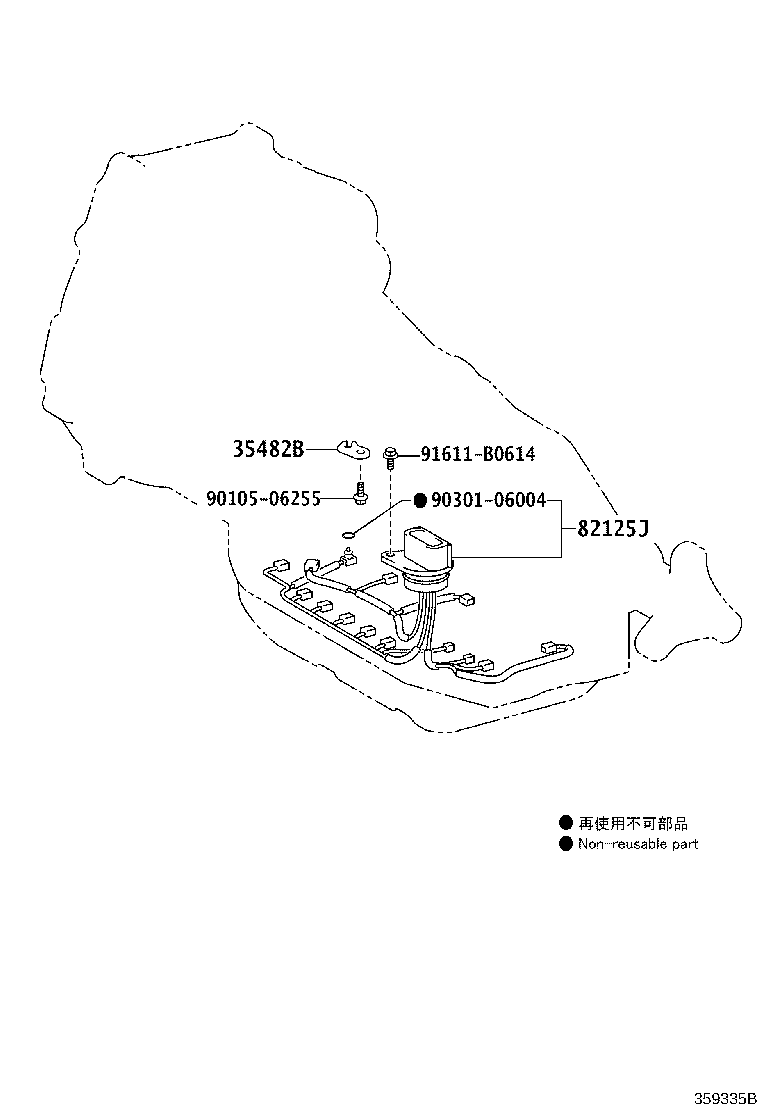

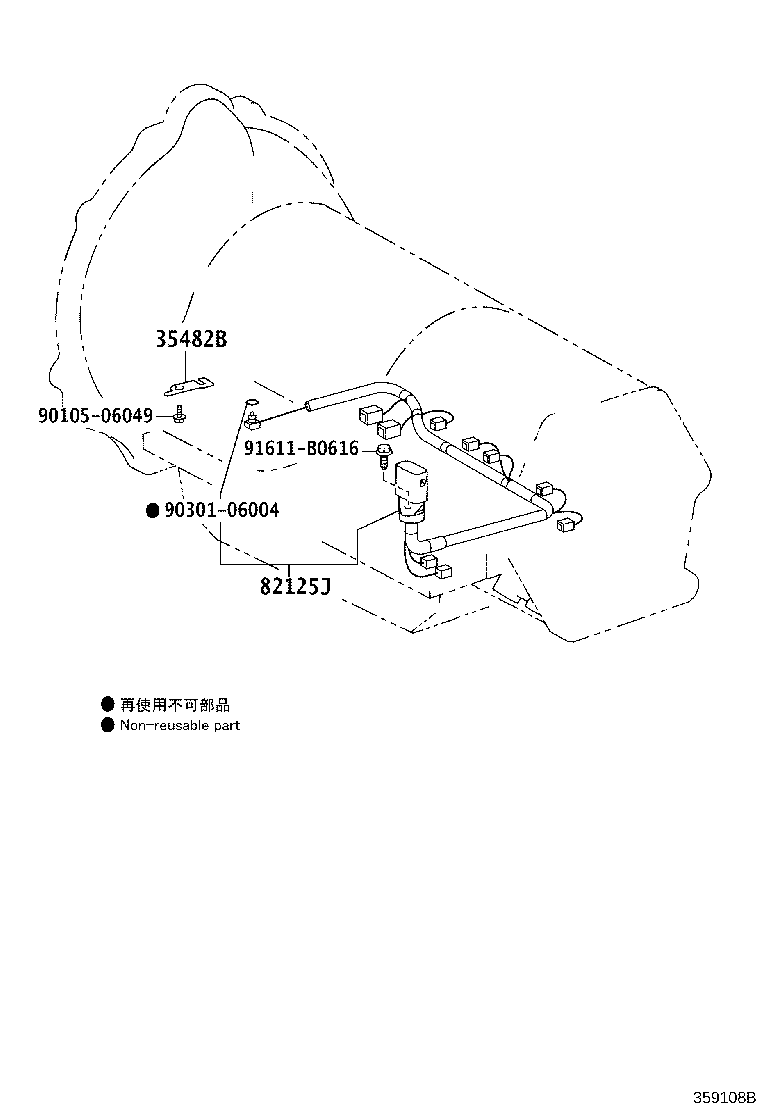

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 35482B — Clamp, Temperature Sensor | ||||
| 35482-0P010 |
Clamp, Temperature Sensor
2015-01 → 2016-09
ended
|
GRS218 | — | |
| 35482-50020 |
Clamp, Temperature Sensor
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 35482-60040 |
Clamp, Temperature Sensor
2016-09 → 2017-12
ended
|
GRS218 | — | |
| 35482-50020 |
Clamp, Temperature Sensor
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 35482-50020 |
Clamp, Temperature Sensor
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 82125J — Wire, Transmission | ||||
| 82125-0N020 |
Wire, Transmission
2015-01 → 2016-08
ended
|
GRS218 | — | |
| 82125-30580 |
Wire, Transmission
2015-08 → 2017-11
ended
|
ARS212 | — | |
| 82125-50070 |
Wire, Transmission
2016-09 → 2017-12
ended
|
GRS218 | — | |
| 82125-30580 |
Wire, Transmission
2017-12 → 2018-07
ended
|
ARS212 | — | |
| 82125-30581 |
Wire, Transmission
2018-08 → 2019-10
ended
|
ARS212 B | — | |
| 82125-30581 |
Wire, Transmission
2018-08 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
