Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

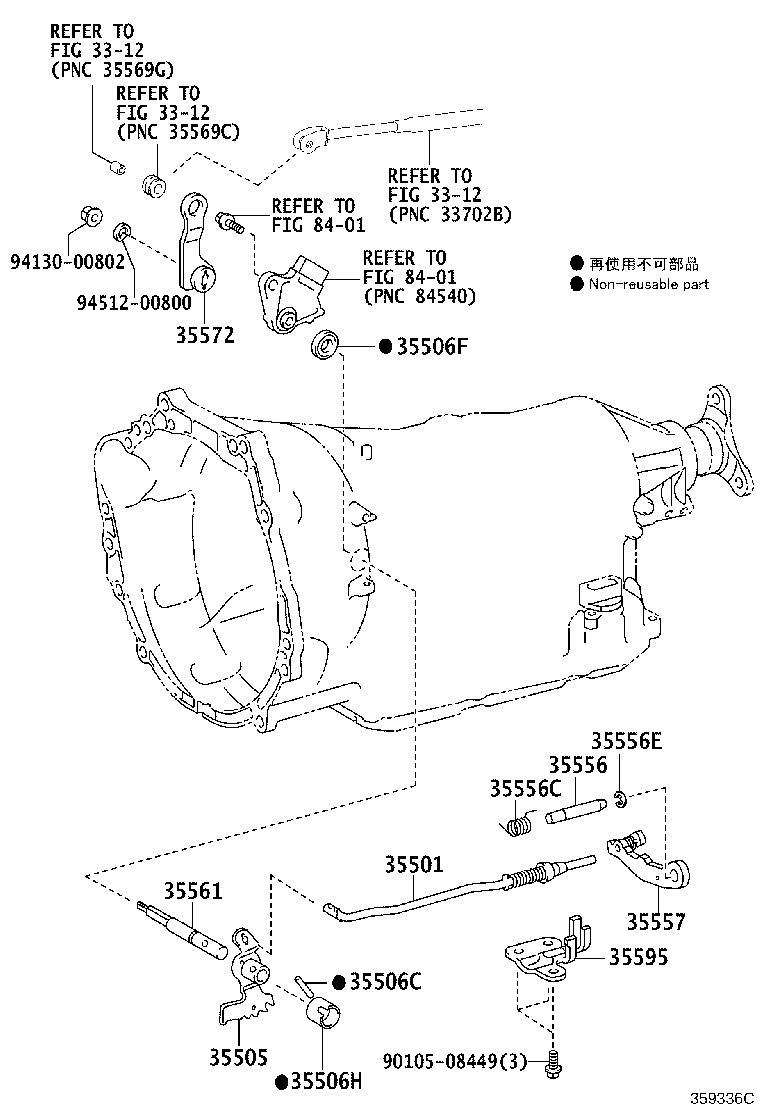

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 35501 — Rod Sub-assy, Parking Lock | ||||
| 35501-50020 |
Rod Sub-assy, Parking Lock
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 35501-50020 |
Rod Sub-assy, Parking Lock
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 35501-50020 |
Rod Sub-assy, Parking Lock
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 35505 — Lever Sub-assy, Manual Valve | ||||
| 35505-30040 |
Lever Sub-assy, Manual Valve
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 35505-30040 |
Lever Sub-assy, Manual Valve
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 35505-30040 |
Lever Sub-assy, Manual Valve
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 35506C — Pin, Slotted Spring (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-04011 |
Pin, Slotted Spring (FOR MANUAL VALVE LEVER SHAFT)
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 90254-04011 |
Pin, Slotted Spring (FOR MANUAL VALVE LEVER SHAFT)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90254-04011 |
Pin, Slotted Spring (FOR MANUAL VALVE LEVER SHAFT)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 35506F — Seal, Oil (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
Seal, Oil (FOR MANUAL VALVE LEVER SHAFT)
2016-09 → 2017-12
ended
|
GRS218 | — | |
| 90311-12002 |
Seal, Oil (FOR MANUAL VALVE LEVER SHAFT)
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 90311-C0008 |
Seal, Oil (FOR MANUAL VALVE LEVER SHAFT)
2015-01 → 2016-09
ended
|
GRS218 | — | |
| 90311-12002 |
Seal, Oil (FOR MANUAL VALVE LEVER SHAFT)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90311-12002 |
Seal, Oil (FOR MANUAL VALVE LEVER SHAFT)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 35506H — Spacer (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90560-20025 |
Spacer (FOR MANUAL VALVE LEVER SHAFT)
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 90560-20025 |
Spacer (FOR MANUAL VALVE LEVER SHAFT)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90560-20025 |
Spacer (FOR MANUAL VALVE LEVER SHAFT)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 35556 — Shaft, Parking Lock Pawl | ||||
| 35556-60020 |
Shaft, Parking Lock Pawl
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 35556-60020 |
Shaft, Parking Lock Pawl
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 35556-60020 |
Shaft, Parking Lock Pawl
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 35556C — Spring, Torsion (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90949-03147 |
Spring, Torsion (FOR PARKING LOCK PAWL SHAFT)
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 90949-03147 |
Spring, Torsion (FOR PARKING LOCK PAWL SHAFT)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 90949-03147 |
Spring, Torsion (FOR PARKING LOCK PAWL SHAFT)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 35556E — Ring, E (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90523-08021 |
Ring, E (FOR PARKING LOCK PAWL SHAFT)
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 90523-08021 |
Ring, E (FOR PARKING LOCK PAWL SHAFT)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90523-08021 |
Ring, E (FOR PARKING LOCK PAWL SHAFT)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 35557 — Pawl, Parking Lock | ||||
| 35590-50020 |
Pawl, Parking Lock
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 35590-50020 |
Pawl, Parking Lock
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 35590-50020 |
Pawl, Parking Lock
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 35561 — Shaft, Manual Valve Lever | ||||
| 35561-50030 |
Shaft, Manual Valve Lever
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 35561-50030 |
Shaft, Manual Valve Lever
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 35561-50030 |
Shaft, Manual Valve Lever
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 35572 — Lever, Transmission Control Shaft, RH | ||||
| 35572-0P010 |
Lever, Transmission Control Shaft, RH
2015-01 → 2016-09
ended
|
GRS218 | — | |
| 35572-30070 |
Lever, Transmission Control Shaft, RH
2016-09 → 2017-12
ended
|
GRS218 | — | |
| 35572-30100 |
Lever, Transmission Control Shaft, RH
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 35572-30100 |
Lever, Transmission Control Shaft, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 35572-30100 |
Lever, Transmission Control Shaft, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 35595 — Bracket, Parking Lock Pawl | ||||
| 35595-50020 |
Bracket, Parking Lock Pawl
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 35595-50020 |
Bracket, Parking Lock Pawl
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 35595-50020 |
Bracket, Parking Lock Pawl
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
