Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

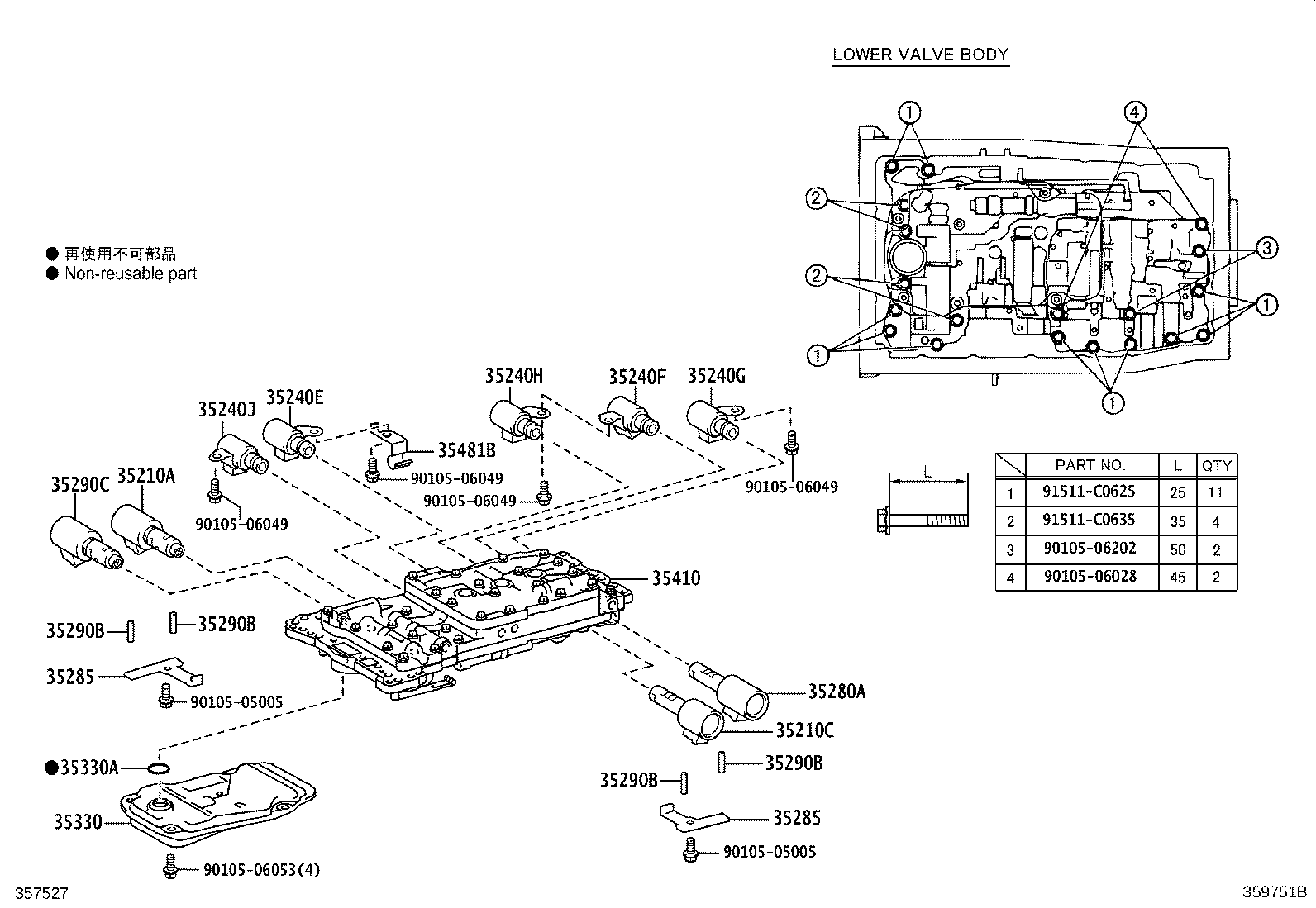

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 35210A — Valve, Solenoid(SL1) | ||||
| 35210-50010 |
Valve, Solenoid(SL1)
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 35210-71010 |
Valve, Solenoid(SL1)
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 35210-71010 |
Valve, Solenoid(SL1)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 35210-71010 |
Valve, Solenoid(SL1)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 35210C — Valve, Solenoid(SL2) | ||||
| 35210-50010 |
Valve, Solenoid(SL2)
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 35210-71010 |
Valve, Solenoid(SL2)
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 35210-71010 |
Valve, Solenoid(SL2)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 35210-71010 |
Valve, Solenoid(SL2)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 35240E — Valve, Solenoid(S1) | ||||
| 35240-50030 |
Valve, Solenoid(S1)
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 35240F — Valve, Solenoid(S2) | ||||
| 35240-50040 |
Valve, Solenoid(S2)
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 35240G — Valve, Solenoid(S3) | ||||
| 35240-50030 |
Valve, Solenoid(S3)
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 35240H — Valve, Solenoid(S4) | ||||
| 35240-50050 |
Valve, Solenoid(S4)
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 35240J — Valve, Solenoid(SR) | ||||
| 35240-50060 |
Valve, Solenoid(SR)
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 35280A — Valve, Solenoid(SLU) | ||||
| 35280-30050 |
Valve, Solenoid(SLU)
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 35280-71010 |
Valve, Solenoid(SLU)
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 35280-71010 |
Valve, Solenoid(SLU)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 35280-71010 |
Valve, Solenoid(SLU)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 35285 — Plate, Solenoid Lock | ||||
| 35285-50020 |
Plate, Solenoid Lock
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 35285-53010 |
Plate, Solenoid Lock
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 35285-53010 |
Plate, Solenoid Lock
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 35285-53010 |
Plate, Solenoid Lock
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 35290B — Pin, Straight (FOR LINE PRESSURE CONTOROL SOLENOID) | ||||
| 90250-03045 |
Pin, Straight (FOR LINE PRESSURE CONTOROL SOLENOID)
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 35290C — Valve, Solenoid(SLT) | ||||
| 35290-34010 |
Valve, Solenoid(SLT)
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 35290-71020 |
Valve, Solenoid(SLT)
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 35290-71020 |
Valve, Solenoid(SLT)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 35290-71020 |
Valve, Solenoid(SLT)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 35330 — Strainer Assy, Valve Body Oil | ||||
| 35330-0N010 |
Strainer Assy, Valve Body Oil
2015-01 → 2016-09
ended
|
GRS218 | — | |
| 35330-30090 |
Strainer Assy, Valve Body Oil
2016-09 → 2017-12
ended
|
GRS218 | — | |
| 35330-53020 |
Strainer Assy, Valve Body Oil
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 35330-53020 |
Strainer Assy, Valve Body Oil
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 35330-53020 |
Strainer Assy, Valve Body Oil
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 35330A — Ring, O (FOR OIL STRAINER) | ||||
| 90301-31014 |
Ring, O (FOR OIL STRAINER)
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 90301-31014 |
Ring, O (FOR OIL STRAINER)
2016-09 → 2017-12
ended
|
GRS218 | — | |
| 90301-C0021 |
Ring, O (FOR OIL STRAINER)
2015-01 → 2016-09
ended
|
GRS218 | — | |
| 90301-31014 |
Ring, O (FOR OIL STRAINER)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90301-31014 |
Ring, O (FOR OIL STRAINER)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 35410 — Body Assy, Transmission Valve | ||||
| 35410-0P011 |
Body Assy, Transmission Valve
2015-01 → 2016-09
ended
|
GRS218 | — | |
| 35410-22781 |
Body Assy, Transmission Valve
2016-09 → 2017-12
ended
|
GRS218 | — | |
| 35410-53071 |
Body Assy, Transmission Valve
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 35410-53071 |
Body Assy, Transmission Valve
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 35410-53071 |
Body Assy, Transmission Valve
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 35481B — Clamp, Valve Body Wire Harness | ||||
| 35481-50040 |
Clamp, Valve Body Wire Harness
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 35481-50050 |
Clamp, Valve Body Wire Harness
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 35481-50050 |
Clamp, Valve Body Wire Harness
2017-12 → 2019-02
ended
|
ARS212 | — | |
| 35481-50050 |
Clamp, Valve Body Wire Harness
2019-02 → —
|
ARS212 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
