Toyota Crown (CHINA)

2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

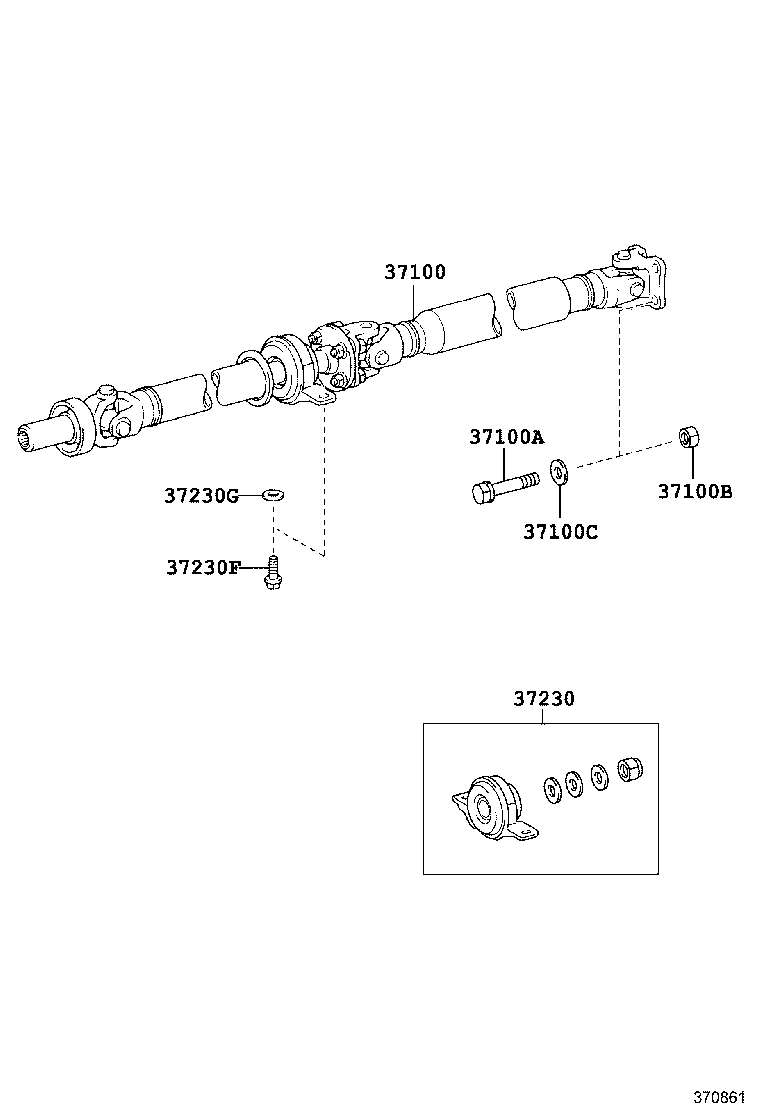

Exploded illustration 370861 37230 — BEARING ASSY, CENTER SUPPORT, NO.1 (4 parts) 37230G — WASHER, NO.2 (FOR CENTER SUPPORT BEARING) (20 parts) 37230F — BOLT, NO.1 (FOR CENTER SUPPORT BEARING) (3 parts) 37100 — SHAFT ASSY, PROPELLER W/CENTER BEARING (4 parts) 37100A — BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) (7 parts) 37100B — NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) (4 parts) 37100C — WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) (4 parts)
370861 · 7 callouts Full size ↗
46 parts on this figure
Part number Description Fitment Price
37100 — Shaft Assy, Propeller W/Center Bearing
37100-0N020 Shaft Assy, Propeller W/Center Bearing
2015-01 → 2017-12 ended
GRS218 —
37100-30B00 Shaft Assy, Propeller W/Center Bearing
2015-08 → 2017-12 ended
ARS212 —
37100-30B00 Shaft Assy, Propeller W/Center Bearing
2017-12 → —
ARS212 P,Q,S,U —
37100-30B00 Shaft Assy, Propeller W/Center Bearing
2017-12 → 2019-10 ended
ARS212 B —
37100A — Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90105-12265 note Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2015-08 → 2017-12 ended
ARS212 —
90105-C0163 Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2015-01 → 2017-12 ended
GRS218 —
90105-C0165 note Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2015-08 → 2017-12 ended
ARS212 —
90105-12265 note Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2017-12 → 2019-10 ended
ARS212 B —
90105-12265 note Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2017-12 → —
ARS212 P,Q,S,U —
90105-C0165 note Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2017-12 → 2019-10 ended
ARS212 B —
90105-C0165 note Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2017-12 → —
ARS212 P,Q,S,U —
37100B — Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90178-C0086 Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2015-01 → 2017-12 ended
GRS218 —
90178-C0104 Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2015-08 → 2017-12 ended
ARS212 —
90178-C0104 Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2017-12 → 2019-10 ended
ARS212 B —
90178-C0104 Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2017-12 → —
ARS212 P,Q,S,U —
37100C — Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90560-10102 Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2015-01 → 2017-12 ended
GRS218 —
90560-12059 Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2015-08 → 2017-12 ended
ARS212 —
90560-12059 Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2017-12 → 2019-10 ended
ARS212 B —
90560-12059 Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
2017-12 → —
ARS212 P,Q,S,U —
37230 — Bearing Assy, Center Support, NO.1
37230-30181 Bearing Assy, Center Support, NO.1
2015-08 → 2017-12 ended
ARS212 —
37230-39095 Bearing Assy, Center Support, NO.1
2015-01 → 2017-12 ended
GRS218 —
37230-30181 Bearing Assy, Center Support, NO.1
2017-12 → 2019-10 ended
ARS212 B —
37230-30181 Bearing Assy, Center Support, NO.1
2017-12 → —
ARS212 P,Q,S,U —
37230F — Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
90119-C0189 note Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
2015-01 → 2017-12 ended
ARS212,GRS218 —
90119-C0189 note Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
2017-12 → —
ARS212 P,Q,S,U —
90119-C0189 note Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
2017-12 → 2019-10 ended
ARS212 B —
37230G — Washer, NO.2 (FOR CENTER SUPPORT BEARING)
90201-10008 note Washer, NO.2 (FOR CENTER SUPPORT BEARING)
2015-01 → 2017-12 ended
GRS218 —
90201-10008 note Washer, NO.2 (FOR CENTER SUPPORT BEARING)
2015-08 → 2017-12 ended
ARS212 —
90201-10017 note Washer, NO.2 (FOR CENTER SUPPORT BEARING)
2015-01 → 2017-12 ended
GRS218 —
90201-10017 note Washer, NO.2 (FOR CENTER SUPPORT BEARING)
2015-08 → 2017-12 ended
ARS212 —
90201-10033 note Washer, NO.2 (FOR CENTER SUPPORT BEARING)
2015-01 → 2017-12 ended
GRS218 —
90201-10033 note Washer, NO.2 (FOR CENTER SUPPORT BEARING)
2015-08 → 2017-12 ended
ARS212 —
90201-10034 note Washer, NO.2 (FOR CENTER SUPPORT BEARING)
2015-01 → 2017-12 ended
GRS218 —
90201-10034 note Washer, NO.2 (FOR CENTER SUPPORT BEARING)
2015-08 → 2017-12 ended
ARS212 —
90201-10106 note Washer, NO.2 (FOR CENTER SUPPORT BEARING)
2015-08 → 2017-12 ended
ARS212 —
90201-10106 note Washer, NO.2 (FOR CENTER SUPPORT BEARING)
2015-01 → 2017-12 ended
GRS218 —
90201-10008 note Washer, NO.2 (FOR CENTER SUPPORT BEARING)
2017-12 → 2019-10 ended
ARS212 B —
90201-10008 note Washer, NO.2 (FOR CENTER SUPPORT BEARING)
2017-12 → —
ARS212 P,Q,S,U —
90201-10017 note Washer, NO.2 (FOR CENTER SUPPORT BEARING)
2017-12 → 2019-10 ended
ARS212 B —
90201-10017 note Washer, NO.2 (FOR CENTER SUPPORT BEARING)
2017-12 → —
ARS212 P,Q,S,U —
90201-10033 note Washer, NO.2 (FOR CENTER SUPPORT BEARING)
2017-12 → 2019-10 ended
ARS212 B —
90201-10033 note Washer, NO.2 (FOR CENTER SUPPORT BEARING)
2017-12 → —
ARS212 P,Q,S,U —
90201-10034 note Washer, NO.2 (FOR CENTER SUPPORT BEARING)
2017-12 → 2019-10 ended
ARS212 B —
90201-10034 note Washer, NO.2 (FOR CENTER SUPPORT BEARING)
2017-12 → —
ARS212 P,Q,S,U —
90201-10106 note Washer, NO.2 (FOR CENTER SUPPORT BEARING)
2017-12 → 2019-10 ended
ARS212 B —
90201-10106 note Washer, NO.2 (FOR CENTER SUPPORT BEARING)
2017-12 → —
ARS212 P,Q,S,U —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
