Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

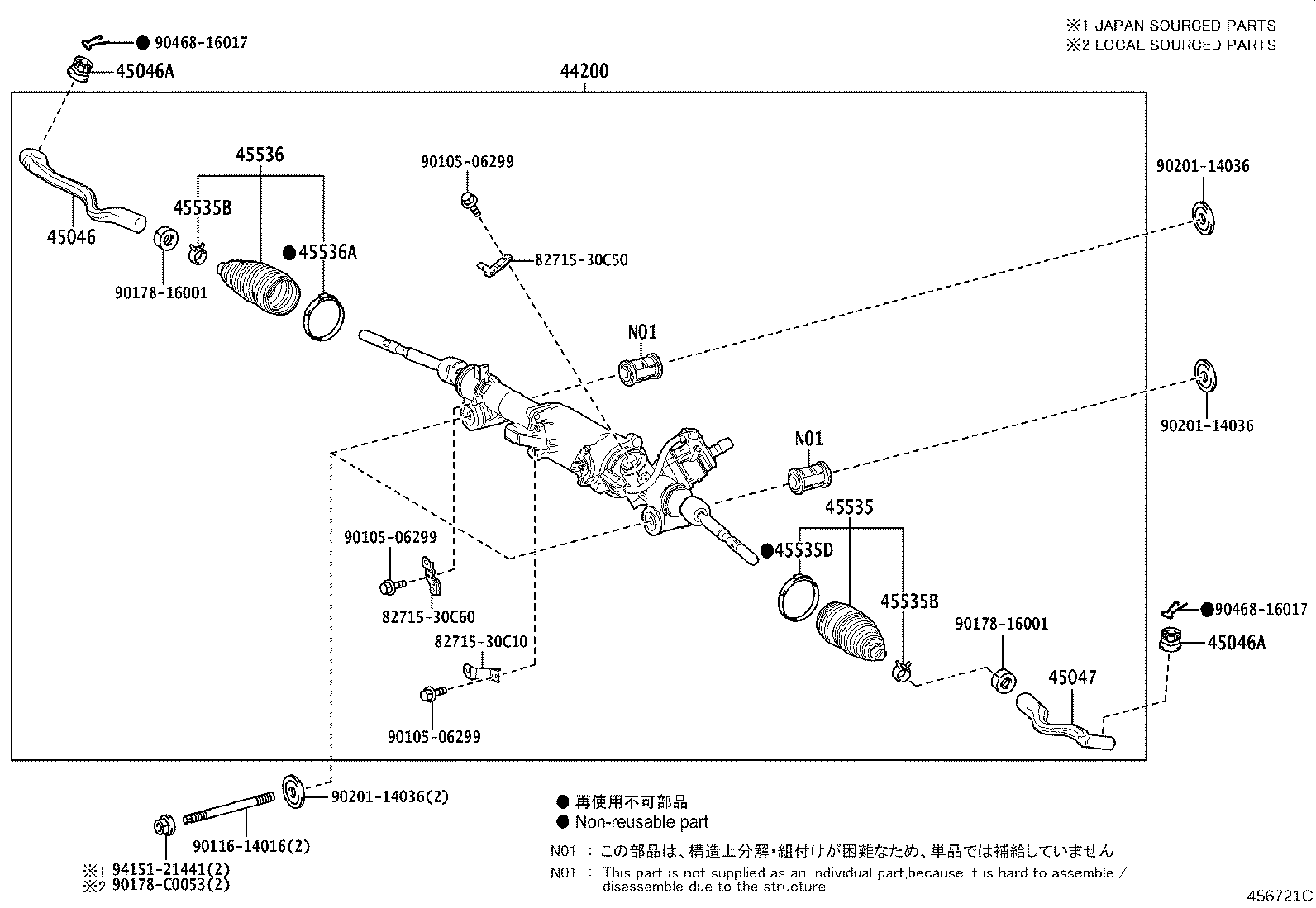

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44200 — Link Assy, Power Steering | ||||
| 44200-30C10 |
Link Assy, Power Steering
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 44200-30C10 |
Link Assy, Power Steering
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 44200-30C10 |
Link Assy, Power Steering
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 45046 — End Sub-assy, Tie Rod, RH | ||||
| 45463-30150 |
End Sub-assy, Tie Rod, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 45463-30150 |
End Sub-assy, Tie Rod, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 45463-30150 |
End Sub-assy, Tie Rod, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 45046A — Nut, Castle(FOR TIE ROD END) | ||||
| 90171-12002 |
Nut, Castle(FOR TIE ROD END)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90171-12002 |
Nut, Castle(FOR TIE ROD END)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90171-12002 |
Nut, Castle(FOR TIE ROD END)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 45047 — End Sub-assy, Tie Rod, LH | ||||
| 45464-30100 |
End Sub-assy, Tie Rod, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 45464-30100 |
End Sub-assy, Tie Rod, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 45464-30100 |
End Sub-assy, Tie Rod, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 45535 — Boot, Steering Rack, NO.1 | ||||
| 45535-59055 |
Boot, Steering Rack, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 45535-59055 |
Boot, Steering Rack, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 45535-59055 |
Boot, Steering Rack, NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 45535B — Clip(FOR STEERING RACK BOOT) | ||||
| 90467-19021 |
Clip(FOR STEERING RACK BOOT)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90467-19021 |
Clip(FOR STEERING RACK BOOT)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90467-19021 |
Clip(FOR STEERING RACK BOOT)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 45535D — Clamp(FOR STEERING RACK BOOT NO.1) | ||||
| 45538-50010 |
Clamp(FOR STEERING RACK BOOT NO.1)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 45538-50010 |
Clamp(FOR STEERING RACK BOOT NO.1)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 45538-50010 |
Clamp(FOR STEERING RACK BOOT NO.1)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 45536 — Boot, Steering Rack, NO.2 | ||||
| 45535-59055 |
Boot, Steering Rack, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 45535-59055 |
Boot, Steering Rack, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 45535-59055 |
Boot, Steering Rack, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 45536A — Clamp(FOR STEERING RACK BOOT NO.2) | ||||
| 45538-50010 |
Clamp(FOR STEERING RACK BOOT NO.2)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 45538-50010 |
Clamp(FOR STEERING RACK BOOT NO.2)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 45538-50010 |
Clamp(FOR STEERING RACK BOOT NO.2)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
