Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

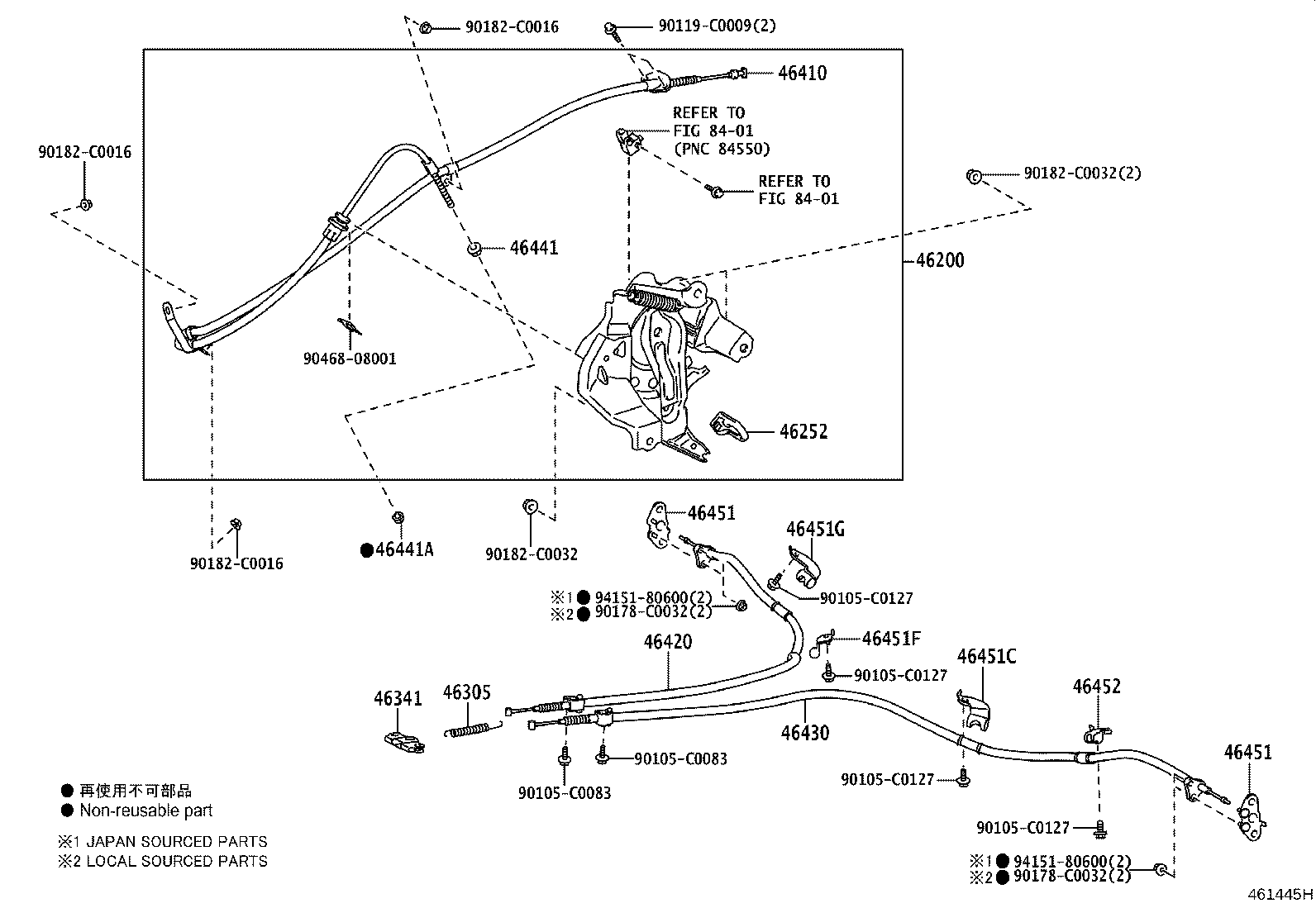

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 46200 — Pedal Assy, Parking Brake Control | ||||
| 46200-0N010 |
Pedal Assy, Parking Brake Control
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 46200-0N010 |
Pedal Assy, Parking Brake Control
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 46200-0N010 |
Pedal Assy, Parking Brake Control
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 46252 — Pad, Parking Pedal | ||||
| 46252-22010 |
Pad, Parking Pedal
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 46252-22010 |
Pad, Parking Pedal
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 46252-22010 |
Pad, Parking Pedal
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 46305 — Spring, Parking Brake Return W/Damper | ||||
| 46305-50020 |
Spring, Parking Brake Return W/Damper
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 46305-50020 |
Spring, Parking Brake Return W/Damper
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 46305-50020 |
Spring, Parking Brake Return W/Damper
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 46341 — Equalizer, Parking Brake | ||||
| 46341-0P010 |
Equalizer, Parking Brake
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 46341-0P010 |
Equalizer, Parking Brake
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 46341-0P010 |
Equalizer, Parking Brake
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 46410 — Cable Assy, Parking Brake, NO.1 | ||||
| 46410-30810 |
Cable Assy, Parking Brake, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 46410-30810 |
Cable Assy, Parking Brake, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 46410-30810 |
Cable Assy, Parking Brake, NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 46420 — Cable Assy, Parking Brake, NO.2 | ||||
| 46420-0N010 |
Cable Assy, Parking Brake, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 46420-0N010 |
Cable Assy, Parking Brake, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 46420-0N010 |
Cable Assy, Parking Brake, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 46430 — Cable Assy, Parking Brake, NO.3 | ||||
| 46420-0N010 |
Cable Assy, Parking Brake, NO.3
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 46420-0N010 |
Cable Assy, Parking Brake, NO.3
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 46420-0N010 |
Cable Assy, Parking Brake, NO.3
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 46441 — Nut, Wire Adjusting, NO.1 | ||||
| 46441-12010 |
Nut, Wire Adjusting, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 46441-12010 |
Nut, Wire Adjusting, NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 46441-12010 |
Nut, Wire Adjusting, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 46441A — Nut, Wire Adjusting, NO.2 | ||||
| 90178-C0032 |
Nut, Wire Adjusting, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90178-C0032 |
Nut, Wire Adjusting, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90178-C0032 |
Nut, Wire Adjusting, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 46451 — Bracket, Cable Support | ||||
| 46451-50050 |
Bracket, Cable Support
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 46451-50050 |
Bracket, Cable Support
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 46451-50050 |
Bracket, Cable Support
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 46451C — Bracket, Parking Brake Cable Support, NO.1 | ||||
| 46451-30180 |
Bracket, Parking Brake Cable Support, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 46451-30180 |
Bracket, Parking Brake Cable Support, NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 46451-30180 |
Bracket, Parking Brake Cable Support, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 46451F — Bracket, Cable Support | ||||
| 46451-22100 |
Bracket, Cable Support
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 46451-53010 |
Bracket, Cable Support
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 46451-53010 |
Bracket, Cable Support
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 46451-53010 |
Bracket, Cable Support
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 46451G — Bracket, Cable Support | ||||
| 46451-30190 |
Bracket, Cable Support
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 46451-30190 |
Bracket, Cable Support
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 46451-30190 |
Bracket, Cable Support
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 46452 — Bracket, Parking Brake Cable Support, NO.2 | ||||
| 46451-30200 |
Bracket, Parking Brake Cable Support, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 46451-30200 |
Bracket, Parking Brake Cable Support, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 46451-30200 |
Bracket, Parking Brake Cable Support, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
