Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

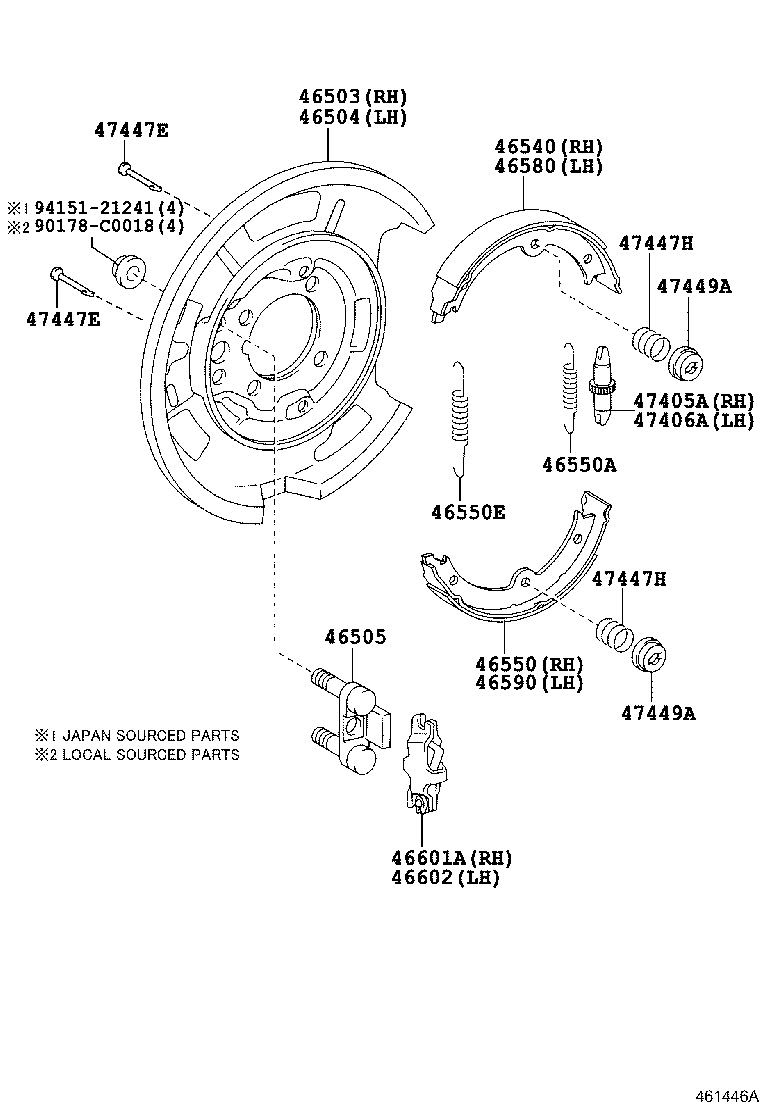

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 46503 — Plate Sub-assy, Parking Brake, RH | ||||
| 46503-0N010 |
Plate Sub-assy, Parking Brake, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 46503-0N010 |
Plate Sub-assy, Parking Brake, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 46503-0N010 |
Plate Sub-assy, Parking Brake, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 46504 — Plate Sub-assy, Parking Brake, LH | ||||
| 46504-0N010 |
Plate Sub-assy, Parking Brake, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 46504-0N010 |
Plate Sub-assy, Parking Brake, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 46504-0N010 |
Plate Sub-assy, Parking Brake, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 46505 — Block Sub-assy, Parking Brake Anchor | ||||
| 46505-0N011 |
Block Sub-assy, Parking Brake Anchor
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 46505-0N011 |
Block Sub-assy, Parking Brake Anchor
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 46505-0N011 |
Block Sub-assy, Parking Brake Anchor
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 46540 — Shoe Assy, Parking Brake, RH OR Center NO.1 | ||||
| 46530-30011 |
Shoe Assy, Parking Brake, RH OR Center NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 46530-30011 |
Shoe Assy, Parking Brake, RH OR Center NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 46530-30011 |
Shoe Assy, Parking Brake, RH OR Center NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 46550 — Shoe Assy, Parking Brake, RH OR Center NO.2 | ||||
| 46530-30011 |
Shoe Assy, Parking Brake, RH OR Center NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 46530-30011 |
Shoe Assy, Parking Brake, RH OR Center NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 46530-30011 |
Shoe Assy, Parking Brake, RH OR Center NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 46550A — Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90016-AY105 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90016-AY105 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90016-AY105 |
Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 46550E — Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90016-AY104 |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90016-AY104 |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90016-AY104 |
Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 46580 — Shoe Assy, Parking Brake, LH NO.1 | ||||
| 46530-30011 |
Shoe Assy, Parking Brake, LH NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 46530-30011 |
Shoe Assy, Parking Brake, LH NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 46530-30011 |
Shoe Assy, Parking Brake, LH NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 46590 — Shoe Assy, Parking Brake, LH NO.2 | ||||
| 46530-30011 |
Shoe Assy, Parking Brake, LH NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 46530-30011 |
Shoe Assy, Parking Brake, LH NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 46530-30011 |
Shoe Assy, Parking Brake, LH NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 46601A — Lever Sub-assy, Parking Brake Shoe, RH | ||||
| 46601-50050 |
Lever Sub-assy, Parking Brake Shoe, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 46601-50050 |
Lever Sub-assy, Parking Brake Shoe, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 46601-50050 |
Lever Sub-assy, Parking Brake Shoe, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 46602 — Lever Sub-assy, Parking Brake Shoe, LH | ||||
| 46602-50050 |
Lever Sub-assy, Parking Brake Shoe, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 46602-50050 |
Lever Sub-assy, Parking Brake Shoe, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 46602-50050 |
Lever Sub-assy, Parking Brake Shoe, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 47405A — Screw Set, Shoe Adjusting, RH(FOR PARKING BRAKE) | ||||
| 47405-32010 |
Screw Set, Shoe Adjusting, RH(FOR PARKING BRAKE)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 47405-32010 |
Screw Set, Shoe Adjusting, RH(FOR PARKING BRAKE)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 47405-32010 |
Screw Set, Shoe Adjusting, RH(FOR PARKING BRAKE)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 47406A — Screw Set, Shoe Adjusting, LH(FOR PARKING BRAKE) | ||||
| 47406-32010 |
Screw Set, Shoe Adjusting, LH(FOR PARKING BRAKE)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 47406-32010 |
Screw Set, Shoe Adjusting, LH(FOR PARKING BRAKE)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 47406-32010 |
Screw Set, Shoe Adjusting, LH(FOR PARKING BRAKE)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 47447E — Pin, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE) | ||||
| 47447-10020 |
Pin, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 47447-10020 |
Pin, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 47447-10020 |
Pin, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 47447H — Spring, Compression, NO.1(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90016-AY007 |
Spring, Compression, NO.1(FOR PARKING BRAKE SHOE HOLD DOWN)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90016-AY007 |
Spring, Compression, NO.1(FOR PARKING BRAKE SHOE HOLD DOWN)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90016-AY007 |
Spring, Compression, NO.1(FOR PARKING BRAKE SHOE HOLD DOWN)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 47449A — Cup, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
Cup, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 47449-30030 |
Cup, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 47449-30030 |
Cup, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
