Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

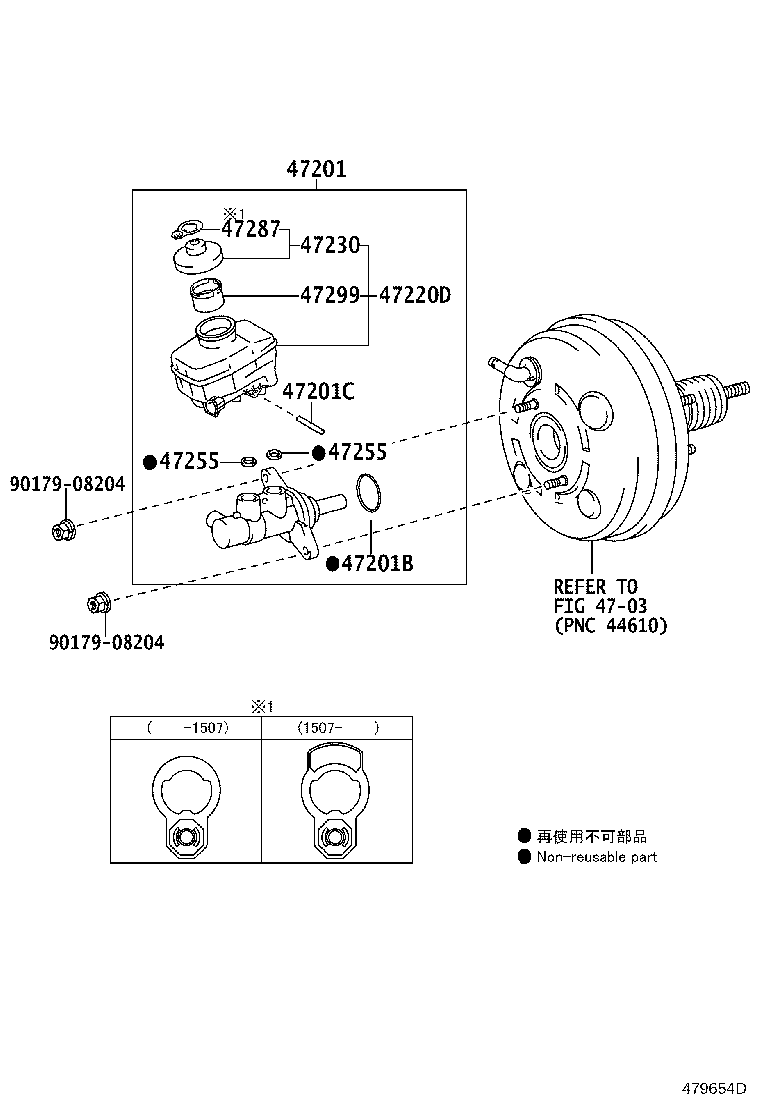

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47201 — Cylinder Sub-assy, Brake Master | ||||
| 47201-0N030 |
Cylinder Sub-assy, Brake Master
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 47201-0N040 |
Cylinder Sub-assy, Brake Master
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 47201-0N050 |
Cylinder Sub-assy, Brake Master
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 47201-0N050 |
Cylinder Sub-assy, Brake Master
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 47201B — Ring, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90016-AH902 |
Ring, O(FOR BRAKE MASTER CYLINDER)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90016-AH902 |
Ring, O(FOR BRAKE MASTER CYLINDER)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90016-AH902 |
Ring, O(FOR BRAKE MASTER CYLINDER)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 47201C — Ring Pin, Brake Master Cylinder | ||||
| 90029-15803 |
Ring Pin, Brake Master Cylinder
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90029-15803 |
Ring Pin, Brake Master Cylinder
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90029-15803 |
Ring Pin, Brake Master Cylinder
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 47220D — Reservoir Assy, Brake Master Cylinder | ||||
| 47220-0N030 |
Reservoir Assy, Brake Master Cylinder
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 47220-0N030 |
Reservoir Assy, Brake Master Cylinder
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 47220-0N030 |
Reservoir Assy, Brake Master Cylinder
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 47230 — Cap Assy, Brake Master Cylinder Reservoir Filler | ||||
| 47230-02260 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2015-01 → 2015-07
ended
|
GRS218 | — | |
| 47230-0R030 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2015-07 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 47230-0R030 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 47230-0R030 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 47255 — Grommet, Master Cylinder Reservoir | ||||
| 90016-AT002 |
Grommet, Master Cylinder Reservoir
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90016-AT002 |
Grommet, Master Cylinder Reservoir
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90016-AT002 |
Grommet, Master Cylinder Reservoir
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 47287 — Label, Brake Fluid Information | ||||
| 47287-02360 |
Label, Brake Fluid Information
2015-07 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 47287-20010 |
Label, Brake Fluid Information
2015-01 → 2015-07
ended
|
GRS218 | — | |
| 47287-02360 |
Label, Brake Fluid Information
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 47287-02360 |
Label, Brake Fluid Information
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 47299 — Strainer, Brake Master Cylinder Reservoir | ||||
| 47299-20060 |
Strainer, Brake Master Cylinder Reservoir
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 47299-20060 |
Strainer, Brake Master Cylinder Reservoir
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 47299-20060 |
Strainer, Brake Master Cylinder Reservoir
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
