Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

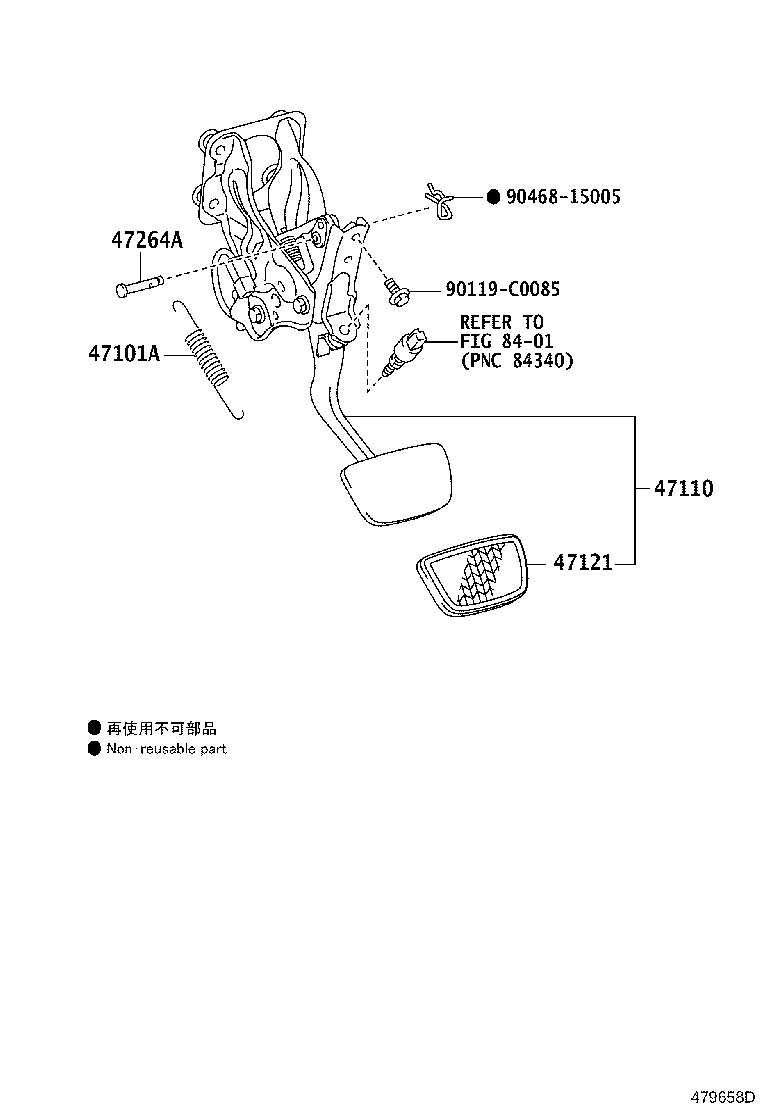

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47101A — Spring(FOR BRAKE PEDAL RETURN) | ||||
| 90507-13009 |
Spring(FOR BRAKE PEDAL RETURN)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90507-13009 |
Spring(FOR BRAKE PEDAL RETURN)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90507-13009 |
Spring(FOR BRAKE PEDAL RETURN)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 47110 — Support Assy, Brake Pedal | ||||
| 47110-0N040 |
Support Assy, Brake Pedal
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 47110-0N040 |
Support Assy, Brake Pedal
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 47110-0N040 |
Support Assy, Brake Pedal
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 47121 — Pad, Brake Pedal | ||||
| 47121-30080 |
Pad, Brake Pedal
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 47121-30080 |
Pad, Brake Pedal
2017-12 → 2019-01
ended
|
ARS212 | — | |
| 47121-30080 |
Pad, Brake Pedal
2019-08 → 2019-10
ended
|
ARS212 B | — | |
| 47121-30080 |
Pad, Brake Pedal
2019-08 → —
|
ARS212 P,Q,S,U | — | |
| 47121-48010 |
Pad, Brake Pedal
2019-02 → 2019-08
ended
|
ARS212 | — | |
| 47264A — Pin(FOR PUSH ROD) | ||||
| 90249-06180 |
Pin(FOR PUSH ROD)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90249-06180 |
Pin(FOR PUSH ROD)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90249-06180 |
Pin(FOR PUSH ROD)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
