Toyota Crown (CHINA)

2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 479659E 4702 — not listed in this catalogue 9046808040 — not listed in this catalogue 9046808040 — not listed in this catalogue 91673A0620 — not listed in this catalogue 47373B — CLAMP, BRAKE TUBE, NO.3 (3 parts) 47314 — TUBE, FRONT BRAKE, NO.4 (3 parts) 47325 — TUBE, REAR BRAKE, NO.5 (3 parts) 47313 — TUBE, FRONT BRAKE, NO.3 (3 parts) 47321 — TUBE, REAR BRAKE, NO.1 (3 parts) 47324 — TUBE, REAR BRAKE, NO.4 (3 parts) 47312E — WAY, NO.2(FOR FRONT BRAKE TUBE) (4 parts) 47311B — WAY, NO.1(FOR FRONT BRAKE TUBE) (4 parts) 47313J — HOSE, FLEXIBLE, NO.2(FOR FRONT) (3 parts) 47313B — BOLT, UNION(FOR FRONT FLEXIBLE HOSE) (3 parts) 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (3 parts) 47311 — TUBE, FRONT BRAKE, NO.1 (3 parts) 47312 — TUBE, FRONT BRAKE, NO.2 (3 parts) 47315 — TUBE, FRONT BRAKE, NO.5 (3 parts) 47375 — CLAMP, BRAKE TUBE, NO.5 (3 parts) 47372 — CLAMP, BRAKE TUBE, NO.2 (3 parts) 47371A — CLAMP, BRAKE TUBE, NO.1 (3 parts) 47316D — GROMMET(FOR REAR BRAKE TUBE) (3 parts) 47371B — CLAMP, BRAKE TUBE, NO.6 (3 parts) 47371C — CLAMP, BRAKE TUBE, NO.7 (3 parts) 47313B — BOLT, UNION(FOR FRONT FLEXIBLE HOSE) (3 parts) 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (3 parts) 47313A — HOSE, FLEXIBLE, NO.1(FOR FRONT) (3 parts) 47318D — BOLT, UNION(FOR REAR FLEXIBLE HOSE) (3 parts) 47319F — HOSE, FLEXIBLE(FOR REAR LH) (3 parts) 47318E — GASKET(FOR REAR FLEXIBLE HOSE) (3 parts) 47318F — HOSE, FLEXIBLE(FOR REAR RH) (3 parts) 9046808040 — not listed in this catalogue 9046808040 — not listed in this catalogue 47318D — BOLT, UNION(FOR REAR FLEXIBLE HOSE) (3 parts) 47318E — GASKET(FOR REAR FLEXIBLE HOSE) (3 parts) 7701 — not listed in this catalogue 7701 — not listed in this catalogue 7701 — not listed in this catalogue 7701 — not listed in this catalogue 7701 — not listed in this catalogue 7701 — not listed in this catalogue

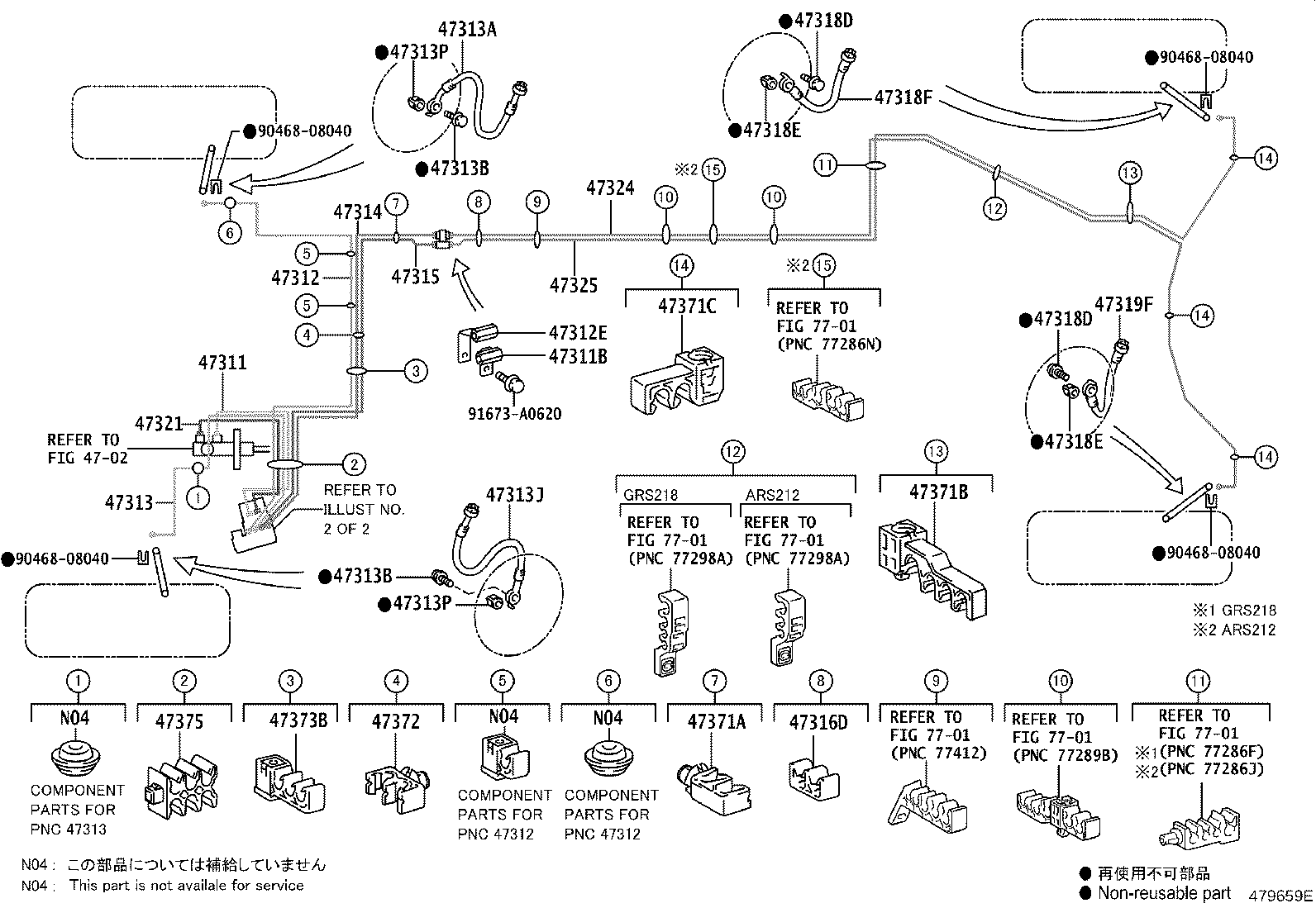

479659E · 29 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
77 parts on this figure
Part number Description Fitment Price
47311 — Tube, Front Brake, NO.1
47311-0N030 Tube, Front Brake, NO.1
2015-01 → 2017-12 ended
ARS212,GRS218 —
47311-0N050 Tube, Front Brake, NO.1
2017-12 → 2019-10 ended
ARS212 B —
47311-0N050 Tube, Front Brake, NO.1
2017-12 → —
ARS212 P,Q,S,U —
47311B — Way, NO.1(FOR FRONT BRAKE TUBE)
90412-10292 Way, NO.1(FOR FRONT BRAKE TUBE)
2015-01 → 2015-09 ended
ARS212,GRS218 —
90412-C0016 Way, NO.1(FOR FRONT BRAKE TUBE)
2015-10 → 2017-12 ended
ARS212,GRS218 —
90412-C0016 Way, NO.1(FOR FRONT BRAKE TUBE)
2017-12 → 2019-10 ended
ARS212 B —
90412-C0016 Way, NO.1(FOR FRONT BRAKE TUBE)
2017-12 → —
ARS212 P,Q,S,U —
47312 — Tube, Front Brake, NO.2
47312-0N030 Tube, Front Brake, NO.2
2015-01 → 2017-12 ended
ARS212,GRS218 —
47312-0N050 Tube, Front Brake, NO.2
2017-12 → 2019-10 ended
ARS212 B —
47312-0N050 Tube, Front Brake, NO.2
2017-12 → —
ARS212 P,Q,S,U —
47312E — Way, NO.2(FOR FRONT BRAKE TUBE)
90412-10297 Way, NO.2(FOR FRONT BRAKE TUBE)
2015-01 → 2015-09 ended
ARS212,GRS218 —
90412-C0017 Way, NO.2(FOR FRONT BRAKE TUBE)
2015-10 → 2017-12 ended
ARS212,GRS218 —
90412-C0017 Way, NO.2(FOR FRONT BRAKE TUBE)
2017-12 → 2019-10 ended
ARS212 B —
90412-C0017 Way, NO.2(FOR FRONT BRAKE TUBE)
2017-12 → —
ARS212 P,Q,S,U —
47313 — Tube, Front Brake, NO.3
47313-0N030 Tube, Front Brake, NO.3
2015-01 → 2017-12 ended
ARS212,GRS218 —
47313-0N050 Tube, Front Brake, NO.3
2017-12 → 2019-10 ended
ARS212 B —
47313-0N050 Tube, Front Brake, NO.3
2017-12 → —
ARS212 P,Q,S,U —
47313A — Hose, Flexible, NO.1(FOR FRONT)
90947-C2072 Hose, Flexible, NO.1(FOR FRONT)
2015-01 → 2017-12 ended
ARS212,GRS218 —
90947-C2072 Hose, Flexible, NO.1(FOR FRONT)
2017-12 → 2019-10 ended
ARS212 B —
90947-C2072 Hose, Flexible, NO.1(FOR FRONT)
2017-12 → —
ARS212 P,Q,S,U —
47313B — Bolt, Union(FOR FRONT FLEXIBLE HOSE)
90401-C0001 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2015-01 → 2017-12 ended
ARS212,GRS218 —
90401-C0001 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2017-12 → —
ARS212 P,Q,S,U —
90401-C0001 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2017-12 → 2019-10 ended
ARS212 B —
47313J — Hose, Flexible, NO.2(FOR FRONT)
90947-C2072 Hose, Flexible, NO.2(FOR FRONT)
2015-01 → 2017-12 ended
ARS212,GRS218 —
90947-C2072 Hose, Flexible, NO.2(FOR FRONT)
2017-12 → 2019-10 ended
ARS212 B —
90947-C2072 Hose, Flexible, NO.2(FOR FRONT)
2017-12 → —
ARS212 P,Q,S,U —
47313P — Gasket(FOR FRONT FLEXIBLE HOSE)
47389-50021 Gasket(FOR FRONT FLEXIBLE HOSE)
2015-01 → 2017-12 ended
ARS212,GRS218 —
47389-50021 Gasket(FOR FRONT FLEXIBLE HOSE)
2017-12 → 2019-10 ended
ARS212 B —
47389-50021 Gasket(FOR FRONT FLEXIBLE HOSE)
2017-12 → —
ARS212 P,Q,S,U —
47314 — Tube, Front Brake, NO.4
47322-0N030 Tube, Front Brake, NO.4
2015-01 → 2017-12 ended
ARS212,GRS218 —
47322-0N050 Tube, Front Brake, NO.4
2017-12 → 2019-10 ended
ARS212 B —
47322-0N050 Tube, Front Brake, NO.4
2017-12 → —
ARS212 P,Q,S,U —
47315 — Tube, Front Brake, NO.5
47323-0N030 Tube, Front Brake, NO.5
2015-01 → 2017-12 ended
ARS212,GRS218 —
47323-0N050 Tube, Front Brake, NO.5
2017-12 → 2019-10 ended
ARS212 B —
47323-0N050 Tube, Front Brake, NO.5
2017-12 → —
ARS212 P,Q,S,U —
47316D — Grommet(FOR REAR BRAKE TUBE)
90480-01621 Grommet(FOR REAR BRAKE TUBE)
2015-01 → 2017-12 ended
ARS212,GRS218 —
90480-01621 Grommet(FOR REAR BRAKE TUBE)
2017-12 → 2019-10 ended
ARS212 B —
90480-01621 Grommet(FOR REAR BRAKE TUBE)
2017-12 → —
ARS212 P,Q,S,U —
47318D — Bolt, Union(FOR REAR FLEXIBLE HOSE)
90401-C0001 Bolt, Union(FOR REAR FLEXIBLE HOSE)
2015-01 → 2017-12 ended
ARS212,GRS218 —
90401-C0001 Bolt, Union(FOR REAR FLEXIBLE HOSE)
2017-12 → —
ARS212 P,Q,S,U —
90401-C0001 Bolt, Union(FOR REAR FLEXIBLE HOSE)
2017-12 → 2019-10 ended
ARS212 B —
47318E — Gasket(FOR REAR FLEXIBLE HOSE)
47389-50021 Gasket(FOR REAR FLEXIBLE HOSE)
2015-01 → 2017-12 ended
ARS212,GRS218 —
47389-50021 Gasket(FOR REAR FLEXIBLE HOSE)
2017-12 → 2019-10 ended
ARS212 B —
47389-50021 Gasket(FOR REAR FLEXIBLE HOSE)
2017-12 → —
ARS212 P,Q,S,U —
47318F — Hose, Flexible(FOR REAR RH)
90947-C2073 Hose, Flexible(FOR REAR RH)
2015-01 → 2017-12 ended
ARS212,GRS218 —
90947-C2073 Hose, Flexible(FOR REAR RH)
2017-12 → 2019-10 ended
ARS212 B —
90947-C2073 Hose, Flexible(FOR REAR RH)
2017-12 → —
ARS212 P,Q,S,U —
47319F — Hose, Flexible(FOR REAR LH)
90947-C2073 Hose, Flexible(FOR REAR LH)
2015-01 → 2017-12 ended
ARS212,GRS218 —
90947-C2073 Hose, Flexible(FOR REAR LH)
2017-12 → —
ARS212 P,Q,S,U —
90947-C2073 Hose, Flexible(FOR REAR LH)
2017-12 → 2019-10 ended
ARS212 B —
47321 — Tube, Rear Brake, NO.1
47321-0N030 Tube, Rear Brake, NO.1
2015-01 → 2017-12 ended
ARS212,GRS218 —
47321-0N050 Tube, Rear Brake, NO.1
2017-12 → 2019-10 ended
ARS212 B —
47321-0N050 Tube, Rear Brake, NO.1
2017-12 → —
ARS212 P,Q,S,U —
47324 — Tube, Rear Brake, NO.4
47324-0N031 Tube, Rear Brake, NO.4
2015-01 → 2017-12 ended
ARS212,GRS218 —
47324-0N031 Tube, Rear Brake, NO.4
2017-12 → 2019-10 ended
ARS212 B —
47324-0N031 Tube, Rear Brake, NO.4
2017-12 → —
ARS212 P,Q,S,U —
47325 — Tube, Rear Brake, NO.5
47325-0N031 Tube, Rear Brake, NO.5
2015-01 → 2017-12 ended
ARS212,GRS218 —
47325-0N031 Tube, Rear Brake, NO.5
2017-12 → —
ARS212 P,Q,S,U —
47325-0N031 Tube, Rear Brake, NO.5
2017-12 → 2019-10 ended
ARS212 B —
47371A — Clamp, Brake Tube, NO.1
90949-T1018 Clamp, Brake Tube, NO.1
2015-01 → 2017-12 ended
ARS212,GRS218 —
90949-T1018 Clamp, Brake Tube, NO.1
2017-12 → 2019-10 ended
ARS212 B —
90949-T1018 Clamp, Brake Tube, NO.1
2017-12 → —
ARS212 P,Q,S,U —
47371B — Clamp, Brake Tube, NO.6
90949-T1020 Clamp, Brake Tube, NO.6
2015-01 → 2017-12 ended
ARS212,GRS218 —
90949-T1020 Clamp, Brake Tube, NO.6
2017-12 → 2019-10 ended
ARS212 B —
90949-T1020 Clamp, Brake Tube, NO.6
2017-12 → —
ARS212 P,Q,S,U —
47371C — Clamp, Brake Tube, NO.7
90949-T1021 Clamp, Brake Tube, NO.7
2015-01 → 2017-12 ended
ARS212,GRS218 —
90949-T1021 Clamp, Brake Tube, NO.7
2017-12 → —
ARS212 P,Q,S,U —
90949-T1021 Clamp, Brake Tube, NO.7
2017-12 → 2019-10 ended
ARS212 B —
47372 — Clamp, Brake Tube, NO.2
90949-T1019 Clamp, Brake Tube, NO.2
2015-01 → 2017-12 ended
ARS212,GRS218 —
90949-T1019 Clamp, Brake Tube, NO.2
2017-12 → 2019-10 ended
ARS212 B —
90949-T1019 Clamp, Brake Tube, NO.2
2017-12 → —
ARS212 P,Q,S,U —
47373B — Clamp, Brake Tube, NO.3
90949-01D08 Clamp, Brake Tube, NO.3
2015-01 → 2017-12 ended
ARS212,GRS218 —
90949-01D08 Clamp, Brake Tube, NO.3
2017-12 → 2019-10 ended
ARS212 B —
90949-01D08 Clamp, Brake Tube, NO.3
2017-12 → —
ARS212 P,Q,S,U —
47375 — Clamp, Brake Tube, NO.5
90949-T1022 Clamp, Brake Tube, NO.5
2015-01 → 2017-12 ended
ARS212,GRS218 —
90949-01D52 Clamp, Brake Tube, NO.5
2017-12 → 2019-10 ended
ARS212 B —
90949-01D52 Clamp, Brake Tube, NO.5
2017-12 → —
ARS212 P,Q,S,U —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
