Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

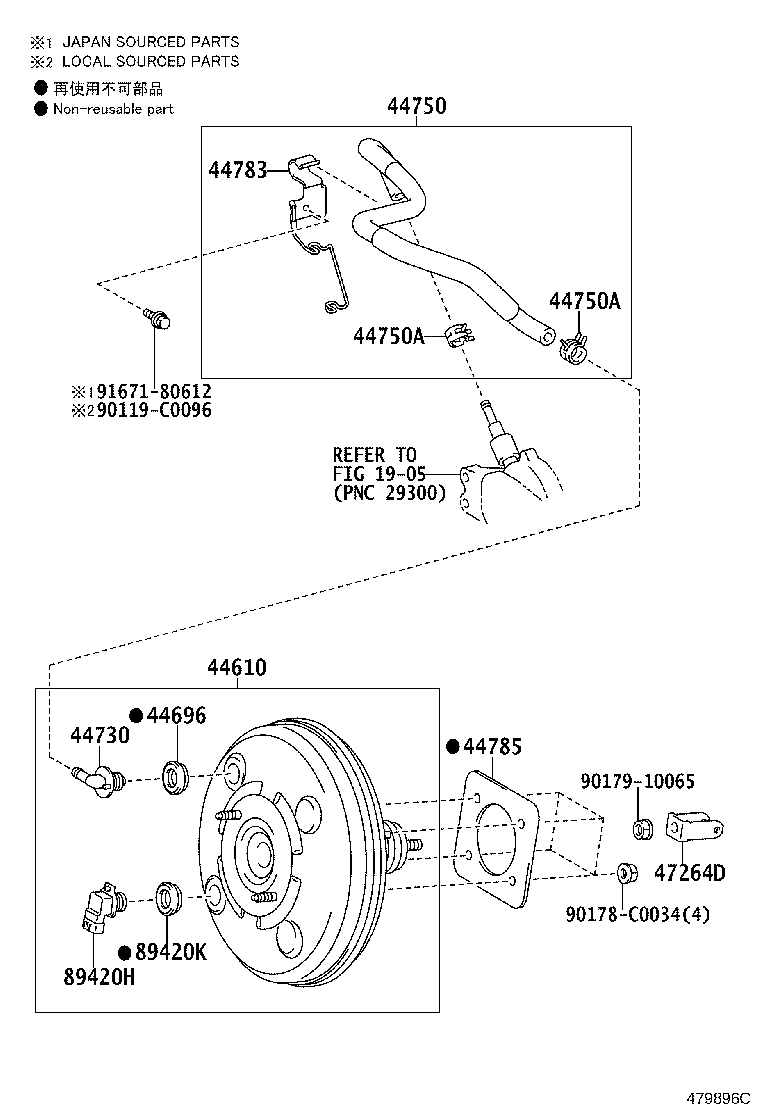

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44610 — Booster Assy, Brake | ||||
| 44610-0N060 |
Booster Assy, Brake
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 44610-0N070 |
Booster Assy, Brake
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 44610-0N070 |
Booster Assy, Brake
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 44610-0N070 |
Booster Assy, Brake
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 44696 — Grommet, Check Valve | ||||
| 90080-48071 |
Grommet, Check Valve
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90080-48071 |
Grommet, Check Valve
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90080-48071 |
Grommet, Check Valve
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 44730 — Valve Assy, Vacuum Check(FOR BRAKE) | ||||
| 44730-12070 |
Valve Assy, Vacuum Check(FOR BRAKE)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 44730-12070 |
Valve Assy, Vacuum Check(FOR BRAKE)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 44730-12070 |
Valve Assy, Vacuum Check(FOR BRAKE)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 44750 — Hose Assy, Vacuum | ||||
| 44750-0P010 |
Hose Assy, Vacuum
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 44750-53220 |
Hose Assy, Vacuum
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 44750-53220 |
Hose Assy, Vacuum
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 44750-53220 |
Hose Assy, Vacuum
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 44750A — Clip(FOR VACUUM HOSE ASSY) | ||||
| 90467-16014 |
Clip(FOR VACUUM HOSE ASSY)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90467-16014 |
Clip(FOR VACUUM HOSE ASSY)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90467-16014 |
Clip(FOR VACUUM HOSE ASSY)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 44783 — Clamp, Vacuum Hose | ||||
| 44783-30010 |
Clamp, Vacuum Hose
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 44783-30010 |
Clamp, Vacuum Hose
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 44783-30010 |
Clamp, Vacuum Hose
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 44785 — Gasket, Brake Booster | ||||
| 44785-47010 |
Gasket, Brake Booster
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 44785-47010 |
Gasket, Brake Booster
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 44785-47010 |
Gasket, Brake Booster
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 47264D — Clevis, Brake Master Cylinder Push Rod | ||||
| 47264-0N010 |
Clevis, Brake Master Cylinder Push Rod
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 47264-0N010 |
Clevis, Brake Master Cylinder Push Rod
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 47264-0N010 |
Clevis, Brake Master Cylinder Push Rod
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 89420H — Sensor Assy, Vacuum | ||||
| 89421-52020 |
Sensor Assy, Vacuum
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 89421-52020 |
Sensor Assy, Vacuum
2017-12 → —
|
ARS212 | — | |
| 89420K — Grommet, Vacuum Sensor | ||||
| 90080-48071 |
Grommet, Vacuum Sensor
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 90080-48071 |
Grommet, Vacuum Sensor
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90080-48071 |
Grommet, Vacuum Sensor
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
