Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

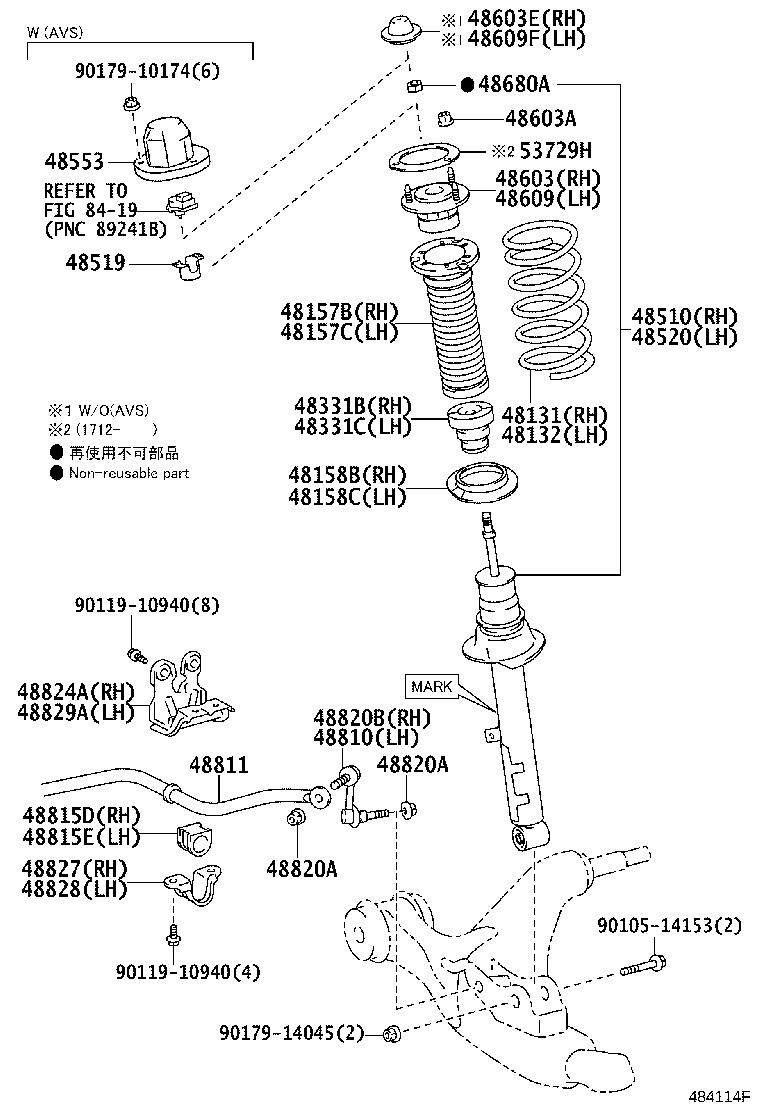

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 48131 — Spring, Front Coil, RH | ||||
| 48131-0N060 |
Spring, Front Coil, RH
2015-01 → 2017-12
ended
|
GRS218 U | — | |
| 48131-0N070 |
Spring, Front Coil, RH
2015-01 → 2017-12
ended
|
ARS212;GRS218 B,Q,S | — | |
| 48131-0N070 |
Spring, Front Coil, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48131-0N070 |
Spring, Front Coil, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48132 — Spring, Front Coil, LH | ||||
| 48131-0N060 |
Spring, Front Coil, LH
2015-01 → 2017-12
ended
|
GRS218 U | — | |
| 48131-0N070 |
Spring, Front Coil, LH
2015-01 → 2017-12
ended
|
ARS212;GRS218 B,Q,S | — | |
| 48131-0N070 |
Spring, Front Coil, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48131-0N070 |
Spring, Front Coil, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48157B — Insulator, Front Coil Spring, Upper RH | ||||
| 48157-0N020 |
Insulator, Front Coil Spring, Upper RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48157-0N020 |
Insulator, Front Coil Spring, Upper RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48157-0N020 |
Insulator, Front Coil Spring, Upper RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48157C — Insulator, Front Coil Spring, Upper LH | ||||
| 48157-0N020 |
Insulator, Front Coil Spring, Upper LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48157-0N020 |
Insulator, Front Coil Spring, Upper LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48157-0N020 |
Insulator, Front Coil Spring, Upper LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48158B — Insulator, Front Coil Spring, Lower RH | ||||
| 48158-0N010 |
Insulator, Front Coil Spring, Lower RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48158-0N010 |
Insulator, Front Coil Spring, Lower RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48158-0N010 |
Insulator, Front Coil Spring, Lower RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48158C — Insulator, Front Coil Spring, Lower LH | ||||
| 48158-0N010 |
Insulator, Front Coil Spring, Lower LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48158-0N010 |
Insulator, Front Coil Spring, Lower LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48158-0N010 |
Insulator, Front Coil Spring, Lower LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48331B — Bumper, Front Spring, RH | ||||
| 48331-30230 |
Bumper, Front Spring, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48331-30230 |
Bumper, Front Spring, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48331-30230 |
Bumper, Front Spring, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48331C — Bumper, Front Spring, LH | ||||
| 48331-30230 |
Bumper, Front Spring, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48331-30230 |
Bumper, Front Spring, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48331-30230 |
Bumper, Front Spring, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48510 — Absorber Assy, Shock, Front RH | ||||
| 48510-8Z185 note |
Absorber Assy, Shock, Front RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 48510-8Z186 note |
Absorber Assy, Shock, Front RH
2015-01 → 2017-12
ended
|
GRS218 B,Q,S | — | |
| 48510-8Z258 note |
Absorber Assy, Shock, Front RH
2015-08 → 2017-12
ended
|
ARS212 B,Q,S | — | |
| 48510-8Z185 note |
Absorber Assy, Shock, Front RH
2017-12 → —
|
ARS212 U | — | |
| 48510-8Z258 note |
Absorber Assy, Shock, Front RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48510-8Z258 note |
Absorber Assy, Shock, Front RH
2017-12 → —
|
ARS212 P,Q,S | — | |
| 48519 — Bracket, Actuator Support, Front | ||||
| 48519-30030 |
Bracket, Actuator Support, Front
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 48519-30030 |
Bracket, Actuator Support, Front
2017-12 → —
|
ARS212 U | — | |
| 48520 — Absorber Assy, Shock, Front LH | ||||
| 48520-8Z067 note |
Absorber Assy, Shock, Front LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 48520-8Z068 note |
Absorber Assy, Shock, Front LH
2015-01 → 2017-12
ended
|
GRS218 B,Q,S | — | |
| 48520-8Z119 note |
Absorber Assy, Shock, Front LH
2015-08 → 2017-12
ended
|
ARS212 B,Q,S | — | |
| 48520-8Z067 note |
Absorber Assy, Shock, Front LH
2017-12 → —
|
ARS212 U | — | |
| 48520-8Z119 note |
Absorber Assy, Shock, Front LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48520-8Z119 note |
Absorber Assy, Shock, Front LH
2017-12 → —
|
ARS212 P,Q,S | — | |
| 48553 — Cap, Shock Absorber, Upper | ||||
| 48553-30100 |
Cap, Shock Absorber, Upper
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 48553-30100 |
Cap, Shock Absorber, Upper
2017-12 → —
|
ARS212 U | — | |
| 48603 — Support Sub-assy, Front Suspension, RH | ||||
| 48609-0P040 |
Support Sub-assy, Front Suspension, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 B,Q,S | — | |
| 48609-0P050 |
Support Sub-assy, Front Suspension, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 48609-0P040 |
Support Sub-assy, Front Suspension, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48609-0P040 |
Support Sub-assy, Front Suspension, RH
2017-12 → —
|
ARS212 P,Q,S | — | |
| 48609-0P050 |
Support Sub-assy, Front Suspension, RH
2017-12 → —
|
ARS212 U | — | |
| 48603A — Nut(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10014 |
Nut(FOR FRONT SUSPENSION SUPPORT)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90178-10014 |
Nut(FOR FRONT SUSPENSION SUPPORT)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90178-10014 |
Nut(FOR FRONT SUSPENSION SUPPORT)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48603E — Plug, Hole(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90950-C1020 |
Plug, Hole(FOR FRONT SUSPENSION SUPPORT RH)
2015-01 → 2017-12
ended
|
ARS212,GRS218 B,Q,S | — | |
| 90950-C1020 |
Plug, Hole(FOR FRONT SUSPENSION SUPPORT RH)
2017-12 → —
|
ARS212 P,Q,S | — | |
| 90950-C1020 |
Plug, Hole(FOR FRONT SUSPENSION SUPPORT RH)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48609 — Support Sub-assy, Front Suspension, LH | ||||
| 48609-0P040 |
Support Sub-assy, Front Suspension, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 B,Q,S | — | |
| 48609-0P050 |
Support Sub-assy, Front Suspension, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 48609-0P040 |
Support Sub-assy, Front Suspension, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48609-0P040 |
Support Sub-assy, Front Suspension, LH
2017-12 → —
|
ARS212 P,Q,S | — | |
| 48609-0P050 |
Support Sub-assy, Front Suspension, LH
2017-12 → —
|
ARS212 U | — | |
| 48609F — Plug, Hole(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90950-C1020 |
Plug, Hole(FOR FRONT SUSPENSION SUPPORT LH)
2015-01 → 2017-12
ended
|
ARS212,GRS218 B,Q,S | — | |
| 90950-C1020 |
Plug, Hole(FOR FRONT SUSPENSION SUPPORT LH)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90950-C1020 |
Plug, Hole(FOR FRONT SUSPENSION SUPPORT LH)
2017-12 → —
|
ARS212 P,Q,S | — | |
| 48680A — Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 90177-12002 |
Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90177-12002 |
Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90177-12002 |
Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48810 — Link Assy, Front Stabilizer, LH | ||||
| 48810-0N010 |
Link Assy, Front Stabilizer, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48810-0N010 |
Link Assy, Front Stabilizer, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48810-0N010 |
Link Assy, Front Stabilizer, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48811 — Bar, Stabilizer, Front | ||||
| 48811-0N060 |
Bar, Stabilizer, Front
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48811-0N060 |
Bar, Stabilizer, Front
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48811-0N060 |
Bar, Stabilizer, Front
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48815D — Bush, Front Stabilizer Bar, RH | ||||
| 48815-0N060 |
Bush, Front Stabilizer Bar, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48815-0N060 |
Bush, Front Stabilizer Bar, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48815-0N060 |
Bush, Front Stabilizer Bar, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48815E — Bush, Front Stabilizer Bar, LH | ||||
| 48815-0N060 |
Bush, Front Stabilizer Bar, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48815-0N060 |
Bush, Front Stabilizer Bar, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48815-0N060 |
Bush, Front Stabilizer Bar, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48820A — Nut(FOR FRONT STABILIZER LINK) | ||||
| 90178-C0018 note |
Nut(FOR FRONT STABILIZER LINK)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 94151-21241 note |
Nut(FOR FRONT STABILIZER LINK)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90178-C0018 note |
Nut(FOR FRONT STABILIZER LINK)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90178-C0018 note |
Nut(FOR FRONT STABILIZER LINK)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 94151-21241 note |
Nut(FOR FRONT STABILIZER LINK)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 94151-21241 note |
Nut(FOR FRONT STABILIZER LINK)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48820B — Link Assy, Front Stabilizer, RH | ||||
| 48820-0N010 |
Link Assy, Front Stabilizer, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48820-0N010 |
Link Assy, Front Stabilizer, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48820-0N010 |
Link Assy, Front Stabilizer, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48824A — Bracket, Front Stabilizer, NO.1 RH | ||||
| 48809-0N010 note |
Bracket, Front Stabilizer, NO.1 RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48809-30060 note |
Bracket, Front Stabilizer, NO.1 RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48809-0N010 note |
Bracket, Front Stabilizer, NO.1 RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48809-0N010 note |
Bracket, Front Stabilizer, NO.1 RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48809-30060 note |
Bracket, Front Stabilizer, NO.1 RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48809-30060 note |
Bracket, Front Stabilizer, NO.1 RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48827 — Bracket, Front Stabilizer, NO.2 RH | ||||
| 48824-30150 |
Bracket, Front Stabilizer, NO.2 RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48824-30150 |
Bracket, Front Stabilizer, NO.2 RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48824-30150 |
Bracket, Front Stabilizer, NO.2 RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48828 — Bracket, Front Stabilizer, NO.2 LH | ||||
| 48824-30150 |
Bracket, Front Stabilizer, NO.2 LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48824-30150 |
Bracket, Front Stabilizer, NO.2 LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48824-30150 |
Bracket, Front Stabilizer, NO.2 LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48829A — Bracket, Front Stabilizer, NO.1 LH | ||||
| 48809-0N010 note |
Bracket, Front Stabilizer, NO.1 LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48809-30060 note |
Bracket, Front Stabilizer, NO.1 LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48809-0N010 note |
Bracket, Front Stabilizer, NO.1 LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48809-0N010 note |
Bracket, Front Stabilizer, NO.1 LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48809-30060 note |
Bracket, Front Stabilizer, NO.1 LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48809-30060 note |
Bracket, Front Stabilizer, NO.1 LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 53729H — Reinforcement, Front Spring Support, NO.3 | ||||
| 53729-53020 |
Reinforcement, Front Spring Support, NO.3
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 53729-53020 |
Reinforcement, Front Spring Support, NO.3
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
