Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

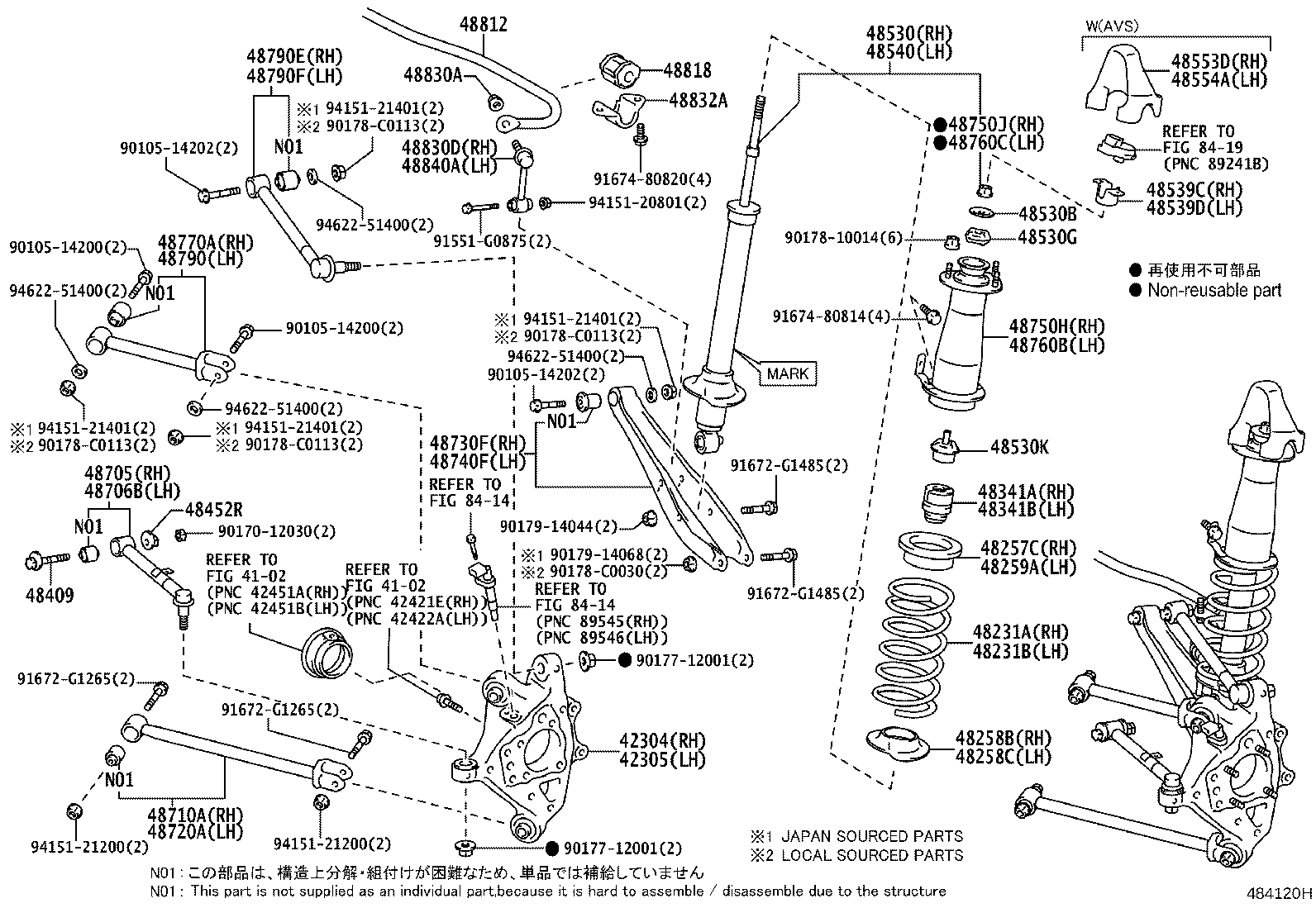

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42304 — Carrier Sub-assy, Rear Axle, RH | ||||
| 42304-0N040 |
Carrier Sub-assy, Rear Axle, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 42304-0N040 |
Carrier Sub-assy, Rear Axle, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 42304-0N040 |
Carrier Sub-assy, Rear Axle, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 42305 — Carrier Sub-assy, Rear Axle, LH | ||||
| 42305-0N040 |
Carrier Sub-assy, Rear Axle, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 42305-0N040 |
Carrier Sub-assy, Rear Axle, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 42305-0N040 |
Carrier Sub-assy, Rear Axle, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48231A — Spring, Coil, Rear RH | ||||
| 48231-0N050 |
Spring, Coil, Rear RH
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 48231-0N060 |
Spring, Coil, Rear RH
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 48231-0N060 |
Spring, Coil, Rear RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48231-0N060 |
Spring, Coil, Rear RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48231B — Spring, Coil, Rear LH | ||||
| 48231-0N050 |
Spring, Coil, Rear LH
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 48231-0N060 |
Spring, Coil, Rear LH
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 48231-0N060 |
Spring, Coil, Rear LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48231-0N060 |
Spring, Coil, Rear LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48257C — Insulator, Rear Coil Spring, Upper RH | ||||
| 48257-0N020 |
Insulator, Rear Coil Spring, Upper RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48257-0N020 |
Insulator, Rear Coil Spring, Upper RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48257-0N020 |
Insulator, Rear Coil Spring, Upper RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48258B — Insulator, Rear Coil Spring, Lower RH | ||||
| 48158-0N010 |
Insulator, Rear Coil Spring, Lower RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48158-0N010 |
Insulator, Rear Coil Spring, Lower RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48158-0N010 |
Insulator, Rear Coil Spring, Lower RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48258C — Insulator, Rear Coil Spring, Lower LH | ||||
| 48158-0N010 |
Insulator, Rear Coil Spring, Lower LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48158-0N010 |
Insulator, Rear Coil Spring, Lower LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48158-0N010 |
Insulator, Rear Coil Spring, Lower LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48259A — Insulator, Rear Coil Spring, Upper LH | ||||
| 48257-0N020 |
Insulator, Rear Coil Spring, Upper LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48257-0N020 |
Insulator, Rear Coil Spring, Upper LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48257-0N020 |
Insulator, Rear Coil Spring, Upper LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48341A — Bumper, Rear Spring, NO.1 RH | ||||
| 48341-30130 |
Bumper, Rear Spring, NO.1 RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48341-30130 |
Bumper, Rear Spring, NO.1 RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48341-30130 |
Bumper, Rear Spring, NO.1 RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48341B — Bumper, Rear Spring, NO.1 LH | ||||
| 48341-30130 |
Bumper, Rear Spring, NO.1 LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48341-30130 |
Bumper, Rear Spring, NO.1 LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48341-30130 |
Bumper, Rear Spring, NO.1 LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48409 — Cam Sub-assy, Rear Suspension Toe Adjust | ||||
| 48409-0N010 |
Cam Sub-assy, Rear Suspension Toe Adjust
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48409-0N010 |
Cam Sub-assy, Rear Suspension Toe Adjust
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48409-0N010 |
Cam Sub-assy, Rear Suspension Toe Adjust
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48452R — Plate, Rear Suspension Toe Adjust, NO.2 | ||||
| 48452-0N010 note |
Plate, Rear Suspension Toe Adjust, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48452-30040 note |
Plate, Rear Suspension Toe Adjust, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48452-0N010 note |
Plate, Rear Suspension Toe Adjust, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48452-0N010 note |
Plate, Rear Suspension Toe Adjust, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48452-30040 note |
Plate, Rear Suspension Toe Adjust, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48452-30040 note |
Plate, Rear Suspension Toe Adjust, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48530 — Absorber Assy, Shock, Rear RH | ||||
| 48530-09Z60 note |
Absorber Assy, Shock, Rear RH
2015-01 → 2017-12
ended
|
GRS218 B,Q,S | — | |
| 48530-09Z70 note |
Absorber Assy, Shock, Rear RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 48530-8Z032 note |
Absorber Assy, Shock, Rear RH
2015-08 → 2017-12
ended
|
ARS212 B,Q,S | — | |
| 48530-09Z70 note |
Absorber Assy, Shock, Rear RH
2017-12 → —
|
ARS212 U | — | |
| 48530-8Z032 note |
Absorber Assy, Shock, Rear RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48530-8Z032 note |
Absorber Assy, Shock, Rear RH
2017-12 → —
|
ARS212 P,Q,S | — | |
| 48530B — Washer, Rear Shock Absorber Cushion, NO.1 | ||||
| 90948-03021 |
Washer, Rear Shock Absorber Cushion, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90948-03021 |
Washer, Rear Shock Absorber Cushion, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90948-03021 |
Washer, Rear Shock Absorber Cushion, NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48530G — Cushion, Rear Shock Absorber, NO.1 | ||||
| 90948-C1001 |
Cushion, Rear Shock Absorber, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90948-C1001 |
Cushion, Rear Shock Absorber, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90948-C1001 |
Cushion, Rear Shock Absorber, NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48530K — Cushion, Rear Shock Absorber, NO.2 | ||||
| 90948-C1002 |
Cushion, Rear Shock Absorber, NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90948-C1002 |
Cushion, Rear Shock Absorber, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90948-C1002 |
Cushion, Rear Shock Absorber, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48539C — Bracket, Actuator Support, Rear RH | ||||
| 48539-30030 |
Bracket, Actuator Support, Rear RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 48539-30030 |
Bracket, Actuator Support, Rear RH
2017-12 → —
|
ARS212 U | — | |
| 48539D — Bracket, Actuator Support, Rear LH | ||||
| 48539-30030 |
Bracket, Actuator Support, Rear LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 48539-30030 |
Bracket, Actuator Support, Rear LH
2017-12 → —
|
ARS212 U | — | |
| 48540 — Absorber Assy, Shock, Rear LH | ||||
| 48530-09Z60 note |
Absorber Assy, Shock, Rear LH
2015-01 → 2017-12
ended
|
GRS218 B,Q,S | — | |
| 48530-09Z70 note |
Absorber Assy, Shock, Rear LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 48530-8Z032 note |
Absorber Assy, Shock, Rear LH
2015-08 → 2017-12
ended
|
ARS212 B,Q,S | — | |
| 48530-09Z70 note |
Absorber Assy, Shock, Rear LH
2017-12 → —
|
ARS212 U | — | |
| 48530-8Z032 note |
Absorber Assy, Shock, Rear LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48530-8Z032 note |
Absorber Assy, Shock, Rear LH
2017-12 → —
|
ARS212 P,Q,S | — | |
| 48553D — Cap, Rear Shock Absorber, RH | ||||
| 48553-30090 |
Cap, Rear Shock Absorber, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 48553-30090 |
Cap, Rear Shock Absorber, RH
2017-12 → —
|
ARS212 U | — | |
| 48554A — Cap, Rear Shock Absorber, LH | ||||
| 48553-30090 |
Cap, Rear Shock Absorber, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 U | — | |
| 48553-30090 |
Cap, Rear Shock Absorber, LH
2017-12 → —
|
ARS212 U | — | |
| 48705 — Link Sub-assy, Toe Control, RH | ||||
| 48705-0N040 |
Link Sub-assy, Toe Control, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48705-0N040 |
Link Sub-assy, Toe Control, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48705-0N040 |
Link Sub-assy, Toe Control, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48706B — Link Sub-assy, Toe Control, LH | ||||
| 48706-0N040 |
Link Sub-assy, Toe Control, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48706-0N040 |
Link Sub-assy, Toe Control, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48706-0N040 |
Link Sub-assy, Toe Control, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48710A — Arm Assy, Rear Suspension, NO.1 RH | ||||
| 48710-0N030 |
Arm Assy, Rear Suspension, NO.1 RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48710-0N030 |
Arm Assy, Rear Suspension, NO.1 RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48710-0N030 |
Arm Assy, Rear Suspension, NO.1 RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48720A — Arm Assy, Rear Suspension, NO.1 LH | ||||
| 48710-0N030 |
Arm Assy, Rear Suspension, NO.1 LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48710-0N030 |
Arm Assy, Rear Suspension, NO.1 LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48710-0N030 |
Arm Assy, Rear Suspension, NO.1 LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48730F — Arm Assy, Rear Suspension, NO.2 RH | ||||
| 48730-0N020 |
Arm Assy, Rear Suspension, NO.2 RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48730-0N020 |
Arm Assy, Rear Suspension, NO.2 RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48730-0N020 |
Arm Assy, Rear Suspension, NO.2 RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48740F — Arm Assy, Rear Suspension, NO.2 LH | ||||
| 48740-0N020 |
Arm Assy, Rear Suspension, NO.2 LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48740-0N020 |
Arm Assy, Rear Suspension, NO.2 LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48740-0N020 |
Arm Assy, Rear Suspension, NO.2 LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48750H — Support Assy, Rear Suspension, RH | ||||
| 48750-30151 |
Support Assy, Rear Suspension, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48750-30151 |
Support Assy, Rear Suspension, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48750-30151 |
Support Assy, Rear Suspension, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48750J — Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90179-12127 |
Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90179-12127 |
Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90179-12127 |
Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48760B — Support Assy Rear Suspension, LH | ||||
| 48750-30151 |
Support Assy Rear Suspension, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48750-30151 |
Support Assy Rear Suspension, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48750-30151 |
Support Assy Rear Suspension, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48760C — Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90179-12127 |
Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90179-12127 |
Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90179-12127 |
Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48770A — Arm Assy, Upper Control, Rear RH | ||||
| 48770-0N030 |
Arm Assy, Upper Control, Rear RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48770-0N030 |
Arm Assy, Upper Control, Rear RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48770-0N030 |
Arm Assy, Upper Control, Rear RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48790 — Arm Assy, Upper Control, Rear LH | ||||
| 48770-0N030 |
Arm Assy, Upper Control, Rear LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48770-0N030 |
Arm Assy, Upper Control, Rear LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48770-0N030 |
Arm Assy, Upper Control, Rear LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48790E — Arm Assy, Upper Control, Rear RH NO.2 | ||||
| 48790-0N030 |
Arm Assy, Upper Control, Rear RH NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48790-0N030 |
Arm Assy, Upper Control, Rear RH NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48790-0N030 |
Arm Assy, Upper Control, Rear RH NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48790F — Arm Assy, Upper Control, Rear LH NO.2 | ||||
| 48790-0N040 |
Arm Assy, Upper Control, Rear LH NO.2
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48790-0N040 |
Arm Assy, Upper Control, Rear LH NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48790-0N040 |
Arm Assy, Upper Control, Rear LH NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48812 — Bar, Stabilizer, Rear | ||||
| 48812-0N040 |
Bar, Stabilizer, Rear
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48812-0N040 |
Bar, Stabilizer, Rear
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48812-0N040 |
Bar, Stabilizer, Rear
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48818 — Bush, Stabilizer, Rear | ||||
| 48818-0N030 |
Bush, Stabilizer, Rear
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48818-0N030 |
Bush, Stabilizer, Rear
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48818-0N030 |
Bush, Stabilizer, Rear
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48830A — Nut(FOR REAR STABILIZER LINK) | ||||
| 90178-C0027 note |
Nut(FOR REAR STABILIZER LINK)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90179-12151 note |
Nut(FOR REAR STABILIZER LINK)
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90178-C0027 note |
Nut(FOR REAR STABILIZER LINK)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90178-C0027 note |
Nut(FOR REAR STABILIZER LINK)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 90179-12151 note |
Nut(FOR REAR STABILIZER LINK)
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 90179-12151 note |
Nut(FOR REAR STABILIZER LINK)
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48830D — Link Assy, Rear Stabilizer, RH | ||||
| 48830-0N010 |
Link Assy, Rear Stabilizer, RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48830-0N010 |
Link Assy, Rear Stabilizer, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48830-0N010 |
Link Assy, Rear Stabilizer, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48832A — Bracket, Rear Stabilizer Bar, NO.1 | ||||
| 48832-30060 |
Bracket, Rear Stabilizer Bar, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48832-30060 |
Bracket, Rear Stabilizer Bar, NO.1
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48832-30060 |
Bracket, Rear Stabilizer Bar, NO.1
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 48840A — Link Assy, Rear Stabilizer, LH | ||||
| 48830-0N010 |
Link Assy, Rear Stabilizer, LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 48830-0N010 |
Link Assy, Rear Stabilizer, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 48830-0N010 |
Link Assy, Rear Stabilizer, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
