Toyota Crown (CHINA)
2015-01 → 2020-04 · chassis ARS212,GRS218 · catalogue 330230 · General
Supported model
Data version 2020-05

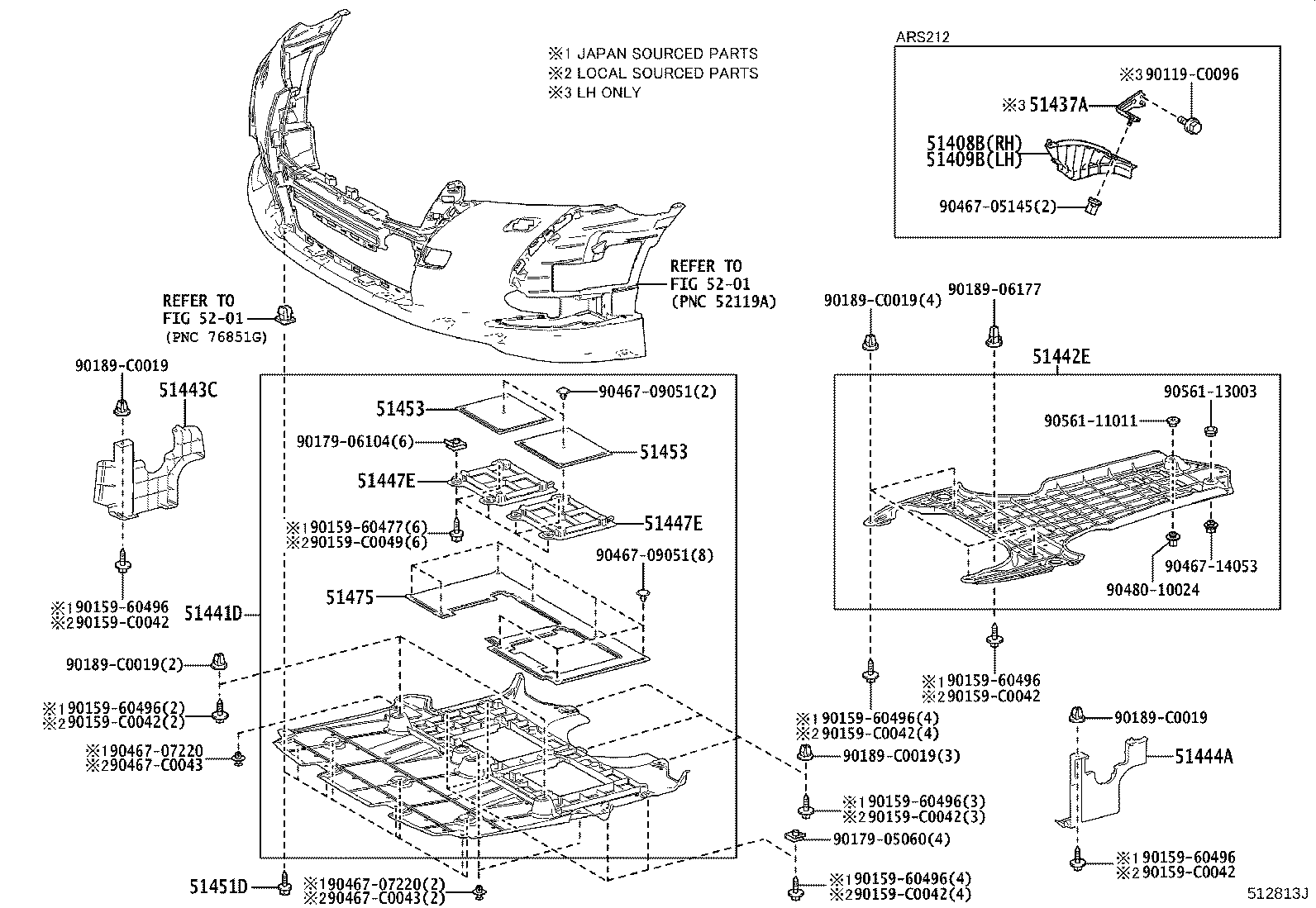

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51408B — Cover Sub-assy, Engine Under, RH | ||||
| 51477-0N011 |
Cover Sub-assy, Engine Under, RH
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 51477-0N011 |
Cover Sub-assy, Engine Under, RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 51477-0N011 |
Cover Sub-assy, Engine Under, RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 51409B — Cover Sub-assy, Engine Under, LH | ||||
| 51478-0N011 |
Cover Sub-assy, Engine Under, LH
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 51478-0N011 |
Cover Sub-assy, Engine Under, LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 51478-0N011 |
Cover Sub-assy, Engine Under, LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 51437A — Bracket, Engine Side Cover, NO.1 LH | ||||
| 51437-0N010 |
Bracket, Engine Side Cover, NO.1 LH
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 51437-0N010 |
Bracket, Engine Side Cover, NO.1 LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 51437-0N010 |
Bracket, Engine Side Cover, NO.1 LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 51441D — Cover, Engine Under | ||||
| 51410-0N060 |
Cover, Engine Under
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 51410-0N060 |
Cover, Engine Under
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 51410-0N060 |
Cover, Engine Under
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 51442E — Cover, Engine Under, NO.2 | ||||
| 51442-0N020 |
Cover, Engine Under, NO.2
2015-01 → 2017-12
ended
|
GRS218 | — | |
| 51442-0N030 |
Cover, Engine Under, NO.2
2015-08 → 2017-12
ended
|
ARS212 | — | |
| 51442-0N030 |
Cover, Engine Under, NO.2
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 51442-0N030 |
Cover, Engine Under, NO.2
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 51443C — Cover, Engine Under, Rear RH | ||||
| 51443-0N010 |
Cover, Engine Under, Rear RH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 51443-0N010 |
Cover, Engine Under, Rear RH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 51443-0N010 |
Cover, Engine Under, Rear RH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 51444A — Cover, Engine Under, Rear LH | ||||
| 51444-0N010 |
Cover, Engine Under, Rear LH
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 51444-0N010 |
Cover, Engine Under, Rear LH
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 51444-0N010 |
Cover, Engine Under, Rear LH
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 51447E — Reinforcement, Engine Under Cover | ||||
| 51447-0N030 |
Reinforcement, Engine Under Cover
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 51447-0N030 |
Reinforcement, Engine Under Cover
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 51447-0N030 |
Reinforcement, Engine Under Cover
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 51451D — Screw, NO.1 | ||||
| 90159-C0049 |
Screw, NO.1
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 90159-C0049 |
Screw, NO.1
2017-12 → —
|
ARS212 | — | |
| 51453 — Silencer, Engine Under Cover, Front | ||||
| 51453-0N010 |
Silencer, Engine Under Cover, Front
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 51453-0N010 |
Silencer, Engine Under Cover, Front
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 51453-0N010 |
Silencer, Engine Under Cover, Front
2017-12 → —
|
ARS212 P,Q,S,U | — | |
| 51475 — Silencer, Engine Under Cover, NO.5 | ||||
| 51475-0N030 |
Silencer, Engine Under Cover, NO.5
2015-01 → 2017-12
ended
|
ARS212,GRS218 | — | |
| 51475-0N030 |
Silencer, Engine Under Cover, NO.5
2017-12 → 2019-10
ended
|
ARS212 B | — | |
| 51475-0N030 |
Silencer, Engine Under Cover, NO.5
2017-12 → —
|
ARS212 P,Q,S,U | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
